S PRE-SHAPED HOOKS FOR PLAIN TILES
TILE STOP S

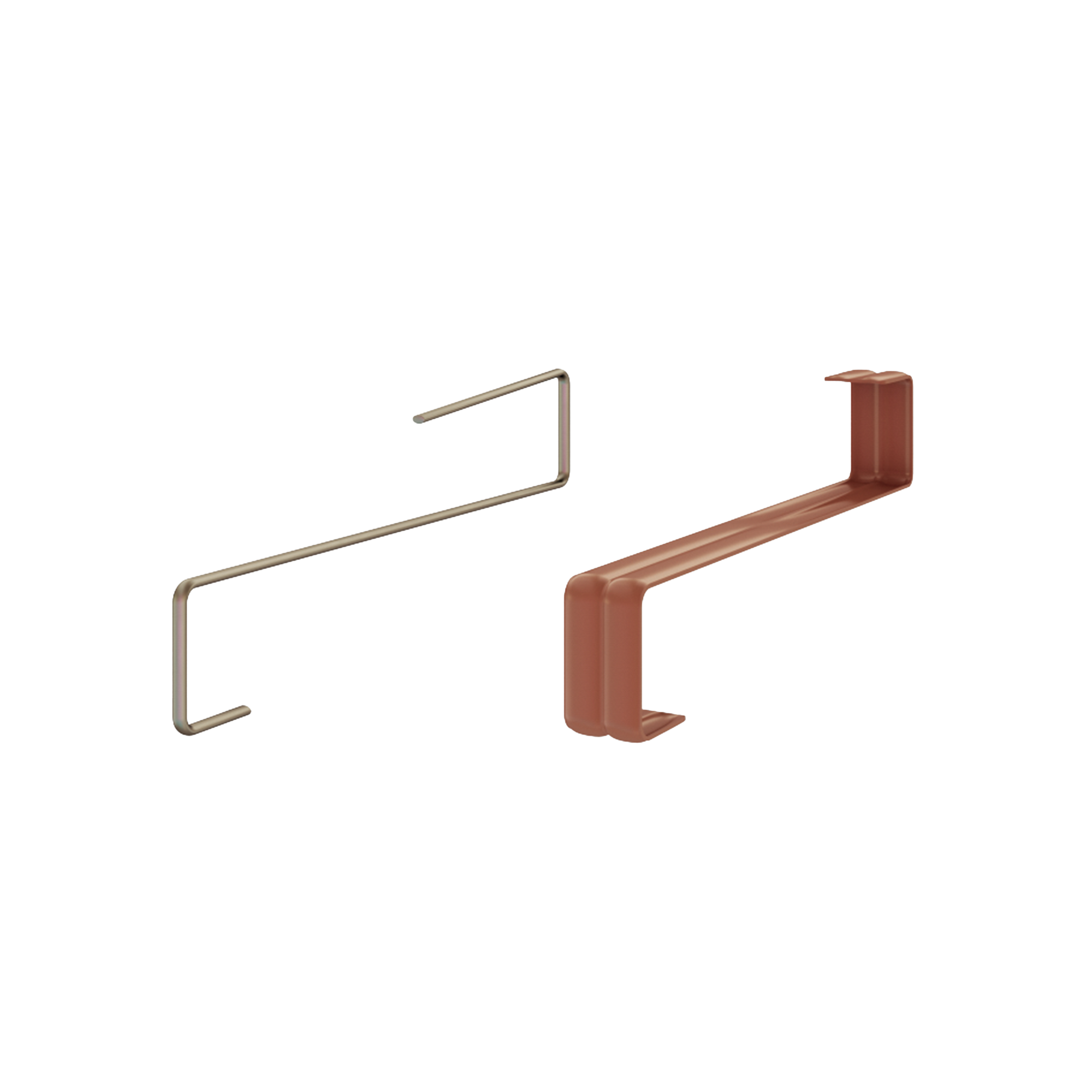

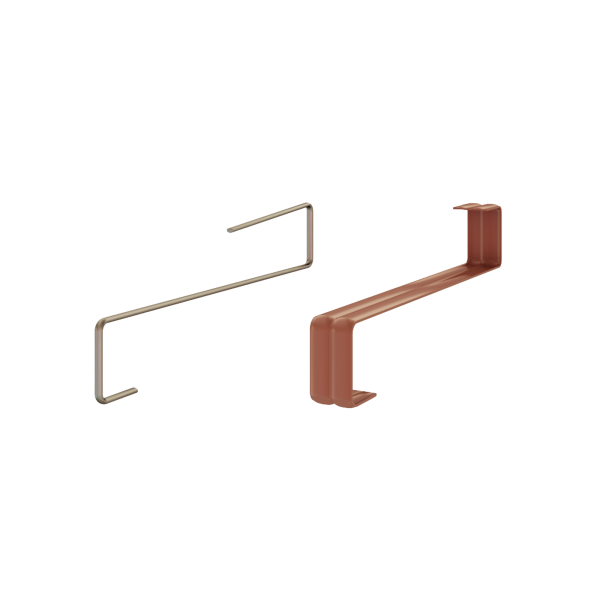

TILE STOP S are the S-shaped hooks used for installing the subsequent tiles after using the L-shaped hook for the first row of tiles on the pitch, allowing the weight to be transferred to the lower tile.
TILE STOP S, the pre-shaped hooks that are indispensable for a professionally constructed roof.
The pre-shaped "s" hooks are available in various sizes; the height of the hook ranges from 16 to 20 mm, the length from 90 to 120 mm and are available in pre-painted Siena red and brown sheet metal, copper-plated stainless steel tape and stainless steel.
Indispensable in order to create a professional roofing system as required by the Italian UNI 9460 standard, they avoid installation using foam or mortar and guarantee a stable and long-lasting roofing system. They make it easier to replace and maintain the tiles.
Documents
| Technical data sheets |
|---|
TILE STOP S
| CODE | L
[mm]
|
H
[mm]
|
L
[in]
|
H
[in]
|
material | colour | RAL | pcs. |
|---|---|---|---|---|---|---|---|---|
| TSSI9016 | 90 | 16 | 3.5 | 0.6 | AISI 204 | STEEL | - | 100 |
| TSSI9020 | 90 | 20 | 3.5 | 0.8 | AISI 204 | STEEL | - | 100 |
| TSSI12016 | 120 | 16 | 4.7 | 0.6 | AISI 204 | STEEL | - | 50 |
| TSSI12020 | 120 | 20 | 4.7 | 0.8 | AISI 204 | STEEL | - | 50 |
| TSSRED9016 | 90 | 16 | 3.5 | 0.6 | pre-painted metal sheet | BRICK RED | 3009 | 50 |
| TSSRED9020 | 90 | 20 | 3.5 | 0.8 | pre-painted metal sheet | BRICK RED | 3009 | 50 |
| TSSRED12016 | 120 | 16 | 4.7 | 0.6 | pre-painted metal sheet | BRICK RED | 3009 | 50 |
| TSSRED12020 | 120 | 20 | 4.7 | 0.8 | pre-painted metal sheet | BRICK RED | 3009 | 50 |
| TSSBRO9016 | 90 | 16 | 3.5 | 0.6 | pre-painted metal sheet | BROWN | 8019 | 100 |
| TSSBRO9020 | 90 | 20 | 3.5 | 0.8 | pre-painted metal sheet | BROWN | 8019 | 100 |
| TSSCOP9016 | 90 | 16 | 3.5 | 0.6 | stainless steel tape | COPPER | - | 100 |
| TSSCOP9020 | 90 | 20 | 3.5 | 0.8 | stainless steel tape | COPPER | - | 100 |
