PRE-BENT GRID FOR VENTILATION

VENT FOLD

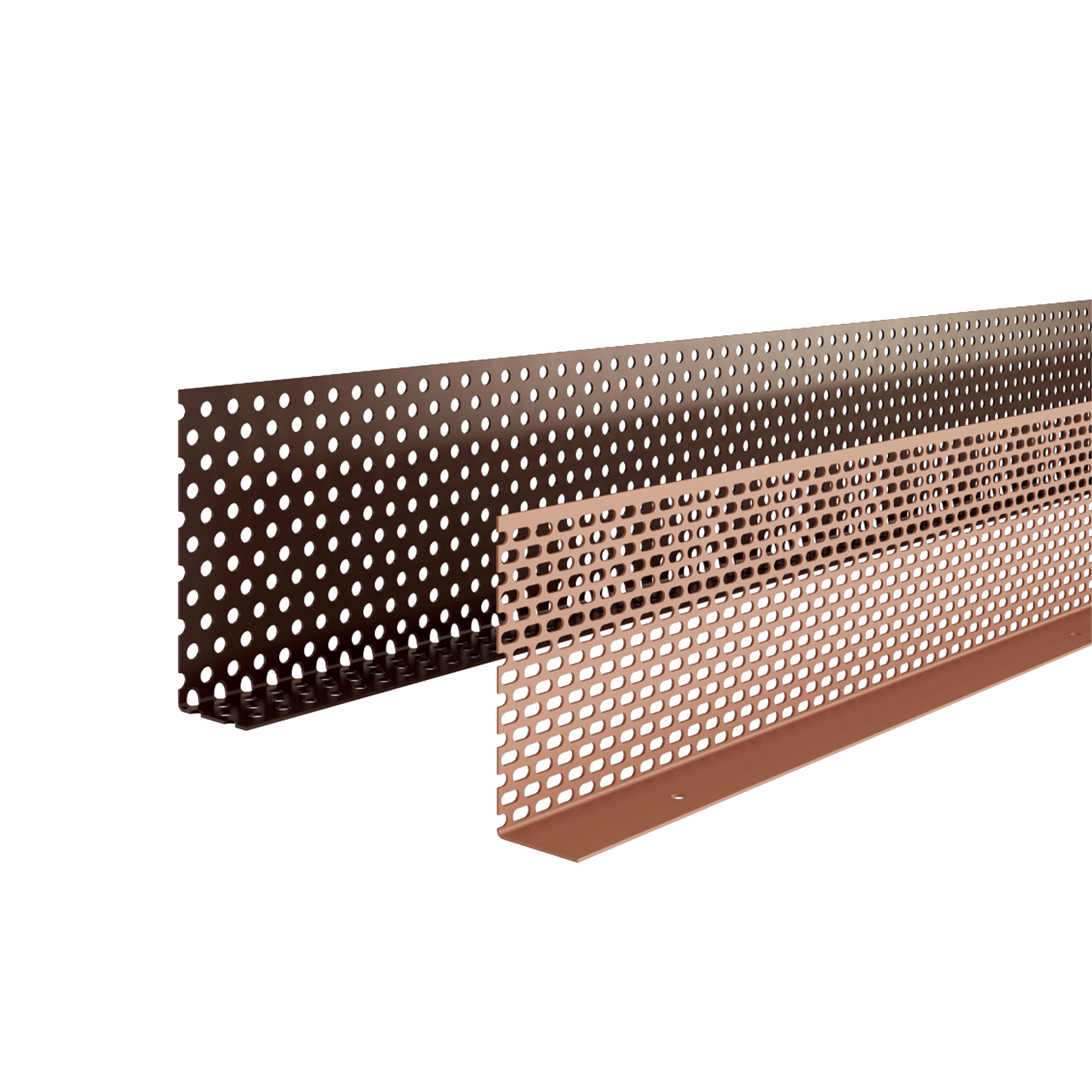

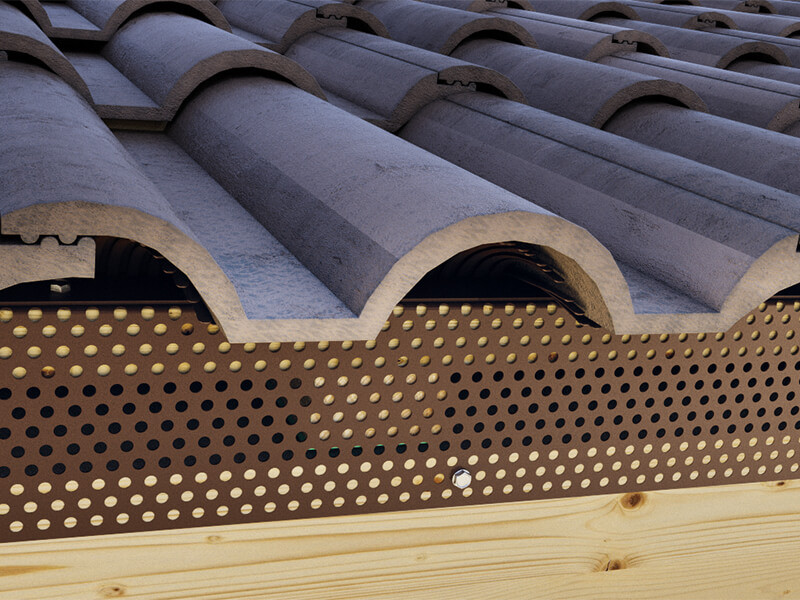

VENT FOLD, the pre-bent ventilation grilles, which, thanks to their special L-shape, ensure easy and smooth installation because they can be attached directly to the batten through the foot. They are conveniently attached directly to the façade and can be used as ventilation grilles for the ventilated façade.

VENT FOLD, the extremely weather-resistant pre-bent ventilation grille.

Metal version in pre-painted sheet metal available in brick red and brown, in two sizes. The foot measures 3 cm and the top measures 7 or 9 cm. Also available in polypropylene version, double colour brick red and brown, with a 7 or 9 cm high part.

Find the nearest agent Download the catalogue

Documents

Technical data sheets
Find the nearest agent Download the catalogue

VENT FOLD

CODE H
[mm]
 B
[mm]
 L
[m]
 H
[in]
 B
[in]
 L
[ft]
 material colour RAL pcs.
VENTFSRED7030 70 30 1.5 2.76 1.2 5 pre-painted metal sheet BRICK RED 8004 20
VENTFSBRO7030 70 30 1.5 2.76 1.2 5 pre-painted metal sheet BROWN 8017 20
VENTFSRED9030 90 30 1.5 3.55 1.2 5 pre-painted metal sheet BRICK RED 8004 20
VENTFSBRO9030 90 30 1.5 3.55 1.2 5 pre-painted metal sheet BROWN 8017 20
VENTFPRED7030 70 30 2.5 2.76 1.2 9 PP BRICK RED 8004 20
VENTFPBRO7030 70 30 2.5 2.76 1.2 9 PP BROWN 8017 20
VENTFPRED9030 90 30 2.5 3.55 1.2 9 PP BRICK RED 8004 20
VENTFPBRO9030 90 30 2.5 3.55 1.2 9 PP BROWN 8017 20
