VENT GRILLE
PVC VENTILATION GRID

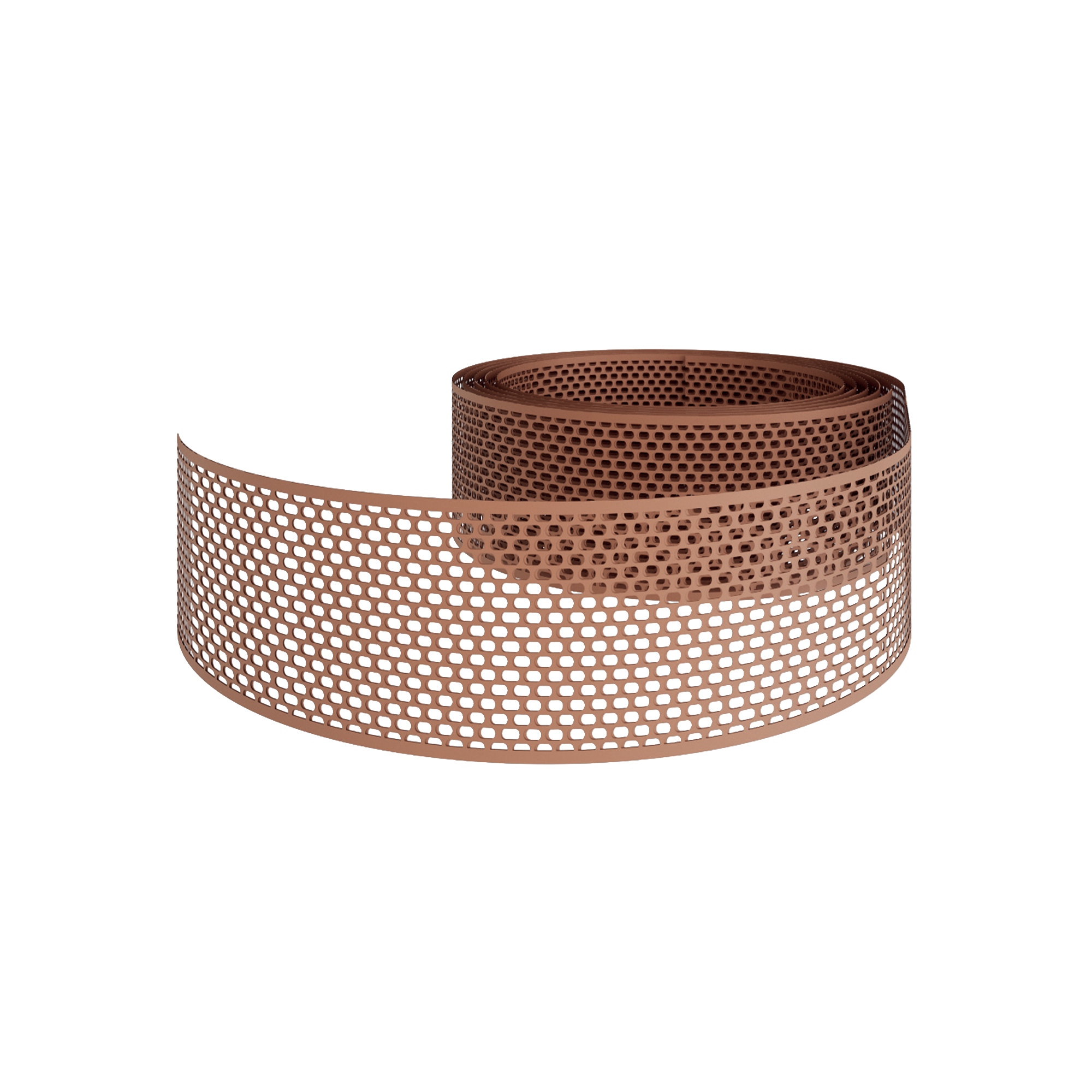

VENT GRILLE is a PVC ventilation grille that protects the ventilation chamber from intrusion without restricting ventilation.
Description
VENT GRILLE, the durable and easy-to-install PVC ventilation grille.
Available in two colours, brick red and black, and in two different sizes 80 mm and 100 mm. The installation of this element is very easy, by mechanical fixing on the battens that delimit the ventilation chamber. UV and weather resistant.
Documents
-
Technical data sheets
- Technical data sheets Croatian
- Technical data sheets Czech
- Technical data sheets English
- Technical data sheets French
- Technical data sheets German
- Technical data sheets Greek
- Technical data sheets Hungarian
- Technical data sheets Italian
- Technical data sheets Polish
- Technical data sheets Portuguese
- Technical data sheets Romanian
- Technical data sheets Russian
- Technical data sheets Slovene
- Technical data sheets Spanish
VENT GRILLE
| CODE | H
[mm]
|
L
[m]
|
H
[in]
|
L
[ft]
|
material | colour | RAL | pcs. |
|---|---|---|---|---|---|---|---|---|
| VENTG80R | 80 | 5 | 3.1 | 16 | PVC | BRICK RED | 8004 | 24 |
| VENTG80B | 80 | 5 | 3.1 | 16 | PVC | BLACK | 9005 | 24 |
| VENTG100R | 100 | 5 | 3.9 | 16 | PVC | BRICK RED | 8004 | 24 |
| VENTG100B | 100 | 5 | 3.9 | 16 | PVC | BLACK | 9005 | 24 |
