VENTILATION GRID FOR ROOFS MADE OF TILES OF VARIOUS SHAPE

VENT SHAPE

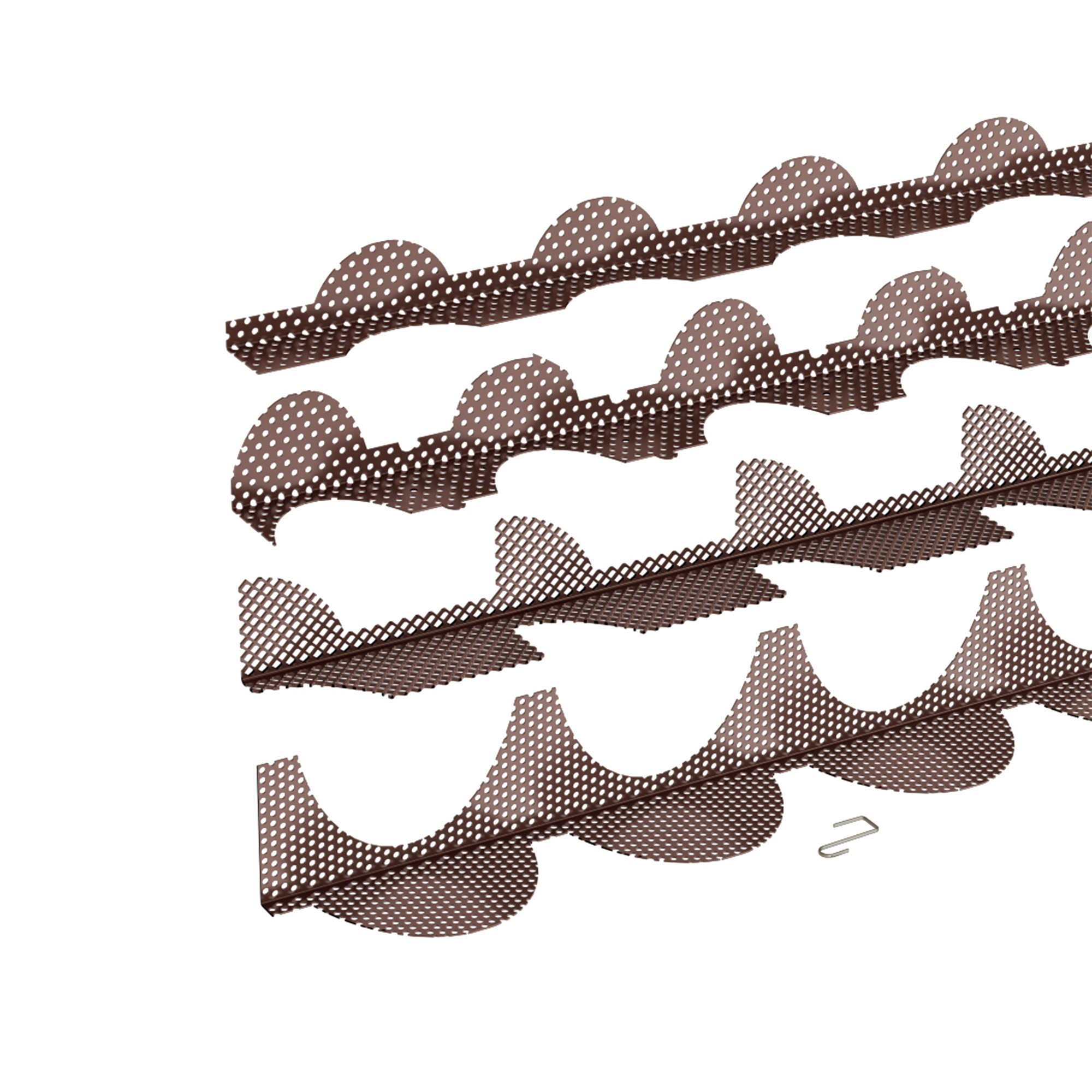

VENT SHAPE is the line of shaped ventilation grids for roofs made of ridge tiles and tiles.

VENT SHAPE, the shaped ventilation grilles stable against weather and UV rays.

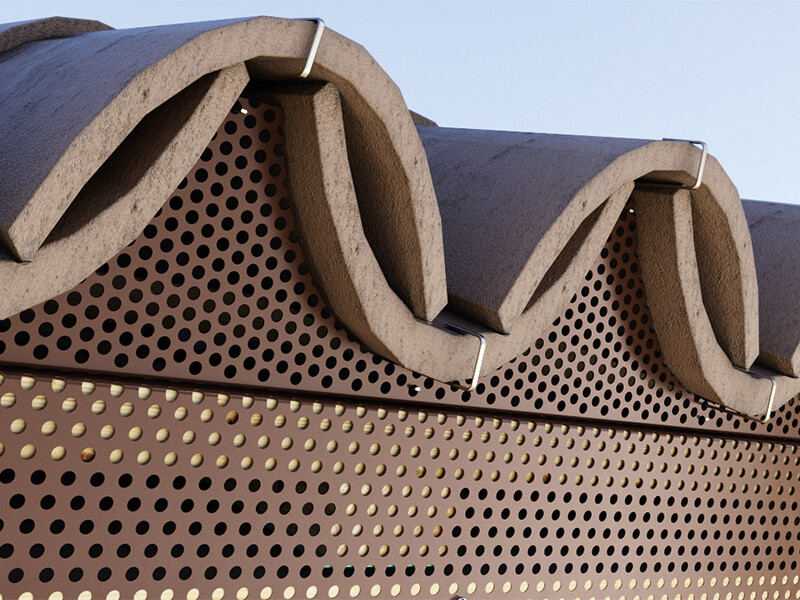

Made of sheet metal, the VENT SHAPE shaped ventilation grilles are durable and perfectly weatherproof. The pre-bending and shaping during production of VENT SHAPE makes installation immediate, without the need for additional supports.

The choice of metal material ensures excellent UV stability even in harsh climate zones. They allow under-tile micro-ventilation, protecting the roof from the entry of leaves and animals.

Documents

Technical data sheets

VENT SHAPE

CODE H
[mm]
P
[mm]
L
[mm]
H
[in]
P
[in]
L
[in]
version material colour RAL pcs.
VENTSBRO9015 90 195 975 3.5 7.7 - - perforated metal sheet BROWN 8017 10
VENTSBRO7519 75 200 - 3 7.9 - - expanded metal sheet BROWN 8017 10
VENTSBRO4520 45 300 900 1.8 11.8 - - perforated metal sheet BROWN 8017 10
VENTSBRO7020 70 300 900 2.8 11.8 - - perforated metal sheet BROWN 8017 10
VENTSHOOK 20 - 50 0.8 - - - stainless steelstrap STEEL - 100
