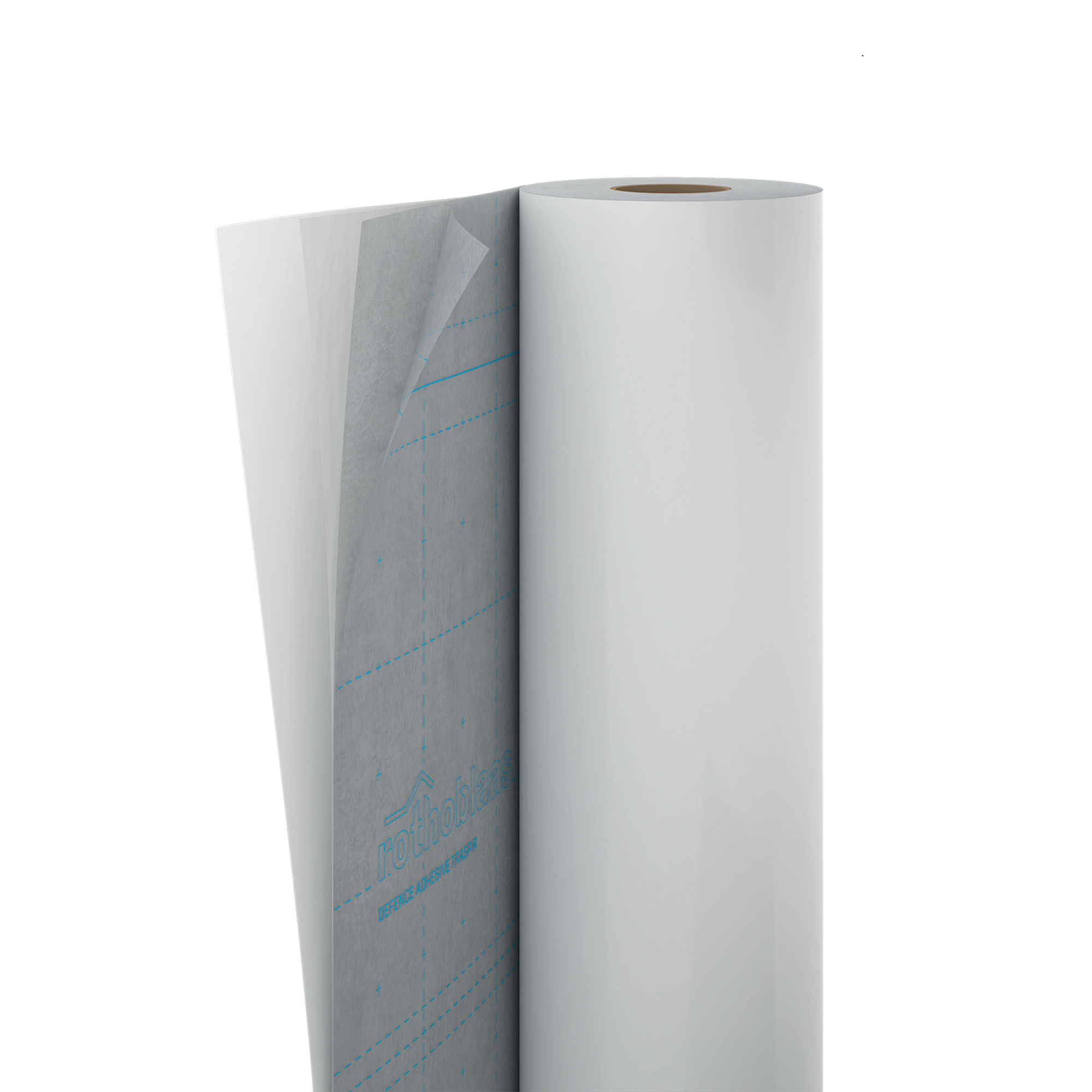

SELF-ADHESIVE BREATHABLE MONOLITHIC MEMBRANE
DEFENCE ADHESIVE TRASPIR EVO
The homogeneous and continuous monolithic functional layer provides maximum protection against the passage of water and high breathability.
The special compound ensures significant weather resistance and excellent durability over time.
Thanks to the patented glue, the membrane remains perfectly breathable even when fully bonded, allowing any wet elements to dry out.
Easy to install thanks to the semi-transparent structure that allows the underlying structure to be visible.
Documents
Technical data sheets
|
|
|---|---|
| Declaration of performance (DOP) | Download |
File BIM.rfa
|
|
Recommendations for installation
|
DEFENCE ADHESIVE TRASPIR EVO
| CODE | description | liner | H
[m]
|
L
[m]
|
A
[m²]
|
H
[ft]
|
L
[ft]
|
A
[sft]
|
pcs./pallet |
|---|---|---|---|---|---|---|---|---|---|
| DEFATRASP | DEFENCE ADHESIVE TRASPIR EVO 1.55m | 150/1400 | 1.55 | 50 | 77.5 | 5' 1'' | 164 | 834 | 25 |
| DEFATRASP385 | DEFENCE ADHESIVE TRASPIR EVO STRIPE | 192.5/192.5 | 0.385 | 50 | 19.25 | - | 164 | 207 | 48 |
| DEFATRASP490 | DEFENCE ADHESIVE TRASPIR EVO 50cm | 245/245 | 0.49 | 50 | 24.5 | 1' 7 1/4'' | 164 | 264 | 24 |
| DEFATRASP990 | DEFENCE ADHESIVE TRASPIR EVO 1m | 495/495 | 0.99 | 50 | 49.5 | 3' 3'' | 164 | 533 | 24 |
Technical Data
| Property | Standard | Tested Values | USC Conversion |
|---|---|---|---|
| Mass per unit area | EN 1849-2 | 175 g/m² | 0.57 oz/ft² |
| Thickness | EN 1849-2 | 0,35 mm | 14 mil |
| Water vapour transmission (Sd) | EN 1931 | 0,19 m | 18.403 US perm |
| Tensile strength MD/CD | EN 12311-1 | 120 / 75 N/50mm | 14 / 9 lbf/in |
| Elongation MD/CD | EN 12311-1 | 65 / 75 % | - |
| Resistance to nail tearing MD/CD | EN 12310-1 | 50 / 70 N | 11 / 16 lbf |
| Watertightness | EN 1928 | class W1 | - |
| Resistance to temperature | - | -40 / 100 °C | -40 / 212 °F |
| Reaction to fire | EN 13501-1 | class E | - |
| Resistance to penetration of air | EN 12114 | < 0,02 m³/(m²·h·50Pa) | < 0.001 cfm/ft² at 50Pa |
| Thermal conductivity (λ) | - | 0,3 W/(m·K) | 0.17 BTU/(h·ft·°F) |
| Specific heat | - | 1800 J/(kg·K) | - |
| Density | - | ca. 580 kg/m³ | - |
| Water vapour resistance factor (μ) | - | ca. 630 | - |
| Exposure to weather | - | 14 weeks | - |
| Watertightness after artificial ageing | EN 1297 / EN 1928 | class W1 | - |
| Watertightness at 100°C after artificial ageing | EN 1297 / EN 1928 | class W1 | - |
| After artificial ageing - Tensile strength MD/CD | EN 1297 / EN 12311-1 | > 60 / 40 N/50mm | > 7 / 5 lb/in |
| After artificial ageing - elongation | EN 1297 / EN 12311-1 | > 30 / 40 % | - |
| Solvents | - | no | - |
| Adhesion strength on OSB at 180° after 10 minutes | EN ISO 29862 | 4,5 N/10mm | 2.6 lbf/in |
| Adhesion strength on OSB at 90° after 10 minutes | EN ISO 29862 | 2 N/10mm | 1.1 lbf/in |
| Shear adhesion strength of the overlap after 24 hours | EN 12317-2 | 150 N/50mm | 17.1 lbf/in |
| Adhesion strength (average) of the overlap after 24 hours | EN 12316-2 | 16 N/50mm | 1.8 lbf/in |
| Storage temperature | - | 5 / 30 °C | 41 / 86 °F |
| Application temperature | - | -5 / 35 °C | 23 / 95 °F |
Specifications
DEFENCE ADHESIVE TRASPIR EVO
Supply and installation of self-adhesive breathable monolithic membrane, like DEFENCE ADHESIVE TRASPIR EVO.
Composition
From top layer to bottom layer:
monolithic PU coated breathable film;
non-woven PP fabric;
breathable, durable and solvent-free glue;
precut plastic film.
Properties
Mass per unit area [g/m²]: 175
Thickness [mm]: 0,35
Water vapour transmission (Sd)[m]: 0,19
Tensile strength MD/CD [N/50 mm]: 120/75
Elongation MD/CD [%]: 65/75
Resistance to nail tearing MD/CD [N]: 50/70
Watertightness: W1 (EN 1928)
Reaction to fire: class E (EN 13501-1)
Resistance to temperature [°C]: -40/+100
UV stability: 1000h (8 months)
Exposure to weather: 14 weeks
Storage temperature [°C]: +5/+30
Application temperature [°C]: -5/+35
Standards and certifications
CE marked in accordance with EN 13859-1/2
Description

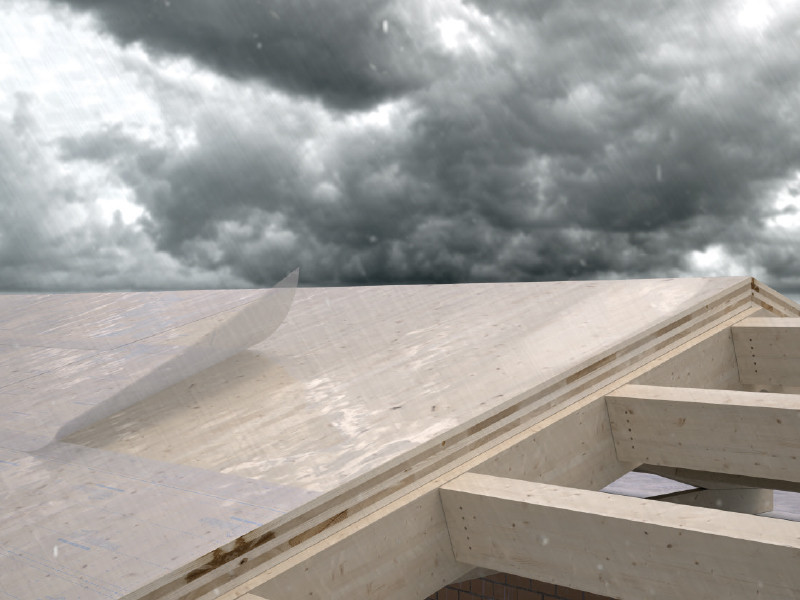

The membrane can be used for temporary protection, rather than as a long-term functional layer, of construction elements (walls and floors) for a maximum duration of 14 weeks.
The application surface must be dry, free of dust and grease, and not be anti-adhesive. Surface elements must be removed so that the membrane is not damaged during application.
Once applied, the product allows for easy visibility of powder tracer markings and underlying mounting holes.
Installation:
Unroll the membrane over the surface to be protected, progressively remove the release film from the adhesive, and press the membrane firmly to ensure proper adhesion. In case of a mistake during installation, the membrane can be repositioned and reapplied without difficulty during the first few minutes.
Ensure that the overlap between the membranes is at least 15 cm to achieve an optimal seal.

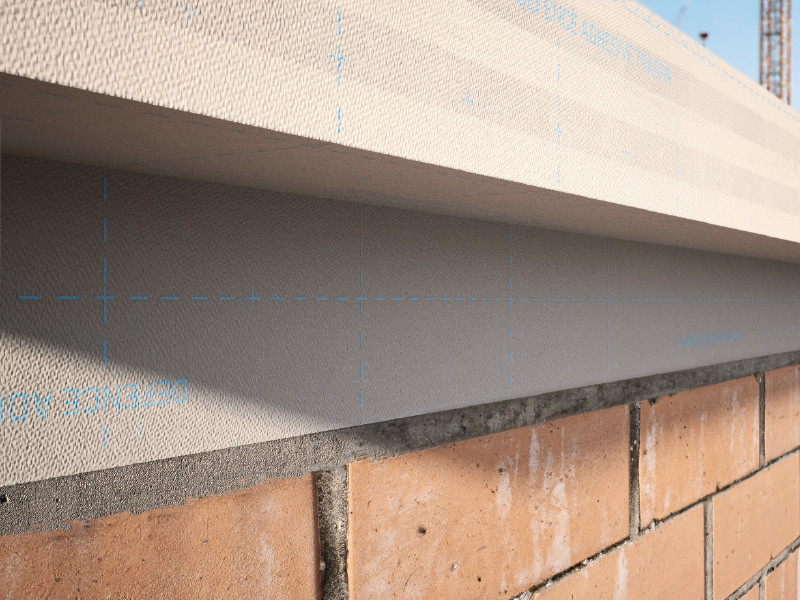

If installed on walls, the membrane must be laid horizontally, starting from the base of the wall and progressing upwards to the top.
Further details regarding installation can be found in the specific instructions provided by the supplier.
Composition
| TOP LAYER | breathable monolithic PU film |
|---|---|
| BOTTOM LAYER | non-woven PP fabric |
| GLUE | solvent-free UV-crosslinked acrylic |
| RELEASE LINER | - |
