New
COLLUM

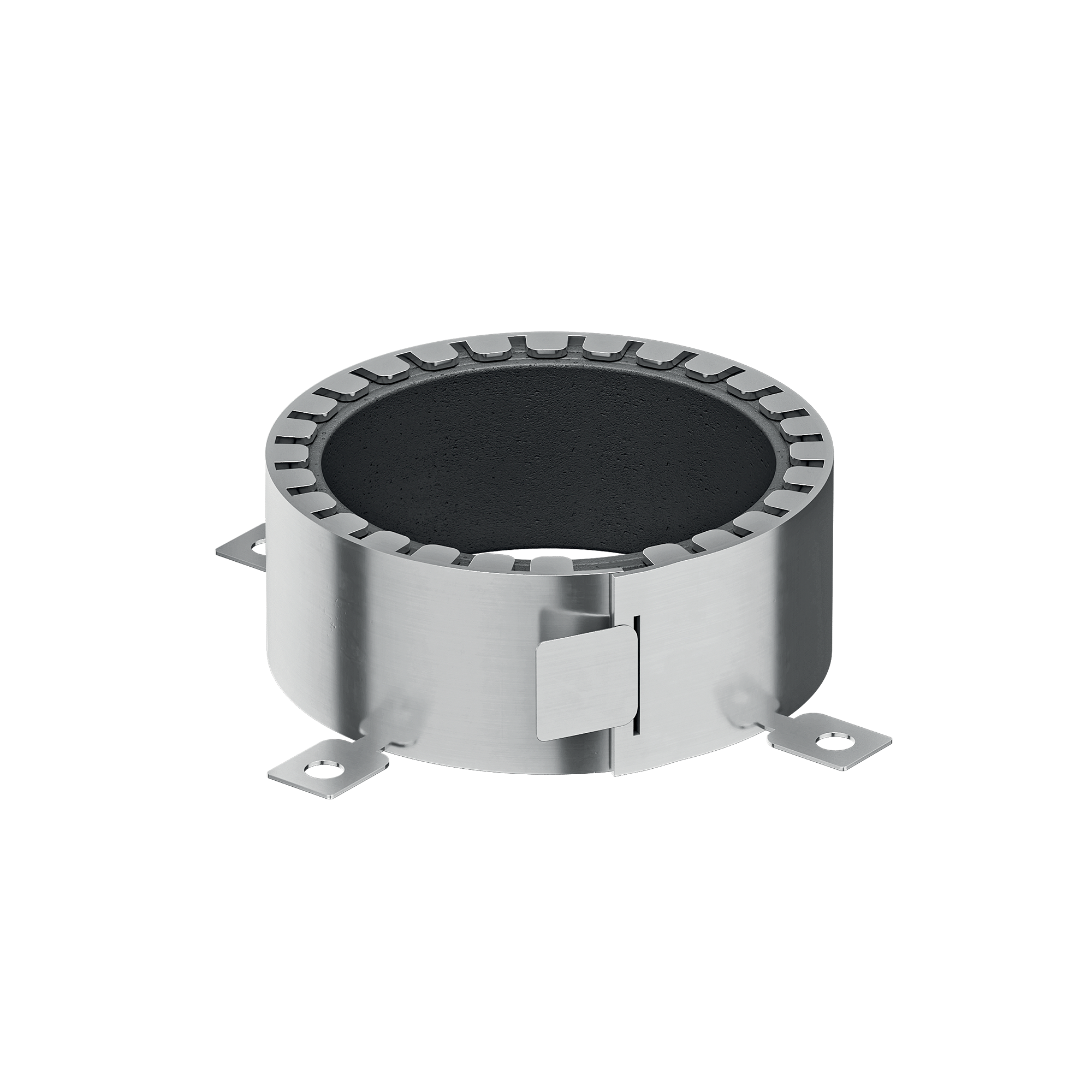

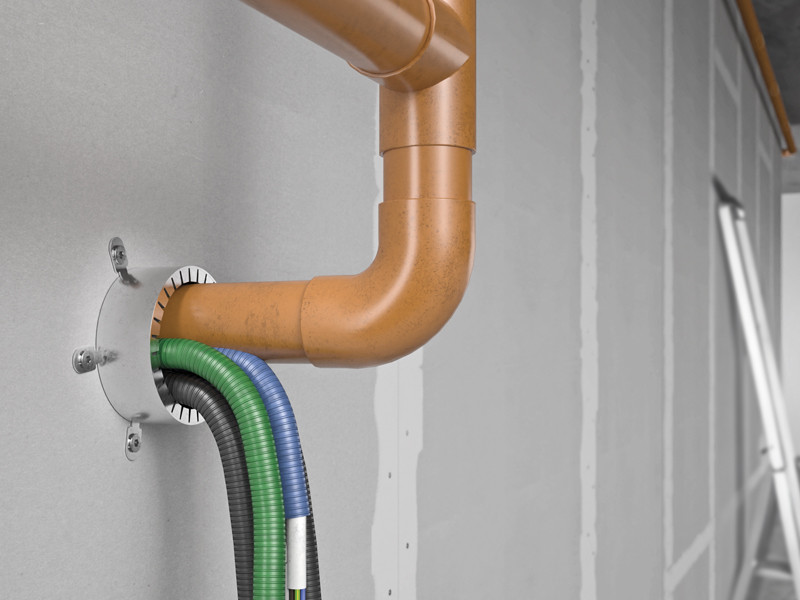

FIRESTOP COLLAR FOR MECHANICAL AND ELECTRICAL TECHNICAL PENETRATIONS
It can be applied to penetrations of specific types and diameters. Quick and easy installation.
The outer stainless steel structure allows its application in wet environments, and the highly expansive intumescent strip ensures protection for
large-sized elements.
Documents
-
Technical data sheets
- Technical data sheets Croatian
- Technical data sheets Czech
- Technical data sheets English
- Technical data sheets French
- Technical data sheets German
- Technical data sheets Greek
- Technical data sheets Hungarian
- Technical data sheets Italian
- Technical data sheets Polish
- Technical data sheets Portuguese
- Technical data sheets Romanian
- Technical data sheets Russian
- Technical data sheets Slovene
- Technical data sheets Spanish
-
ETA Certificate
-
Fire test report
COLLUM
| CODE | d₁
[mm]
|
H
[mm]
|
diametro
[in]
|
H
[in]
|
pcs. |
DOP
|
|---|---|---|---|---|---|---|
| COLLUM30 | 30 | 50 | 1.2 | 1 15/16'' | 60 | |
| COLLUM63 | 63 | 50 | 2.5 | 1 15/16'' | 20 | |
| COLLUM80 | 80 | 50 | 3.1 | 1 15/16'' | 16 | |
| COLLUM90 | 90 | 50 | 3.5 | 1 15/16'' | 16 | |
| COLLUM100 | 100 | 50 | 3.9 | 1 15/16'' | 8 | |
| COLLUM110 | 110 | 50 | 4.3 | 1 15/16'' | 8 | |
| COLLUM125 | 125 | 70 | 4.9 | 2 3/4'' | 4 | |
| COLLUM140 | 140 | 70 | 5.5 | 2 3/4'' | 3 | |
| COLLUM160 | 160 | 70 | 6.3 | 2 3/4'' | 3 | |
| COLLUM315 | 315 | 200 | 12.4 | 8'' | 1 |
