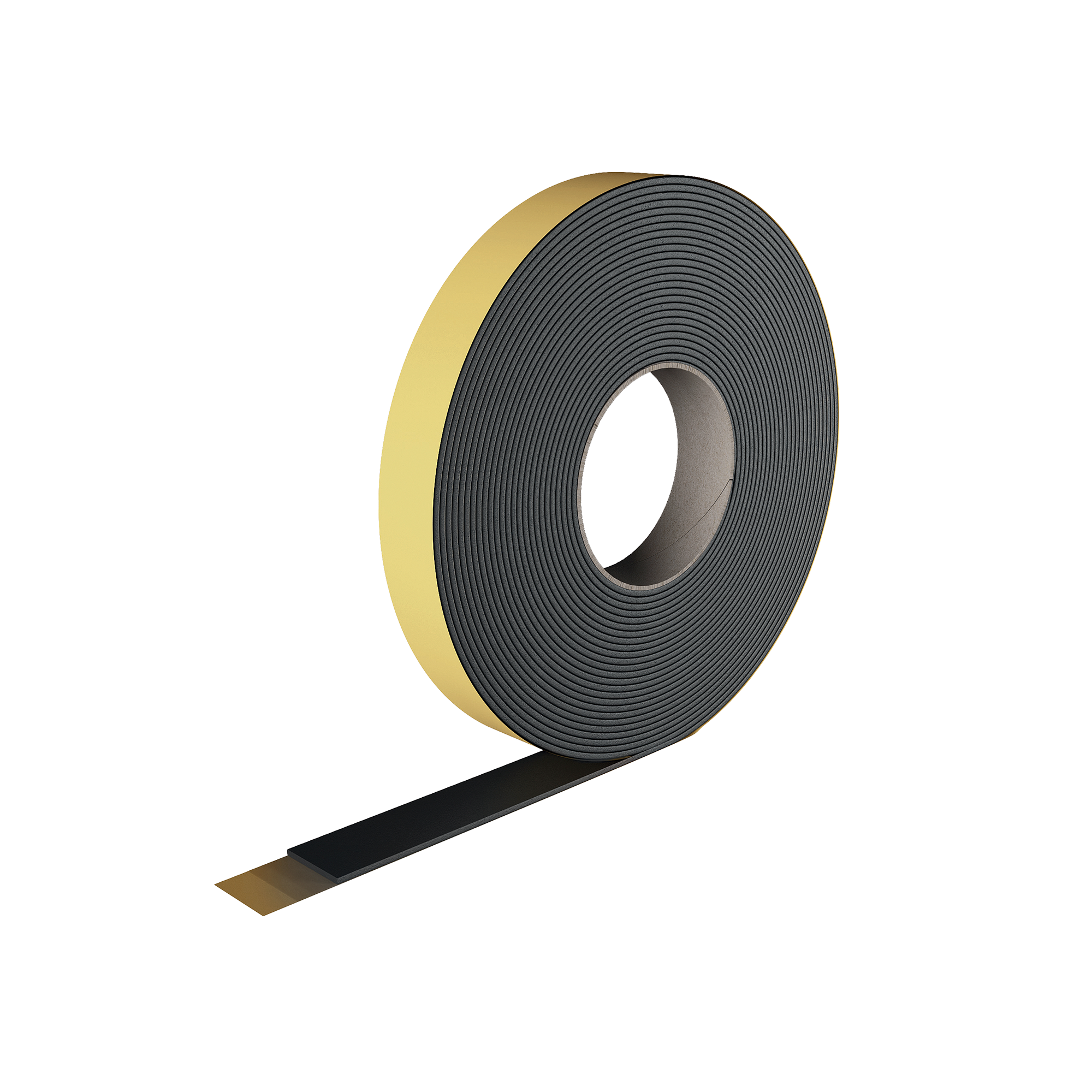

FIRE STRIPE GRAPHITE
FLEXIBLE INTUMESCENT GASKET
FIRE STRIPE GRAPHITE is an intumescent gasket that expands three-dimensionally in the event of fire, blocking flames, smoke and gases. Asbestos-free, its intumescence is due to the special graphite technology.
Description

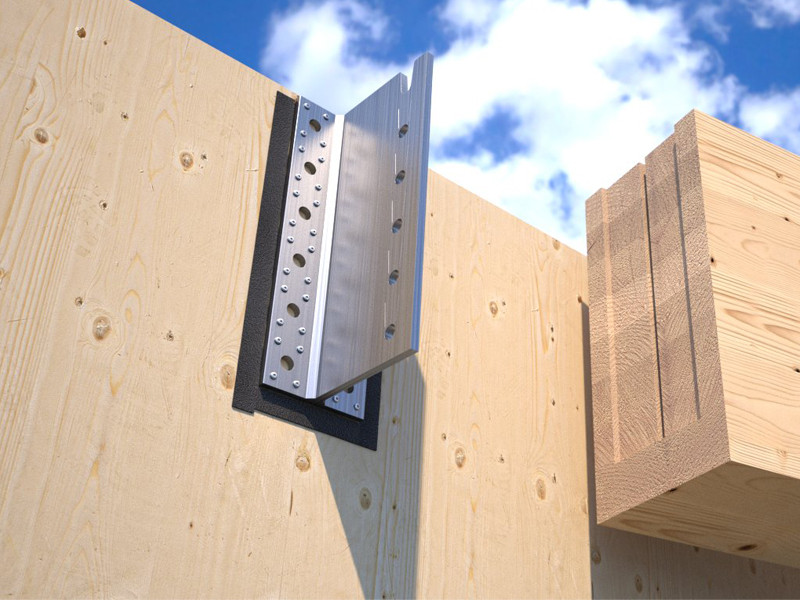

Because of its ability to expand, the FIRE STRIPE GRAPHITE profile ensures that fumes, gases and flames are blocked from room temperature to over 500°C. FIRE STRIPE GRAPHITE is a versatile element that can be used within different construction details offering a simple and practical fire protection solution.
FIRE STRIPE GRAPHITE, the intumescent, flexible gasket that ensures your safety.
Starting at 150 °C, the profile transforms into a foam and achieves thicknesses up to 10 times greater than its original thickness, guaranteeing effective protection even in the vicinity of connections.
The FIRE STRIPE GRAPHITE gasket can be cut with scissors or a cutter and can be installed easily due to its adhesive surface, making it a very convenient and simple element to apply.
Documents
-
Technical data sheets
-
Fire test report
FIRE STRIPE GRAPHITE
| CODE | B
[mm]
|
s
[mm]
|
L
[m]
|
B
[in]
|
s
[mil]
|
L
[ft]
|
pcs. |
|---|---|---|---|---|---|---|---|
| FIRESTRIPEG25 | 25 | 1.5 | 50 | 1 | 59 | 164 | 7 |
Technical Data
| Property | Standard | Tested Values | USC Conversion |
|---|---|---|---|
| Density | - | ca. 1500 kg/m³ | - |
| Flammability | UL 94 | V0 | - |
| Watertightness | - | compliant | - |
| Expansion start temperature | - | > 180 °C | > 356 °F |
| Optimal expansion temperature | - | > 210 °C | > 410 °F |
| Thermal expansion after 30 minutes at 300 °C | EOTA TR 024 | 5 x spessore iniziale | - |
| Thermal expansion after 30 minutes at 450°C | EOTA TR 024 | 8 x spessore iniziale | - |
| Thermal expansion after 30 minutes at 550°C | EOTA TR 024 | 10 x spessore iniziale | - |
| Application temperature | - | 15 / 30 °C | 59 / 86 °F |
