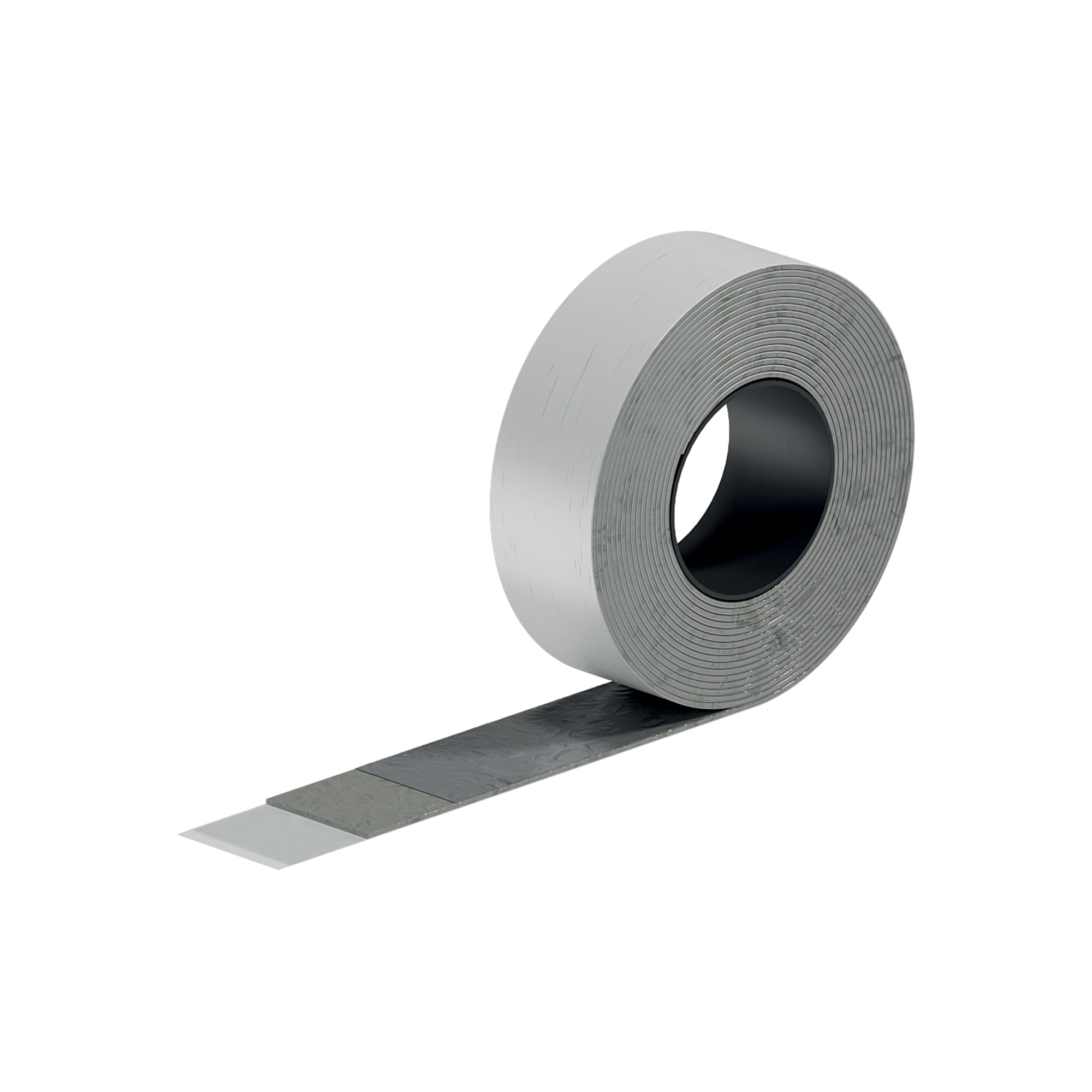

NAIL BAND
NAIL BAND butyl nail point sealant tape is a butyl sealant developed for sealing perforations in membranes caused by fastening ventilation battens. Thanks to its modified butyl formulation, it ensures excellent durability even when subjected to thermal stress.
Also suitable for installation at low temperatures.
NAIL BAND, the elastic and durable butyl nail point sealant tape.
Description

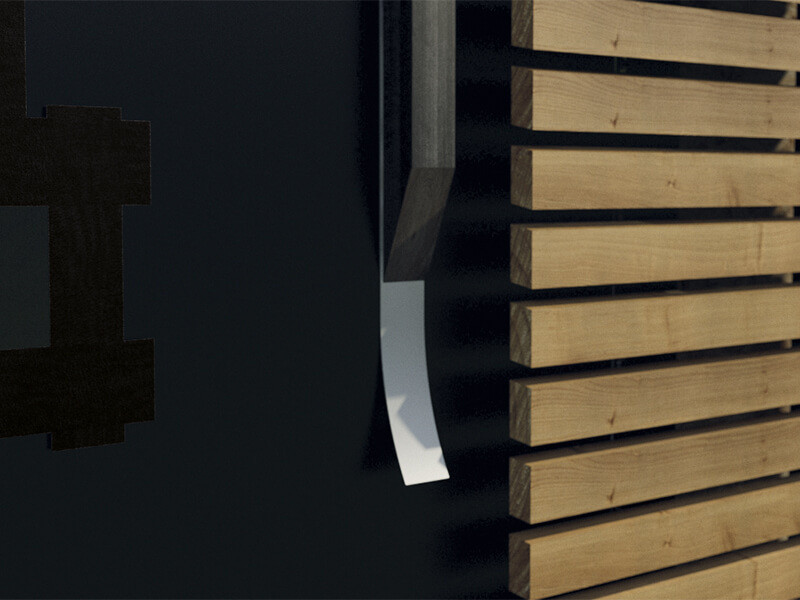

NAIL BAND is a self-sealing nail point tape: due to its elasticity, butyl tends to seal around the screw or nail used to fix the battens or elements on which it is installed.
Butyl ensures excellent adhesion to supports in harsh environmental conditions, and provides excellent durability even when subjected to thermal stress, maintaining elasticity and impermeability over time.
Documents
-
Technical data sheets
- Technical data sheets Croatian
- Technical data sheets Czech
- Technical data sheets English
- Technical data sheets French
- Technical data sheets German
- Technical data sheets Greek
- Technical data sheets Hungarian
- Technical data sheets Italian
- Technical data sheets Polish
- Technical data sheets Portuguese
- Technical data sheets Romanian
- Technical data sheets Russian
- Technical data sheets Slovene
- Technical data sheets Spanish
NAIL BAND
| CODE | B
[mm]
|
s
[mm]
|
L
[m]
|
B
[in]
|
s
[mil]
|
L
[ft]
|
pcs. |
|---|---|---|---|---|---|---|---|
| NAILBAND50 | 50 | 1 | 15 | 2 | 39 | 49 | 12 |
Technical Data
| Property | Standard | Tested Values | USC Conversion |
|---|---|---|---|
| Tensile strength MD/CD | EN 12311-1 | 40 / 40 N/50mm | 5 / 5 lbf/in |
| Elongation MD/CD | EN 12311-1 | 600 / 600 % | - |
| Adhesion strength on steel at 180° | ASTM D1000 | 22 N/10mm | 12.6 lbf/in |
| Initial Tack | ASTM D2979 | 7,2 N | 1.6 lbf |
| Resistance to temperature | - | -40 / 100 °C | -40 / 212 °F |
| Application temperature (1 ) | - | 0 / 40 °C | 32 / 104 °F |
| Storage temperature | - | 5 / 40 °C | 41 / 104 °F |
| Reaction to fire | EN 13501-1 | class E | - |
| Solvents | - | no | - |
Composition
| SUPPORT | - |
|---|---|
| GLUE | grey adhesive butyl compound |
| RELEASE LINER | silicone coated paper |
