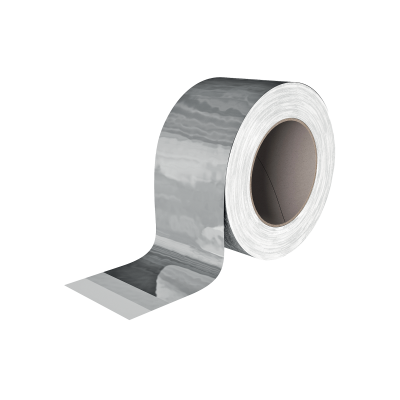

ALU BAND
REFLECTIVE SINGLE-SIDED ADHESIVE TAPE FOR INDOOR USE
ALU BAND is a single-sided reflective tape for indoor use that provides thermal resistance up to 130°C.

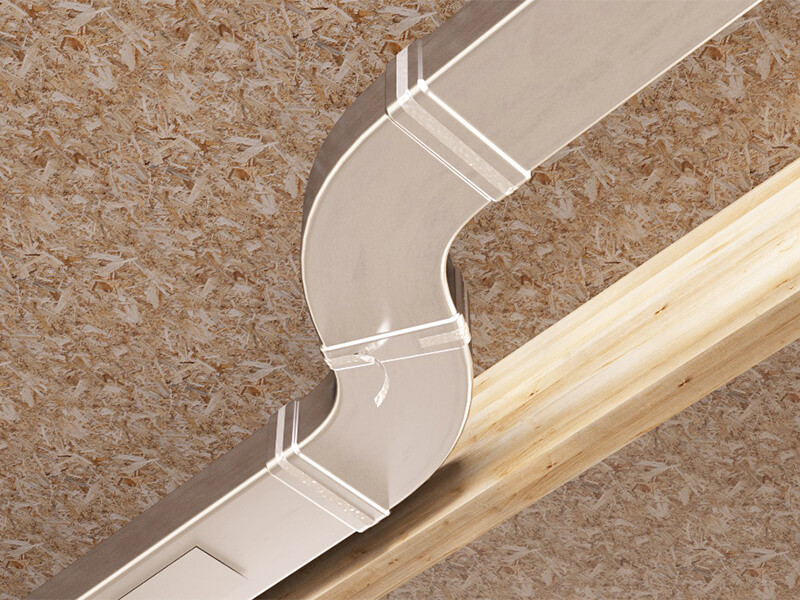

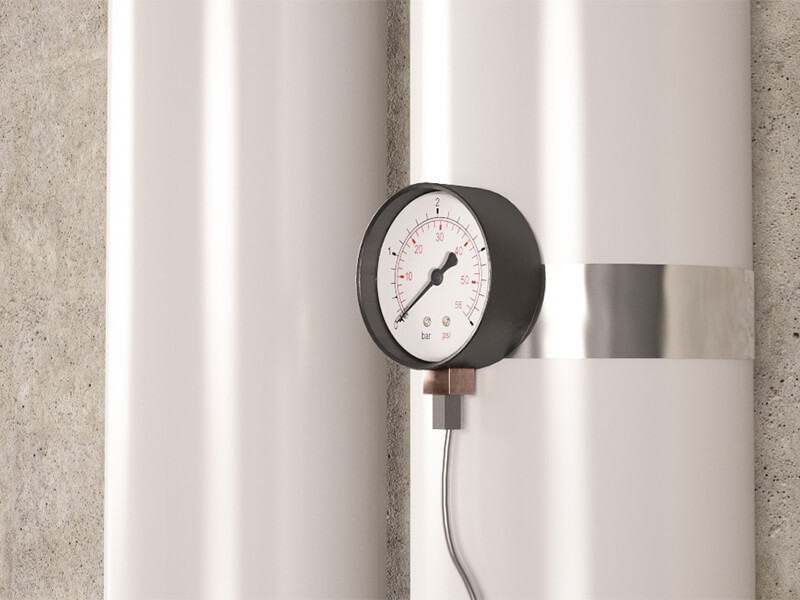

It is a versatile tape applicable on thermo-hydraulic structures thanks to its high thermal reflectance and the glue that guarantees excellent adhesion.
Description

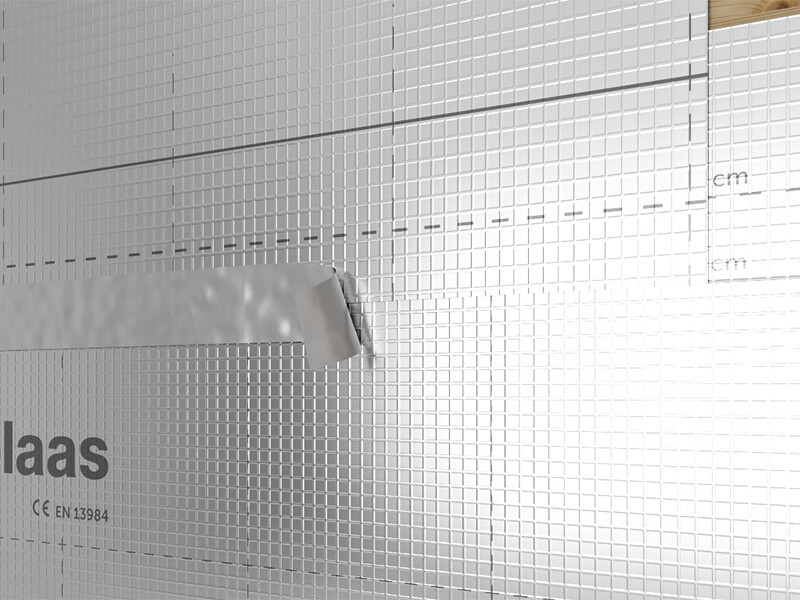

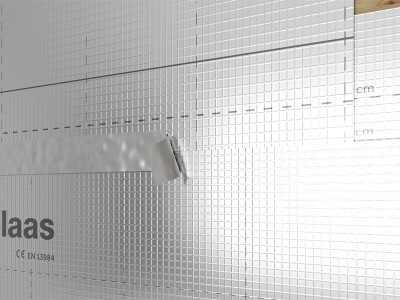

ALU BAND reflective tape: optimal sealing of thermo-hydraulic structures in combination with barrier alu products

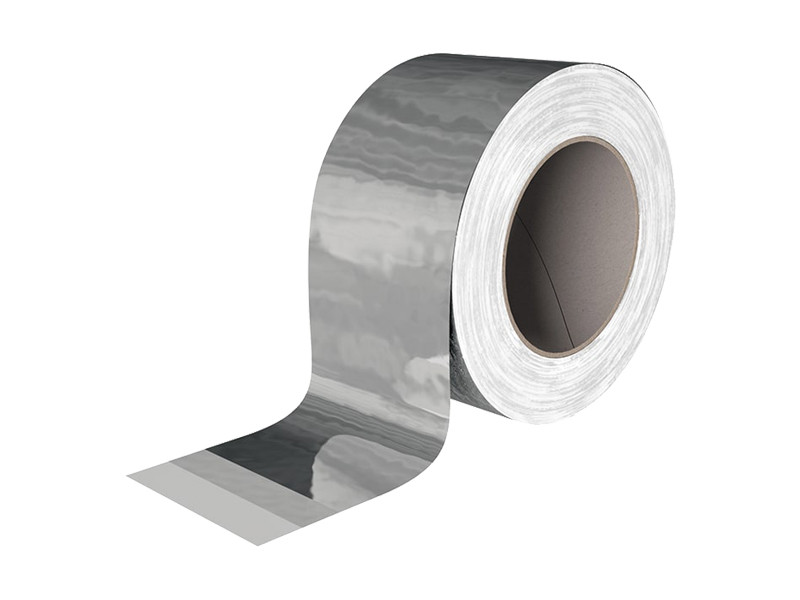

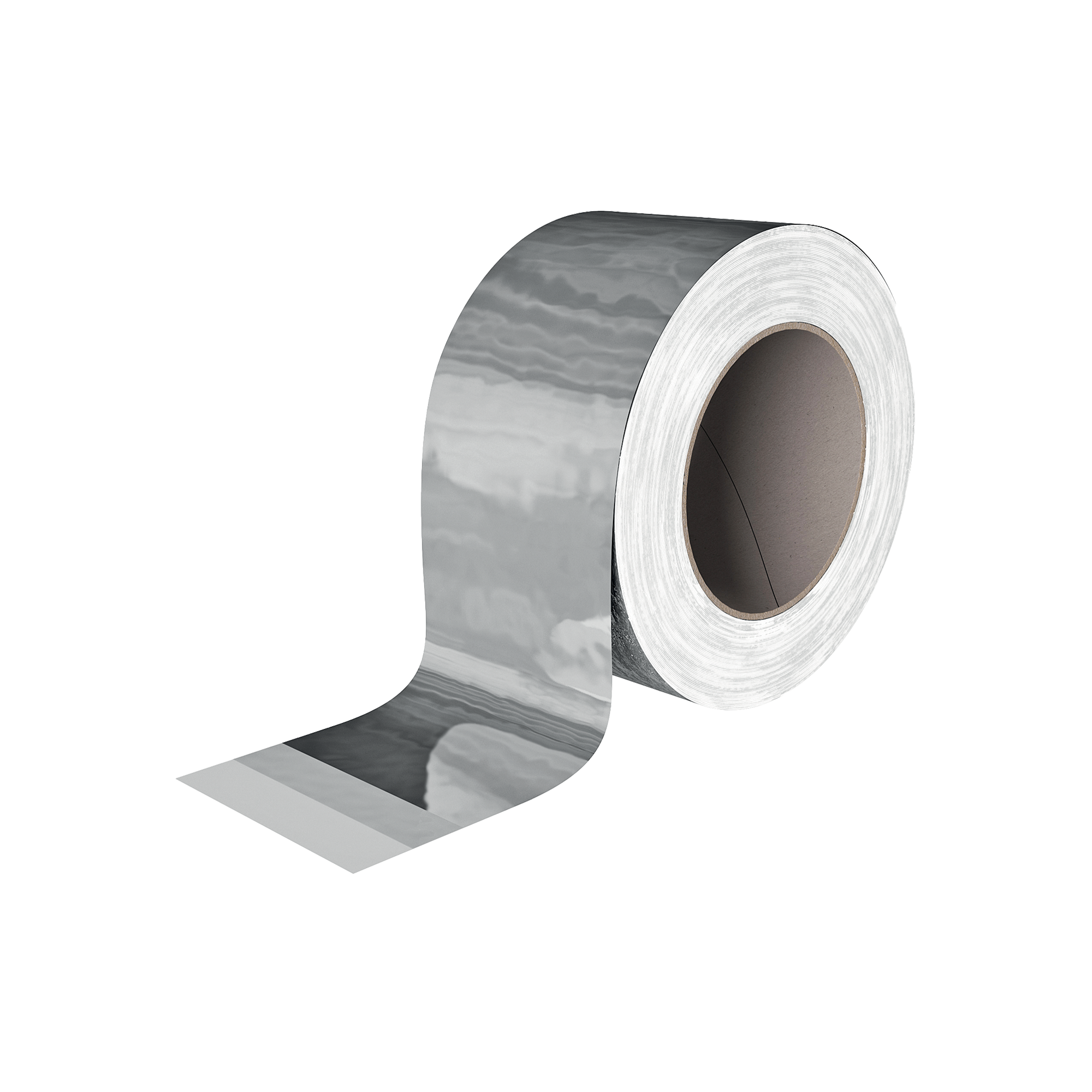

The ALU BAND aluminised tape is provided with aluminium carrier that offers very high vapour protection and watertightness; it is ideal in combination with the BARRIER ALU line and in plant engineering applications.
Documents
-
Technical data sheets
ALU BAND
| CODE | B
[mm]
|
L
[m]
|
B
[in]
|
L
[ft]
|
pcs. |
|---|---|---|---|---|---|
| ALUBAND50 | 50 | 50 | 2 | 164 | 24 |
| ALUBAND75 | 75 | 50 | 3 | 164 | 18 |
Technical Data
| Property | Standard | Tested Values | USC Conversion |
|---|---|---|---|
| Thickness | EN 1942 | 0,06 mm | 2 mil |
| Tensile strength | EN 14410 | > 25 N/25mm | > 5.71 lbf/in |
| Expansion capacity at | EN 14410 | > 5 % | - |
| Adhesion strength on steel | (N/10mm EN 1939) | > 8 N/10mm | > 4.57 lbf/in |
| Water vapour transmission (Sd) | EN 1931 / EN ISO 12572 | ca. 100 m | ca. 0.035 US perm |
| Watertightness | - | compliant | - |
| Reaction to fire | DIN 4102-1 | class B1 | - |
| Solvents | - | no | - |
| Resistance to temperature | - | 40 / 130 °C | 104 / 266 °F |
| Application temperature | - | ≥ -10 °C | ≥ 14 °F |
| Storage temperature | - | 5 / 35 °C | 41 / 95 °F |
| Reaction to fire | EN 13501-1 | class E | - |
| French VOC classification | ISO 16000 | A+ | - |
Composition
| SUPPORT | aluminium film |
|---|---|
| GLUE | acrylic dispersion without solvents |
| RELEASE LINER | silicone coated paper |
Specifications
ALU BAND
Supply and installation of single-sided reflective adhesive tape for indoor use, Type ALU BAND.
Composition
The tape features an aluminum backing that provides extremely high vapour resistance and ensures watertightness.
It includes an adhesive layer and a release film
Properties
Thickness [mm]: 0,06
Tensile strength [N/cm]: > 25
Elongation [%]: > 5
Adhesion strength on steel [N/cm]: > 8
-Water vapour transmission (Sd) [m] approx. 100
Watertightness: compliant
Reaction to fire: class B1 (DIN 4102-1)
class E (EN 13501)
Resistance to temperature [C°]: -40/+130
Application temperature [C°]: > -10
Storage temperature [C°]: +5/+35
French VOC classification: A+
Solvents: no
Description

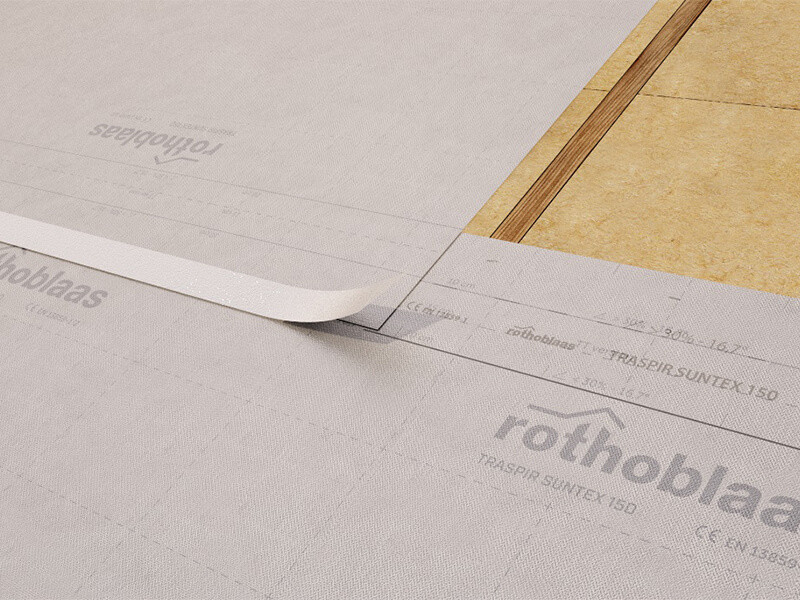

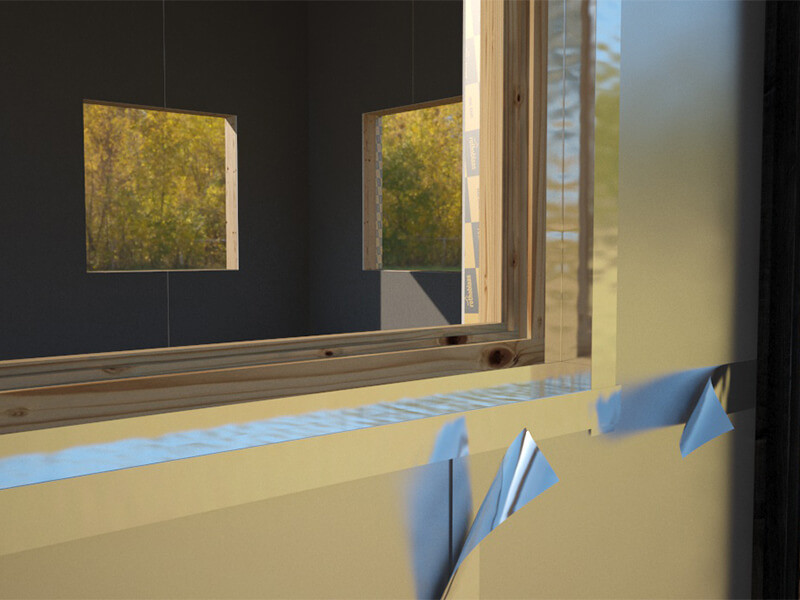

Suitable for application on various smooth building substrates, such as timber or OSB panels, without the need for additional surface treatment. The surfaces must be dry, free of dust and solvents such as grease or oil.
After the separation film has been partially separated, the tape can be applied easily and precisely at the corner point without further corrections. The sealing is completed by separating the remaining film and adhering the tape to the support. Once the tape has been applied, it is recommended to use the special roller to obtain a perfect application.
