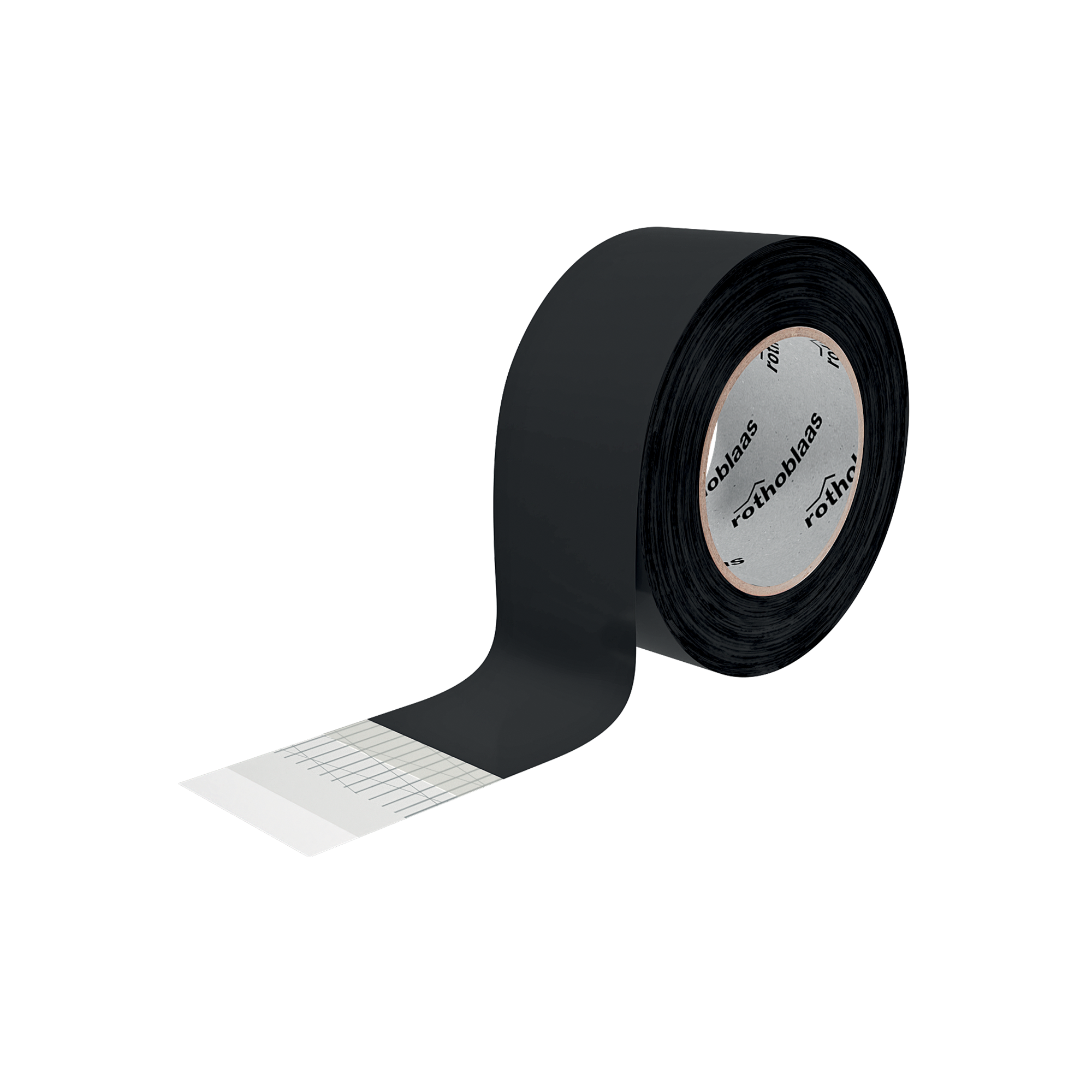

FACADE BAND UV
UNIVERSAL SINGLE-SIDED TAPE, RESISTANT TO UV RAYS
FACADE BAND UV is a universal tape with high UV stability, ideal for façade sealing and for overlapping on UV-ray resistant membranes.
Its temperature resistance is up to 120°C: the combination of glue and polypropylene carrier makes it possible to achieve very high thermal stability without compromising the glue adhesion and viscosity.
Description
Facade band uv universal tape: high uv resistance and excellent aesthetic performance
The universal tape, resistant to UV rays FACADE BAND UV ensures high adhesion at both high and low temperatures, for a secure, airtight fastening.

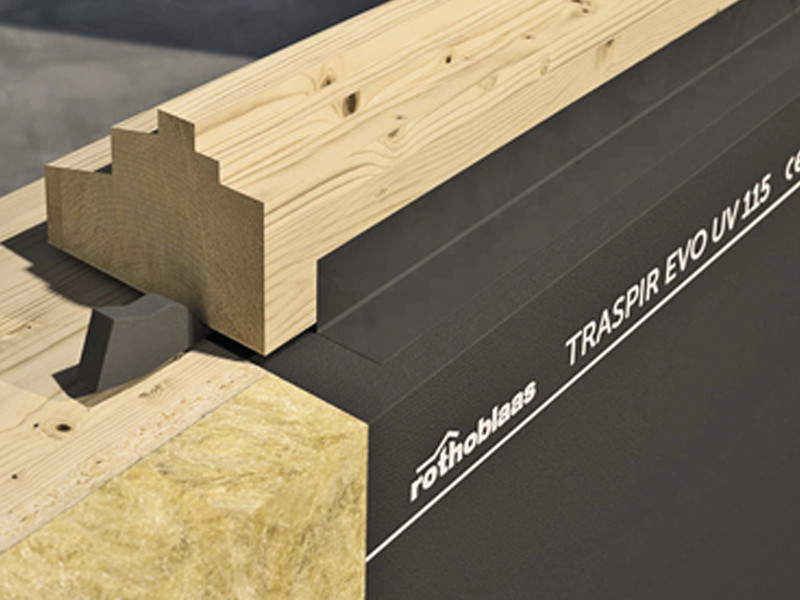

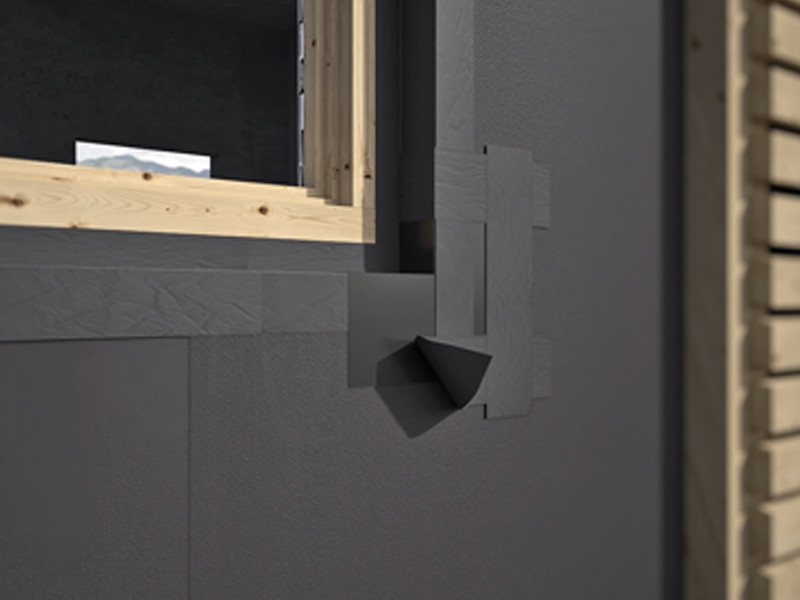

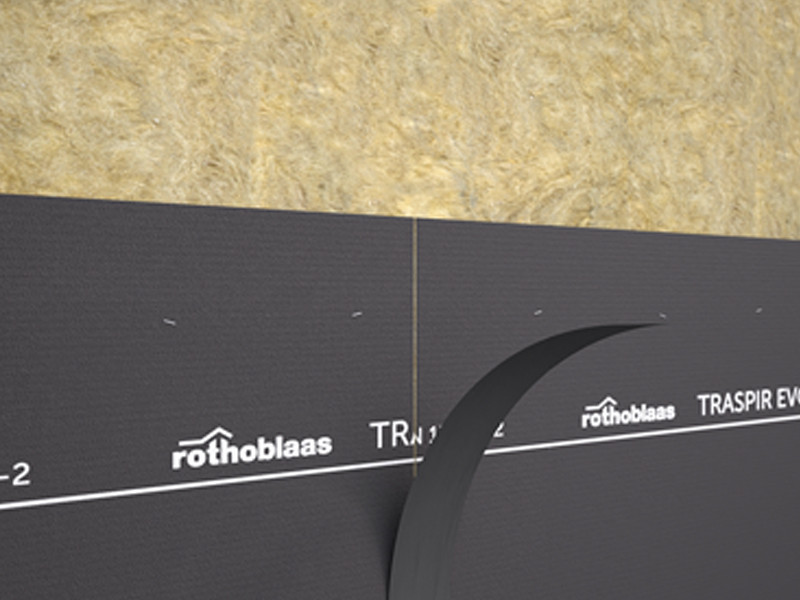

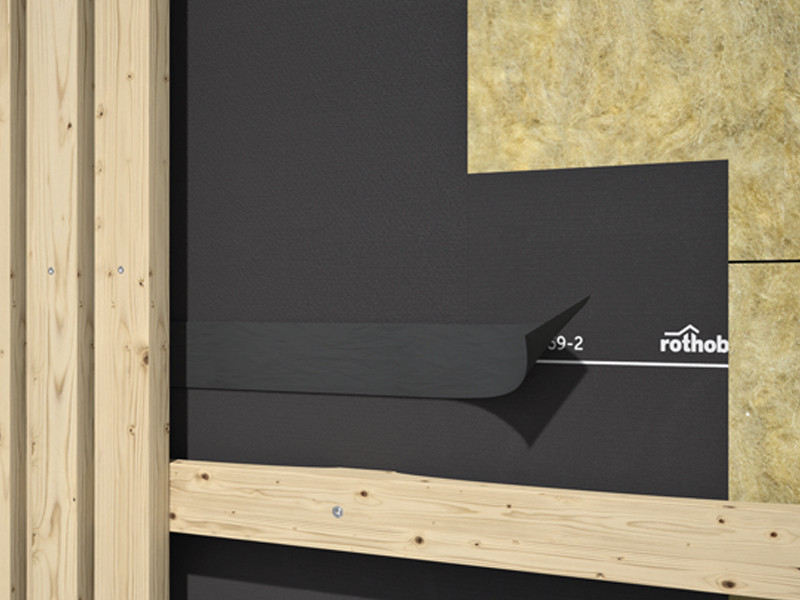

It has been designed for application on TRASPIR façade membranes and TRASPIR EVO 300, for a concealed effect that provides excellent aesthetic performance.
Documents
-
Technical data sheets
- Technical data sheets Croatian
- Technical data sheets Czech
- Technical data sheets English
- Technical data sheets French
- Technical data sheets German
- Technical data sheets Greek
- Technical data sheets Hungarian
- Technical data sheets Italian
- Technical data sheets Polish
- Technical data sheets Portuguese
- Technical data sheets Romanian
- Technical data sheets Russian
- Technical data sheets Slovene
- Technical data sheets Spanish
FACADE BAND UV
| CODE | B
[mm]
|
L
[m]
|
B
[in]
|
L
[ft]
|
pcs. |
|---|---|---|---|---|---|
| FACADEUV60 | 60 | 25 | 2.4 | 82 | 10 |
Technical Data
| Property | Standard | Tested Values | USC Conversion |
|---|---|---|---|
| Thickness | - | 0,32 mm | 13 mil |
| Water vapour transmission (Sd) | EN 1931 / EN ISO 12572 | 20 m | 0.175 US perm |
| Watertightness | - | compliant | - |
| Resistance to temperature | - | 30 / 80 °C | 86 / 176 °F |
| Solvents | - | no | - |
| Application temperature | - | > -5 / °C | > 23 / °F |
| Storage temperature | - | 5 / 25 °C | 41 / 77 °F |
| Adhesion strength on steel at 180° | EN ISO 29862 | ≥ 35 N/25mm | ≥ 7.99 lbf/in |
| UV stability with joints up to 50 mm wide exposing no more than 40% of the surface (1 ) | EN 13859-2 | permanent | - |
| French VOC classification | ISO 16000 | A+ | - |
| Tensile strength | ISO 29864 | 17,5 N/10mm | 9.992761 lbf/in |
| Adhesion strength on OSB at 180° after 10 minutes | EN ISO 29862 | 11 N/10mm | 6.3 lbf/in |
| Adhesion strength on OSB at 90° after 10 minutes | EN ISO 29862 | 5 N/10mm | 2.9 lbf/in |
| Shear adhesion strength of the joint on membrane in PP after 24 hours (2 ) | EN 12317-2 | 60 N/50mm | 6.9 lbf/in |
| Adhesion strength (average) on membrane in PP after 24 hours | EN 12316-2 | 30 N/50mm | 3.4 lbf/in |
1. The membrane is not intended as a final waterproof layer for roofs.
2. Minimum required value according to DTU 31.2 P1-2 (France): 40 N/50 mm.
Composition
| SUPPORT | PP film |
|---|---|
| GLUE | acrylic dispersion without solvents |
| REINFORCING LAYER | polyester reinforcing grid |
| GLUE | acrylic dispersion without solvents |
| RELEASE LINER | silicone coated paper |
