WATERPROOFING RADON GAS BARRIER FOR FOUNDATIONS
RADON FLOOR

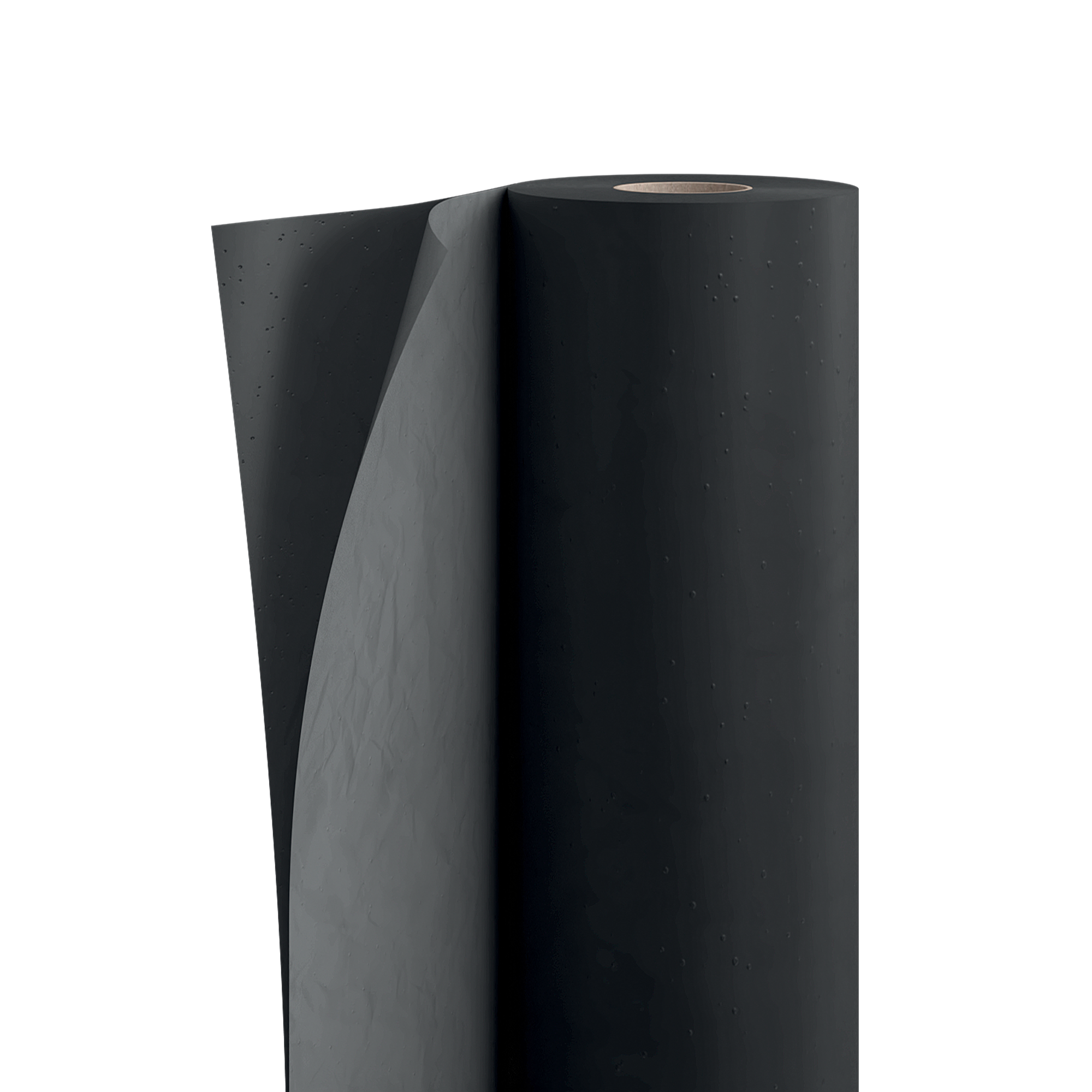

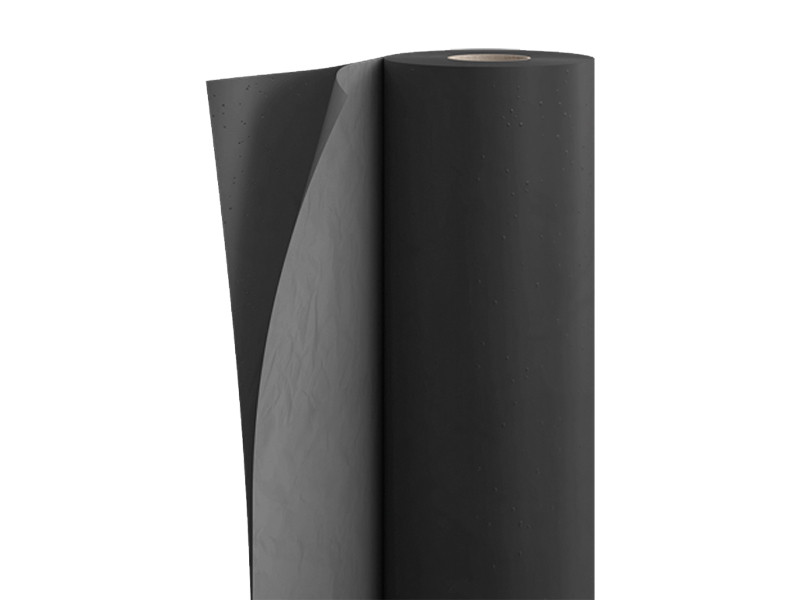

RADON FLOOR is a radon and vapour barrier certified by the SP Institut that prevents radon gas from infiltrating the building envelope.
With double reinforcement, it ensures great durability.
It consists of a double layer of low-density polyethylene with reinforcement mesh and high-density polyethylene reinforcement.
It is applied to the inside and outside of walls, in contact with the ground.
RADON FLOOR, the membrane against radon gas infiltration in timber structures
Documents
| Technical data sheets | |
|---|---|
| Declaration of performance (DOP) |
Technical Data
| Property | Standard | Tested Values | USC Conversion |
|---|---|---|---|
| Mass per unit area | EN 1849-2 | 350 g/m² | 1.15 oz/ft² |
| Thickness | EN 1849-1 | 0,4 mm | 16 mil |
| Water vapour transmission (Sd) | EN 1931 | 232 m | 0.015 PERM |
| Tensile strength MD/CD | EN 12311-1 | > 450 / 420 N/50mm | > 51 / 48 lb/in |
| Elongation MD/CD | EN 12311-1 | > 12 / 12 % | - |
| Resistance to nail tearing MD/CD | EN 12310-1 | > 300 / 300 N | > 67 / 67 lbf |
| Watertightness | EN 1928 | conforming | - |
| Thermal resistance | - | -40 / 80 °C | -40 / 176 °F |
| Reaction to fire | EN 13501-1 | class F | - |
| Resistance to penetration of air | EN 12114 | 0 m³/(m²·h·50Pa) | 0 cfm/ft² at 50Pa |
| Thermal conductivity (λ) | - | 0,4 W/(m·K) | 2.77 (BTU·in)/(h·ft²·°F) |
| Specific heat | - | 1800 J/(kg·K) | - |
| Density | - | ca. 875 kg/m³ | - |
| Water vapour resistance factor (μ) | - | ca. 580000 | - |
| Joint strength | EN 12317-2 | > 50 / N/50mm | > 5.710147 / lb/in |
| Impact resistance | EN 12691 | > 200 mm | > 7.874016 in |
| Flexibility at low temperatures | EN 1109 | -20 / °C | -4 / °F |
| Resistance to static load | - | 200 N | 44.961805 lbf |
| Radon permeability | SP Swedish Nat. Testing & Research Institute | < 1e-11 m²/s | - |
| Radon transmittance | SP Swedish Nat. Testing & Research Institute | < 2e-8 m/s | - |
Specifications
Supply and installation of waterproofing radon gas barrier for foundations, type RADON FLOOR
CE marking in accordance with: : EN13967
Composition:
Top layer low density PE film, reinforcing layer polyester reinforcing grid, middle layer low density PE film and bottom layer low density PE film
Properties:
- Thickness [mm] : 0,4
- Temperature resistance [°C] : -40/+80
- Reaction to fire : classe F
- Water vapour transmission Sd [m] : 232
- Watertightness [kPa] : conforme
It can be applied on various smooth building substrates such as timber, OSB boards without additional surface treatment. The surfaces must be dry, free of dust and solvents such as grease or oil. We recommend the use of PRIMER for rough surfaces such as rough OSB boards. Once the tape has been applied, it is recommended to use the special roller RLL45 to obtain a perfect application.
Composition
| top layer | - |
|---|---|
| REINFORCING LAYER | PL reinforcing grid |
| middle layer | - |
| bottom layer | - |
