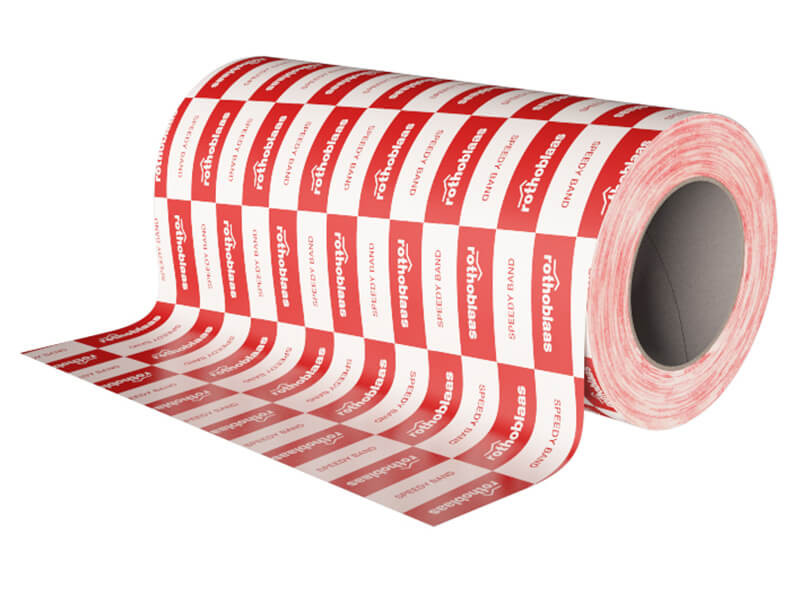

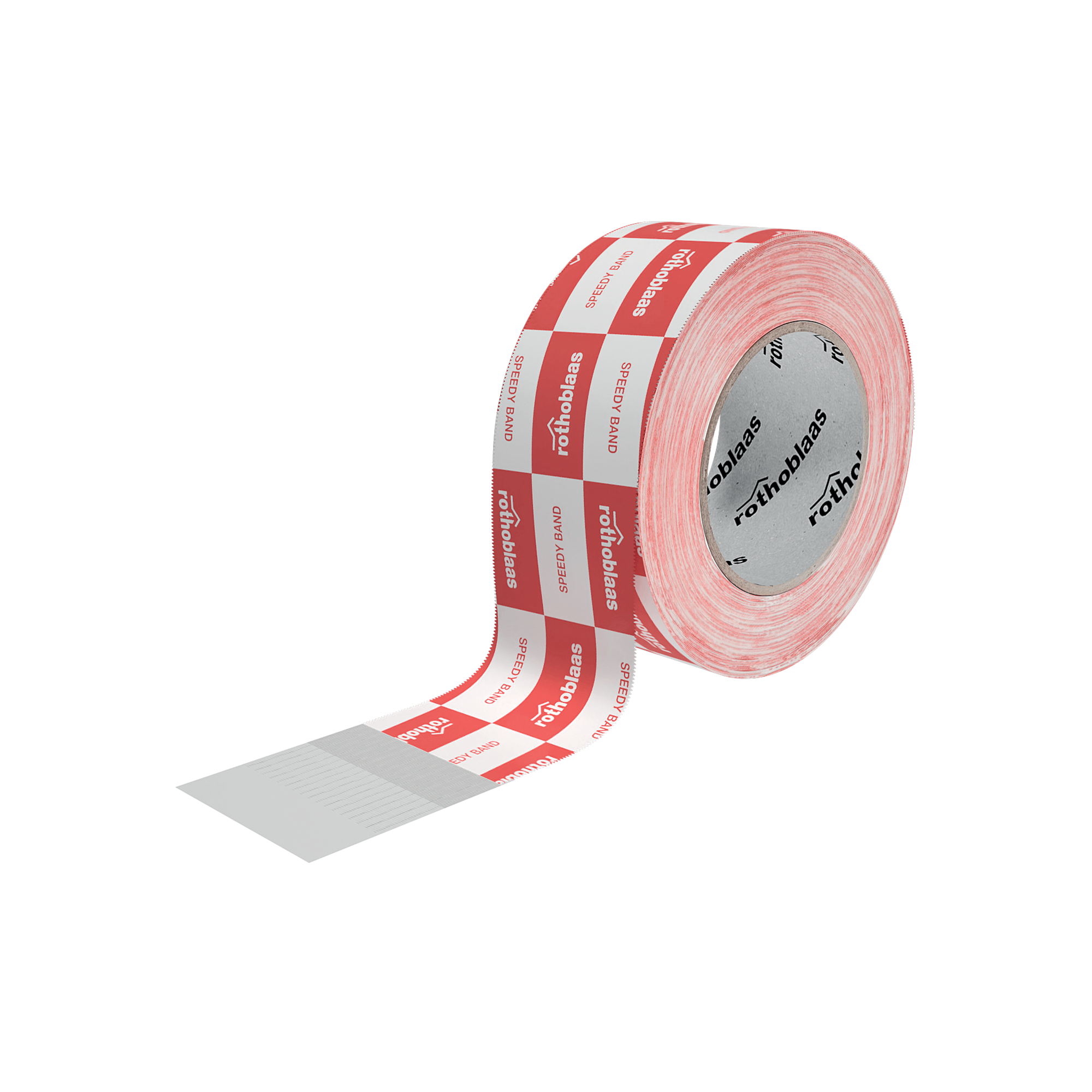

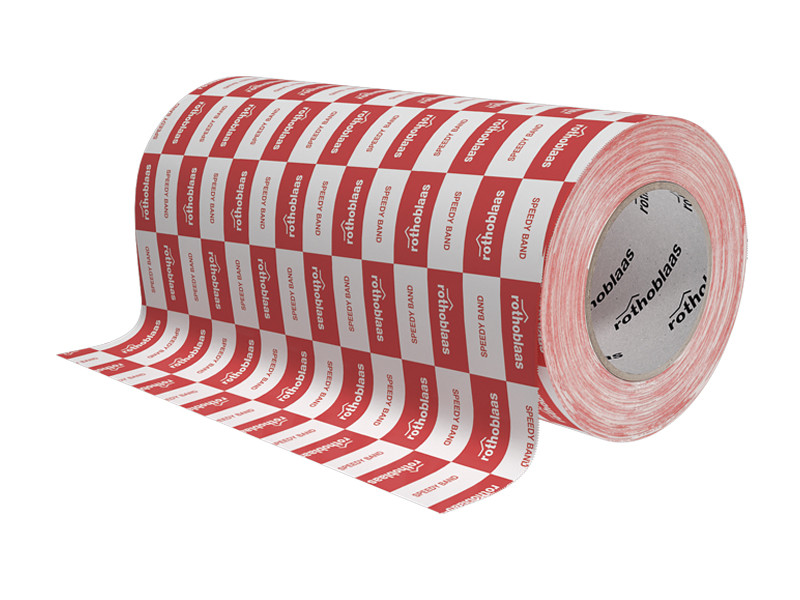

SPEEDY BAND

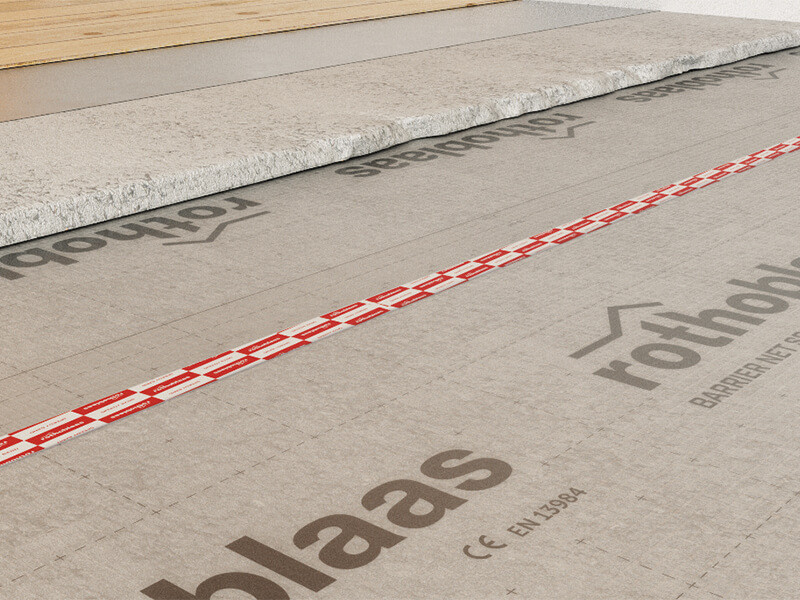

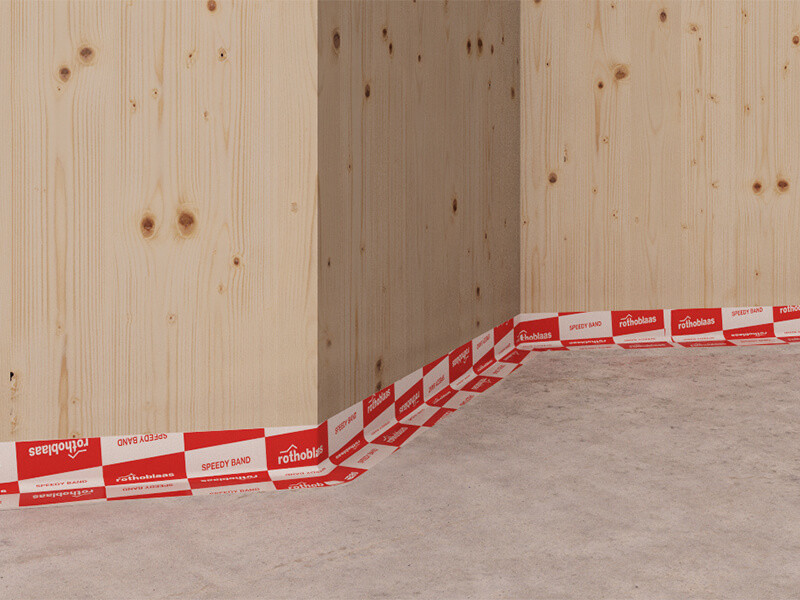

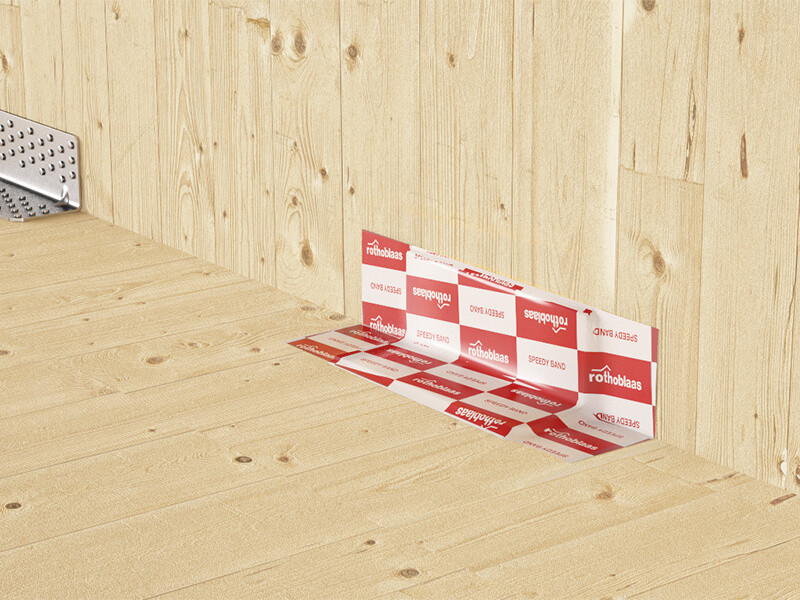

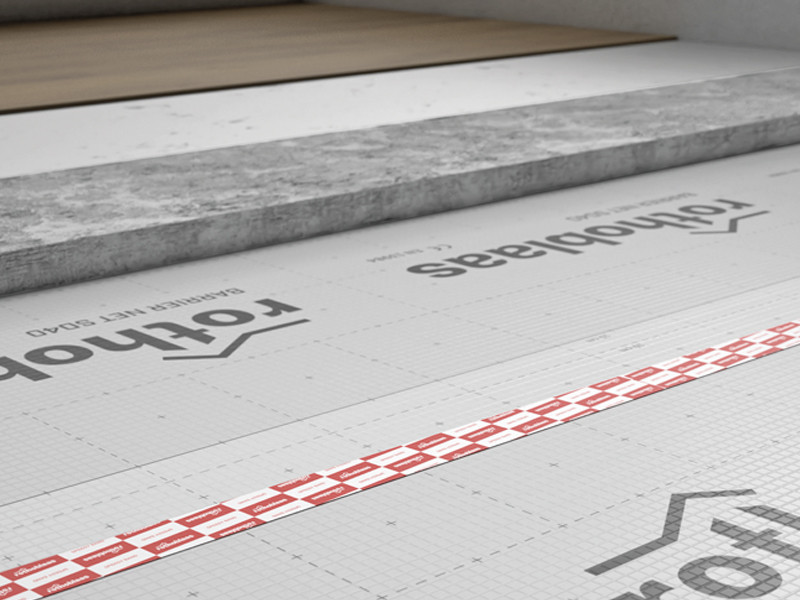

SPEEDY BAND universal tape can be conveniently applied to both the inside and outside of the building envelope, providing a fast and secure seal on most common supports.
The absence of a separating film ensures faster installation and less waste to be disposed of, saving time and resources.
Description
SPEEDY BAND, THE UNIVERSAL TAPE WITHOUT RELEASE LINER THAT REDUCES INSTALLATION TIME

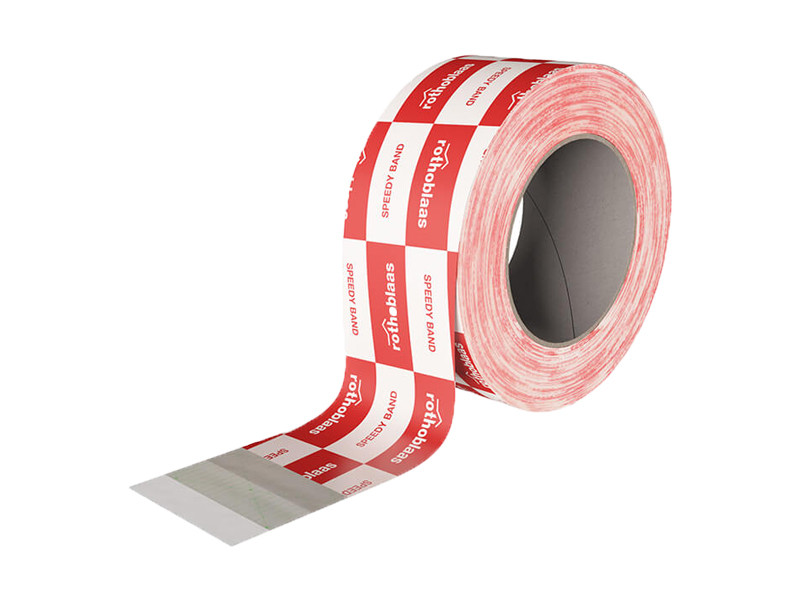

The SPEEDY BAND universal tape without release liner can be easily torn off thanks to the serrated edges that facilitate directional breaking without the use of scissors or cutters.
It is one of Rothoblaas products tested by the PassiveHouse Institute as airtight certified components.
Documents
-
Technical data sheets
-
Passive House Certificate
-
File BIM.rfa
-
Fire test report
-
SINTEF Certificate
SPEEDY BAND
| CODE | B
[mm]
|
L
[m]
|
B
[in]
|
L
[ft]
|
pcs. |
|---|---|---|---|---|---|

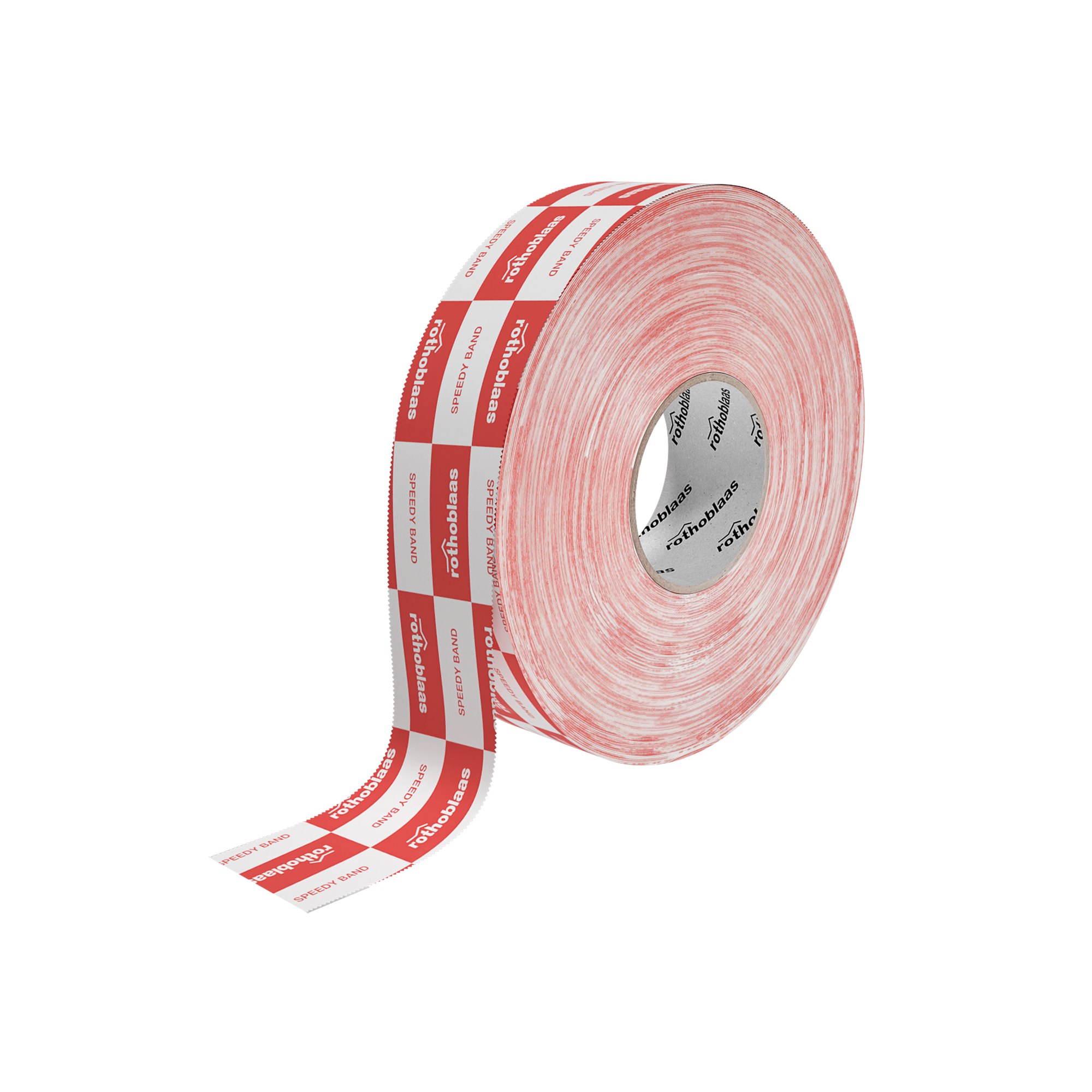

| SPEEDY50XL | 50 | 50 | 2 | 164 | 12 |

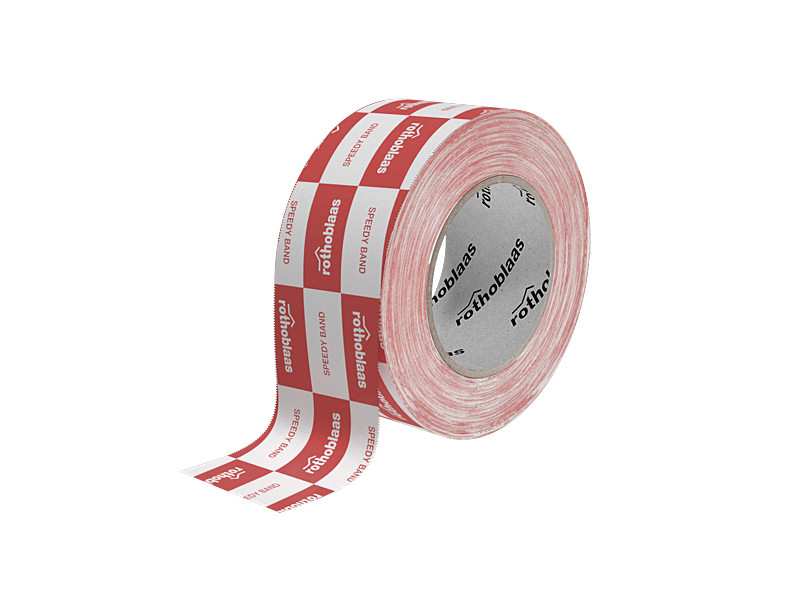

| SPEEDY60 | 60 | 25 | 2.4 | 82 | 10 |

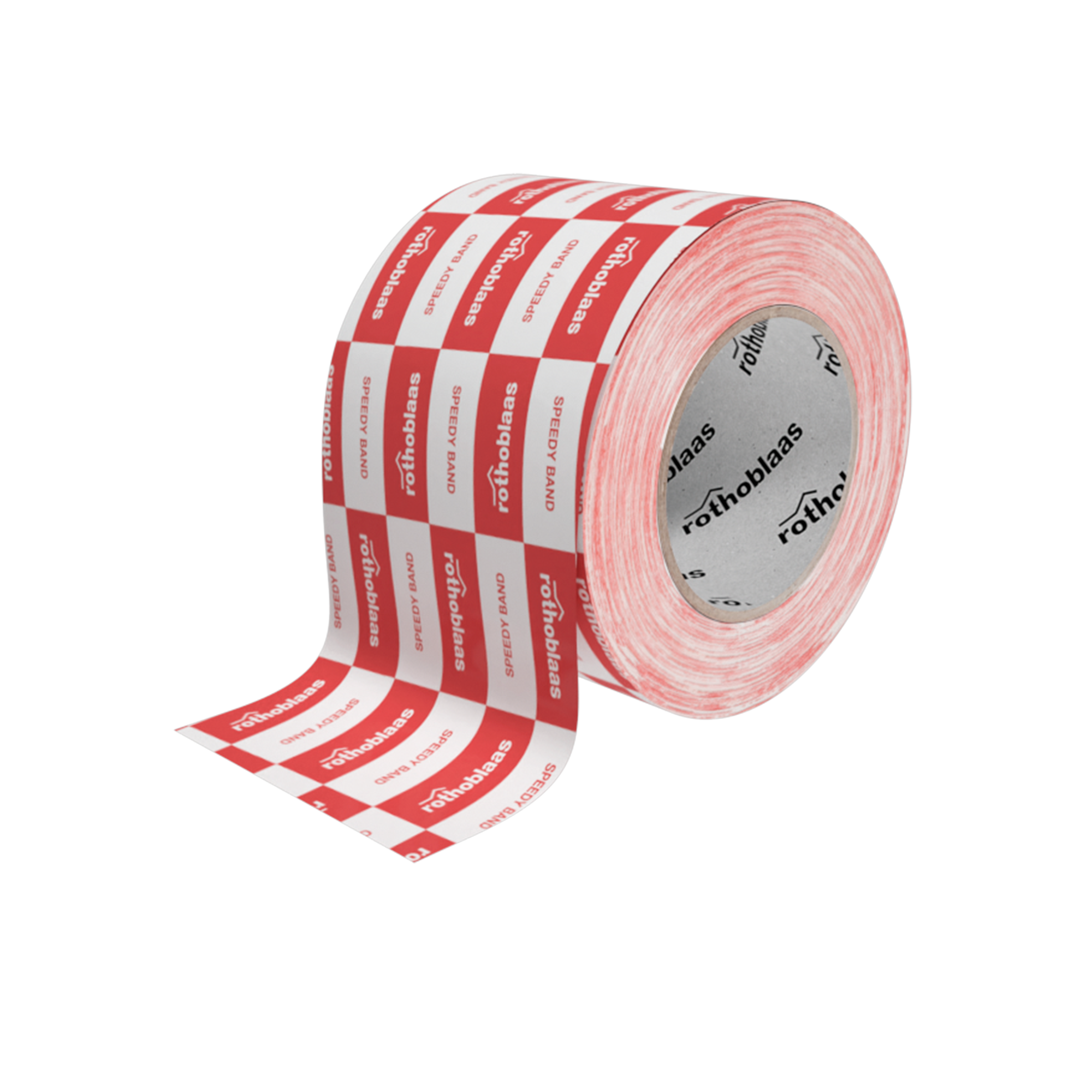

| SPEEDY100 | 100 | 25 | 3.9 | 82 | 6 |

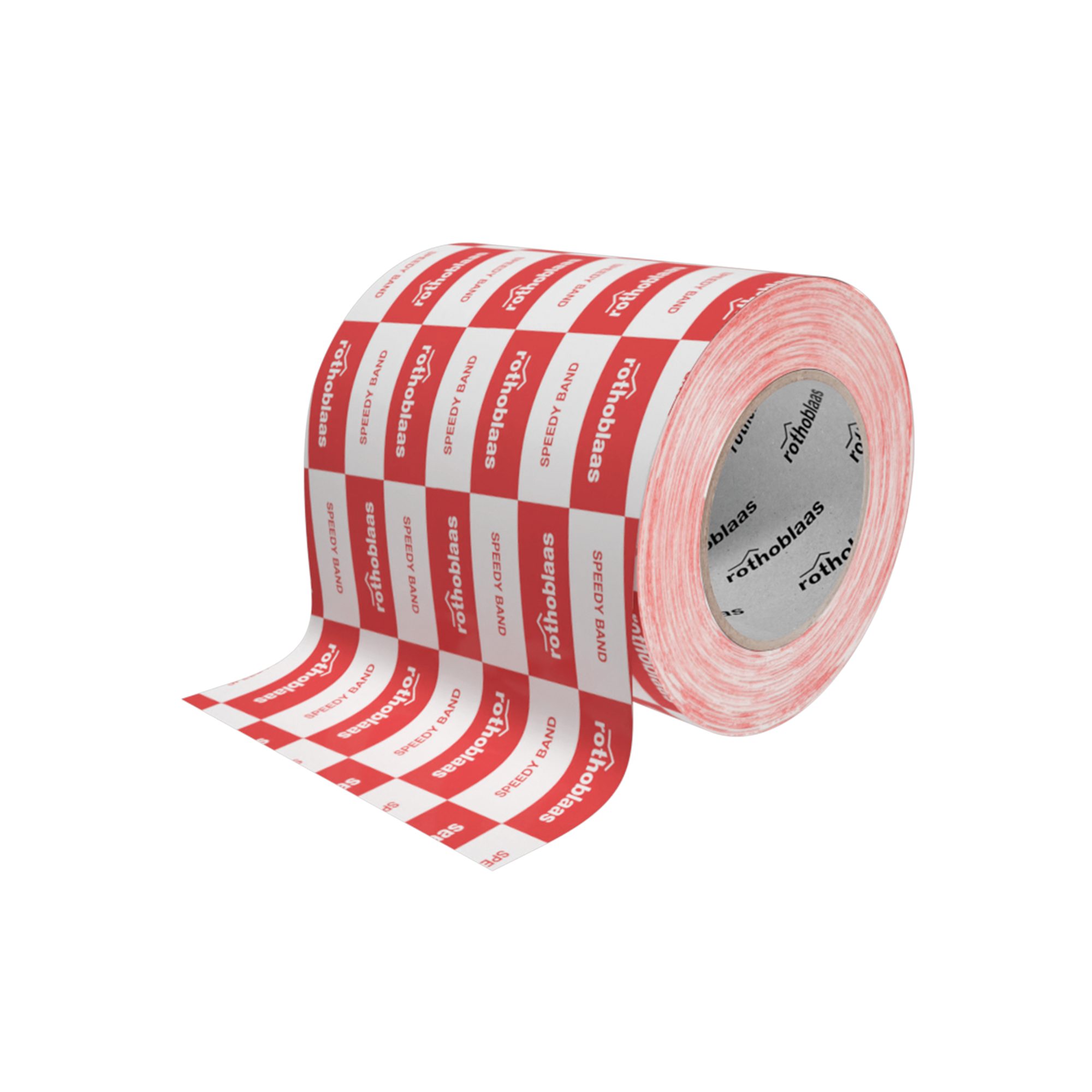

| SPEEDY150 | 150 | 25 | 5.9 | 82 | 4 |

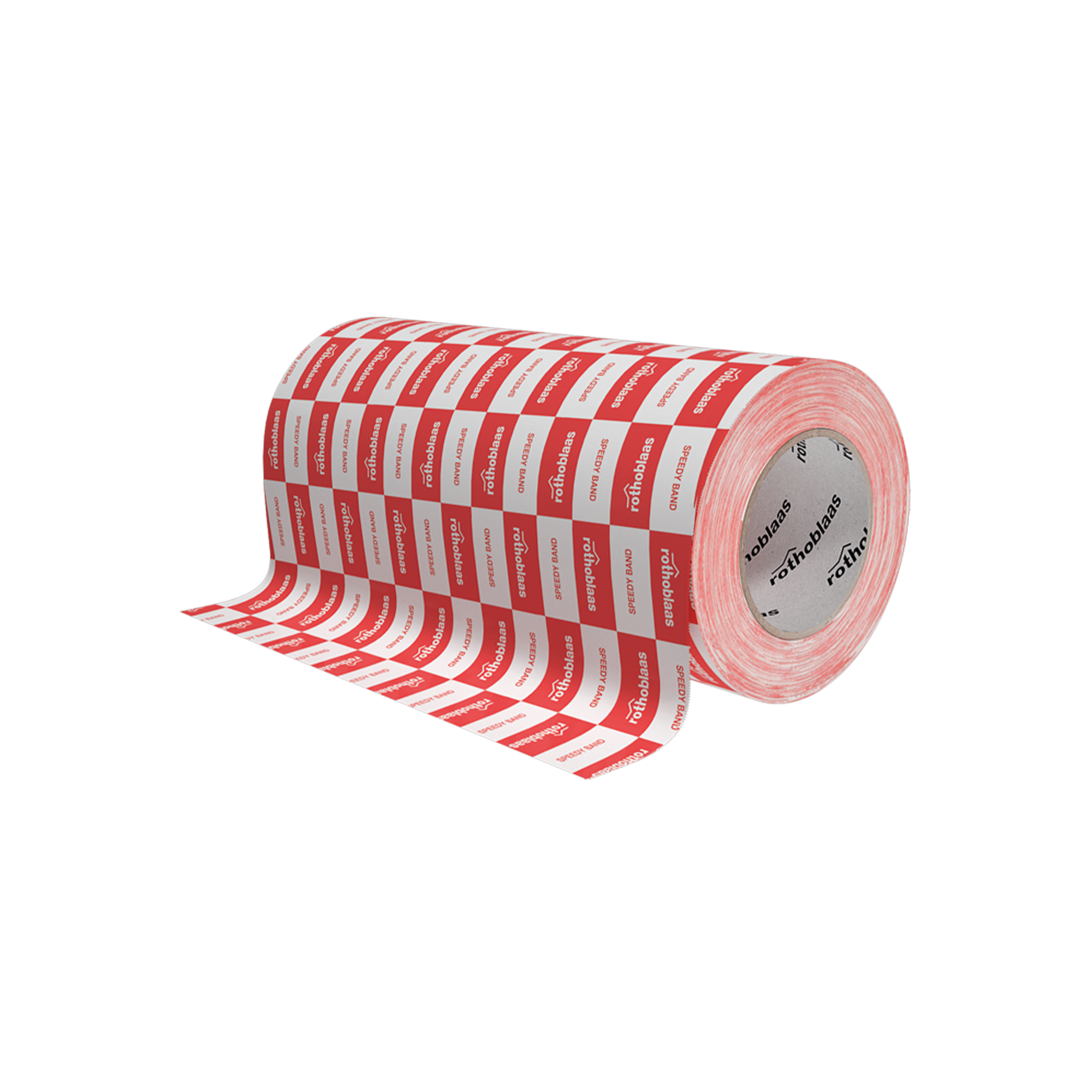

| SPEEDY300 | 300 | 25 | 11.8 | 82 | 2 |
Technical Data
| Property | Standard | Tested Values | USC Conversion |
|---|---|---|---|
| Thickness | AFERA 5006 | 0,25 mm | 9.8 mil |
| Adhesion strength on OSB at 180° after 10 minutes | EN ISO 29862 | 11 N/10mm | 6.3 lbf/in |
| Adhesion strength on OSB at 90° after 10 minutes | EN ISO 29862 | 4,8 N/10mm | 2.7 lbf/in |
| Adhesion strength (average) on membrane in PP after 24 hours | EN 12316-2 | 26 N/50mm | 3 lbf/in |
| Shear adhesion strength of the joint on membrane in PP after 24 hours (1 ) | EN 12317-2 | 120 N/50mm | 13.7 lbf/in |
| Adhesion strength on steel at 90° | AFERA 5001 | ≥ 25 N/25mm | ≥ 5.71 lbf/in |
| Water vapour transmission (Sd) | EN 1931 / EN ISO 12572 | 40 m | 0.087 US perm |
| Exposure to weather | - | 12 month | - |
| Watertightness | - | compliant | - |
| Resistance to temperature | - | 40 / 80 °C | 104 / 176 °F |

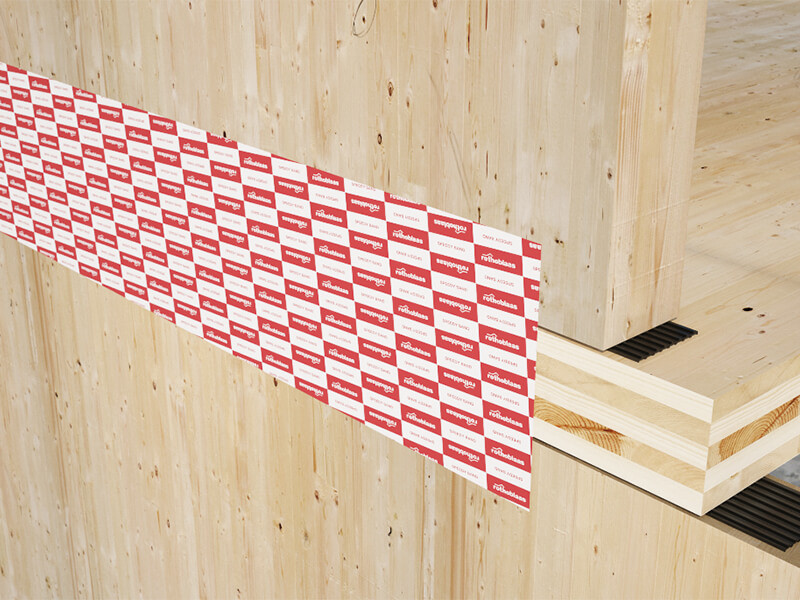

| Fire resistance rating on CLT joint* (2 ) | en 1366-4 | EI90 | - |
| Application temperature | - | -10 / 40 °C | 14 / 104 °F |
| Storage temperature | - | 5 / 30 °C | 41 / 86 °F |
| French VOC classification | ISO 16000 | A+ | - |
| Solvents | - | no | - |
Composition
| SUPPORT | PE film |
|---|---|
| GLUE | solvent-free UV-crosslinked acrylic |
| REINFORCING LAYER | polyester reinforcing grid |
| GLUE | solvent-free UV-crosslinked acrylic |
Specifications
SPEEDY BAND
Supply and installation of universal single-sided tape without release liner, Type SPEEDY BAND.
Composition
From top layer to bottom layer:
-
PE film;
-
solvent-free UV-crosslinked acrylic;
-
polyester reinforcing grid;
-
solvent-free UV-crosslinked acrylic.
Properties
-
Thickness [mm]: 0,25
-
Adhesion strength on OSB at 90° after 10 minutes [N/10 mm]: 4,8
-
Adhesion strength on OSB at 180° after 10 minutes [N/10 mm]: 11,0
-
Adhesion strength (average) on membrane in PP after 24 hours [N/50 mm]: 26,0
-
Shear adhesion strength of the joint on membrane in PP after 24 hours [N/50 mm]: 120
-
Water vapour transmission (Sd)[m]: 40
-
Exposure to weather: 12 months
-
Watertightness: compliant
-
Resistance to temperature [C°]: -40/+80
-
Application temperature [°C]: -10/+ 40
-
Storage temperature [C°]: +5/+30
-
French VOC classification: A+
-
Solvents: no
Description
The application surface must be dry, free of dust and grease, and not be anti-adhesive. Surface elements must be removed so that the membrane is not damaged during application.

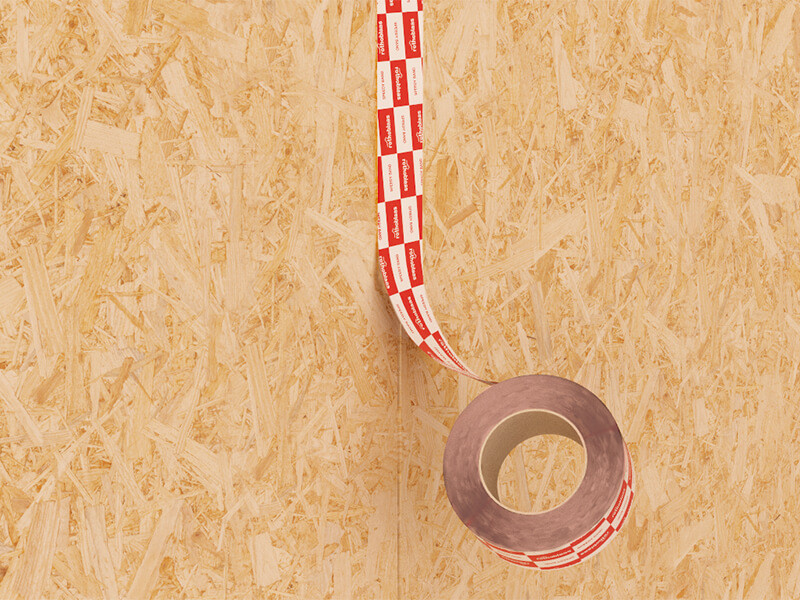

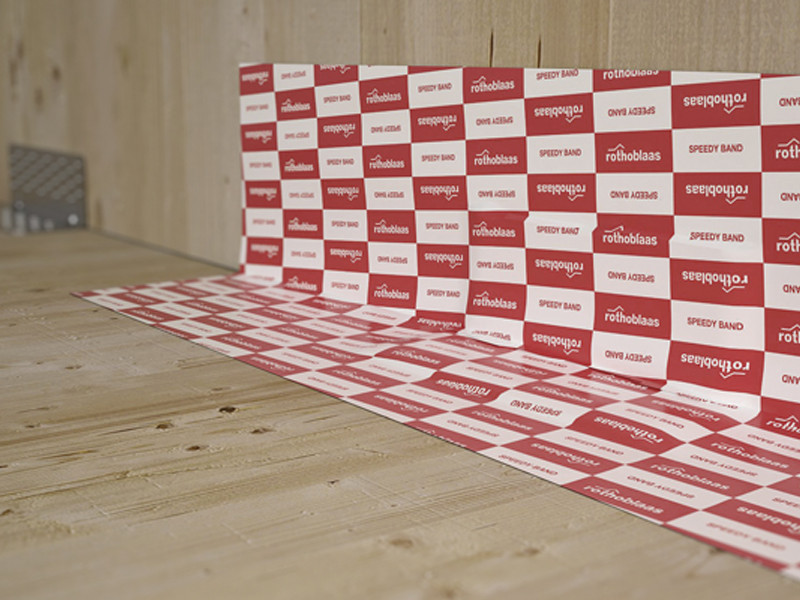

Recommended use: Suitable for application on various smooth building substrates, such as timber or OSB panels, without the need for additional surface treatment. If the tape is applied to brick or concrete surfaces, the use of a primer such as PRIMER SPRAY is recommended.
The complete list of approved application surfaces can be found in the specific instructions provided by the manufacturer.
Installation: Apply the tape with uniform pressure over the entire surface to ensure full contact with the support.
The absence of a separating film allows both fast installation and greater sustainability than other products. The tape can be easily torn off thanks to the serrated edges that facilitate directional breaking of the tape without the use of scissors or cutters.

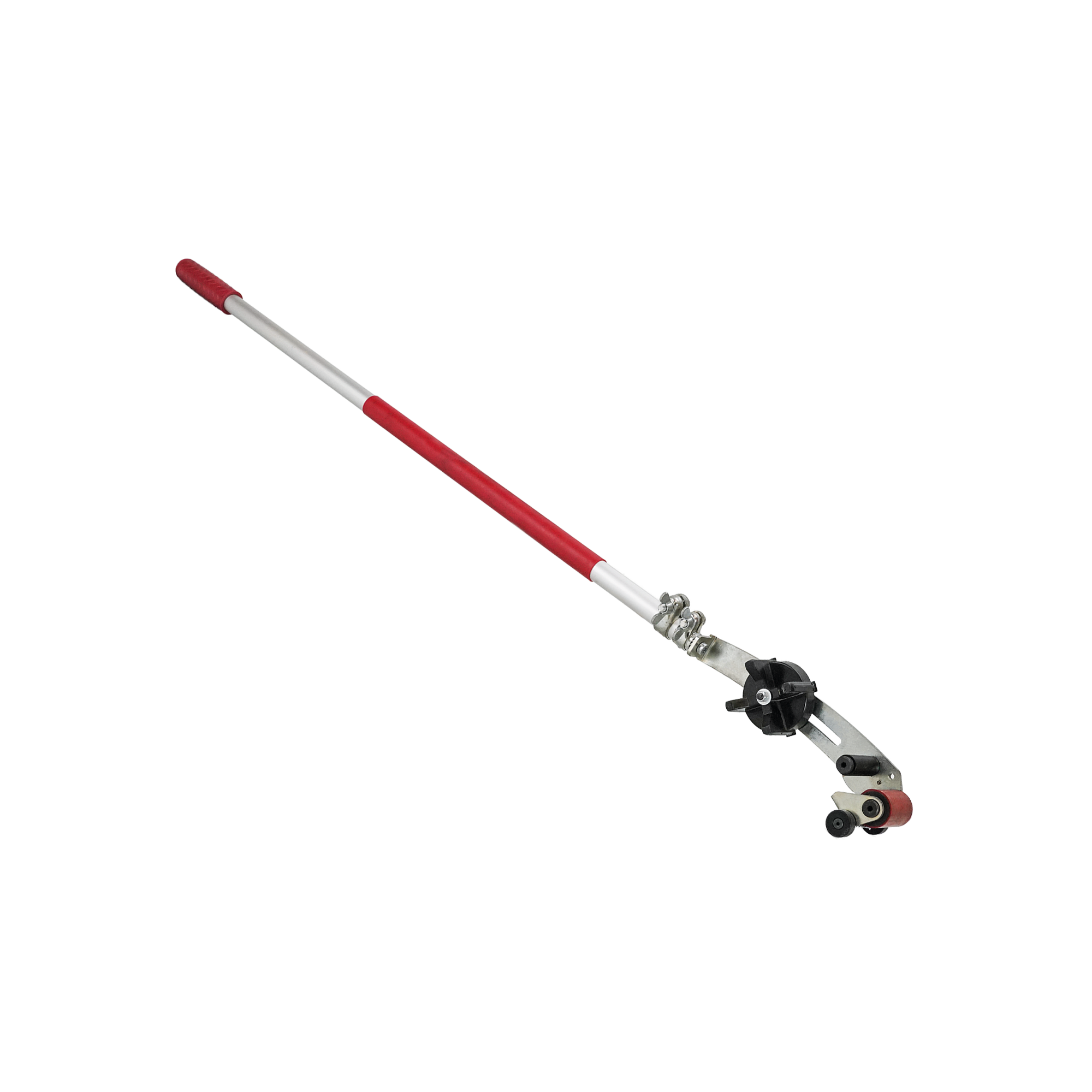

Once tape installation is complete, a pressure roller must be used to ensure perfect adhesion.
