START BAND

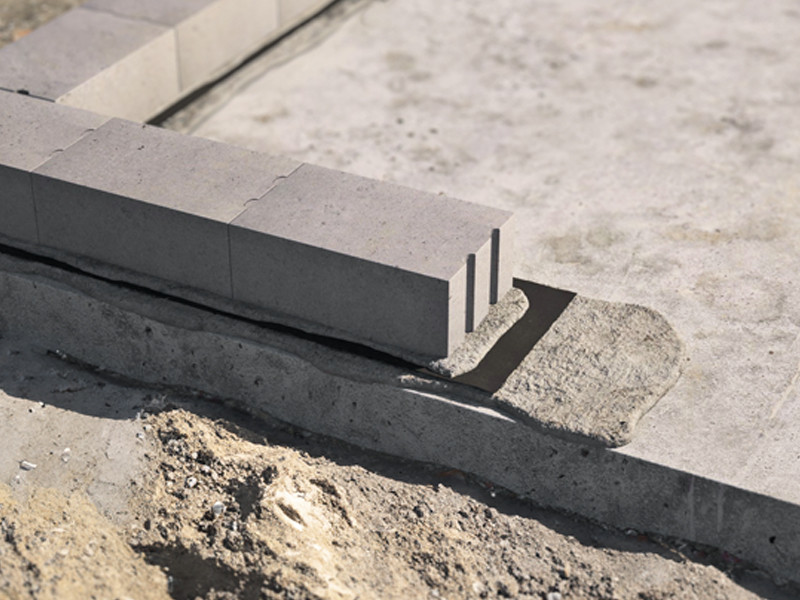

START BAND is the highly mechanically resistant waterproofing profile for the long-term protection of walls and foundation walls against rising damp.

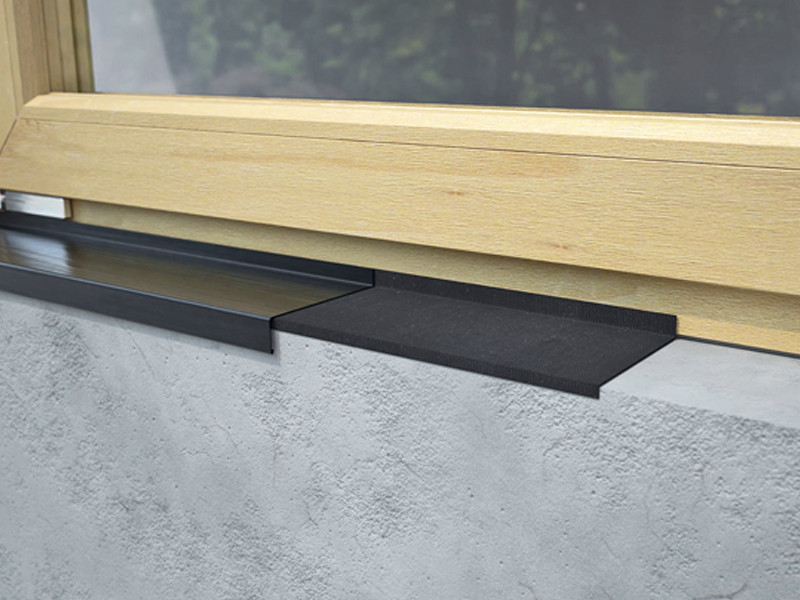

It is also ideal in extreme temperatures and for use as a general purpose wall barrier.
Description
START BAND, THE WATERPROOFING SHEATH WITH SUPERIOR RESISTANCE
Due to its elasticity, the START BAND waterproofing profile is extremely easy to install even around corners and is resistant in case of perforations or mechanical fastening. It is compatible with bitumen, does not degrade and is resistant to low temperatures, UV rays and wear from walking.

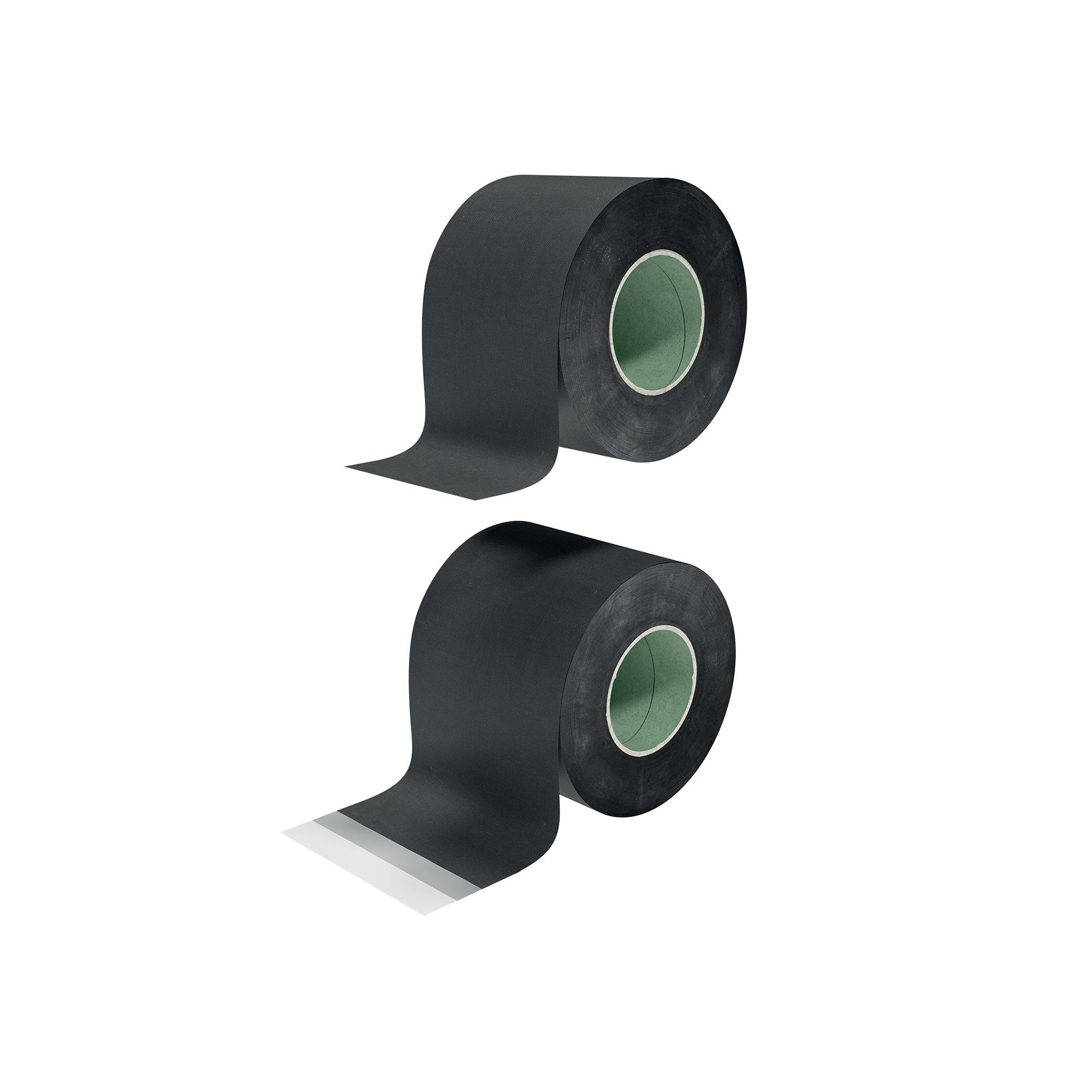

The START BAND profile is also available in an adhesive version (STARTA120 and STARTA160), ideal when applied in combination with ALU START, for an infallible connection to the ground.
Documents
-
Technical data sheets
- Technical data sheets Croatian
- Technical data sheets Czech
- Technical data sheets English
- Technical data sheets French
- Technical data sheets German
- Technical data sheets Greek
- Technical data sheets Hungarian
- Technical data sheets Italian
- Technical data sheets Polish
- Technical data sheets Portuguese
- Technical data sheets Romanian
- Technical data sheets Russian
- Technical data sheets Slovene
- Technical data sheets Spanish
Technical Data
| Property | Standard | Tested Values | USC Conversion |
|---|---|---|---|
| Water vapour transmission (Sd) | EN 1931 / EN ISO 12572 | 40 m | 0.087 US perm |
| Water vapour resistance factor (μ) | EN 1931 / EN ISO 12572 | 50000 | - |
| Tensile strength | DIN 53504 | ≥ 7 N/mm² | ≥ 1015 lbf/in² |
| Elongation | DIN 53504 | ≥ 300 % | - |
| Resistance to tearing | DIN 53504 | ≥ 10 kN/m | ≥ 57 lbf/in |
| Durability - watertightness after artificial ageing | EN 1296 / EN 1928 | compliant | - |
| Durability - impermeability in the presence of chemical agents | EN 1847/EN 1928 | npd | - |
| Reaction to fire | EN 13501-1 | class E | - |
| Resistance to temperature | - | -30 / 75 °C | -22 / 167 °F |
| Application temperature (ambient, cartridge and support) (1 ) | - | -10 / 35 °C | 14 / 95 °F |
Composition
| SUPPORT | EPDM-based synthetic rubber |
|---|
Specifications
START BAND
Supply and installation of a waterproofing profile with high mechanical resistance, Type START BAND.
Composition
- EPDM-based synthetic rubber;
Properties
-
Water vapour transmission (Sd)[m]: 40
-
Tensile strength [MPa]: ≥ 7,0
-
Elongation [%]:≥ 300
-
Resistance to nail tearing [kN/m]: ≥ 10
-
Watertightness: comply with (EN 1928)
-
Reaction to fire: class E (EN 13501-1)
-
Resistance to temperature [C°]: -30/+75
-
Application temperature [°C]: -10/+35
Standards and certifications
CE marked in accordance with EN 13984
Description
The application surface must be dry, free of dust and grease, and not be anti-adhesive. Surface elements must be removed so that the membrane is not damaged during application.
Recommended use

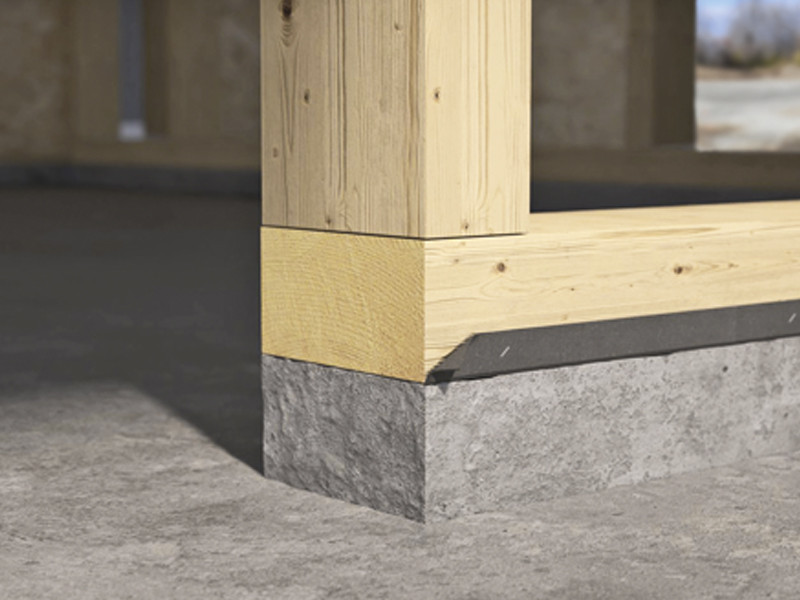

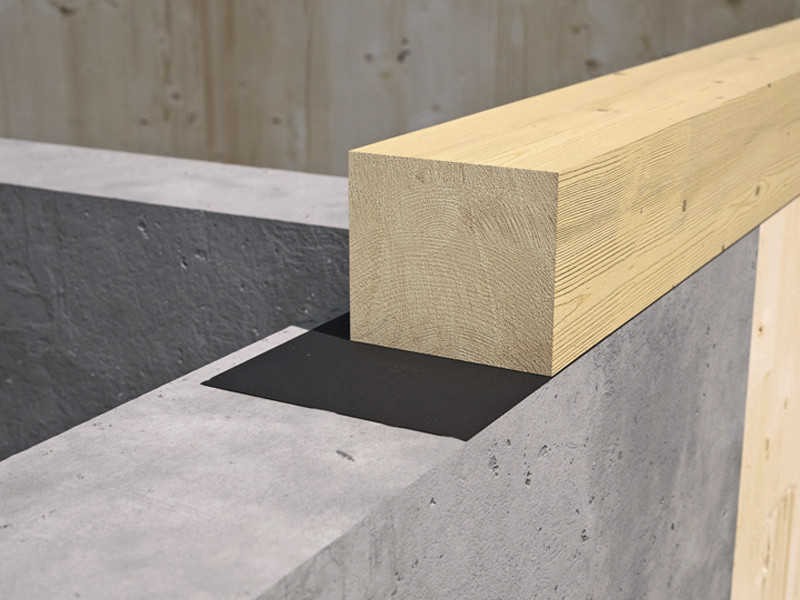

It protects timber from rising damp and ensures excellent airtightness.
Adhesive PU foam profiles make it possible to compensate for any irregularities in the foundation.
Extremely thermostable and flexible even at low temperatures. Compatible with bitumen and major building materials.
Installation
If an adhesive tape is used, remove the first half of the liner and apply it along the length of the element.
