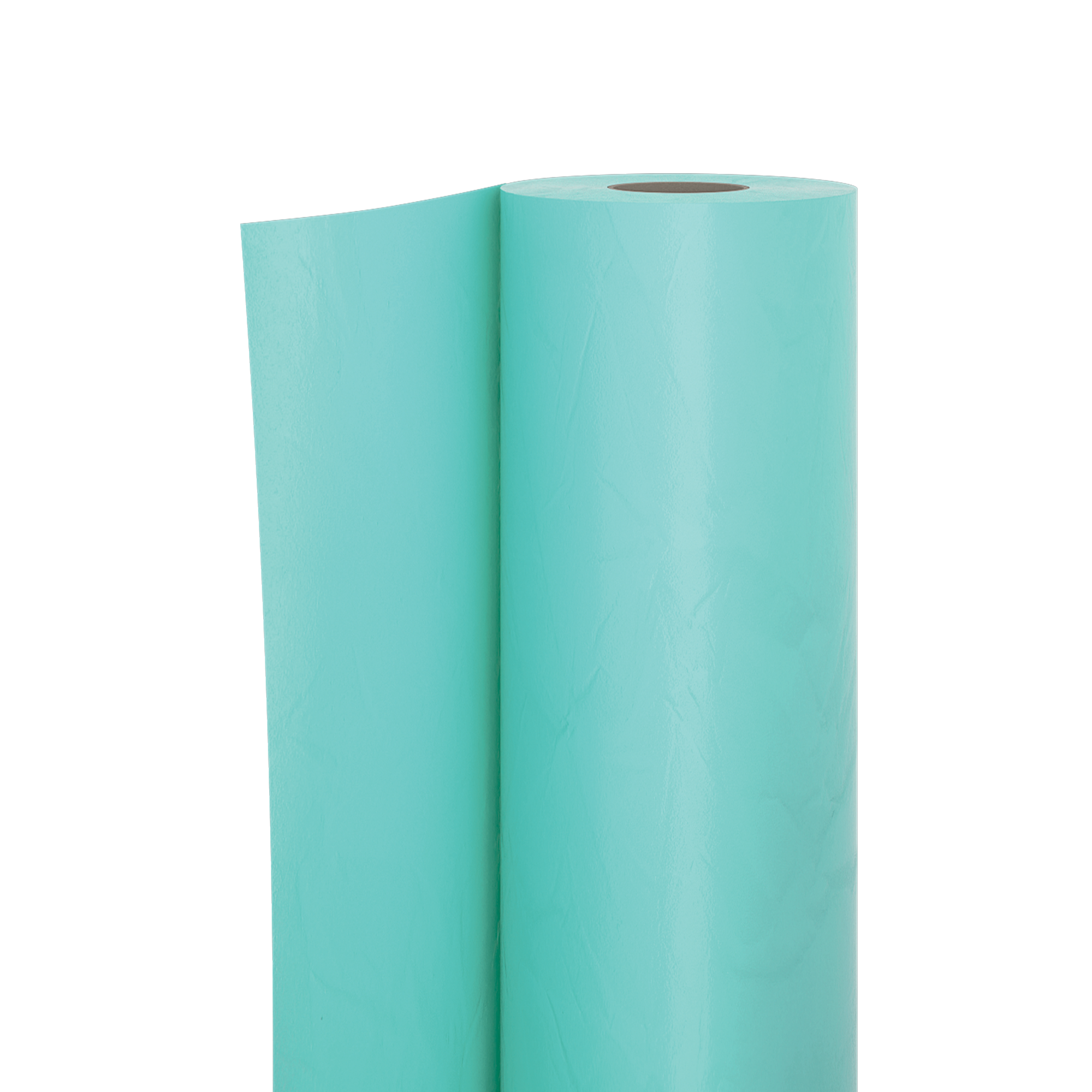

TERMI FLOOR
TERMI FLOOR is the waterproofing barrier for foundations protected against termites and other unwanted insects for over 20 years.
The TERMI FLOOR barrier is active on both sides for double effective protection (even in cases of possible complications during installation) and does not present any risk to the environment when installed or danger to humans during installation.
Consisting of a single layer of low-density polyethylene, it is applied to the inside and outside of walls, in contact with the ground.
Description
TERMI FLOOR, THE MEMBRANE THAT SOLVES THE PROBLEM OF TERMITES AT THE BASE
TERMI FLOOR is an active barrier that allows you to eliminate termites without the use of pesticides. It contains a chemical agent that is neither dangerous to humans nor to the environment, which has the function of driving termites away and, in the case of prolonged contact, eliminate them.
The product does not release substances into the soil. Its effectiveness is ensured by contact or inhalation of the substance by insects alone.
Documents
-
Technical data sheets
- Technical data sheets Croatian
- Technical data sheets Czech
- Technical data sheets English
- Technical data sheets French
- Technical data sheets German
- Technical data sheets Greek
- Technical data sheets Hungarian
- Technical data sheets Italian
- Technical data sheets Polish
- Technical data sheets Portuguese
- Technical data sheets Romanian
- Technical data sheets Russian
- Technical data sheets Slovene
- Technical data sheets Spanish
-
Declaration of performance (DOP)
TERMI FLOOR
| CODE | roll
[m]
|
H
[m]
|
L
[m]
|
A
[m²]
|
H
[ft]
|
L
[ft]
|
A
[sft]
|
pcs./pallet |
|---|---|---|---|---|---|---|---|---|
| TERMI150 | 1 | 3 | 25 | 75 | 9' 10 1/8'' | 82 | 807 | 36 |
Technical Data
| Property | Standard | Tested Values | USC Conversion |
|---|---|---|---|
| Mass per unit area | EN 1849-2 | 150 g/m² | 0.49 oz/ft² |
| Thickness | EN 1849-1 | 0,15 mm | 6 mil |
| Water vapour transmission (Sd) | EN 1931 | - | - |
| Tensile strength MD/CD | EN 12311-1 | 10 / 10 N/50mm | 1 / 1 lbf/in |
| Elongation MD/CD | EN 12311-1 | 200 / 50 % | - |
| Resistance to nail tearing MD/CD | EN 12310-1 | 40 / 40 N | 9 / 9 lbf |
| Watertightness | EN 1928 | compliant | - |
| Resistance to temperature | - | -40 / 80 °C | -40 / 176 °F |
| Reaction to fire | EN 13501-1 | class F | - |
| Resistance to penetration of air | EN 12114 | < 0,02 m³/(m²·h·50Pa) | < 0.001 cfm/ft² at 50Pa |
| Thermal conductivity (λ) | - | 0,4 W/(m·K) | 0.23 BTU/(h·ft·°F) |
| Specific heat | - | 1800 J/(kg·K) | - |
| Density | - | ca. 1000 kg/m³ | - |
| Water vapour resistance factor (μ) | - | - | - |
| Impact resistance | EN 12691 | 200 mm | 7.874016 in |
| Resistance to static load | - | 5 N | 1.124045 lbf |
| Alkaline water vapour resistance | EN 1847 / EN 12311-2 | compliant | - |
| Resistenza al vapore d'acqua dopo invecchiamento artificiale | EN 1296 / EN 1931 | compliant | - |
Composition
| single layer | - |
|---|
Specifications
TERMI FLOOR
Supply and installation of a waterproofing membrane for foundations with anti-termite protection, Type TERMI FLOOR.
Composition
- low density PE film.
Properties
-
Mass per unit area [g/m²]: 150
-
Thickness [mm]: 0,15
-
Tensile strength MD/CD [N/10 mm]: 10/10
-
Elongation MD/CD [%]: 200/50
-
Resistance to nail tearing MD/CD [N]: 40/40
-
Resistance to static load [N]: 5
-
Watertightness: comply with (EN 1928)
-
Reaction to fire: class F (EN 13501-1)
-
Resistance to temperature [C°]: -40/80
Standards and certifications
- CE marked in accordance with EN 13967
Application surface
The application surface must be dry and free of dust. Surface elements must be removed so that the membrane is not damaged during application.
It contains a chemical agent that is neither dangerous to humans nor to the environment, which has the function of driving termites away and, in the case of prolonged contact, eliminate them.
The product does not release substances into the soil. Its effectiveness is ensured by contact or inhalation of the substance by insects alone.
Recommended use
This product is intended for installation on the interior side of the building envelope.
Installation
Unroll the membrane and seal using tape such as: FLEXY BAND, SPEEDY BAND or EASY BAND.
