BLOCK

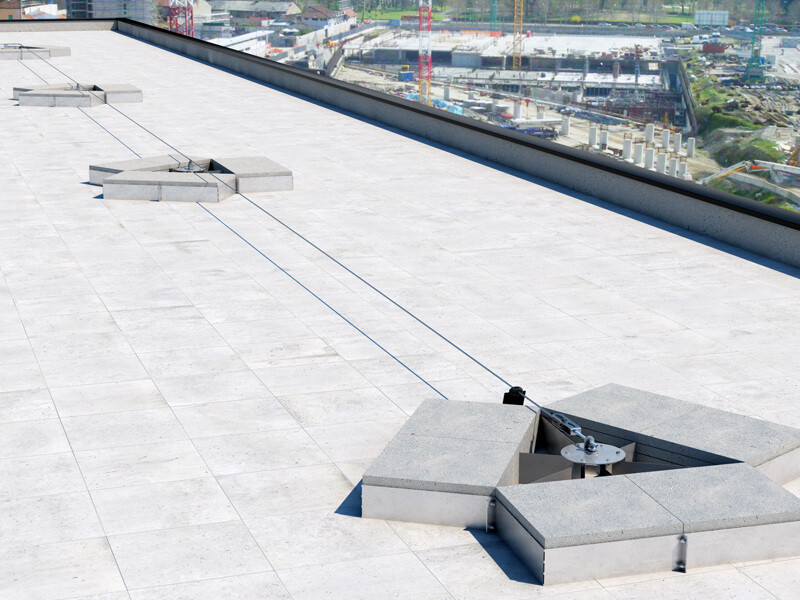

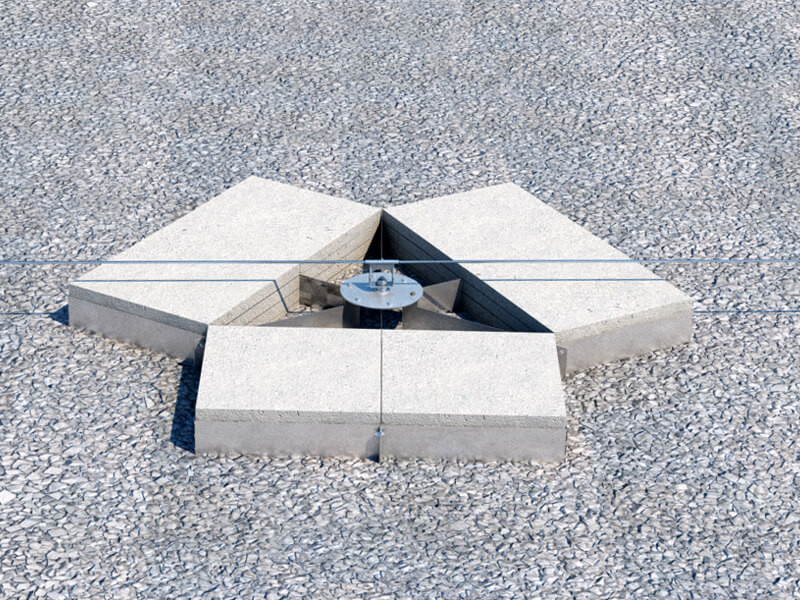

BLOCK is the support with ballast for single anchor point AOS01. It is designed for installation on flat roofs, and does not require to drill the roof covering, avoiding thermal bridges and preserving the waterproofing layer of the structure.
BLOCKMAT mats not included in the supply of the BLOCK item (3 pieces per BLOCK are required) it can be ordered separately.
Description
BLOCK, safety at work while respecting your flat roof

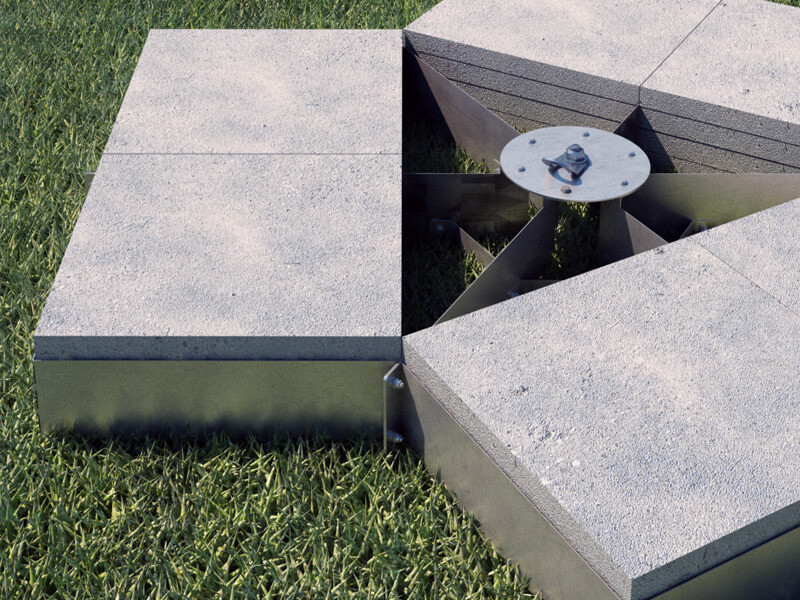

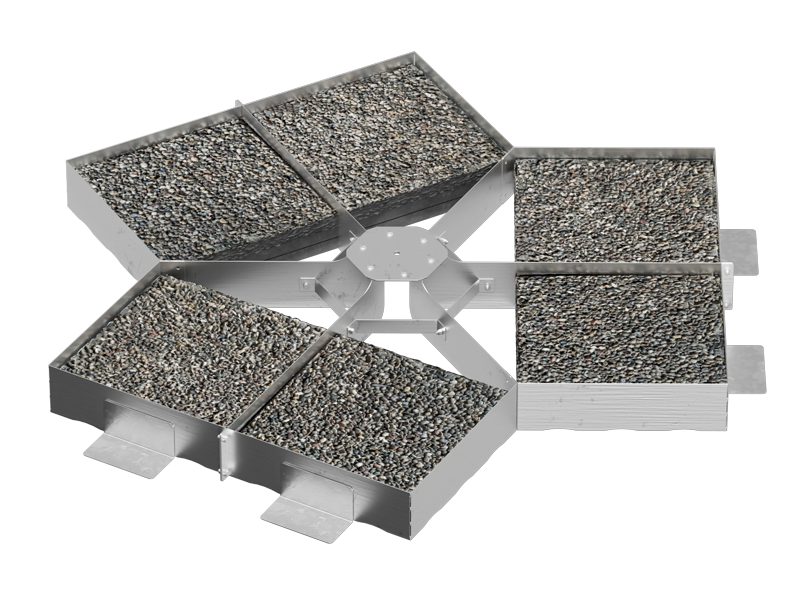

The A2 stainless steel BLOCK support is designed to be installed on non-drillable green roofs and flat roofs having inclination up to 5°. Its particular shape allows water to drain off and not stagnate inside the support.

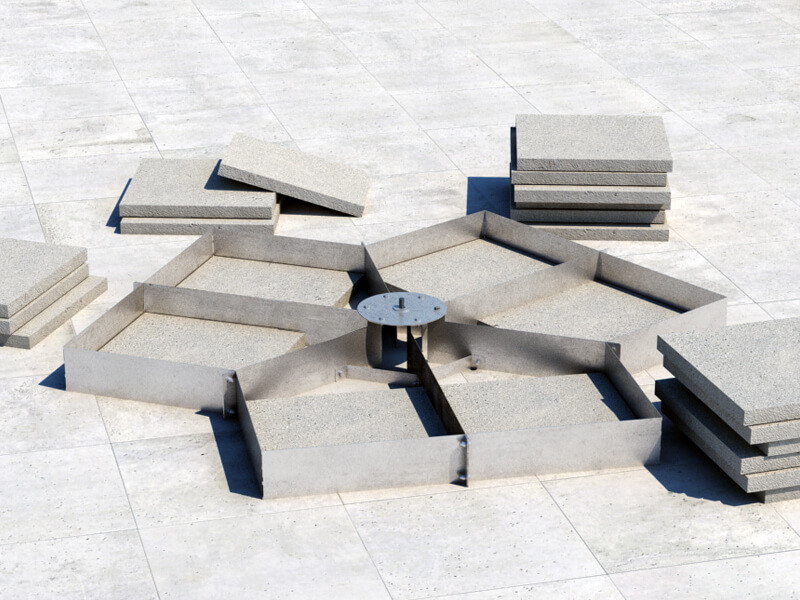

The supply is compact and can be easily transported; installation is extremely simple and quick. The AOS01 anchor point and the concrete slabs for the ballast are not included. Maximum load: 1 operators
Documents
-
Certificates
-
Declaration of conformity
- Declaration of conformity Bulgarian
- Declaration of conformity Croatian
- Declaration of conformity Czech
- Declaration of conformity Danish
- Declaration of conformity Dutch
- Declaration of conformity English
- Declaration of conformity Estonian
- Declaration of conformity Finnish
- Declaration of conformity French
- Declaration of conformity German
- Declaration of conformity Greek
- Declaration of conformity Hungarian
- Declaration of conformity Italian
- Declaration of conformity Latvia
- Declaration of conformity Lithuanian
- Declaration of conformity Polish
- Declaration of conformity Portuguese
- Declaration of conformity Romanian
- Declaration of conformity Slovak
- Declaration of conformity Slovene
- Declaration of conformity Spanish
- Declaration of conformity Swedish
-
Safety regulations, instructions for installation and use
-
File BIM.ifc
-
File BIM.rfa
-
Installation manual
BLOCK
| CODE | material | B
[mm]
|
H
[mm]
|
L
[mm]
|
pcs. |
|---|---|---|---|---|---|
| BLOCK | AISI 304 stainless steel grade 1.4301 | 1870 | 165 | 1645 | 1 |
| BLOCKPLATE | - | - | - | - | 1 |
| BLOCKMAT | - | 550 | - | 1050 | 1 |
