SHIELD
SUPPORT FOR CORRUGATED SHEET METAL ROOFS
SHIELD is the adaptable support usable on all roofs in corrugated sheet with centre distance between frets of up to 420 mm.
It is the ideal system for creating single anchor points and straight or angular anchor lines on both flat and sloping roofs.
Description
The support for metal roofs you were waiting for. SHIELD: safe and simple assembly.
The SHIELD support guarantees simple and fast installation.

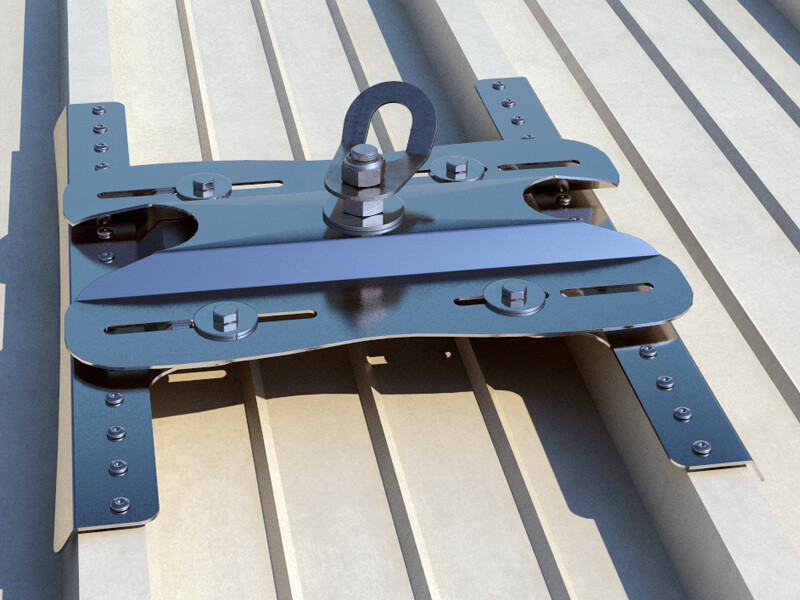

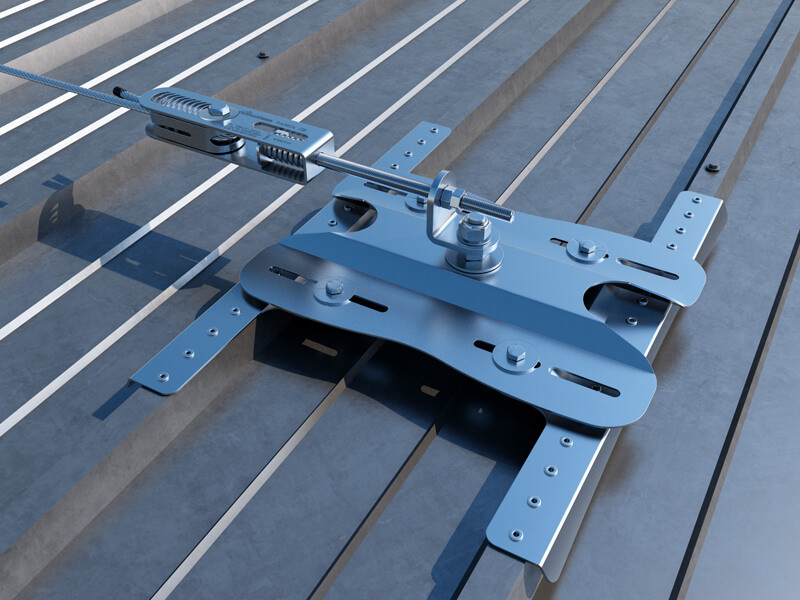

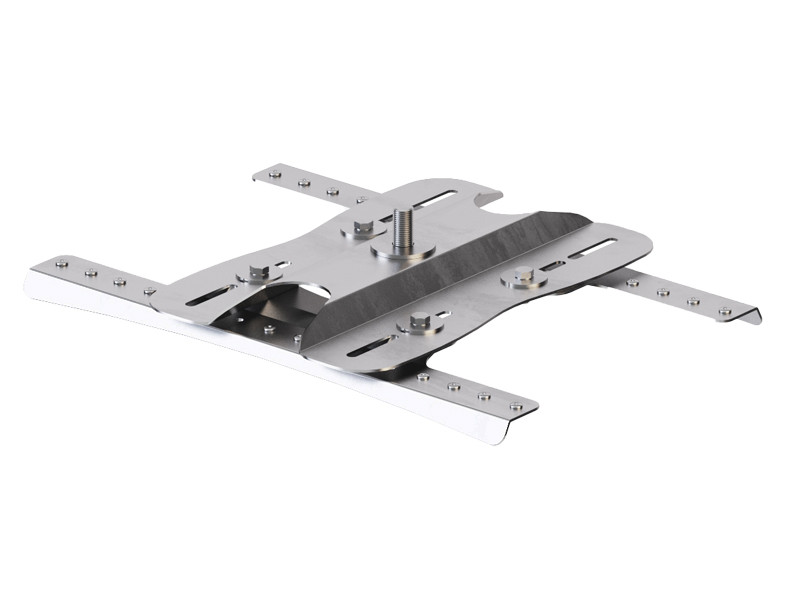

It consists of two main elements: the wings used to fasten to the roof and the base plate on which the PATROL anchor line or the AOS01 anchor point components are installed.
Thanks to these special accessories, it is possible to prepare straight and angular anchor lines to guarantee workplace safety for operators in every situation.
The SHIELD support is ideal for installation on corrugated sandwich panels or on corrugated sheets, both steel and aluminium.
It is supplied complete with assembly rivets and seals in cellular rubber, to guarantee perfect waterproofing of the structure after installation, and its small size guarantees a low visual impact.
Maximum load: 2 users
