SHIELD 2

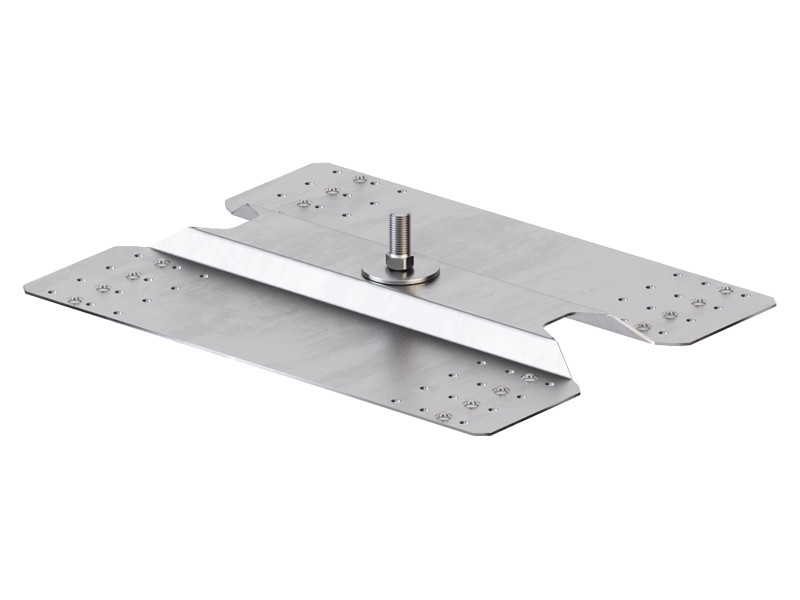

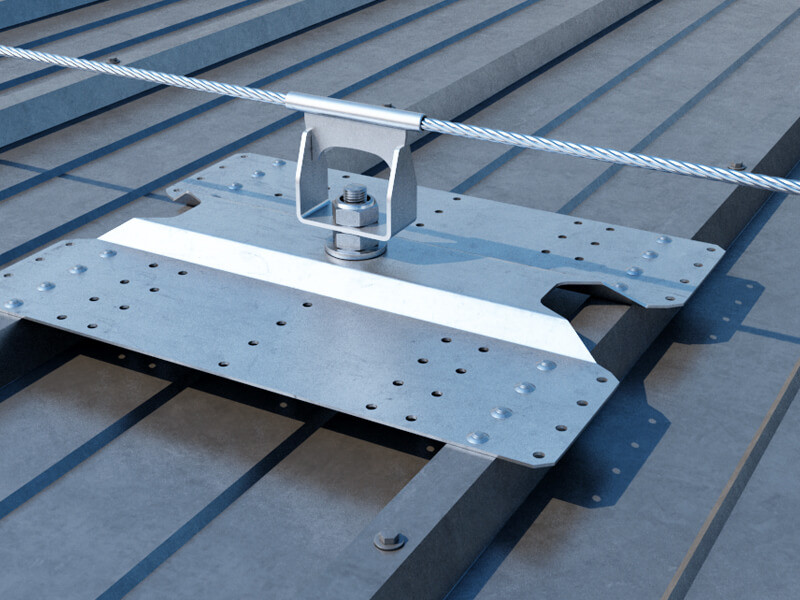

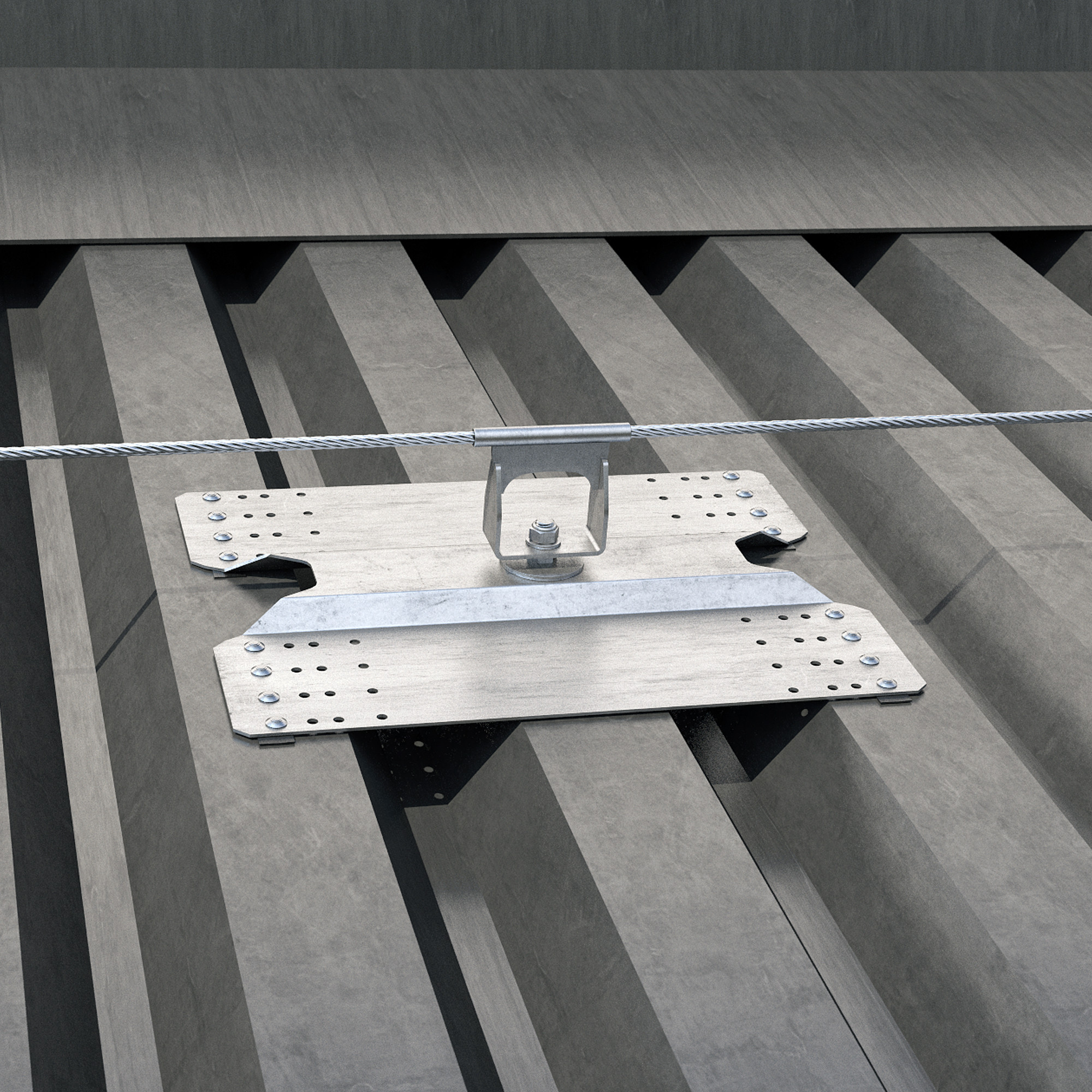

SHIELD 2.0 is the intermediate support designed for anchor lines on corrugated sheet metal roofs. Used to create anchor lines with the PATROL system in combination with the SHIELD support, it acts also as support for AOS01 anchor points.
Description
It is the intermediate support for anchor lines on corrugated sheet metal roofs. For flat or inclined roofs, choose SHIELD 2.0.

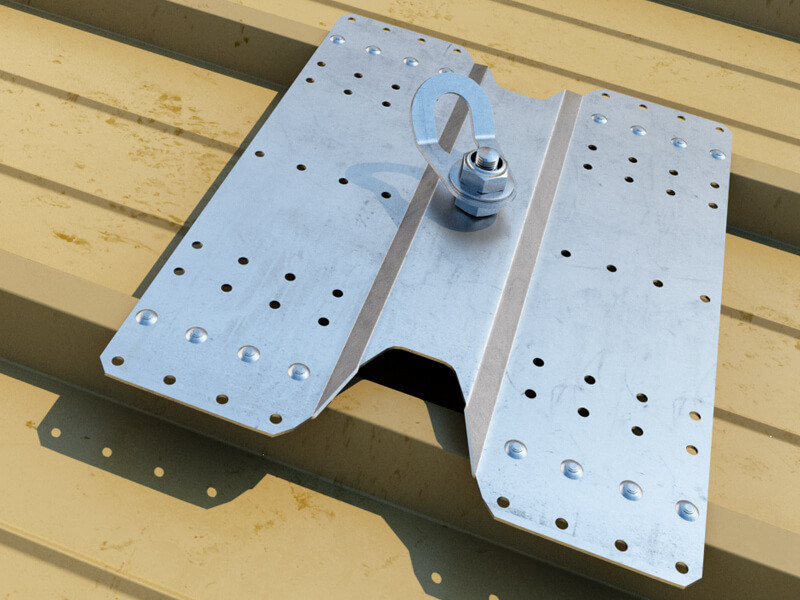

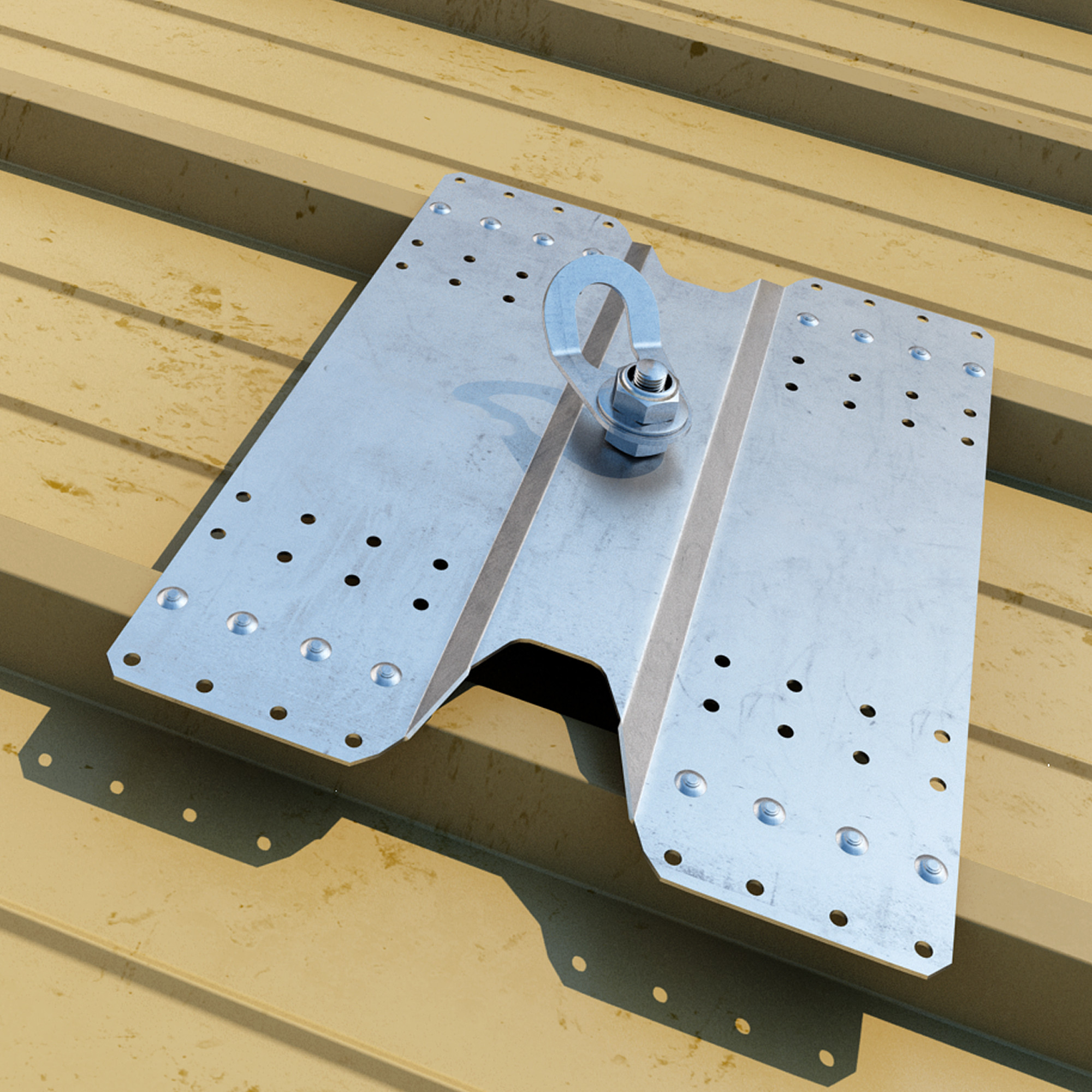

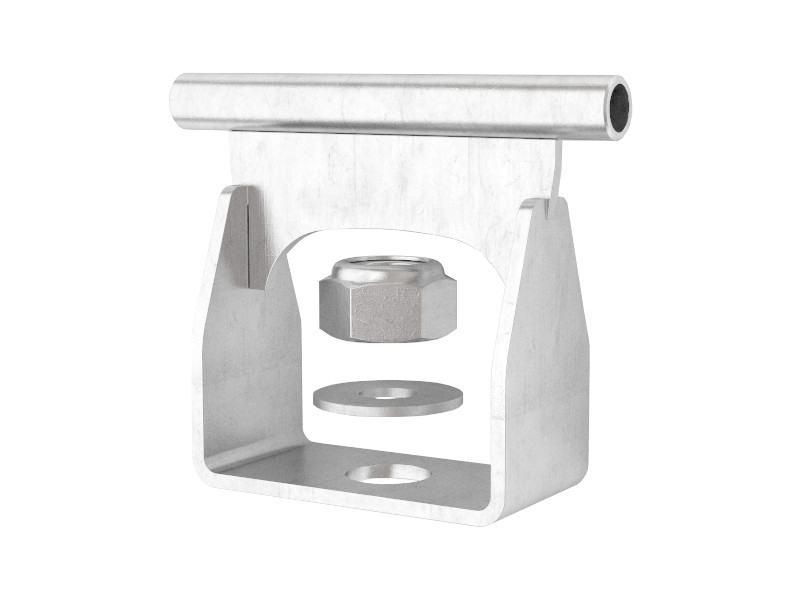

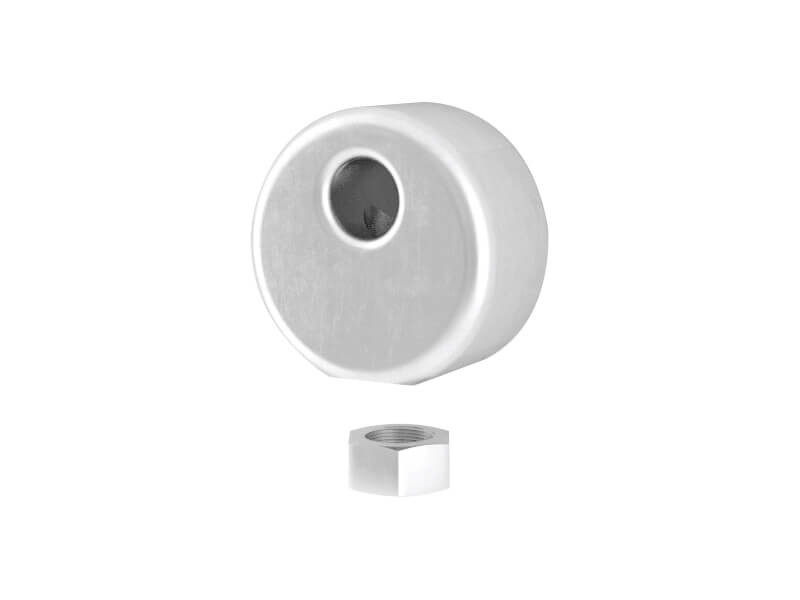

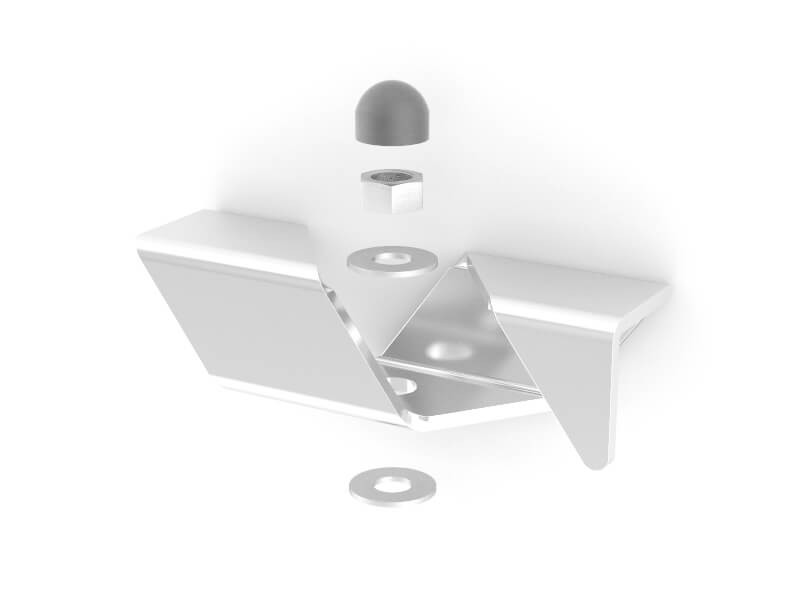

SHIELD 2.0 ensures fast and simple installation, thanks to the configuration as a single plate on which the intermediate components of the PATROL anchor line or the AOS01 anchor point are installed. The SHIELD 2.0 support is designed for installation on corrugated sheets or corrugated sandwich panels, both steel and aluminium.
The supply includes assembly rivets and seals in cellular rubber, to guarantee perfect waterproofing of the structure after installation. The AOS01 anchor point is not included and can be ordered separately. Maximum load: 2 users
Documents
-
Declaration of conformity
- Declaration of conformity Croatian
- Declaration of conformity Czech
- Declaration of conformity Danish
- Declaration of conformity Dutch
- Declaration of conformity English
- Declaration of conformity Estonian
- Declaration of conformity Finnish
- Declaration of conformity French
- Declaration of conformity German
- Declaration of conformity Greek
- Declaration of conformity Hungarian
- Declaration of conformity Italian
- Declaration of conformity Latvia
- Declaration of conformity Lithuanian
- Declaration of conformity Polish
- Declaration of conformity Portuguese
- Declaration of conformity Romanian
- Declaration of conformity Slovak
- Declaration of conformity Slovene
- Declaration of conformity Spanish
- Declaration of conformity Swedish
-
Safety regulations, instructions for installation and use
- Safety regulations, instructions for installation and use Arabian
- Safety regulations, instructions for installation and use Chinese
- Safety regulations, instructions for installation and use Croatian
- Safety regulations, instructions for installation and use Czech
- Safety regulations, instructions for installation and use Danish
- Safety regulations, instructions for installation and use Dutch
- Safety regulations, instructions for installation and use English
- Safety regulations, instructions for installation and use Estonian
- Safety regulations, instructions for installation and use Finnish
- Safety regulations, instructions for installation and use French
- Safety regulations, instructions for installation and use German
- Safety regulations, instructions for installation and use Greek
- Safety regulations, instructions for installation and use Hungarian
- Safety regulations, instructions for installation and use Icelandic
- Safety regulations, instructions for installation and use Italian
- Safety regulations, instructions for installation and use Japanese
- Safety regulations, instructions for installation and use Latvia
- Safety regulations, instructions for installation and use Lithuanian
- Safety regulations, instructions for installation and use Norwegian
- Safety regulations, instructions for installation and use Polish
- Safety regulations, instructions for installation and use Portuguese
- Safety regulations, instructions for installation and use Romanian
- Safety regulations, instructions for installation and use Russian
- Safety regulations, instructions for installation and use Slovak
- Safety regulations, instructions for installation and use Slovene
- Safety regulations, instructions for installation and use Spanish
- Safety regulations, instructions for installation and use Swedish
- Safety regulations, instructions for installation and use Turkish
-
File BIM.ifc
-
File BIM.rfa
-
Installation manual
SHIELD 2
| CODE | material | B
[mm]
|
H
[mm]
|
L
[mm]
|
pcs. |
|---|---|---|---|---|---|
| SHIELD2 | AISI 304 stainless steel grade 1.4301 | 420 | 65 | 322 | 1 |
| SHIELD2A4 | AISI 316 stainless steel grade 1.4401 | 420 | 65 | 322 | 1 |
