SOLID

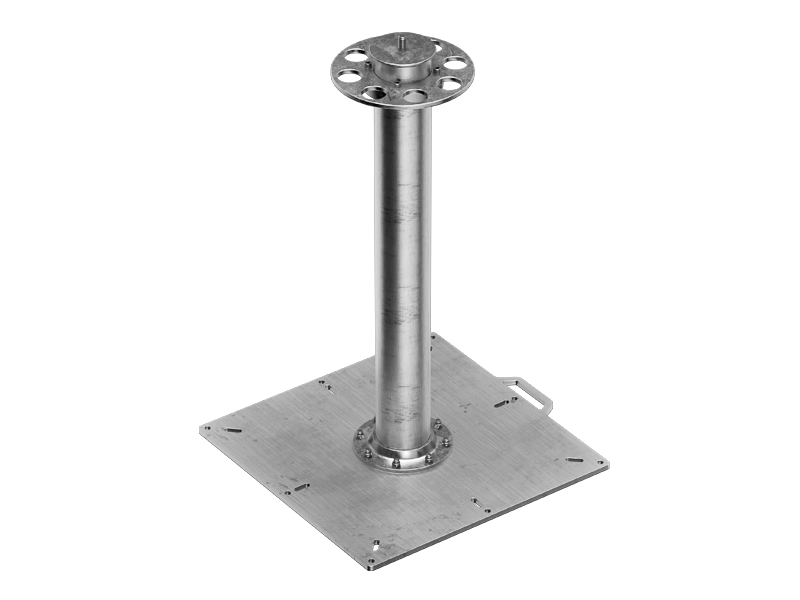

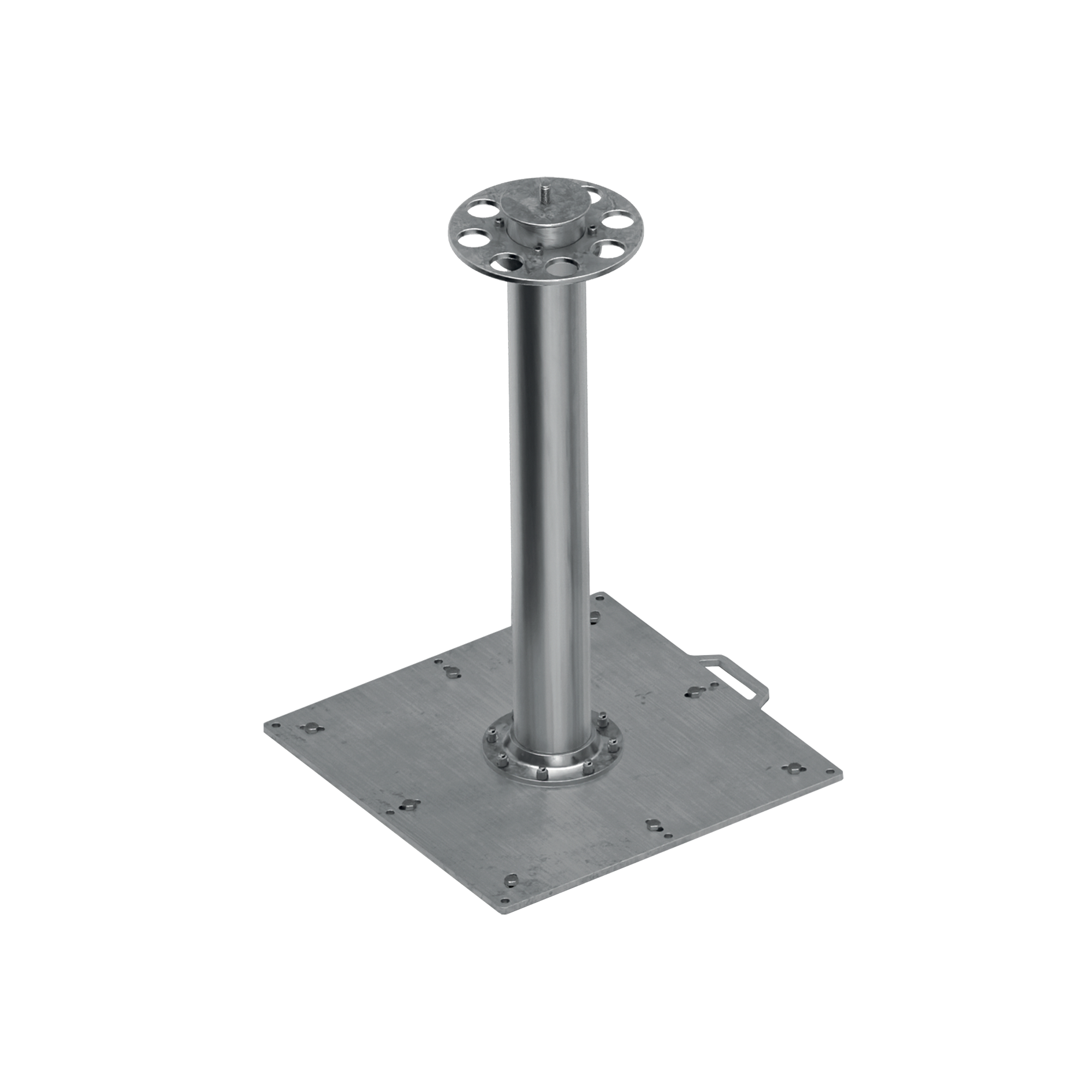

RIGID ANCHOR POINT FOR ROPE ACCESS WORK SOLID

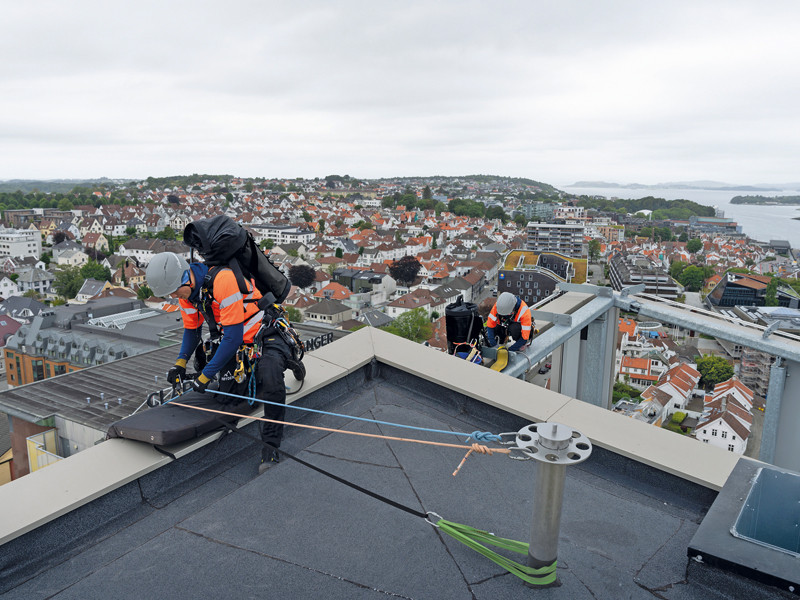

The high-rigidity and high-strength support, combined with the jawplate anchor system, enables rope access work to be carried out comfortably and safely.
The aluminium alloy comprising the support facilitates handling and installation thanks to the lightweight components.

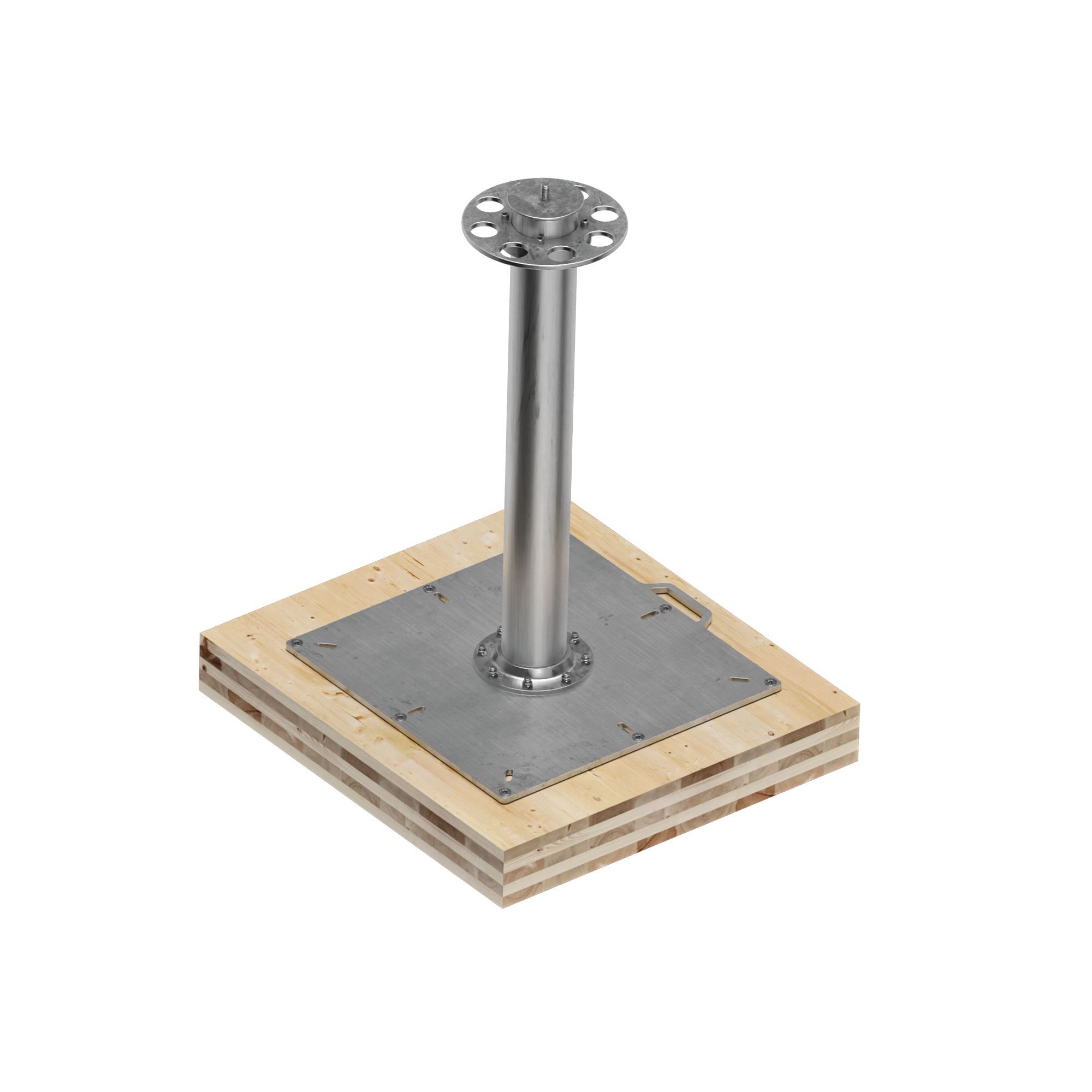

Support height between 400 and 1000 mm adapts to different roofing thicknesses
SOLID
| CODE | material | B
[mm]
|
H
[mm]
|
L
[mm]
|
pcs. |
|---|---|---|---|---|---|
| SOLID400 | EN AW-6082-T6 | 220 | 400 | - | 1 |
| SOLID600 | EN AW-6082-T6 | 220 | 600 | - | 1 |
| SOLID800 | EN AW-6082-T6 | 220 | 800 | - | 1 |
| SOLID1000 | EN AW-6082-T6 | 220 | 1000 | - | 1 |
| SOLIDRIG | EN AW-6082-T6 | - | - | - | 1 |
| SOLIDPLATE | EN AW-6082-T6 | 550 | - | 595 | 1 |
| SOLIDPLATEHC | EN AW-6082-T6 | 650 | - | 545 | 1 |
| SOLIDPLATEHD | EN AW-6082-T6 | 650 | - | 695 | 1 |
