T-CLAMP
SUPPORT FOR CONTINUOUS ROOFS T-CLAMP

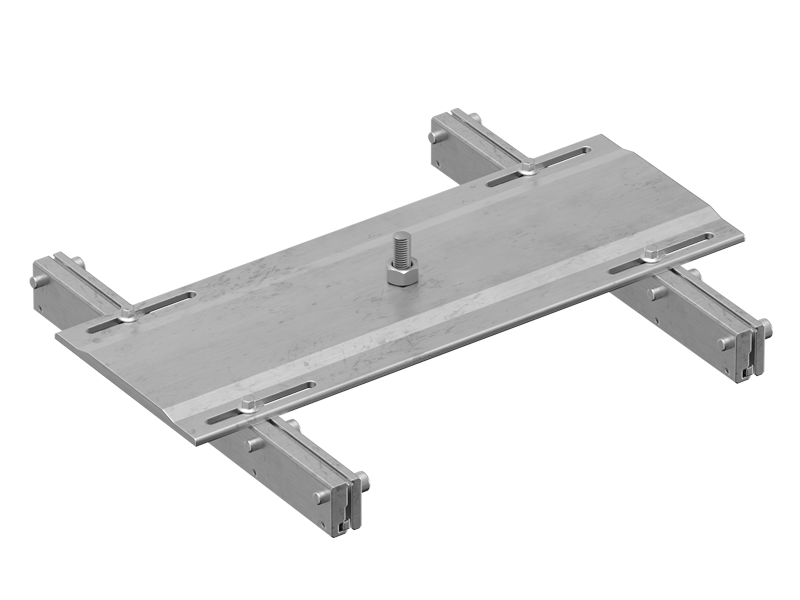

A versatile system with special clamps allowing installation on various types of metal roofs.
The various sizes of the universal plates guarantee a solution for the different spans of the seams.
The optional post allows the anchor point to be raised, thus overcoming obstacles on the roof.
Documents
-
Declaration of conformity
- Declaration of conformity Bulgarian
- Declaration of conformity Croatian
- Declaration of conformity Czech
- Declaration of conformity Danish
- Declaration of conformity Dutch
- Declaration of conformity English
- Declaration of conformity Estonian
- Declaration of conformity Finnish
- Declaration of conformity French
- Declaration of conformity German
- Declaration of conformity Greek
- Declaration of conformity Hungarian
- Declaration of conformity Italian
- Declaration of conformity Latvia
- Declaration of conformity Lithuanian
- Declaration of conformity Polish
- Declaration of conformity Portuguese
- Declaration of conformity Romanian
- Declaration of conformity Slovak
- Declaration of conformity Slovene
- Declaration of conformity Spanish
- Declaration of conformity Swedish
-
Installation manual
T-CLAMP
| CODE | description | material | B
[mm]
|
H
[mm]
|
L
[mm]
|
pcs. |
|---|---|---|---|---|---|---|
| TCLAMP500 | universal plate | EN AW-6082-T6 | 190 | 10 | - | 1 |
| TCLAMP700 | universal plate | EN AW-6082-T6 | 190 | 10 | 760 | 1 |
| TCLAMPTUBE200 | - | EN AW-6060-T6 | - | 260 | - | 1 |
| TCLAMPKLIP | - | EN AW-6060-T6 | 43 | 55 | - | 1 |
| TCLAMPRIVER | - | EN AW-6060-T6 | 43 | 55 | - | 1 |
| TCLAMPROUND | - | EN AW-6060-T6 | - | - | - | 1 |
| TCLAMPSTAND | - | EN AW-6060-T6 | 26 | 45 | - | 1 |
