SUPPORT FOR TIMBER, CONCRETE AND STEEL ROOFS
TOWER

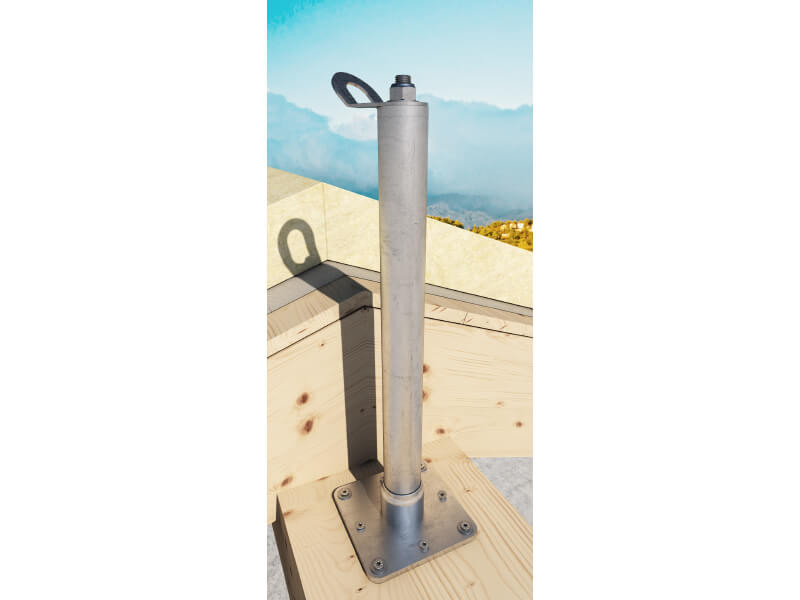

The TOWER support can be installed directly on timber, concrete or steel.
It is a device with controlled deformation which limits the transfer of load to the structure if the operator falls from a height.
Videos
Discover TOWER, the support for timber, concrete and steel that guarantees your safety at work.
The TOWER support has a markedly elastic-plastic behaviour that makes it possible to reduce the load on the fastenings and structure in the event that an operator falls.
The height of the support in between 300 and 600 mm, to adapt to different roofing thicknesses.

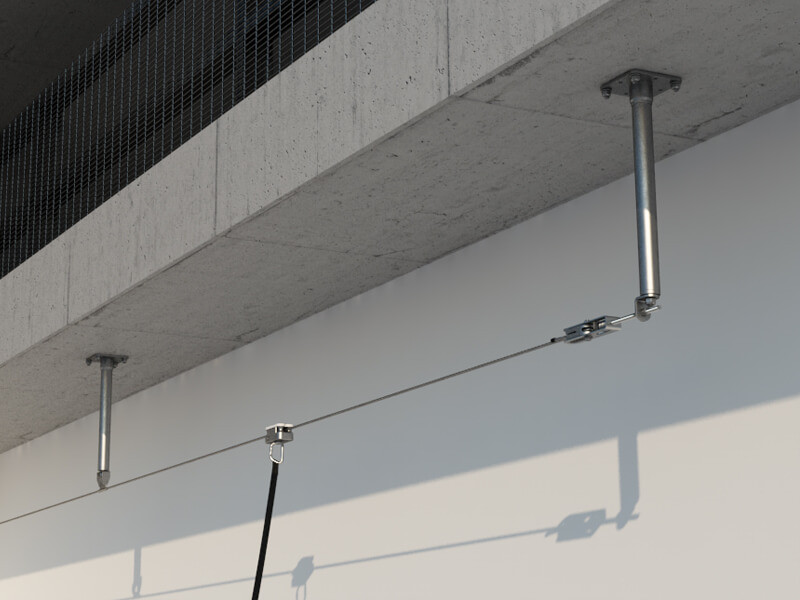

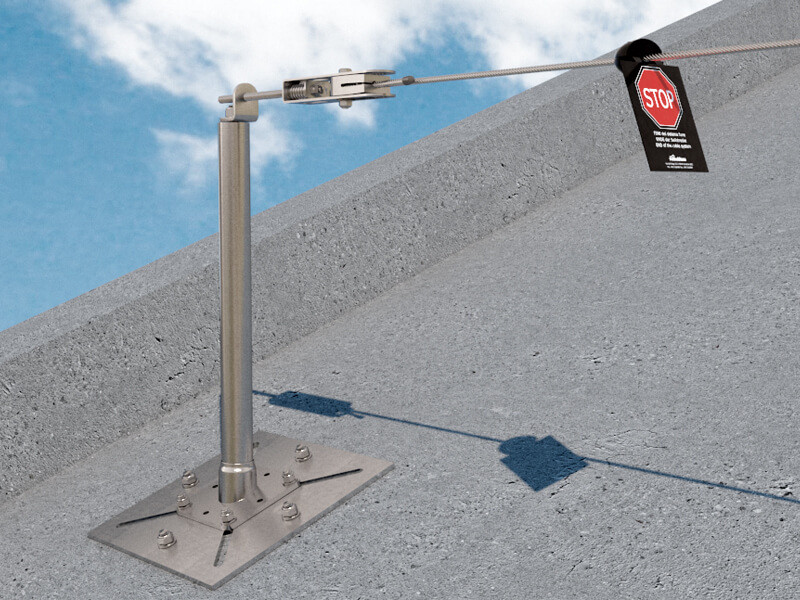

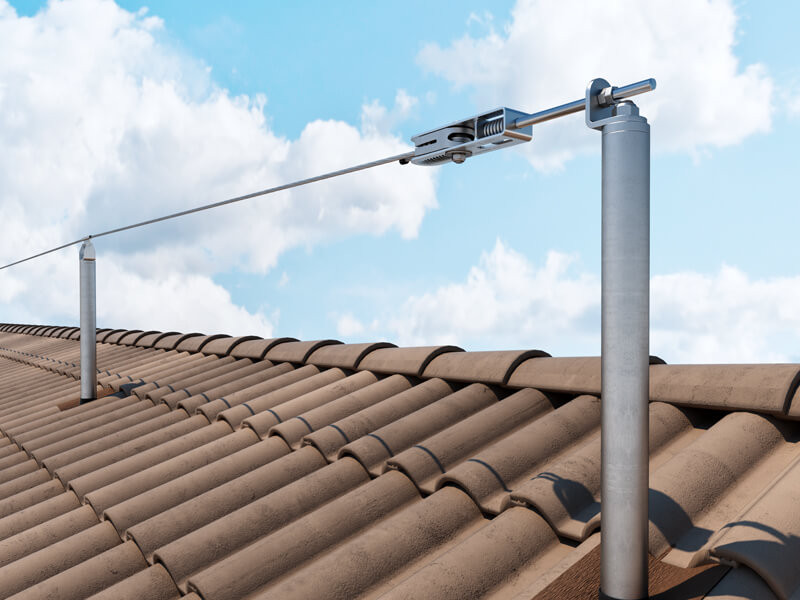

It is suitable for installation on flat and sloping surfaces, and for the creation of an overhead anchor line.
Once installed it ensures a low visual impact, for an aesthetically satisfactory result.
Maximum load: up to 4 operators
Features
| Application | LIFE LINE, SINGLE POINT |
|---|---|
| Substructure | TIMBER, CONCRETE, STEEL |
| Field of use | MIN. TIMBER STRUCTURE 160 X 160MM, MIN. CONCRETE STRUCTURE 140MM, MIN. STEEL STRUCTURE 6MM |
| Number of workers | 4 |
| Material | S235JR ZINC-PLATED STEEL |
Documents
| Australia Certificate | |
|---|---|
| Declaration of conformity | |
| Safety regulations, instructions for installation and use | |
| File BIM.ifc | |
| File BIM.rfa | |
| Declaration of Installation and inspection | |
| EAC certificate (anchor points) | |
| EAC certificate (anchor lines) |
Installation manual
| Manual for installation and use | |
|---|---|
| Installation manual |

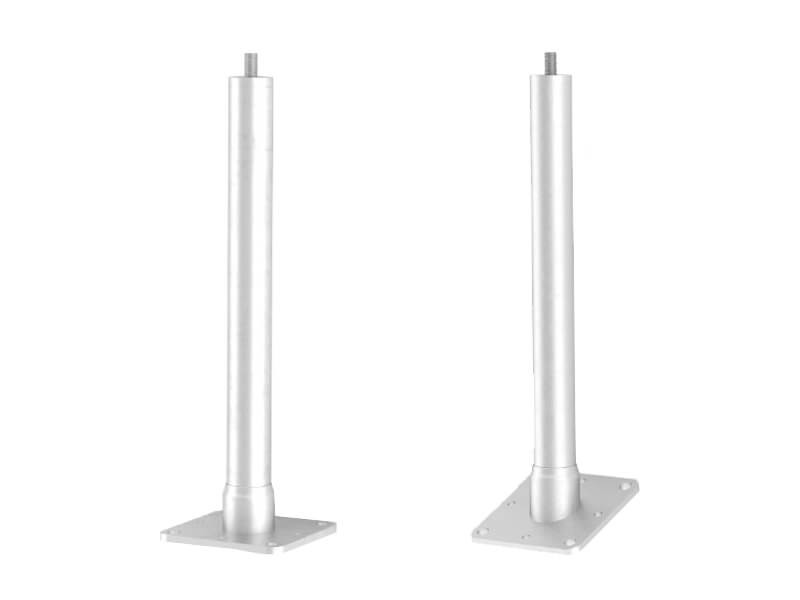

TOWER
| CODE | material | d₁
[mm]
|
B
[mm]
|
H
[mm]
|
L
[mm]
|
pcs. |
|---|---|---|---|---|---|---|
| TOWER300 | S235JR zinc-plated steel | 48 | 150 | 300 | 150 | 1 |
| TOWER400 | S235JR zinc-plated steel | 48 | 150 | 400 | 150 | 1 |
| TOWER500 | S235JR zinc-plated steel | 48 | 150 | 500 | 150 | 1 |
| TOWER600 | S235JR zinc-plated steel | 48 | 150 | 600 | 150 | 1 |
| TOWER22500 | S235JR zinc-plated steel | 48 | 150 | 500 | 150 | 1 |
Related products
-
AOS01
ANCHOR POINT FOR SUPPORTS
-
TOWER PEAK
ADAPTOR FOR DOUBLE LAYER RIDGE PIECE FOR TOWER
-
TOWER SLOPE
FASTENING GUIDE FOR TOWER ON RAFTER
-

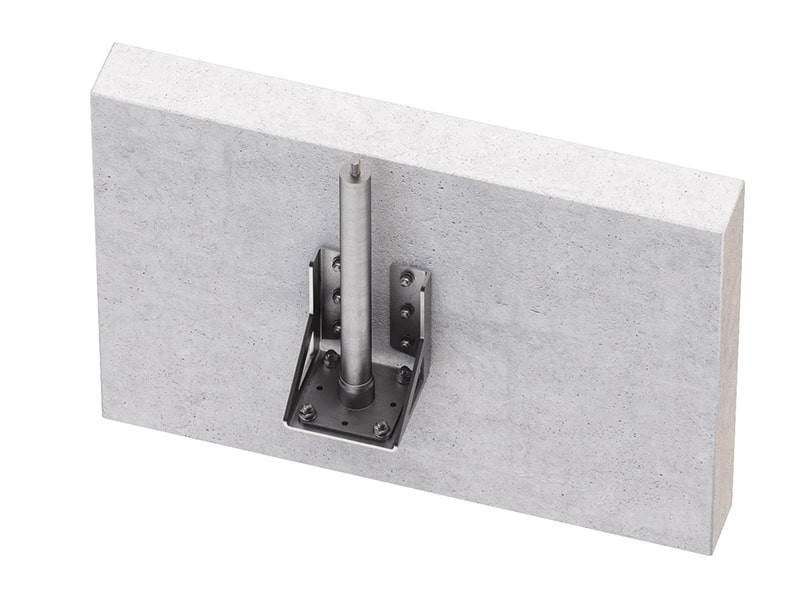

TOWLAT
