GREEN LINE
GREEN LINE is the ballasted lifeline which does not require the roofing to be drilled, thereby preventing thermal bridges and ensuring the structure waterproofing. Ideal for flat green roofs, with a slope of up to 5°, it can be installed quickly.
Description
GREEN LINE, the ballasted lifeline that respects your roof.

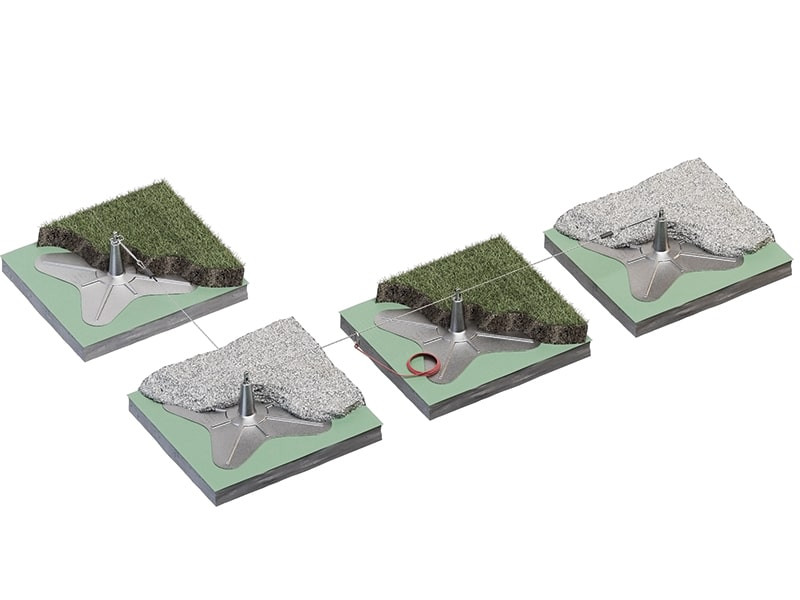

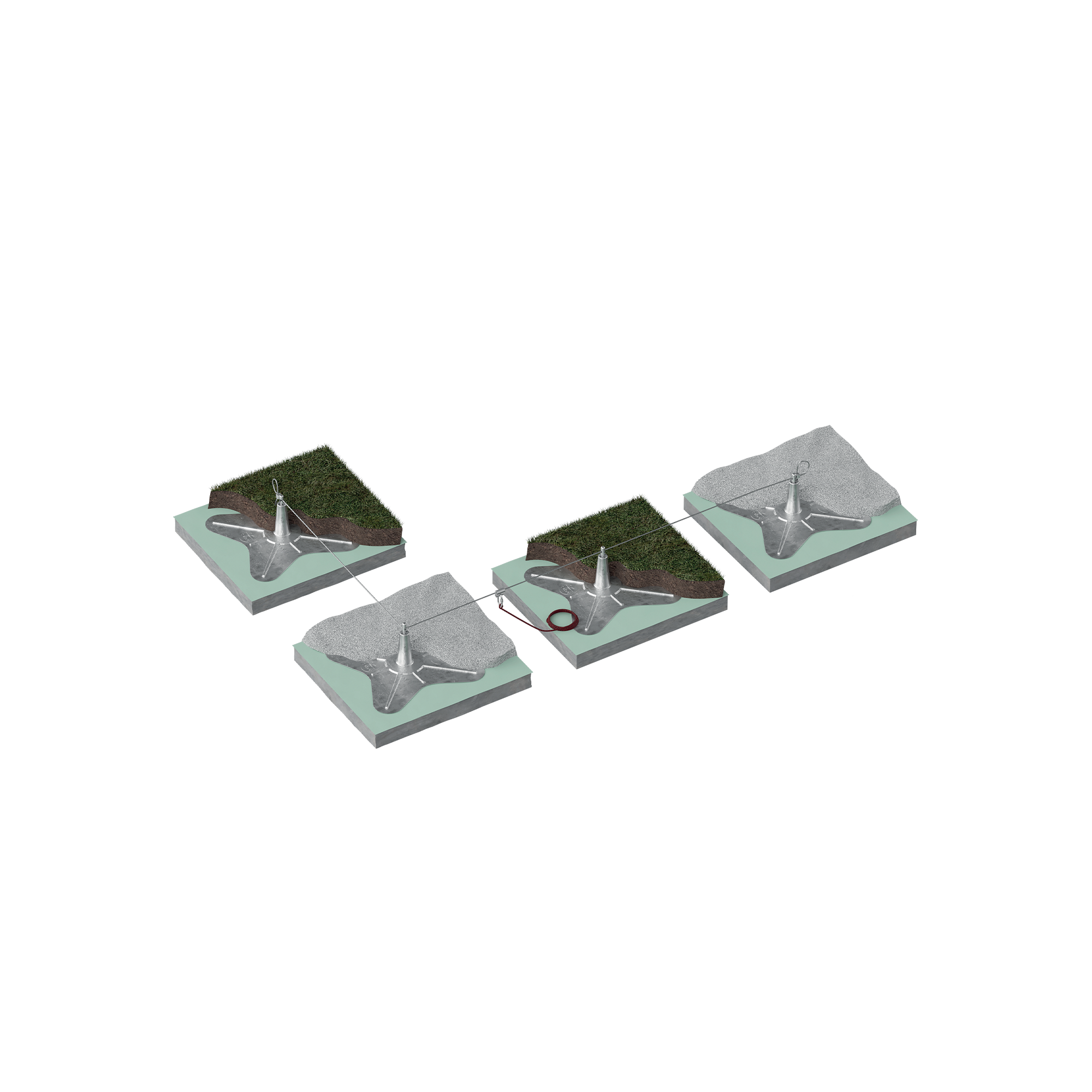

The GREEN LINE ballasted lifeline is the system designed for green roofs and consists of just a few components that make it quick and easy to install. The installation without grooving does not affect the roof insulation layer.

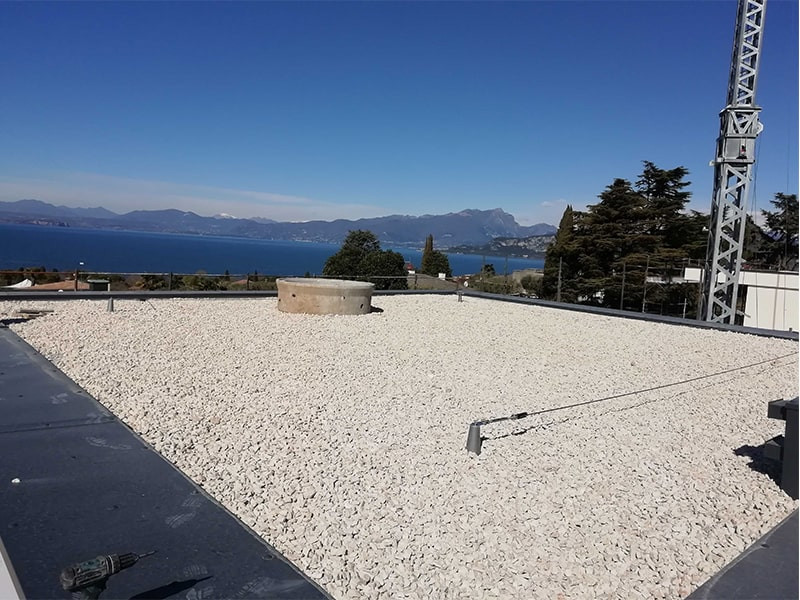

Can be installed on any green roof, regardless of the material used as fill. Once covered, the GREEN LINE is only partially visible. The lifeline system withstands plane stress (360°) and is designed for application on flat roofs.
Documents
-
Technical data sheets
-
Declaration of Installation and inspection
- Declaration of Installation and inspection Arabian
- Declaration of Installation and inspection Chinese
- Declaration of Installation and inspection Croatian
- Declaration of Installation and inspection Czech
- Declaration of Installation and inspection Dutch
- Declaration of Installation and inspection English
- Declaration of Installation and inspection Estonian
- Declaration of Installation and inspection Finnish
- Declaration of Installation and inspection French
- Declaration of Installation and inspection German
- Declaration of Installation and inspection Greek
- Declaration of Installation and inspection Hungarian
- Declaration of Installation and inspection Icelandic
- Declaration of Installation and inspection Italian
- Declaration of Installation and inspection Japanese
- Declaration of Installation and inspection Latvia
- Declaration of Installation and inspection Lithuanian
- Declaration of Installation and inspection Norwegian
- Declaration of Installation and inspection Polish
- Declaration of Installation and inspection Portuguese
- Declaration of Installation and inspection Romanian
- Declaration of Installation and inspection Russian
- Declaration of Installation and inspection Slovak
- Declaration of Installation and inspection Slovene
- Declaration of Installation and inspection Spanish
- Declaration of Installation and inspection Swedish
- Declaration of Installation and inspection Turkish
GREEN LINE
| CODE | description | material | d₁
[mm]
|
B
[mm]
|
H
[mm]
|
L
[mm]
|
pcs. |
|---|---|---|---|---|---|---|---|
| GREENSUP | life line terminal/intermediate element | AISI 316L stainless steel grade 1.4404 | 250 | - | 300 | - | 1 |

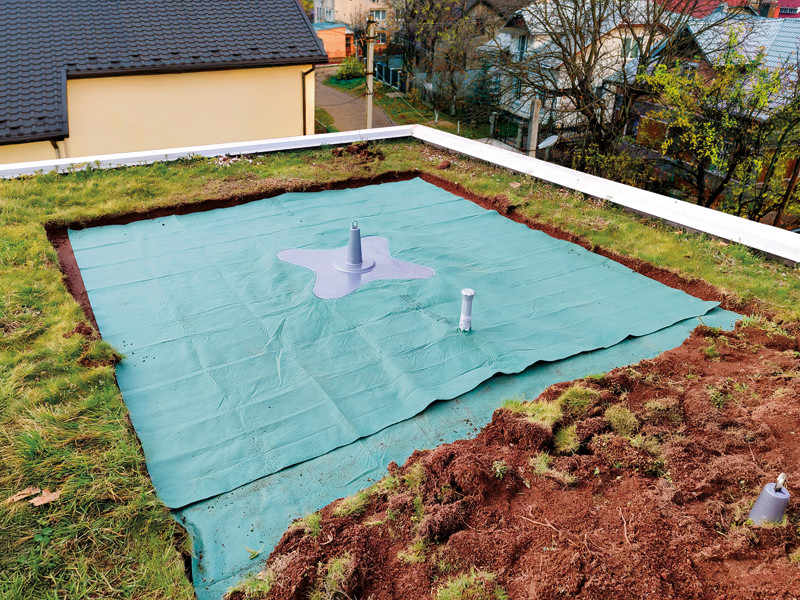

| GREENCARPET | tarpaulin with possibility of installing ballasts 3x3 m with external cone | glass fibre reinforced plastic (GFRP) | - | 3000 | - | 3000 | 1 |
| GREENHEAD | Locking head | Stainless steel 1.4408 / AISI 316 | - | 40 | 57.5 | - | 1 |
| GREENCLAMPS | Rope clamp | Stainless steel 1.4408 / AISI 316 | - | 29 | 29 | - | 1 |
| GREENCAP | Heat shrink tubing | - | 8 | - | - | - | 1 |
| CABLE | Ø8 7 x 7 | stainless steel - AISI316 | - | - | - | - | 1 |
