H-RAIL ON WALL
Working at heights requires a secure anchorage, but this can be visually impacting or impose excessive limitations on use. The H-RAIL rail system is safe and versatile with minimal visual impact. It allows to create rigid horizontal, curved or straight anchor lines, using few fasteners thanks to the system components. H-RAIL is suitable for working at height, both in retention and suspension.
Working at height with H-RAIL ON WALL

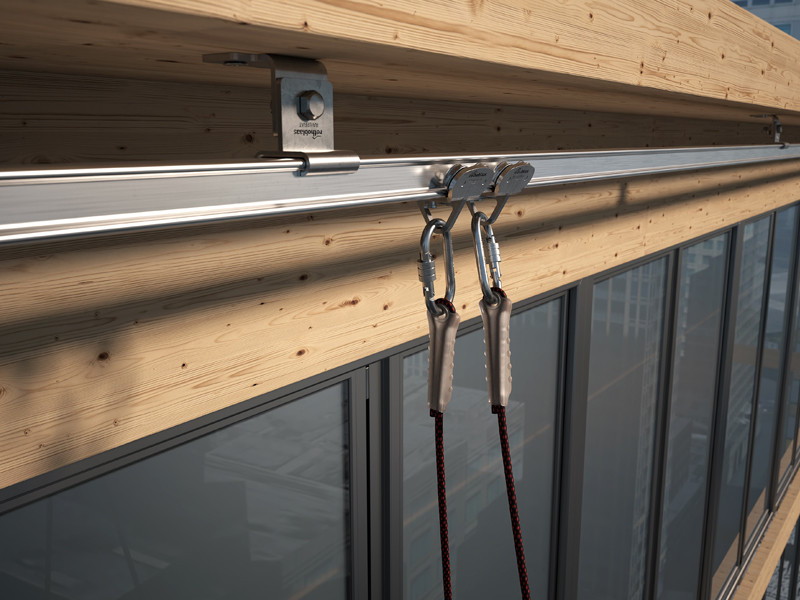

H-RAIL is designed to be used by means of a specific sliding device, equipped with four wheels, which allows work at height, even when suspended.

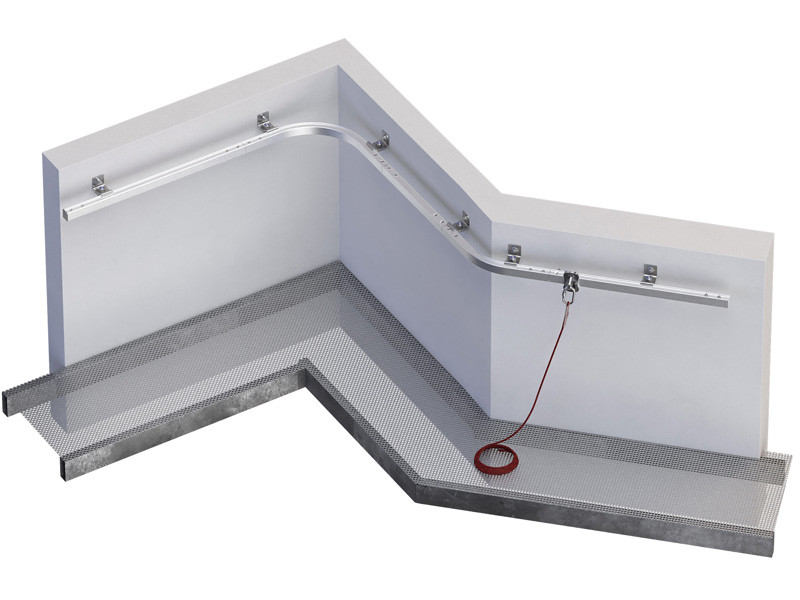

H-RAIL can be installed on different structures ( timber, concrete and steel) to suit every installation requirement. Unlike the other models, H-RAIL ON WALL is installed on the wall, H-RAIL ON FLOOR on the roof and H-RAIL OVERHEAD below the supporting structure.
Assembly requires a limited number of fastening points with support spacing up to 6 m.
Safety by definition of work at height

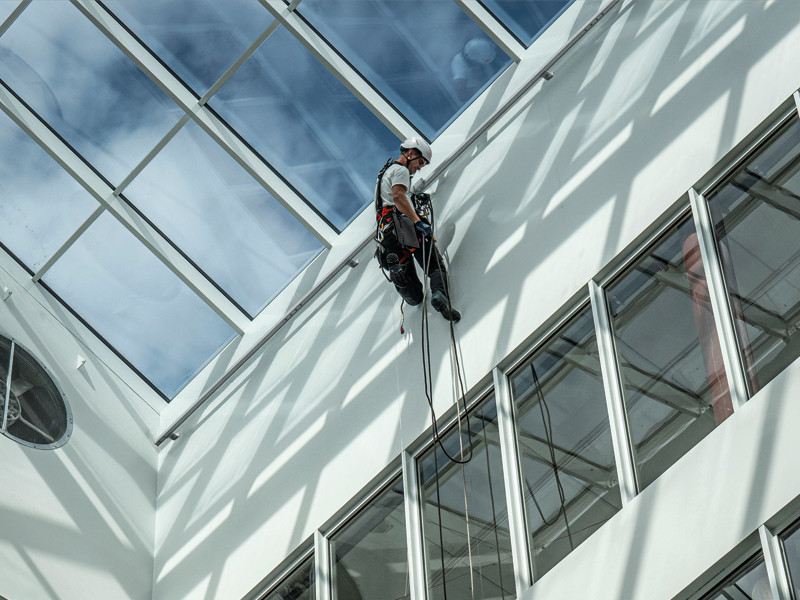

What is meant by working at height? The risk of falling from a height of more than 2 metres defines work at height, which always requires a safe anchorage. For certain types of maintenance, however, such as façade maintenance, especially in the case of large buildings, there is a tendency to adopt very bulky safety solutions, such as BMUs, also known as baskets. For their installation, space is required to accommodate a machine with a large mechanical arm, the weight and bulk of which must already be considered in the building design. H-RAIL, on the other hand, thanks to its simplicity and lightness, can always be retrofitted, offering superior performance.

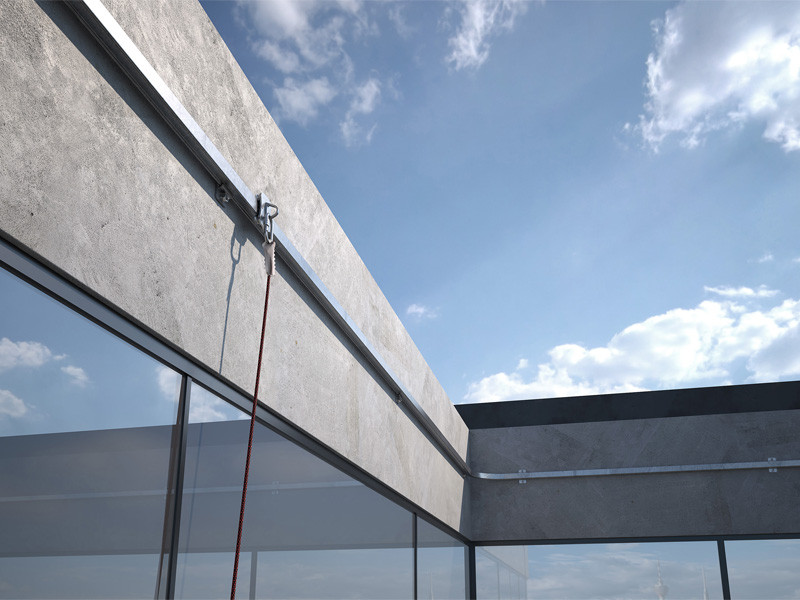

The H-RAIL ON WALL anchoring system from Rothoblaas represents the last word in safety for work at height and maintenance on roofs and façades. Designed with the objective of providing maximum protection for operators, this innovative lifeline system offers a reliable and durable solution for any type of structure. Its installation, made directly on the wall, is extremely simple and does not require complex masonry work, guaranteeing exceptional assembly efficiency. The ergonomic and compact design of the system blends harmoniously with the surrounding architecture without compromising the aesthetics of the location.
Made from the highest quality and most durable materials, it provides long-lasting protection, offering peace of mind and safety to both operators and users of the facilities involved. H-RAIL's versatility and reliability make it the ideal choice for a wide range of applications, from industrial maintenance to work on residential buildings, helping to raise safety standards and protect the lives of those working at height.
Documents
Technical data sheets | |
---|---|
Declaration of conformity | |
Safety regulations, instructions for installation and use | |
Declaration of Installation and inspection |
Installation manual
Installation manual |
---|
RAIL

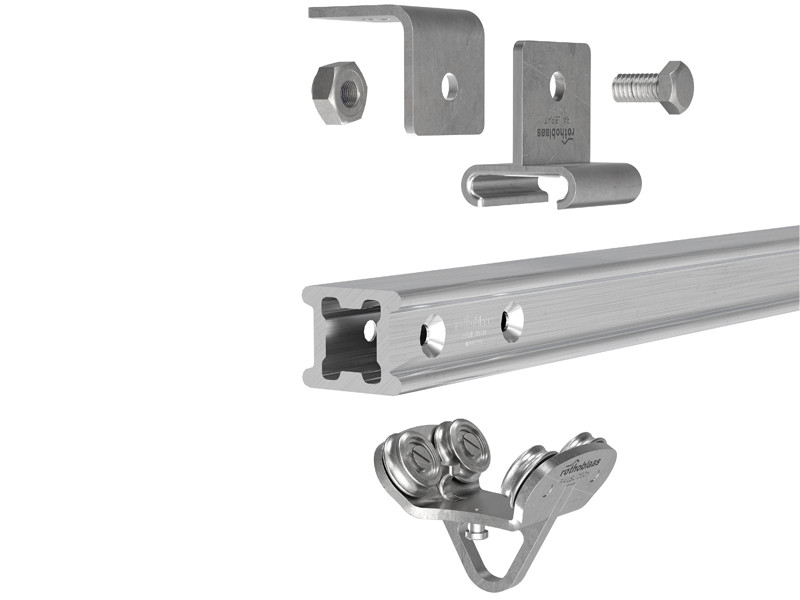

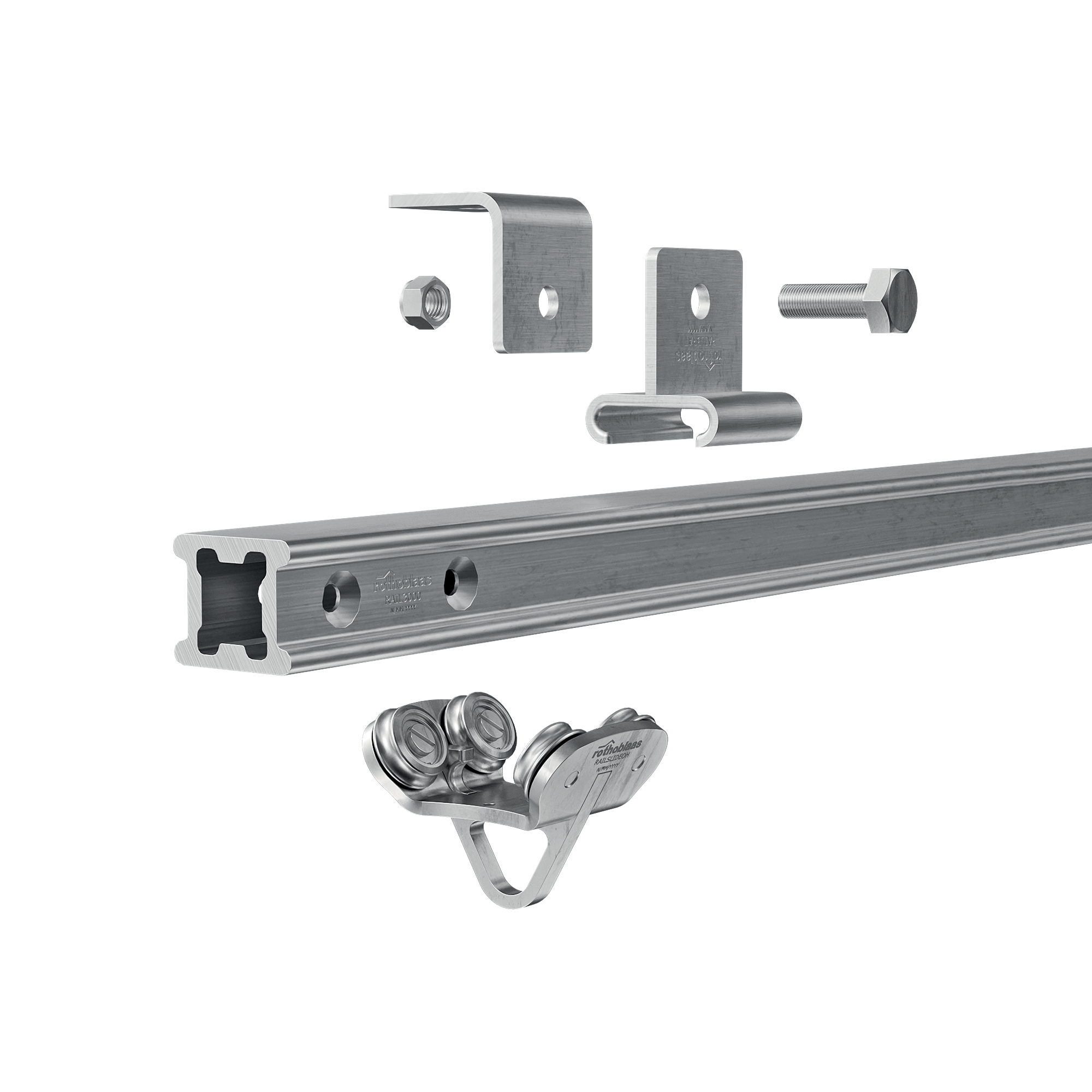

CODE | description | pcs. |
---|---|---|
RAIL3000 | 3m aluminium rail | 1 |
RAILVC90 | 90° aluminium vertical bend | 1 |
RAILVC135 | 135° aluminium vertical bend | 1 |
SUPPORT
CODE | description | pcs. |
---|---|---|
RAILBRAT | support element for rail | 1 |
RAILBRAT12 | M12 plate for RAILBRAT | 1 |
RAILBRATW | for fixing on wood | 1 |
RAILBRAS | for direct fixing on steel | 1 |
TERMINAL ELEMENT
CODE | description | pcs. |
---|---|---|
RAILEND | rail end-stop without exit | 1 |
RAILENDOPEN | rail end-stop with exit | 1 |
JOINT
CODE | description | pcs. |
---|---|---|
RAILJUN | junction for rails and bends | 1 |
SLIDING DEVICE
CODE | description | pcs. |
---|---|---|
RAILSLIDE | sliding device | 1 |
RAILSLIDEWALL | slide for wall application | 1 |
TOOL
CODE | description | pcs. |
---|---|---|
RAILJUNTOOL | template for rail junction holes | 1 |
RAILPLATE | Rail system ID plate | 1 |
FASTENING
CODE | description | pcs. |
---|---|---|
RAILOCKSCREW | Lock screw | 250 |
RAILSCREW | DIN 7991 A2-70 | 50 |
TARGAHORxy
CODE | description | pcs. | |
---|---|---|---|
TARGAHORIT | New | Label plate for PATROL and H-RAIL systems IT | 1 |
TARGAHORDE | New | Label plate for PATROL and H-RAIL systems DE | 1 |
TARGAHOREN | New | Label plate for PATROL and H-RAIL systems EN | 1 |
TARGAHORES | New | Label plate for PATROL and H-RAIL systems ES | 1 |
TARGAHORFR | New | Label plate for PATROL and H-RAIL systems FR | 1 |
TARGAHORPT | New | Label plate for PATROL and H-RAIL systems PT | 1 |
TARGAHORRU | New | Label plate for PATROL and H-RAIL systems RU | 1 |
TARGAHORCS | New | Label plate for PATROL and H-RAIL systems CS | 1 |
TARGAHORDA | New | Label plate for PATROL and H-RAIL systems DA | 1 |
TARGAHOREL | New | Label plate for PATROL and H-RAIL systems EL | 1 |
TARGAHORET | New | Label plate for PATROL and H-RAIL systems ET | 1 |
TARGAHORFI | New | Label plate for PATROL and H-RAIL systems FI | 1 |
TARGAHORHR | New | Label plate for PATROL and H-RAIL systems HR | 1 |
TARGAHORHU | New | Label plate for PATROL and H-RAIL systems HU | 1 |
TARGAHORIS | New | Label plate for PATROL and H-RAIL systems IS | 1 |
TARGAHORJA | New | Label plate for PATROL and H-RAIL systems JA | 1 |
TARGAHORLT | New | Label plate for PATROL and H-RAIL systems LT | 1 |
TARGAHORLV | New | Label plate for PATROL and H-RAIL systems LV | 1 |
TARGAHORNL | New | Label plate for PATROL and H-RAIL systems NL | 1 |
TARGAHORNO | New | Label plate for PATROL and H-RAIL systems NO | 1 |
TARGAHORPL | New | Label plate for PATROL and H-RAIL systems PL | 1 |
TARGAHORRO | New | Label plate for PATROL and H-RAIL systems RO | 1 |
TARGAHORSK | New | Label plate for PATROL and H-RAIL systems SK | 1 |
TARGAHORSL | New | Label plate for PATROL and H-RAIL systems SL | 1 |
TARGAHORSV | New | Label plate for PATROL and H-RAIL systems SV | 1 |
TARGAHORTR | New | Label plate for PATROL and H-RAIL systems TR | 1 |
TARGAHORZH | New | Label plate for PATROL and H-RAIL systems ZH | 1 |
TARGAHORAR | New | Label plate for PATROL and H-RAIL systems AR | 1 |
