AOS01 + BLOCK
BALLASTED ANCHOR POINT FOR FLAT ROOFS

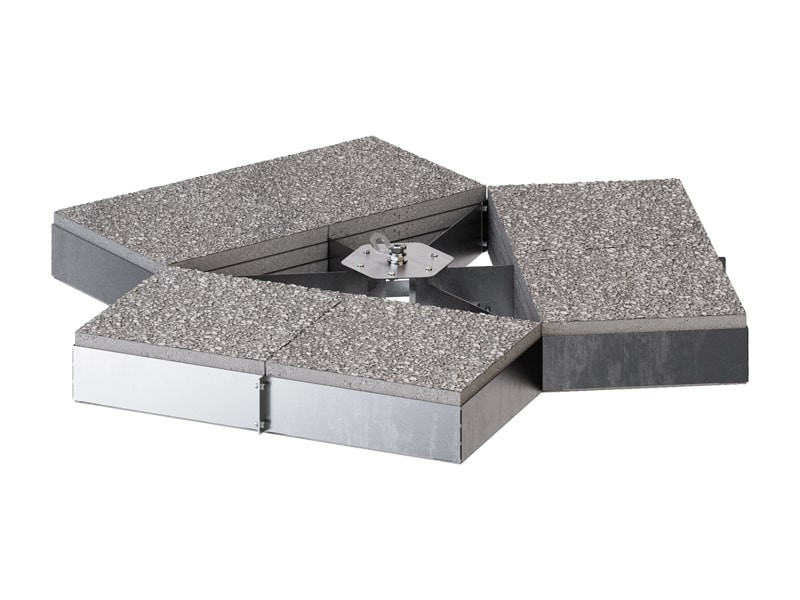

BLOCK is the ballasted support for installing the AOS01 anchor point on flat roofs. It does not require to drill the roof covering, avoiding thermal bridges and preserving the waterproofing layer of the structure.
Description

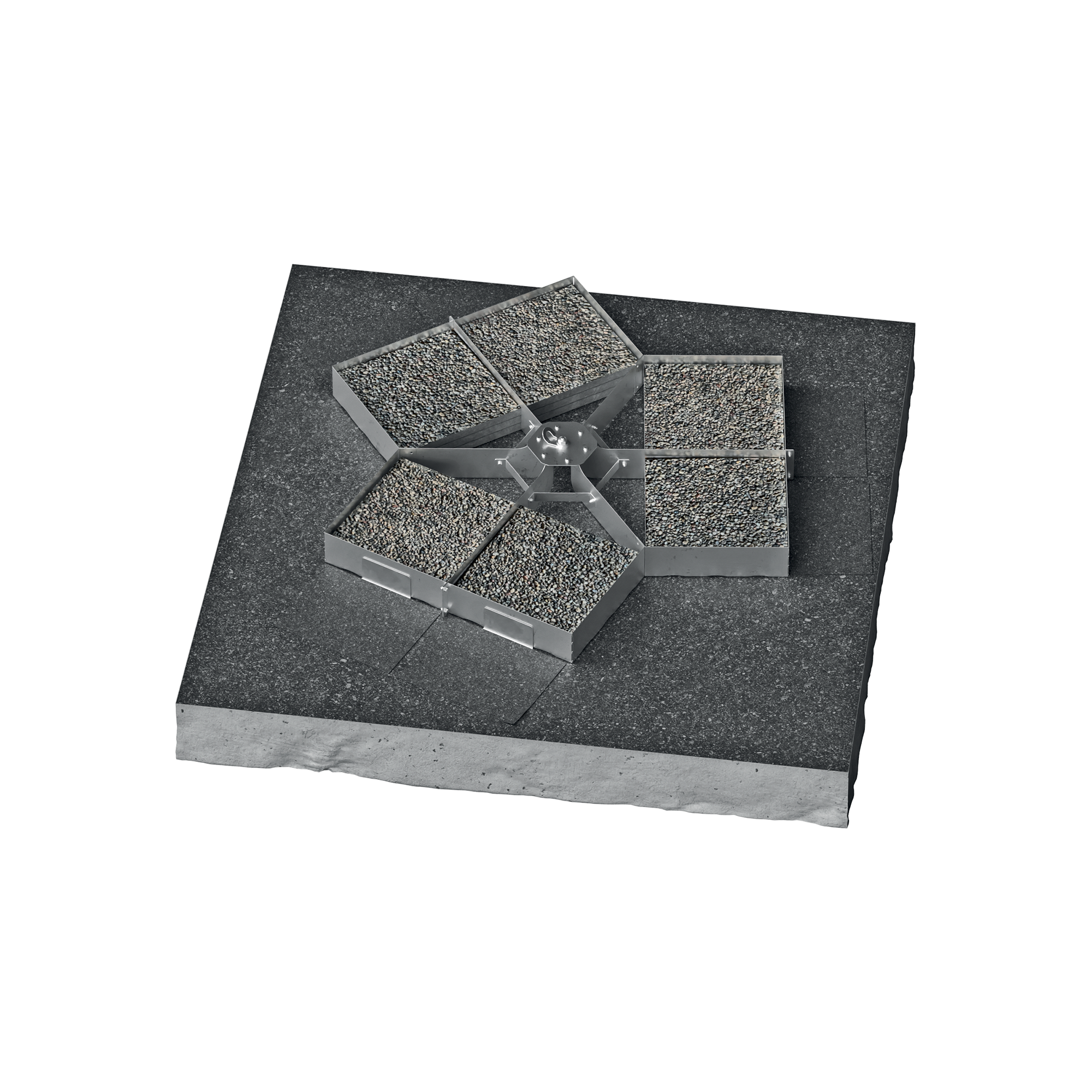

AOS01 and BLOCK, the system for creating an anchor point on flat roofs.
Designed for flat roofs with inclines up to 5° with PVC or bituminous final covering, with or without gravel. It withstands plane stress (360°).
Documents
-
Technical data sheets
-
File BIM.ifc
-
File BIM.rfa
BLOCK
| CODE | material | B
[mm]
|
H
[mm]
|
L
[mm]
|
pcs. | |
|---|---|---|---|---|---|---|
| BLOCK | AISI 304 stainless steel grade 1.4301 | 1870 | 165 | 1645 | 1 | |
| BLOCKPLATE |
New
|
- | - | - | - | 1 |
| BLOCKMAT | - | 550 | - | 1050 | 1 |
AOS01
| CODE | material | d₁
[mm]
|
B
[mm]
|
L
[mm]
|
pcs. | |
|---|---|---|---|---|---|---|
| AOS01 | AISI 304 stainless steel grade 1.4301 | 17 | 60 | 98 | 1 | |
| AOS01A4 |
New
|
- | - | - | - | 1 |
