AOS01 + SHIELD
ANCHOR POINT FOR TRAPEZOIDAL METAL ROOFS
SHIELD is the ideal support for installation of the AOS01 anchor point on trapezoidal metal sheet roofs. Thanks to its small size, the system ensures minimal visual impact once installed.
Description

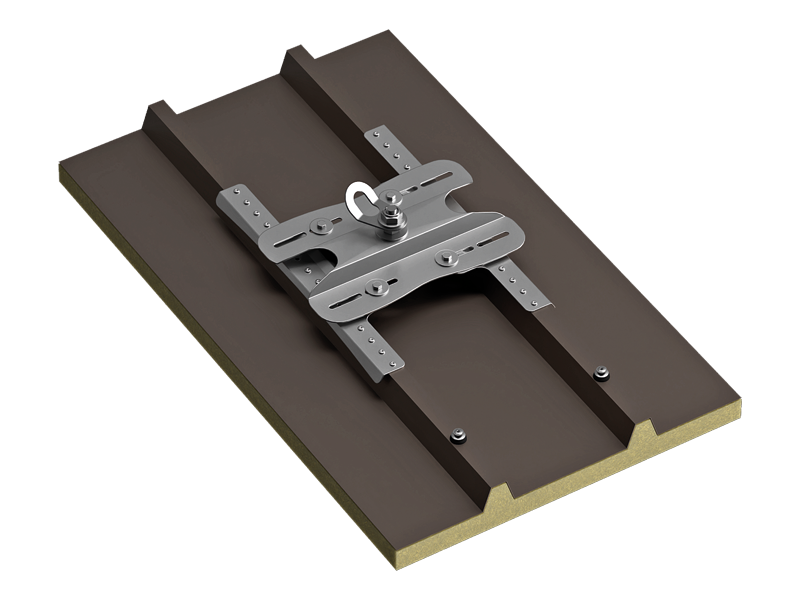

AOS01 with SHIELD, your anchor point on trapezoidal metal sheet roofs.

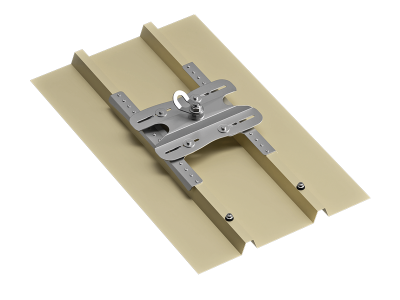

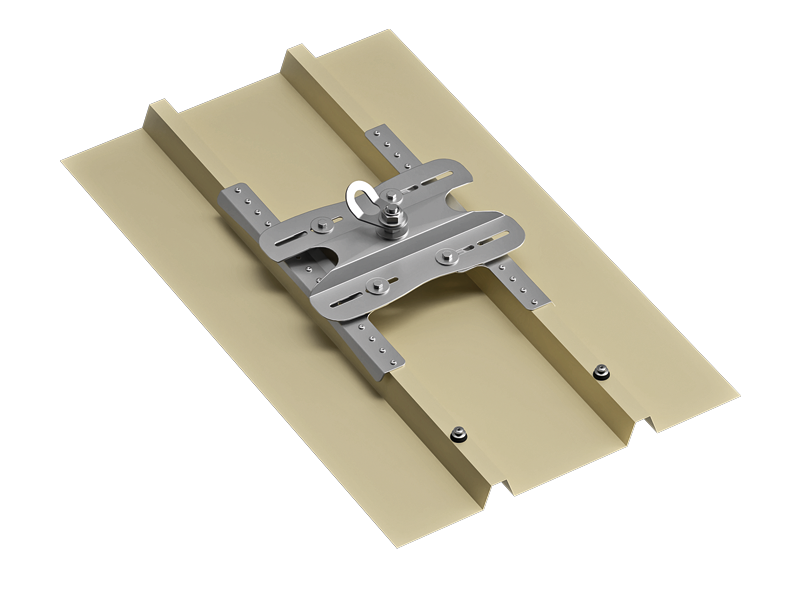

The system is supplied complete with mounting rivets and cellular rubber seals for perfect waterproofing. It withstands plane stress (360°) and can be installed on flat and sloping roofs.
Documents
-
Technical data sheets
-
File BIM.ifc
-
File BIM.rfa
-
Declaration of Installation and inspection

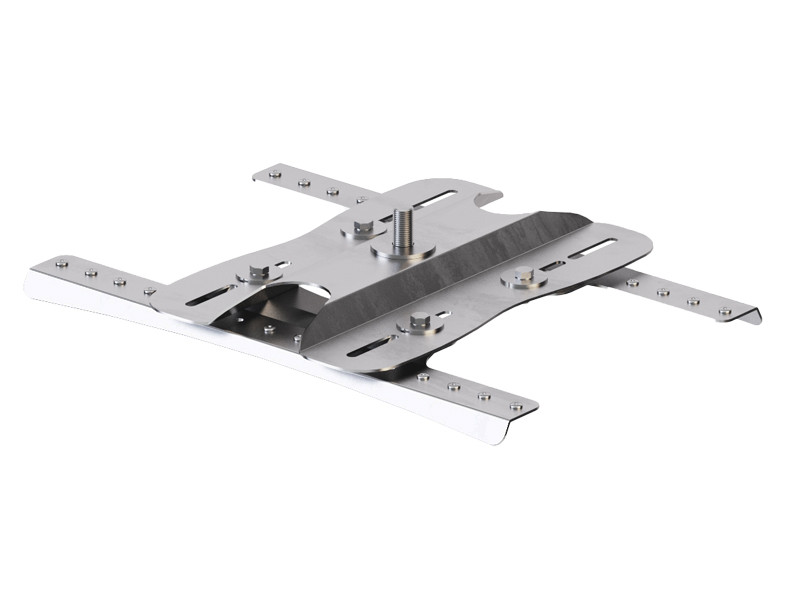

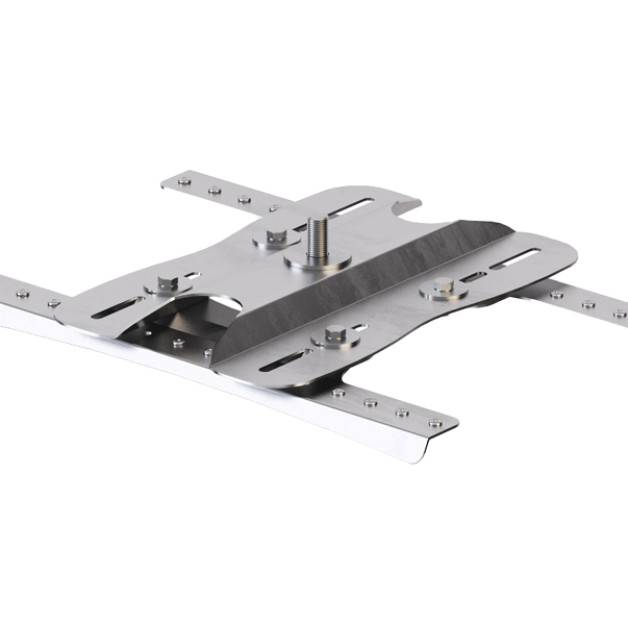

SHIELD
| CODE | material | H
[mm]
|
L
[mm]
|
measures
[mm]
|
pcs. |
|---|---|---|---|---|---|
| SHIELD | AISI 304 stainless steel grade 1.4301 | 85 | 476 | 180 – 420 | 1 |
| SHIELDA4 | - | - | - | - | 1 |

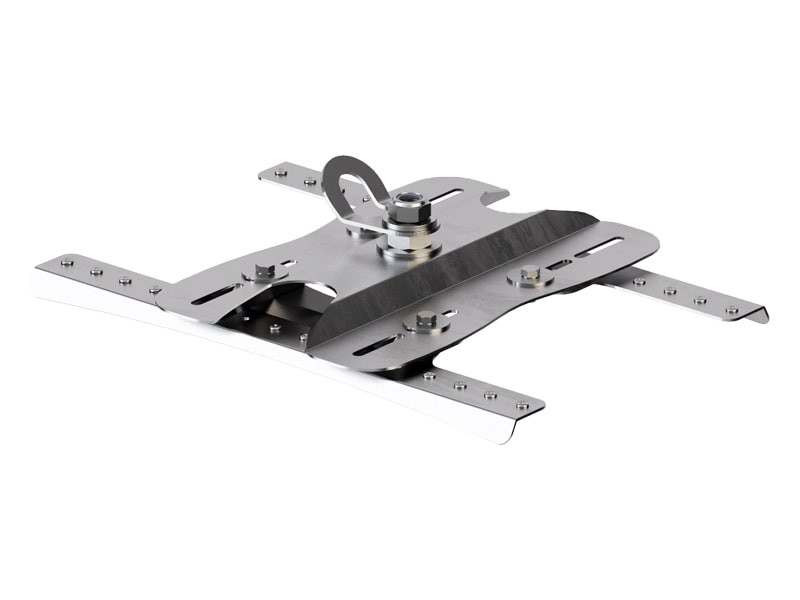

AOS01
| CODE | material | d₁
[mm]
|
B
[mm]
|
L
[mm]
|
pcs. |
|---|---|---|---|---|---|
| AOS01 | AISI 304 stainless steel grade 1.4301 | 17 | 60 | 98 | 1 |
| AOS01A4 | - | - | - | - | 1 |
