HOME FALL PROTECTION SYSTEM ANCHOR POINTS AOS01 + SHIELD 2

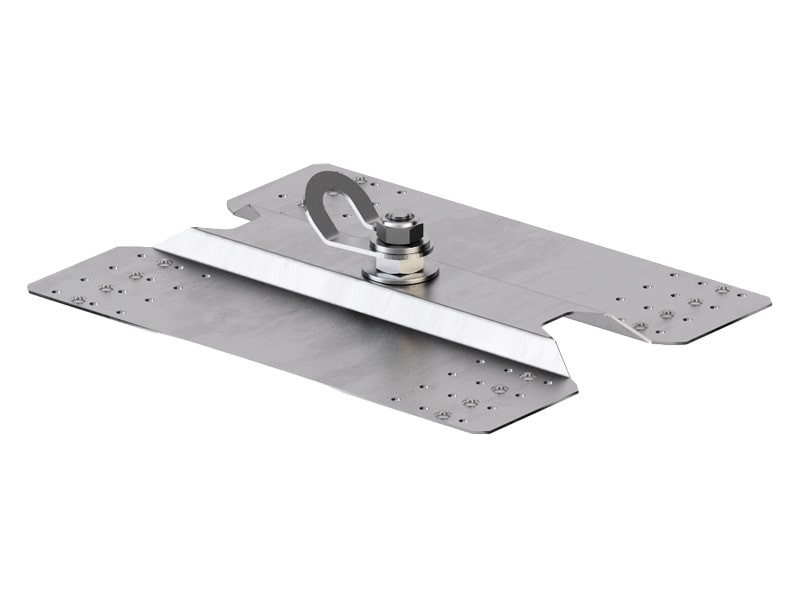

AOS01 + SHIELD 2

ANCHOR POINT FOR TRAPEZOIDAL METAL ROOFS

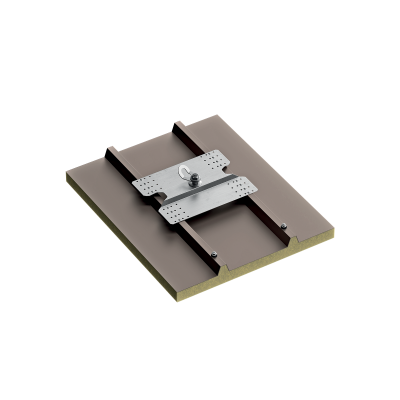

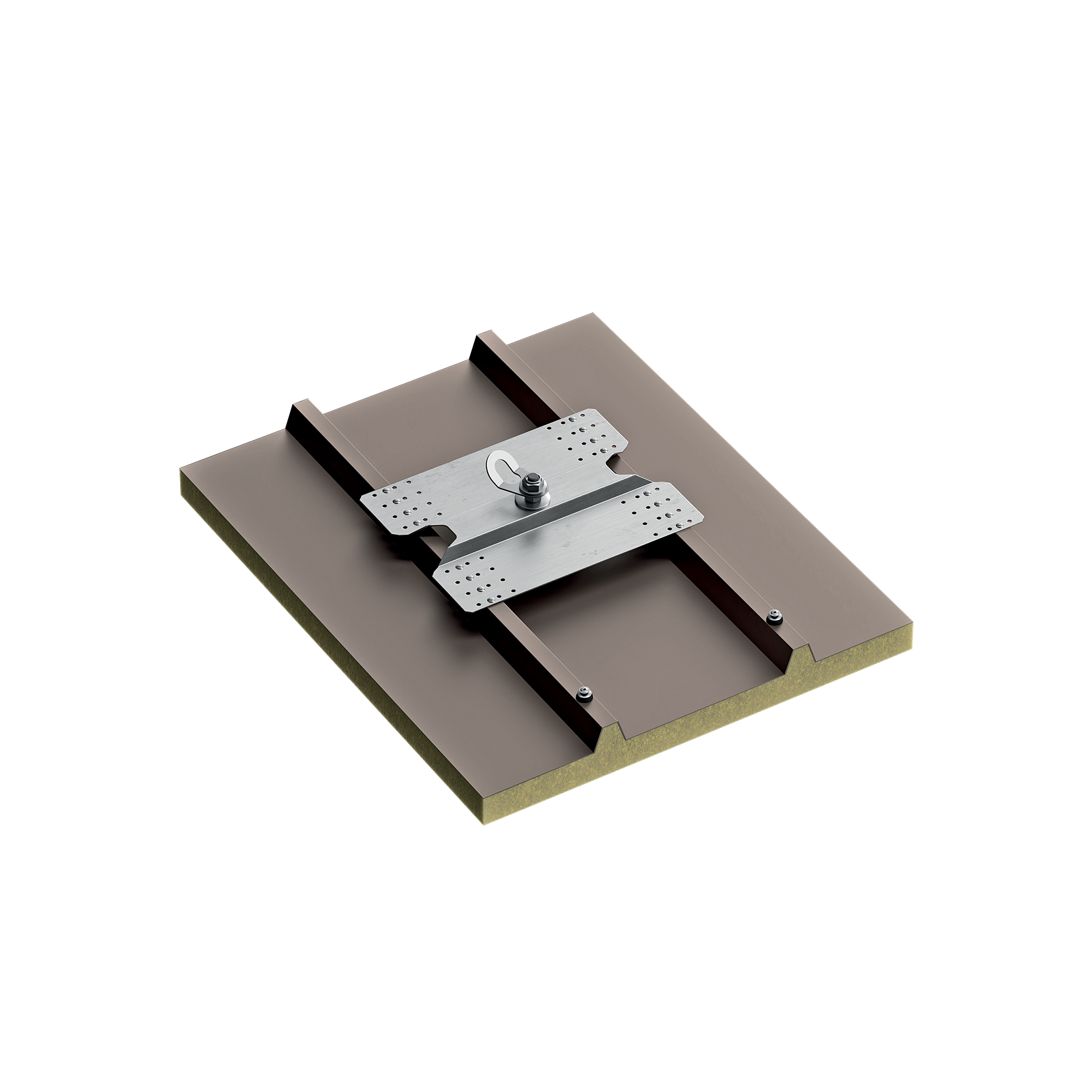

The combination of SHIELD 2 and AOS01 creates an effective anchor point for trapezoidal metal sheet roofs. Thanks to the single-plate design, assembly is extremely convenient.

Get in touch with sales
EN 795:2012 A
CEN/TS 16415:2013
UNI 11578:2015 A
AS/NZS 5532:2013
AS/NZS 1891.4:2009
CORRUGATED SHEET
Sandwich panels
y x

Description

AOS01 and SHIELD 2, anchor point for trapezoidal metal roofs.

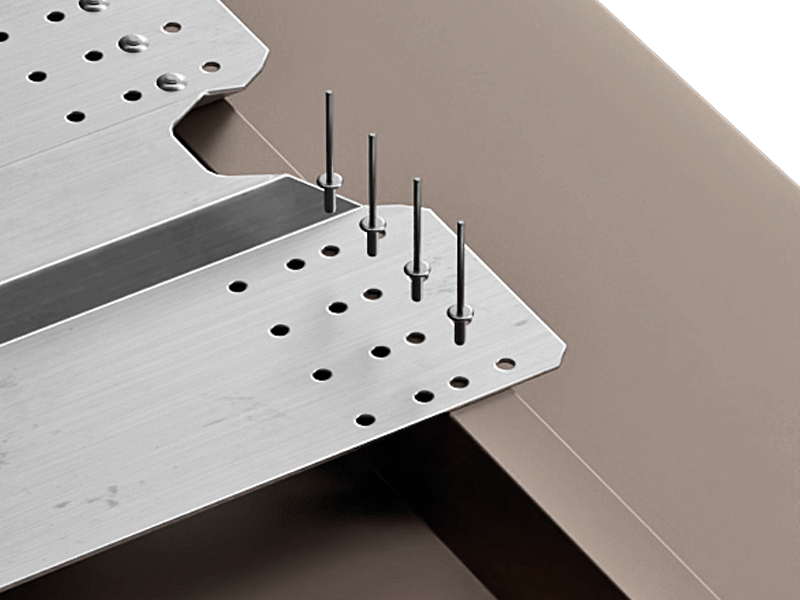

The package includes fasteners and cellular rubber seals, to ensure waterproofing. The system withstands plane stress (360°) and can be installed on flat and sloping roofs.

Documents

SHIELD 2

CODE material B
[mm]
 H
[mm]
 L
[mm]
 pcs.
SHIELD2 AISI 304 stainless steel grade 1.4301 420 65 322 1
SHIELD2A4 AISI 316 stainless steel grade 1.4401 420 65 322 1

AOS01

CODE material d₁
[mm]
 B
[mm]
 L
[mm]
 pcs.
AOS01 AISI 304 stainless steel grade 1.4301 17 60 98 1
AOS01A4 AISI 316 stainless steel grade 1.4401 17 60 98 1
Made of
AOS01

ANCHOR POINT FOR SUPPORTS
SHIELD 2

SUPPORT FOR CORRUGATED SHEET METAL ROOFS
