AOS01 + T-CLAMP
ANCHOR POINT ON SUPPORT FOR CONTINUOUS ROOFS

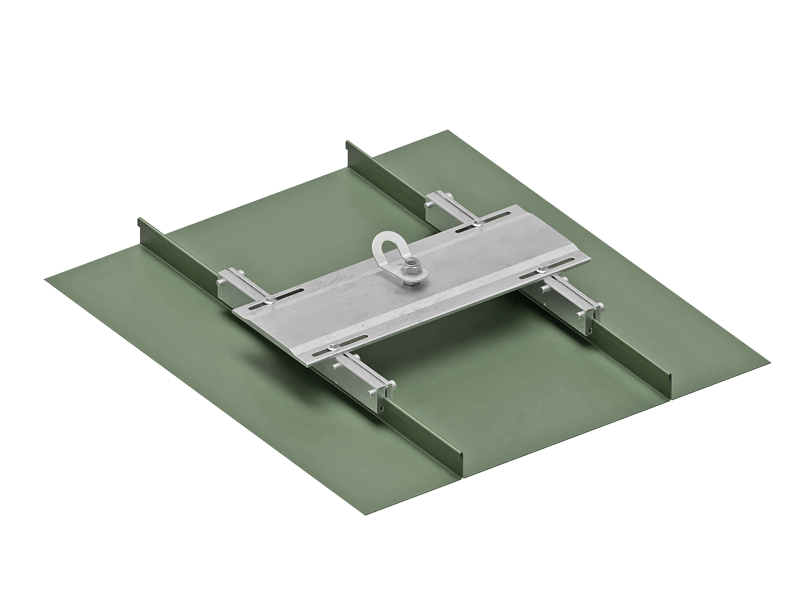

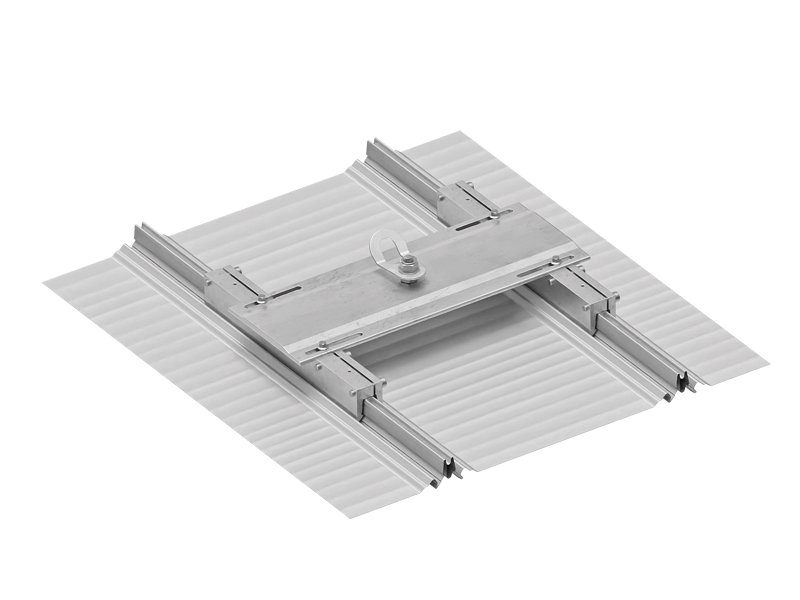

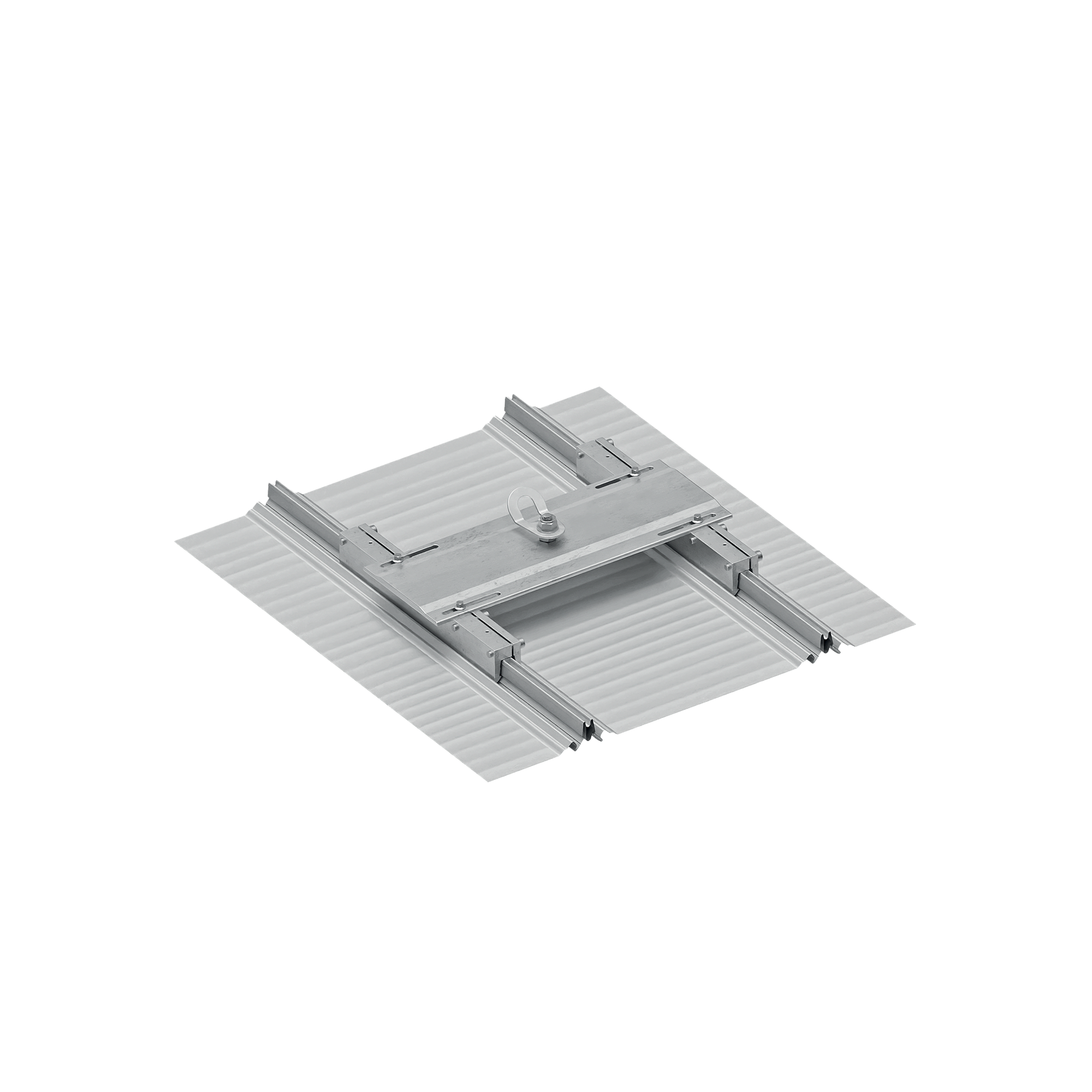

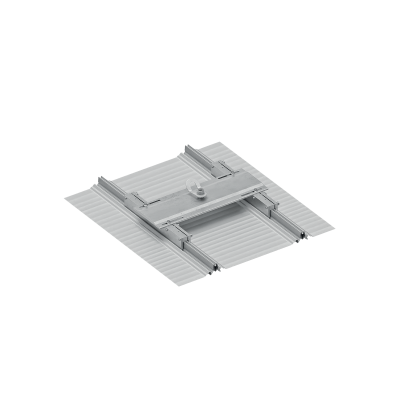

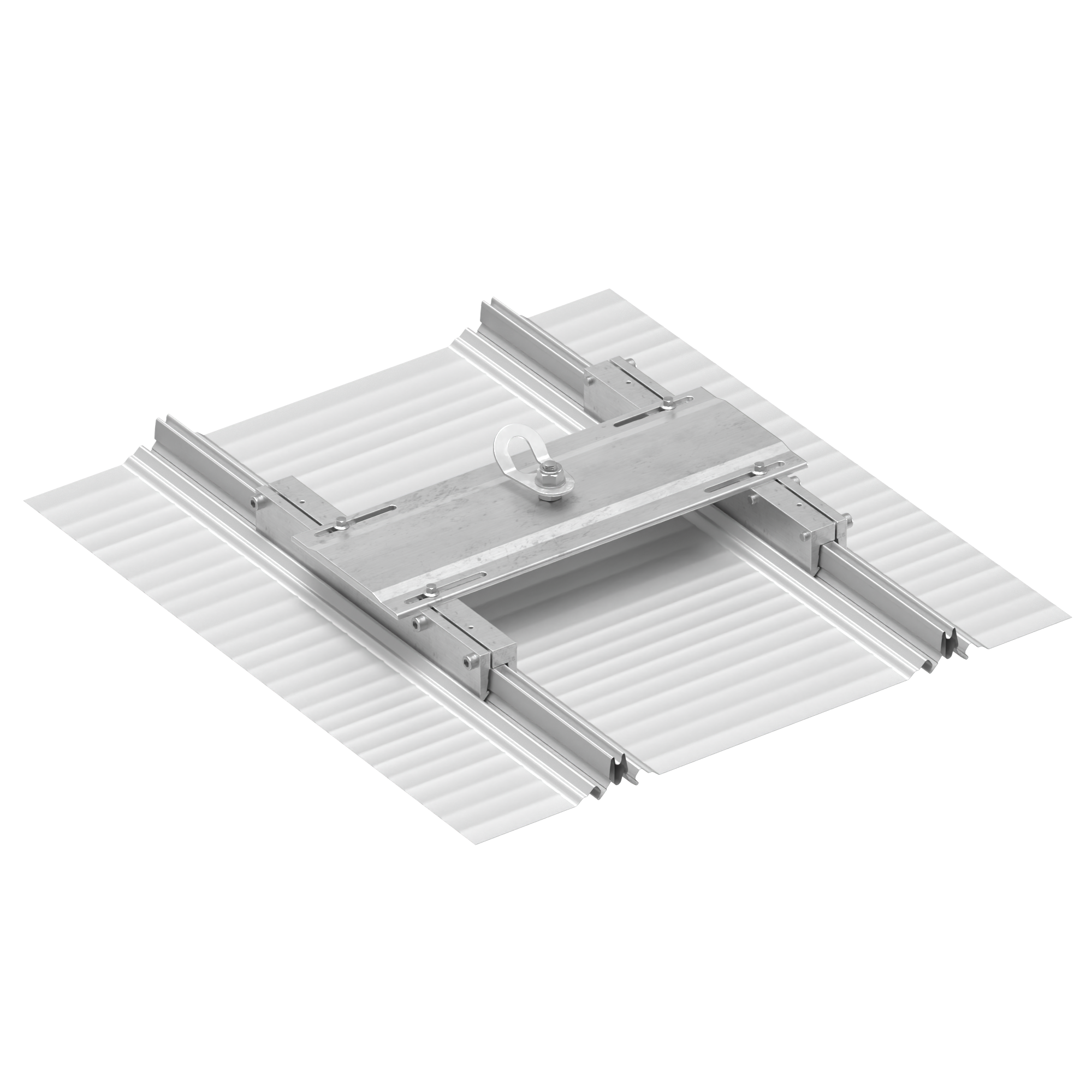

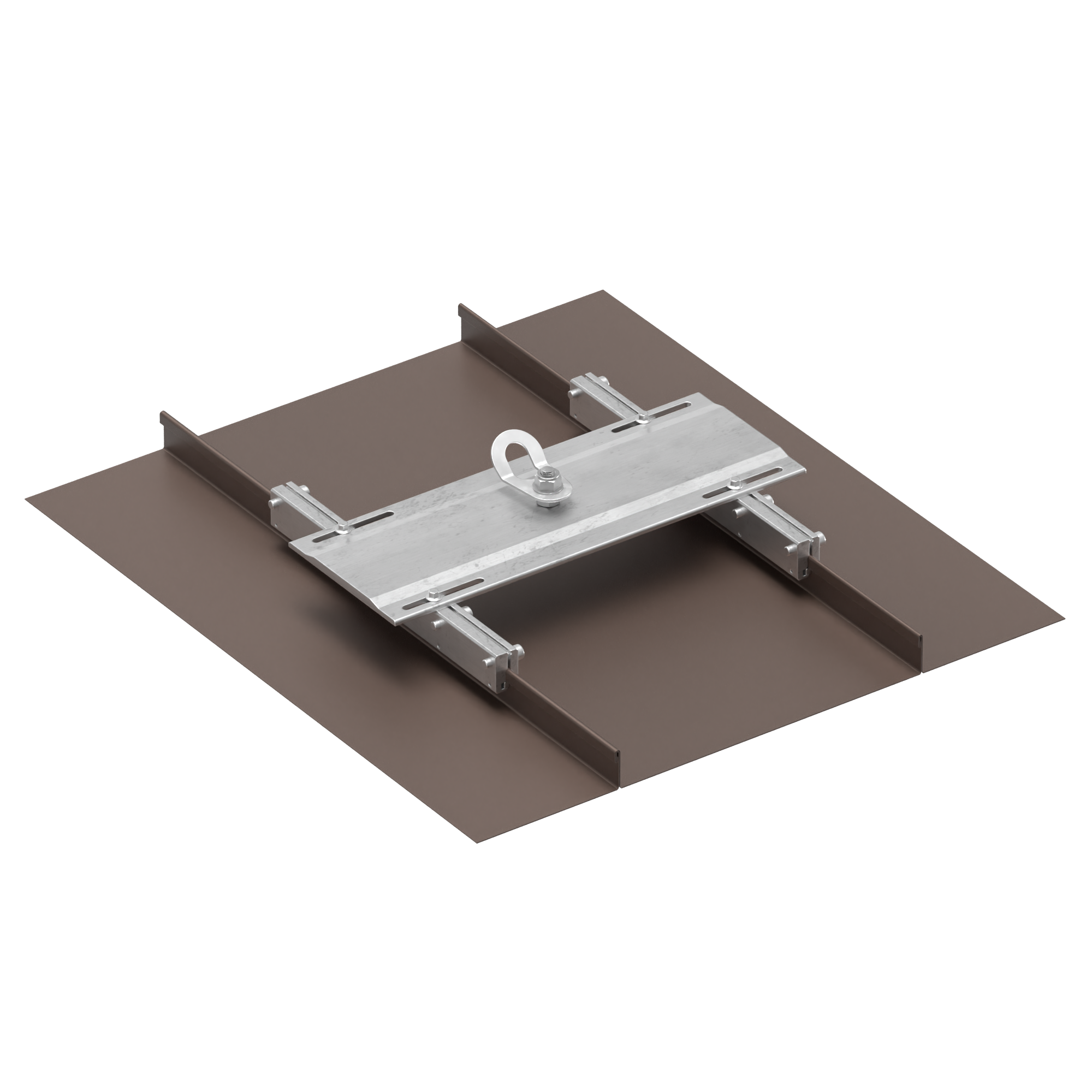

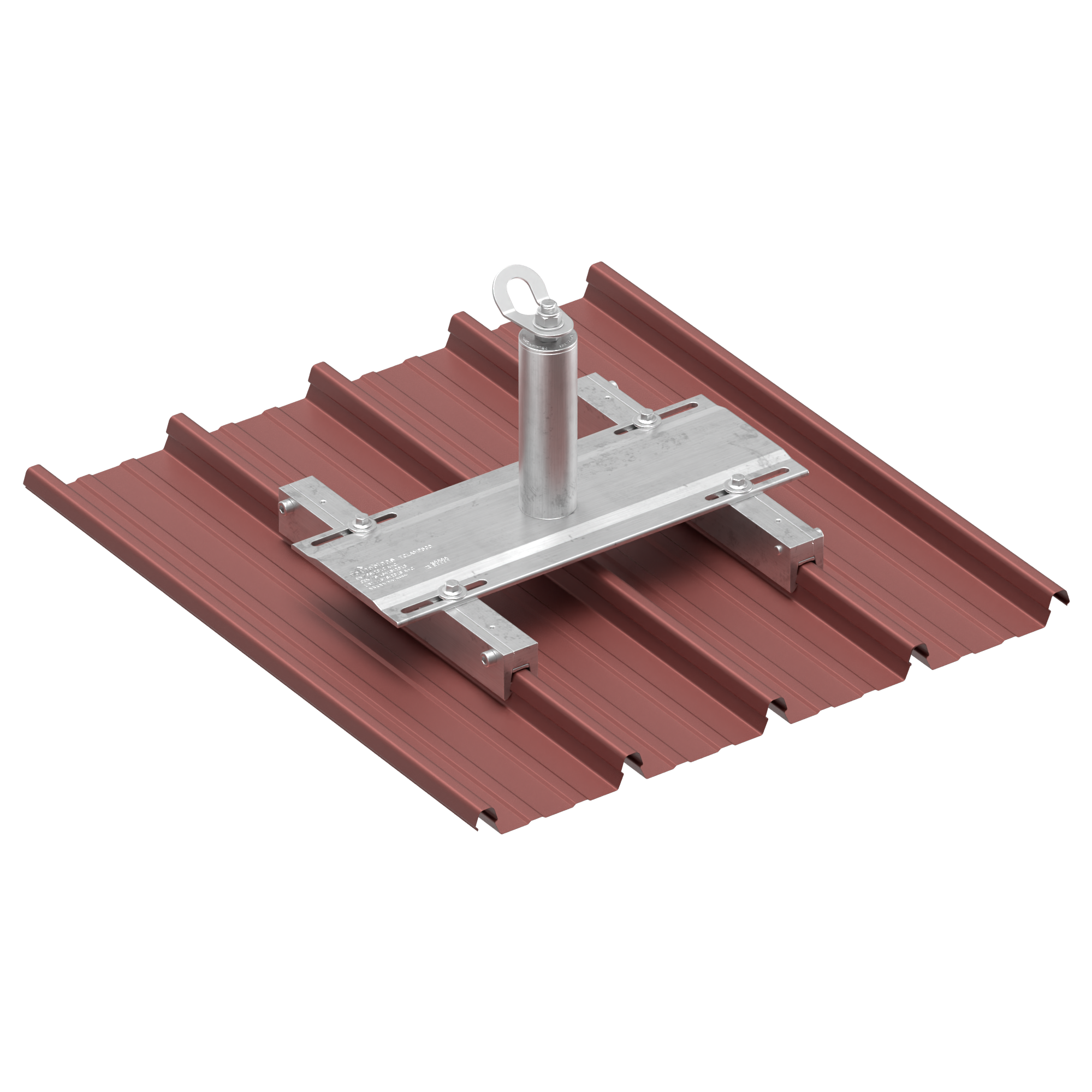

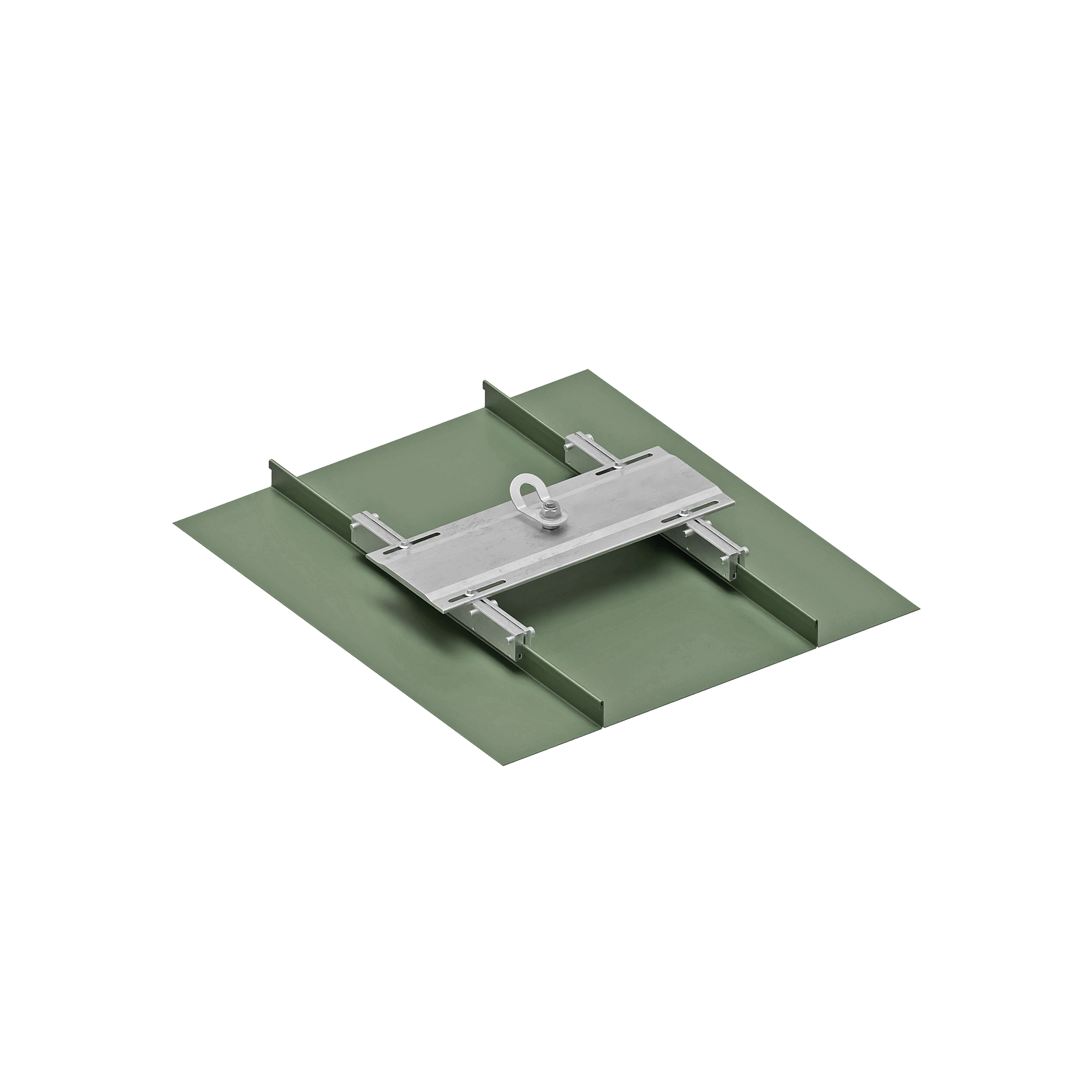

A versatile system with special clamps allowing installation on various types of metal roofs.
The various sizes of the universal plates guarantee a solution for the different spans of the seams.

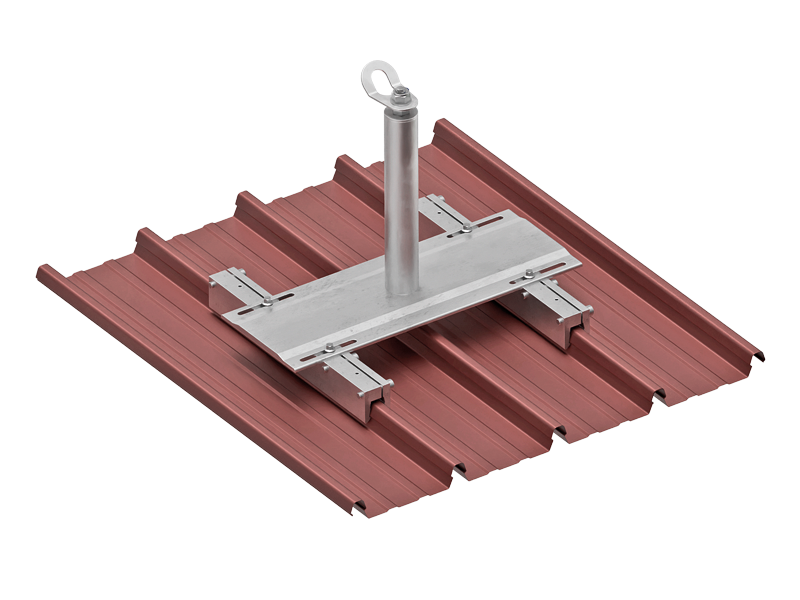

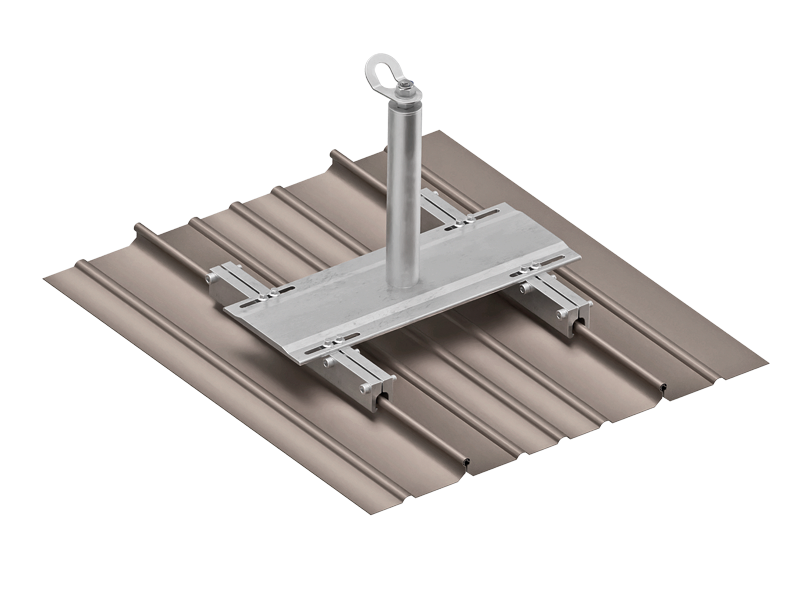

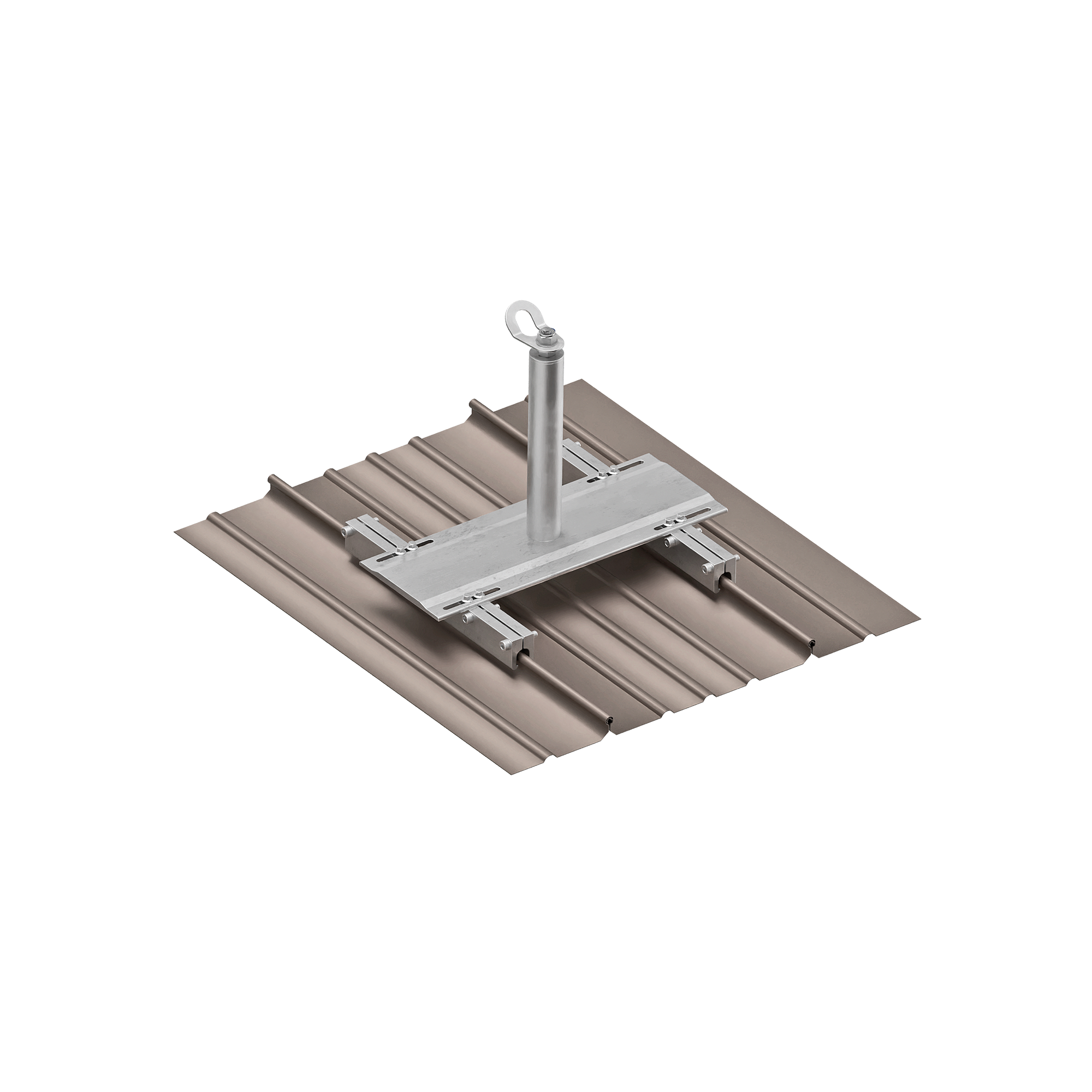

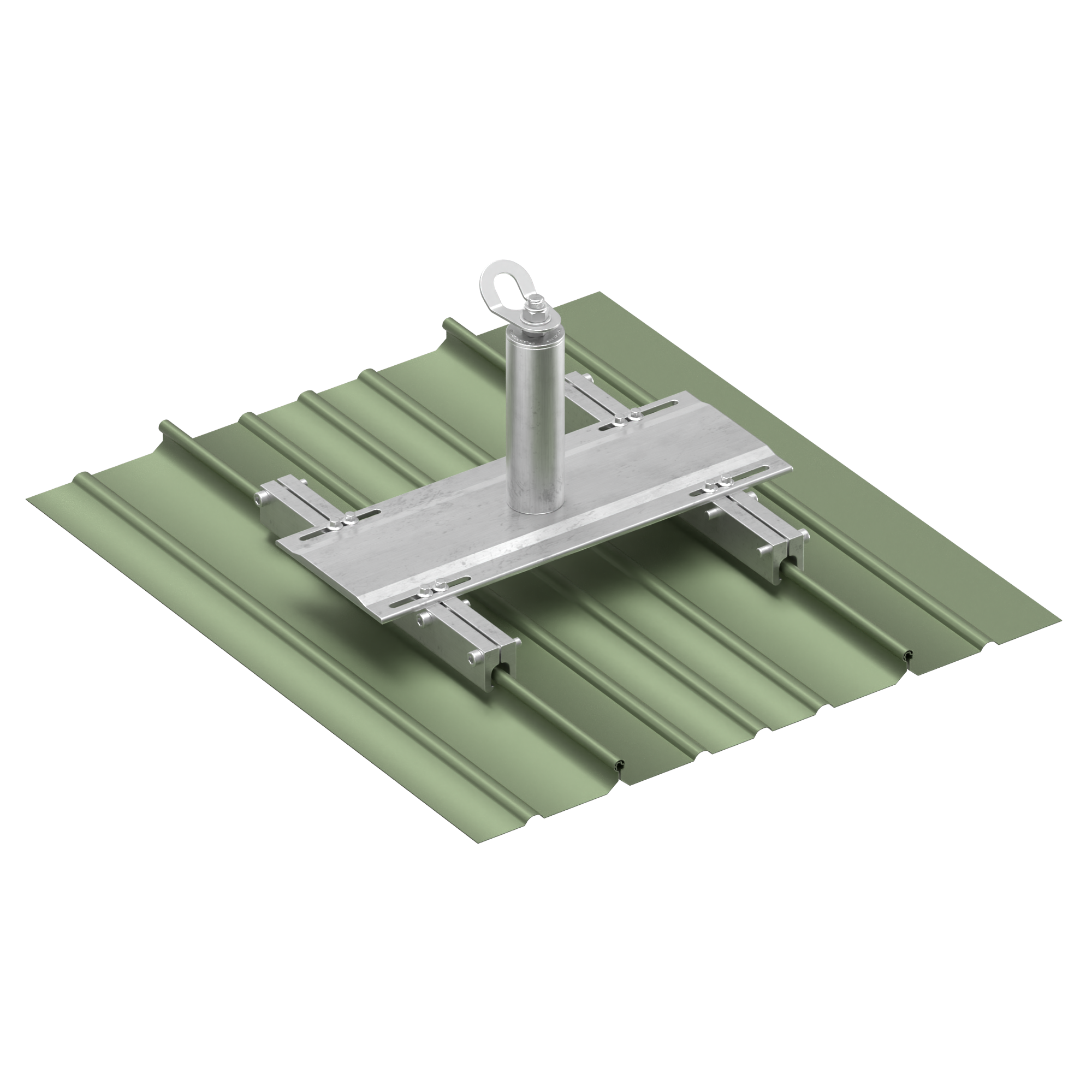

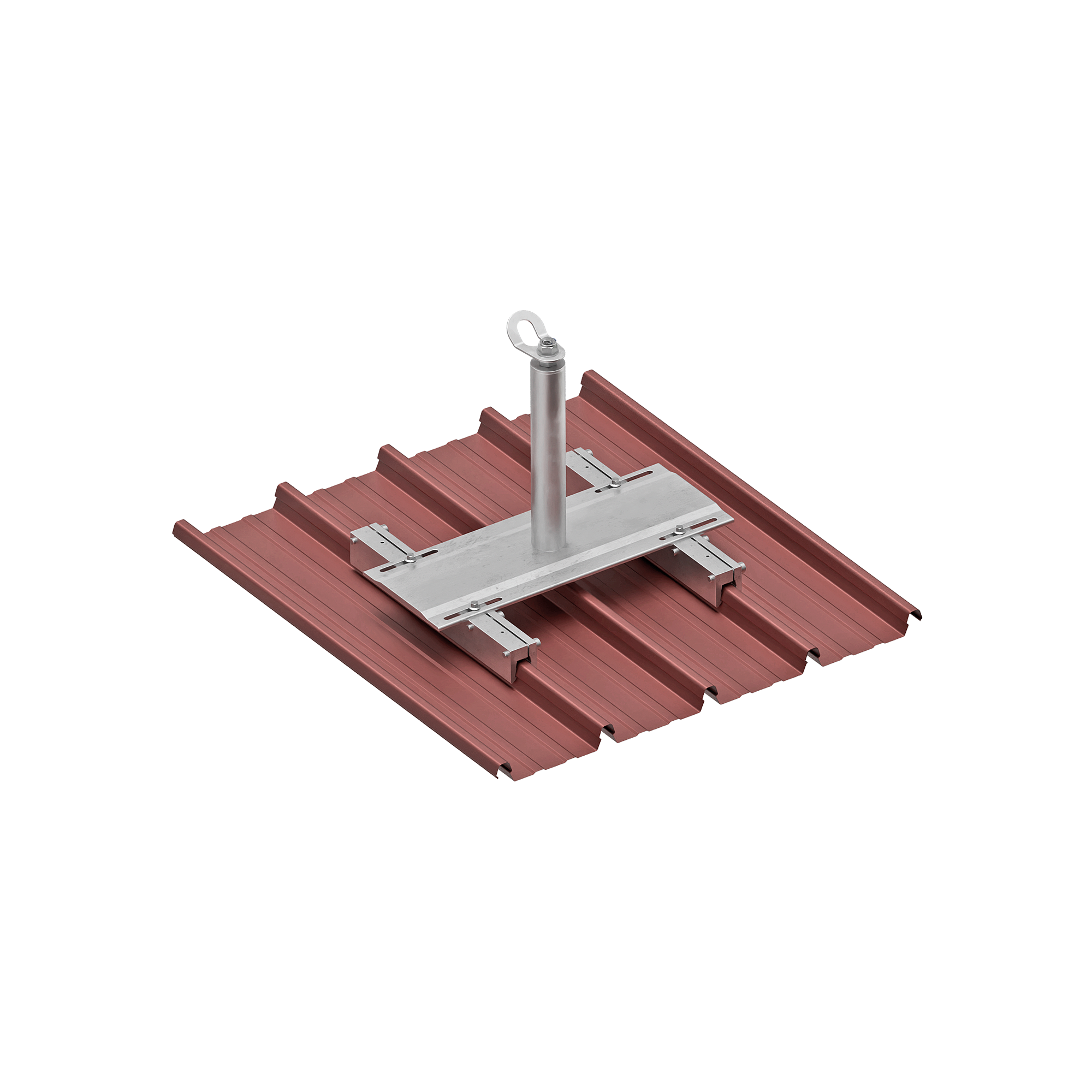

The optional post allows the anchor point to be raised, thus overcoming obstacles on the roof
Documents
-
Technical data sheets
T-CLAMP
| CODE | description | material | B
[mm]
|
H
[mm]
|
L
[mm]
|
pcs. |
|---|---|---|---|---|---|---|
| TCLAMP500 | - | EN AW-6082-T6 | 190 | - | 515 | 1 |
| TCLAMP700 | - | EN AW-6082-T6 | 190 | - | 760 | 1 |
| TCLAMPTUBE300 | - | EN AW-6060-T6/AISI 304 | 50 | 300 | - | 1 |
| TCLAMPKLIP | - | EN AW-6060-T6 | - | - | - | 1 |
| TCLAMPRIVER | - | EN AW-6060-T6 | - | - | - | 1 |
| TCLAMPROUND | - | EN AW-6060-T6 | - | - | - | 1 |
| TCLAMPSTAND | - | EN AW-6060-T6 | - | - | - | 1 |
AOS01
| CODE | material | d₁
[mm]
|
B
[mm]
|
L
[mm]
|
pcs. |
|---|---|---|---|---|---|
| AOS01 | AISI 304 stainless steel grade 1.4301 | 17 | 60 | 98 | 1 |
| AOS01A4 | - | - | - | - | 1 |
