AOS01 + TOWER XL
ANCHOR POINT WITH INCREASED BOTTOM PLATE FOR TIMBER, STEEL AND CONCRETE SUBSTRUCTURES

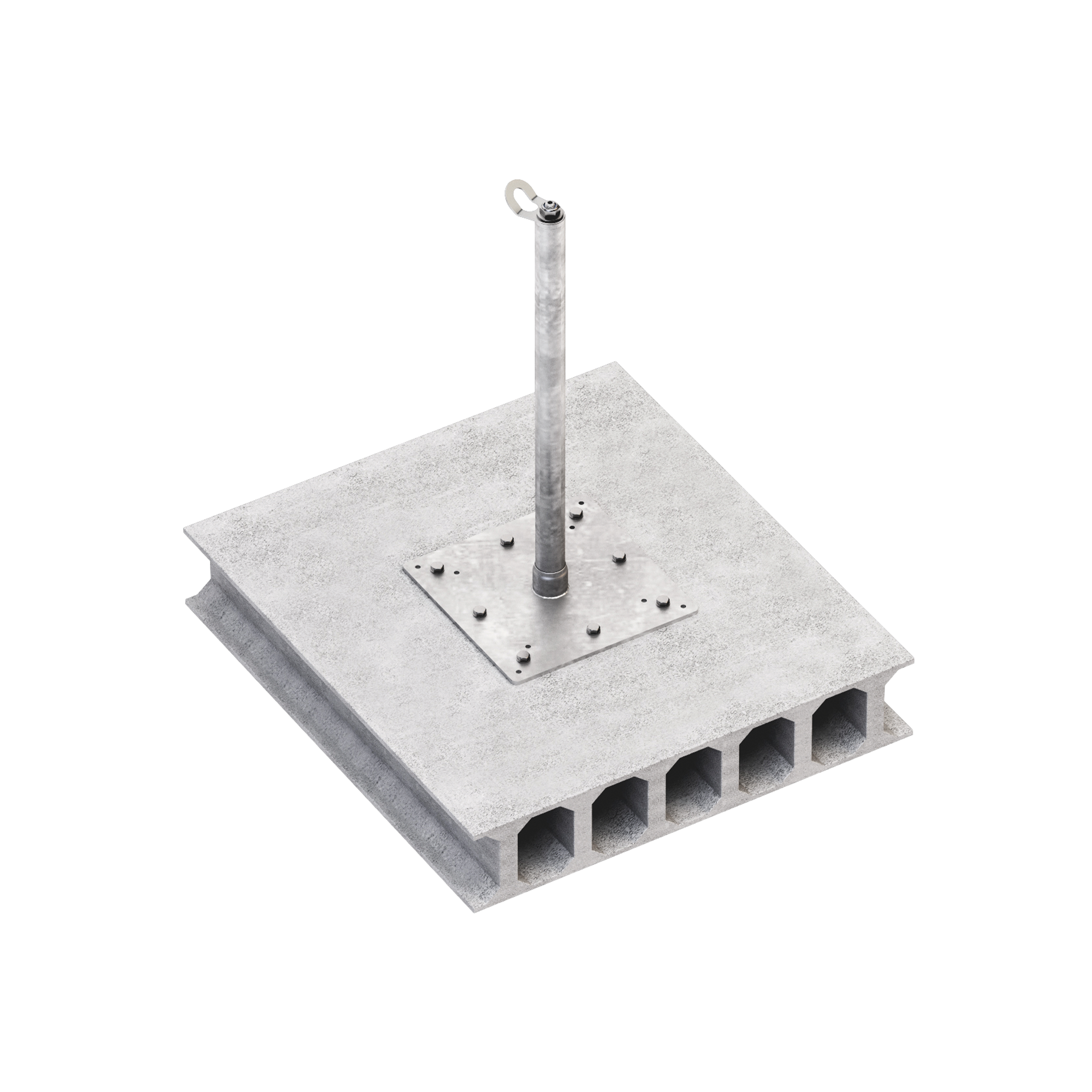

The TOWER XL support with increased base plate in combination with the AOS01 eyelet creates an anchor point for roofing operations. The enlarged bottom plate makes it possible to distribute the actions arising from the anchoring devices over a larger area.
Description

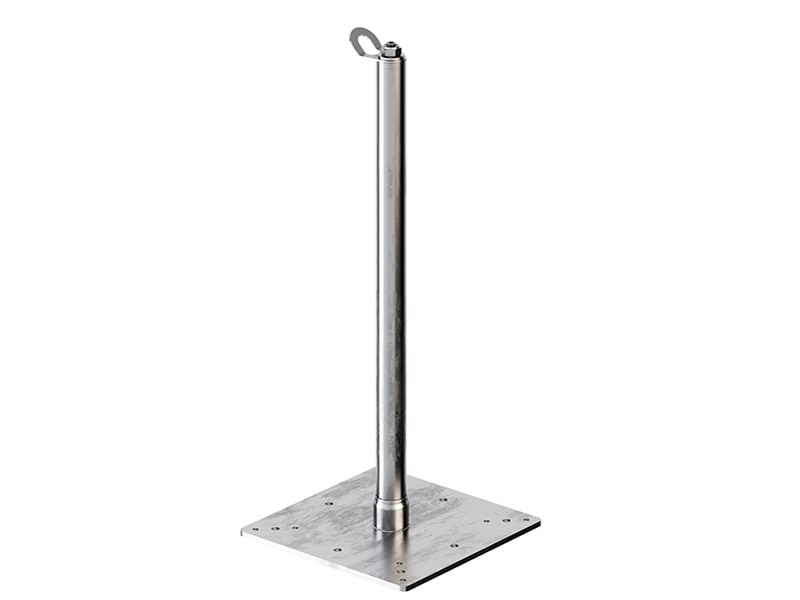

AOS01 anchor point and TOWER XL support, safety with an increased base.

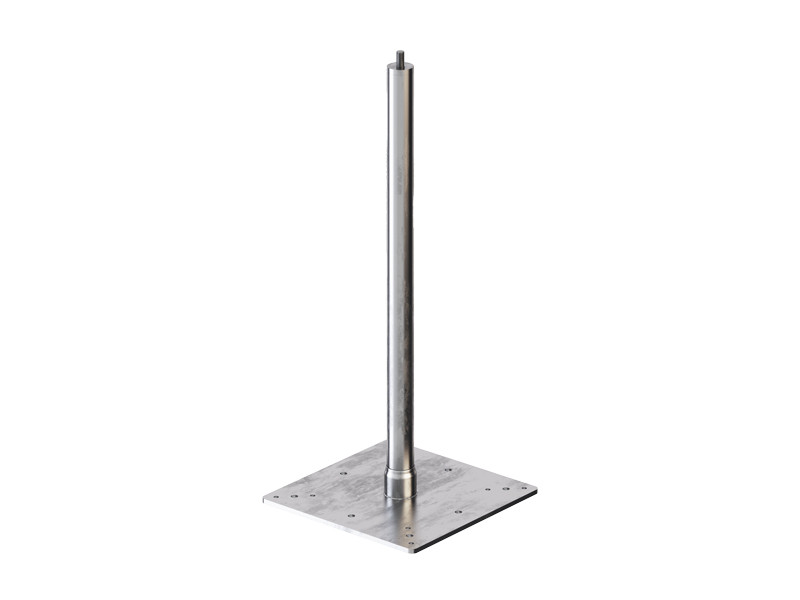

The TOWER XL support height is between 300 and 800 mm to adapt to different roofing thickness values. It is a device with controlled deformation, that dissipates a part of the energy built up during a fall to limit the load transferred to the fastening and the structure.
The system withstands plane stress (360°) and can be installed on timber, trapezoidal metal sheet, concrete and aerated cement roofs.
Documents
-
Technical data sheets
-
File BIM.ifc
-
File BIM.rfa
-
Declaration of Installation and inspection
- Declaration of Installation and inspection Arabian
- Declaration of Installation and inspection Chinese
- Declaration of Installation and inspection Croatian
- Declaration of Installation and inspection Czech
- Declaration of Installation and inspection Danish
- Declaration of Installation and inspection Dutch
- Declaration of Installation and inspection English
- Declaration of Installation and inspection Estonian
- Declaration of Installation and inspection Finnish
- Declaration of Installation and inspection French
- Declaration of Installation and inspection German
- Declaration of Installation and inspection Greek
- Declaration of Installation and inspection Hungarian
- Declaration of Installation and inspection Icelandic
- Declaration of Installation and inspection Italian
- Declaration of Installation and inspection Japanese
- Declaration of Installation and inspection Latvia
- Declaration of Installation and inspection Lithuanian
- Declaration of Installation and inspection Norwegian
- Declaration of Installation and inspection Polish
- Declaration of Installation and inspection Portuguese
- Declaration of Installation and inspection Romanian
- Declaration of Installation and inspection Russian
- Declaration of Installation and inspection Slovak
- Declaration of Installation and inspection Slovene
- Declaration of Installation and inspection Spanish
- Declaration of Installation and inspection Swedish
- Declaration of Installation and inspection Turkish

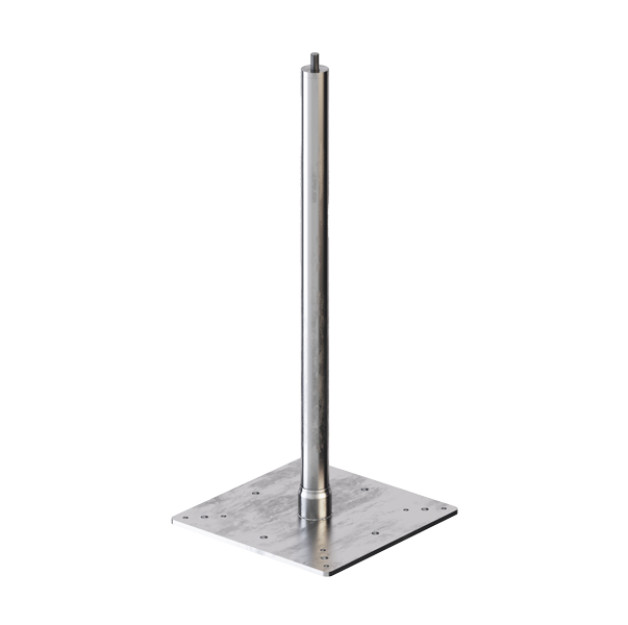

TOWER XL
| CODE | material | B
[mm]
|
P
[mm]
|
H
[mm]
|
pcs. |
|---|---|---|---|---|---|
| TOWERXL300 | S235JR zinc-plated steel | 350 | - | 300 | 1 |
| TOWERXL400 | S235JR zinc-plated steel | 350 | - | 400 | 1 |
| TOWERXL500 | S235JR zinc-plated steel | 350 | - | 500 | 1 |
| TOWERXL600 | S235JR zinc-plated steel | 350 | - | 600 | 1 |
| TOWERXL700 | S235JR zinc-plated steel | 350 | - | 700 | 1 |
| TOWERXL800 | S235JR zinc-plated steel | 350 | - | 800 | 1 |

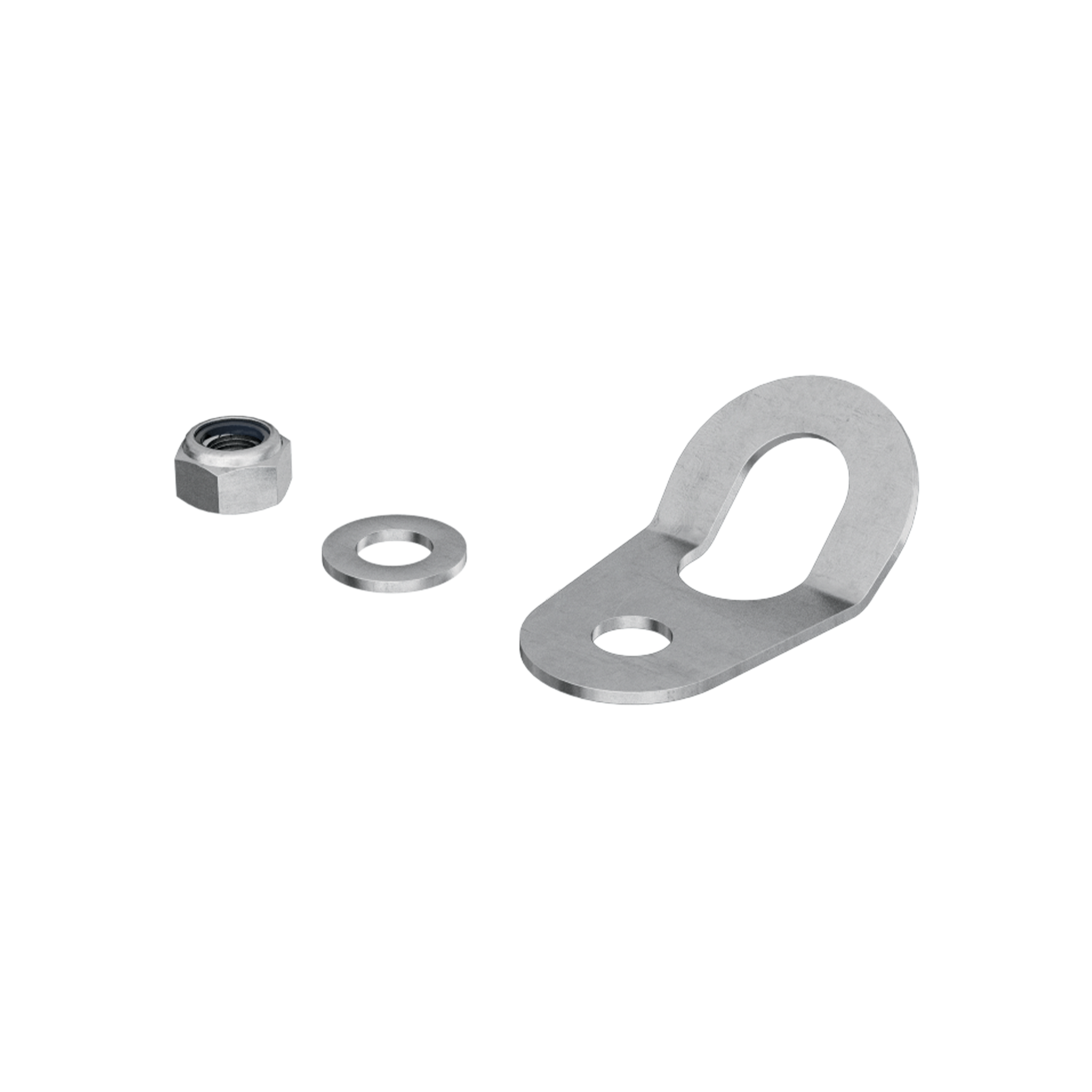

AOS01
| CODE | material | d₁
[mm]
|
B
[mm]
|
L
[mm]
|
pcs. |
|---|---|---|---|---|---|
| AOS01 | AISI 304 stainless steel grade 1.4301 | 17 | 60 | 98 | 1 |
| AOS01A4 | AISI 316 stainless steel grade 1.4401 | 17 | 60 | 98 | 1 |
