ANCHOR POINT
HOOK EVO 2.0

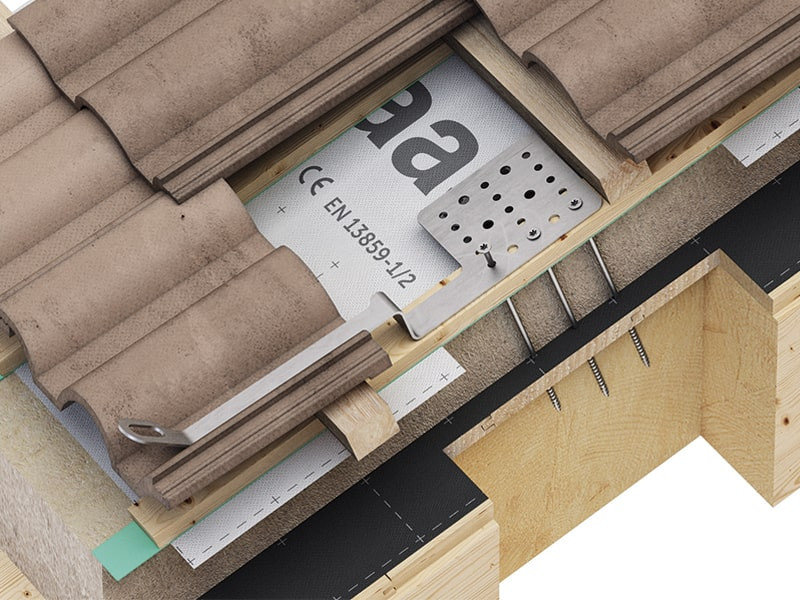

The HOOK EVO 2.0 single anchor point guarantees safety at work on sloping timber or concrete roofs. It is available in three different heights, to match the thickness of the insulation package. Discreet, it guarantees a pleasing appearance once it has been installed.
Not only anchor line on roofs: discover the reliability of the HOOK EVO 2.0 anchor point.

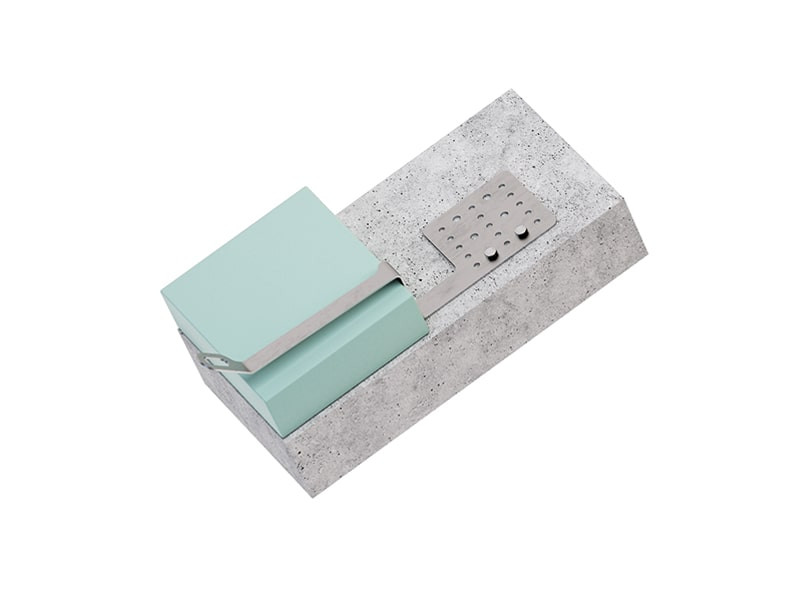

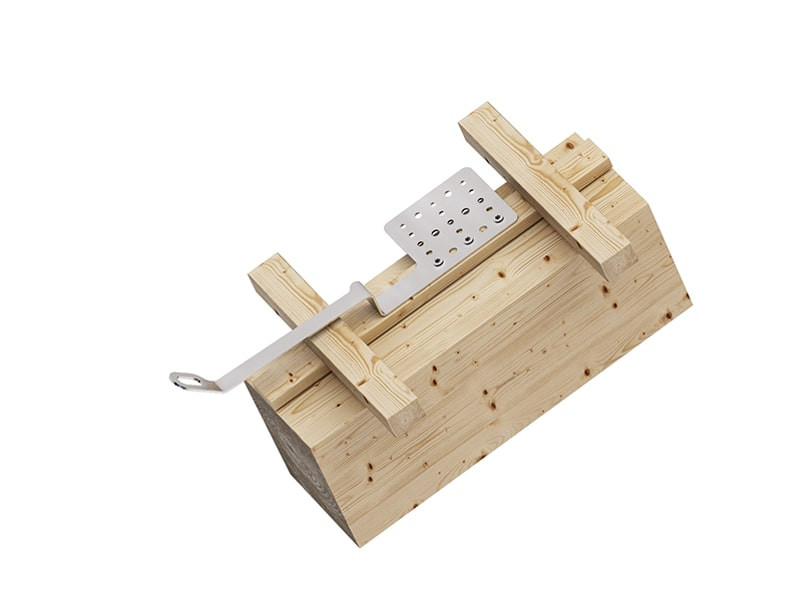

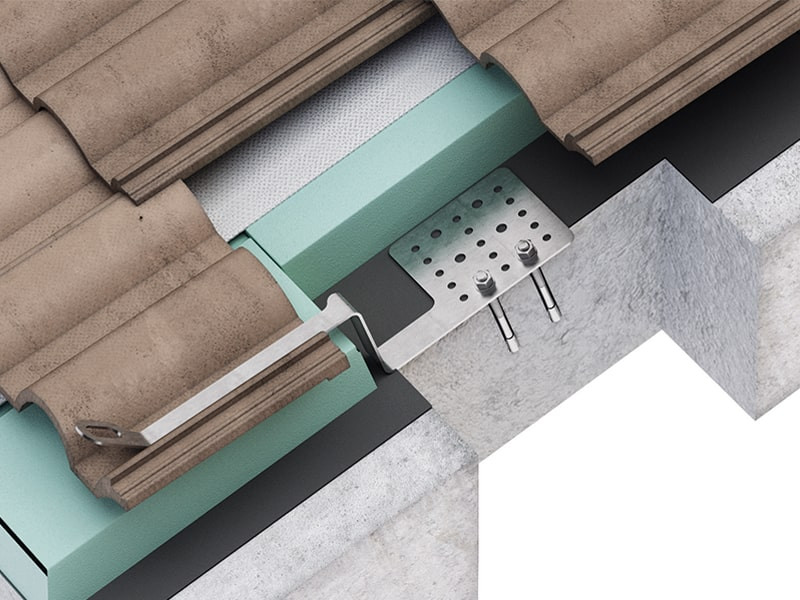

HOOK EVO 2.0 can be installed very simply. The base plate with an increased number of holes allows the anchor point to be mounted in different positions, depending on the type of roof tiles. The fastening hole configuration has been optimised to allow the device to be installed even on concrete structures.

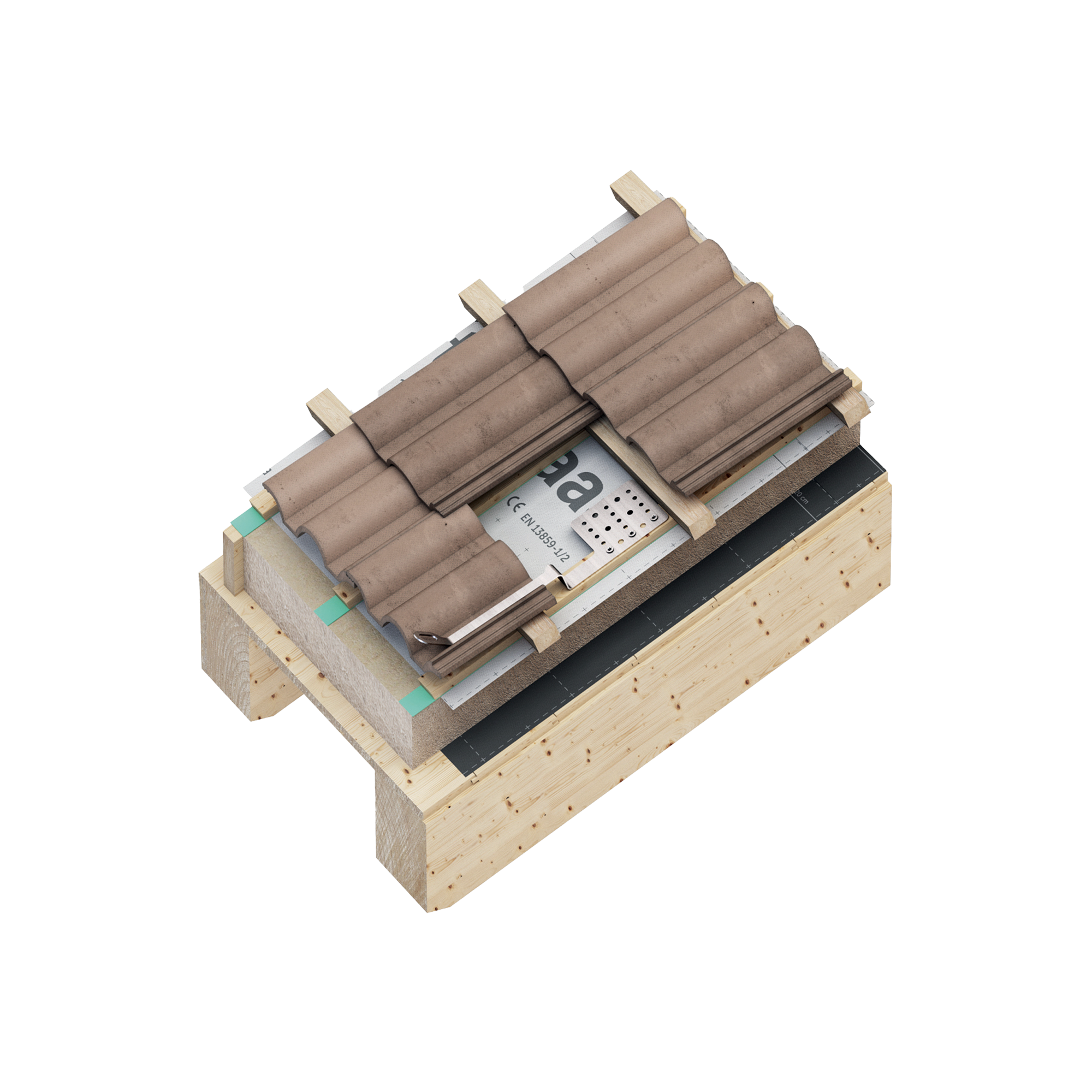

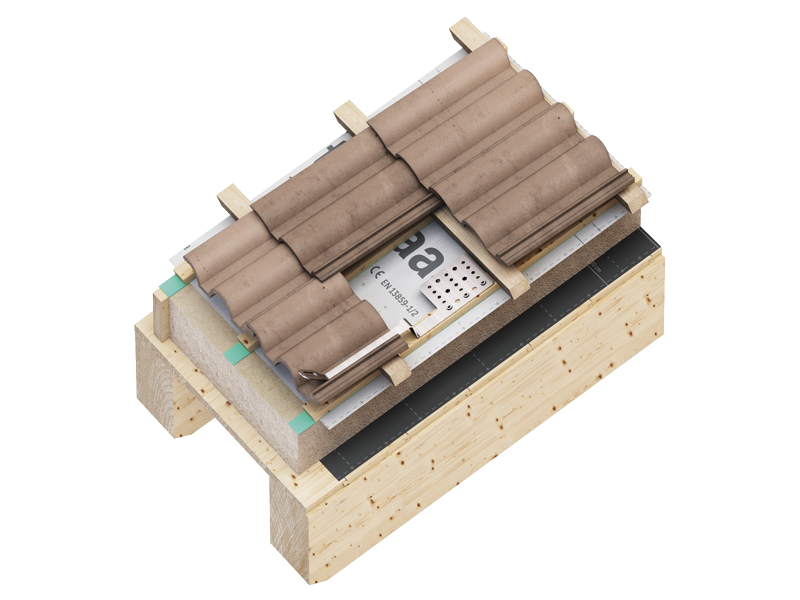

HOOK EVO 2.0 is available in three heights, to match as well as possible the thickness of insulation, joists and tiles on any roof. Once it has been installed it ensures a low visual impact, for a aesthetically pleasing result. Maximum load: 1 user
Features
| Application | SINGLE POINT |
|---|---|
| Substructure | TIMBER, CONCRETE |
| Field of use | MIN. TIMBER STRUCTURE 80 X 100MM - MIN. CONCRETE STRUCTURE 120MM |
| Number of workers | 1 |
| Material | STAINLESS STEEL 1.4301 / AISI304 |
Documents
| Technical data sheets | |
|---|---|
| Declaration of conformity | |
| Safety regulations, instructions for installation and use | |
| Declaration of Installation and inspection | |
| EAC certificate (anchor points) |
Installation manual
| Installation manual |
|---|
HOOK EVO 2.0
| CODE | material | B
[mm]
|
H
[mm]
|
L
[mm]
|
pcs. |
|---|---|---|---|---|---|
| HOOKEVO20 | AISI 304 stainless steel grade 1.4301 | 132 | 20 | 520 | 1 |
| HOOKEVO50 | AISI 304 stainless steel grade 1.4301 | 132 | 50 | 520 | 1 |
| HOOKEVO100 | AISI 304 stainless steel grade 1.4301 | 132 | 100 | 520 | 1 |
