HOOK SPIKE
ANCHOR POINT WITH LADDER HOOK HOOK SPIKE

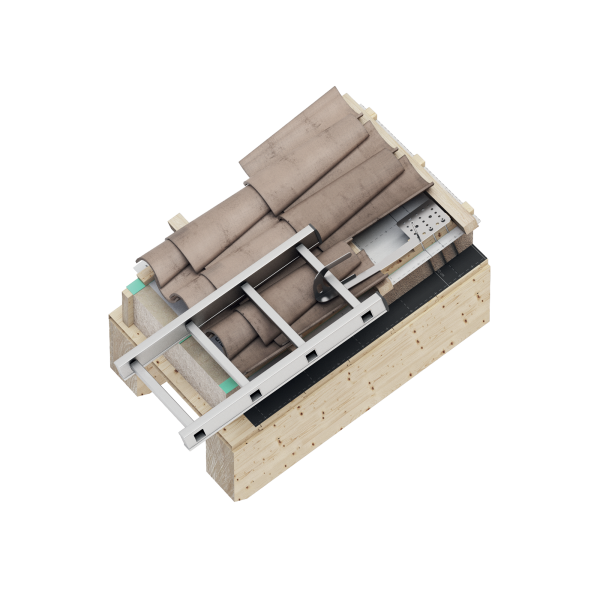

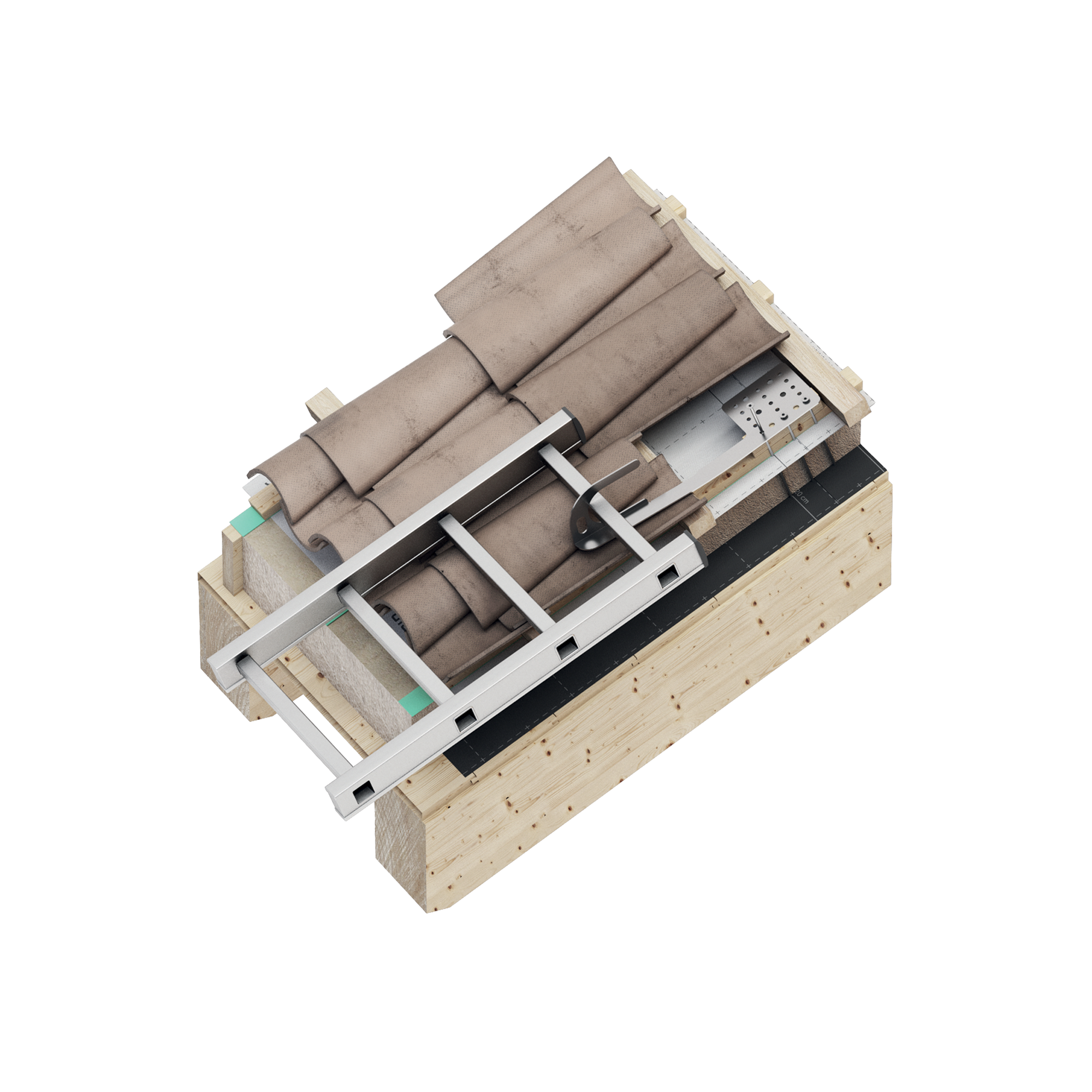

HOOK SPIKE is the anchor point with integrated ladder hook designed to be able to attach a portable ladder in order to facilitate the operator's ascent path on steep roofs. Tested according to the standard directly on the substructure, it guarantees safety and freedom of movement in all directions.
Description

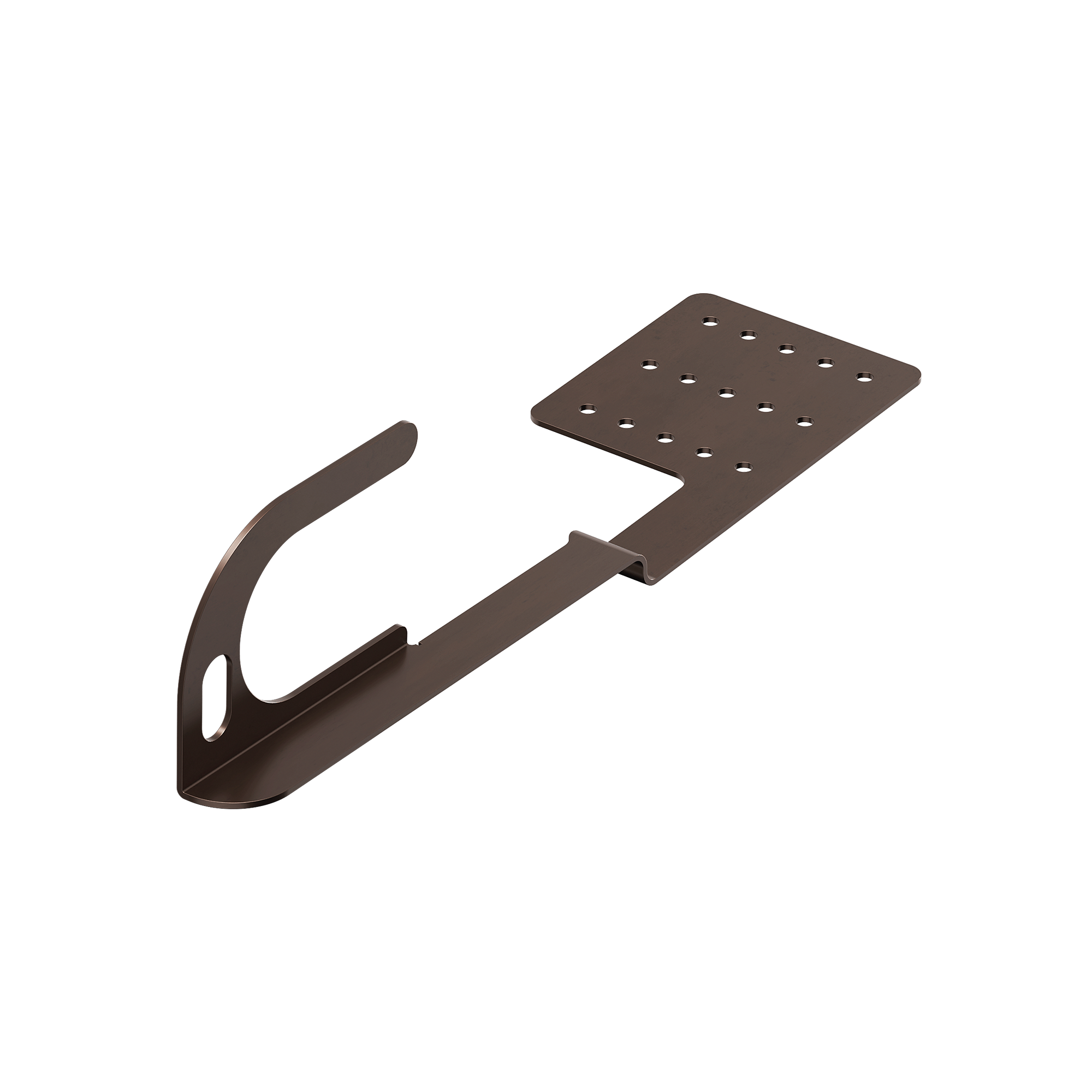

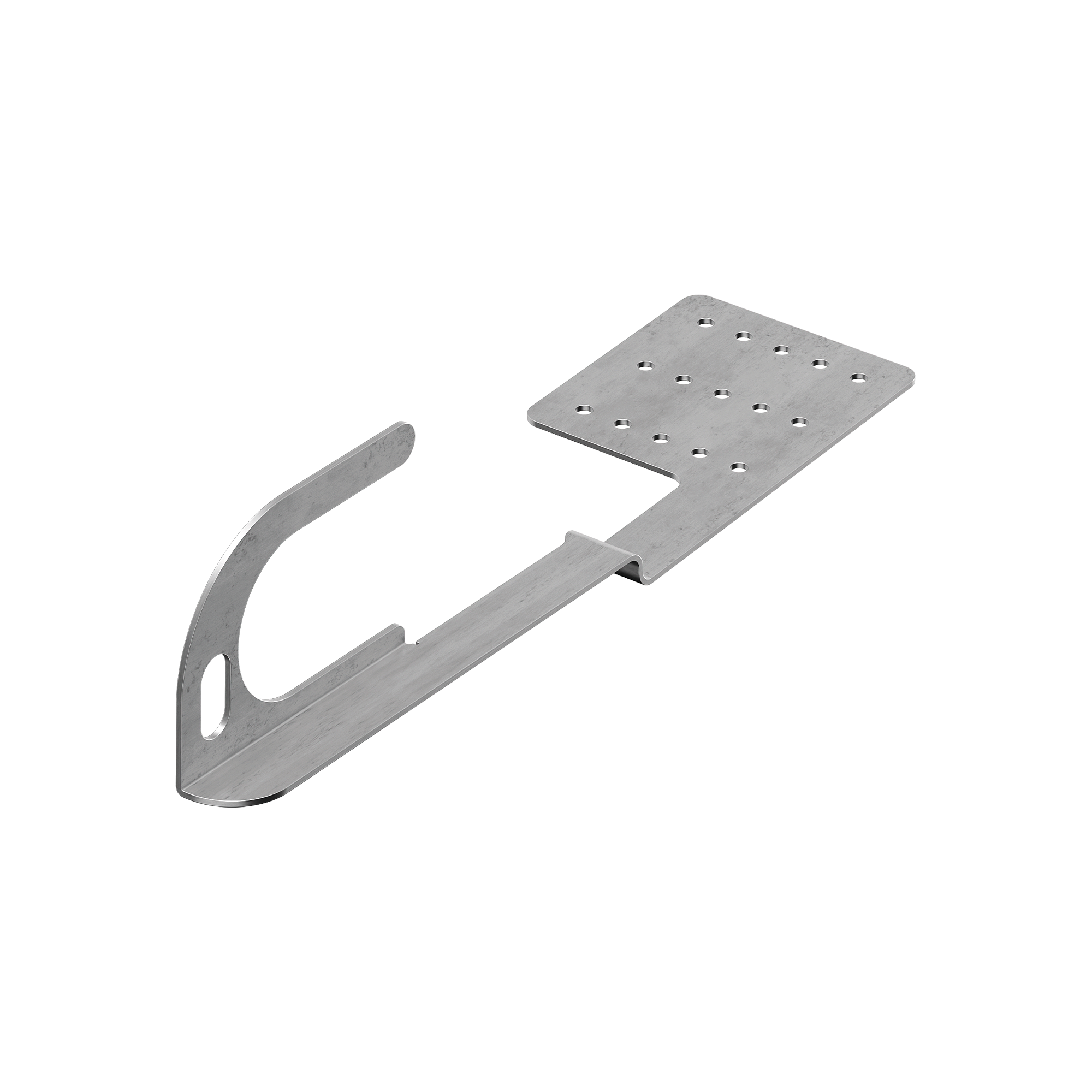

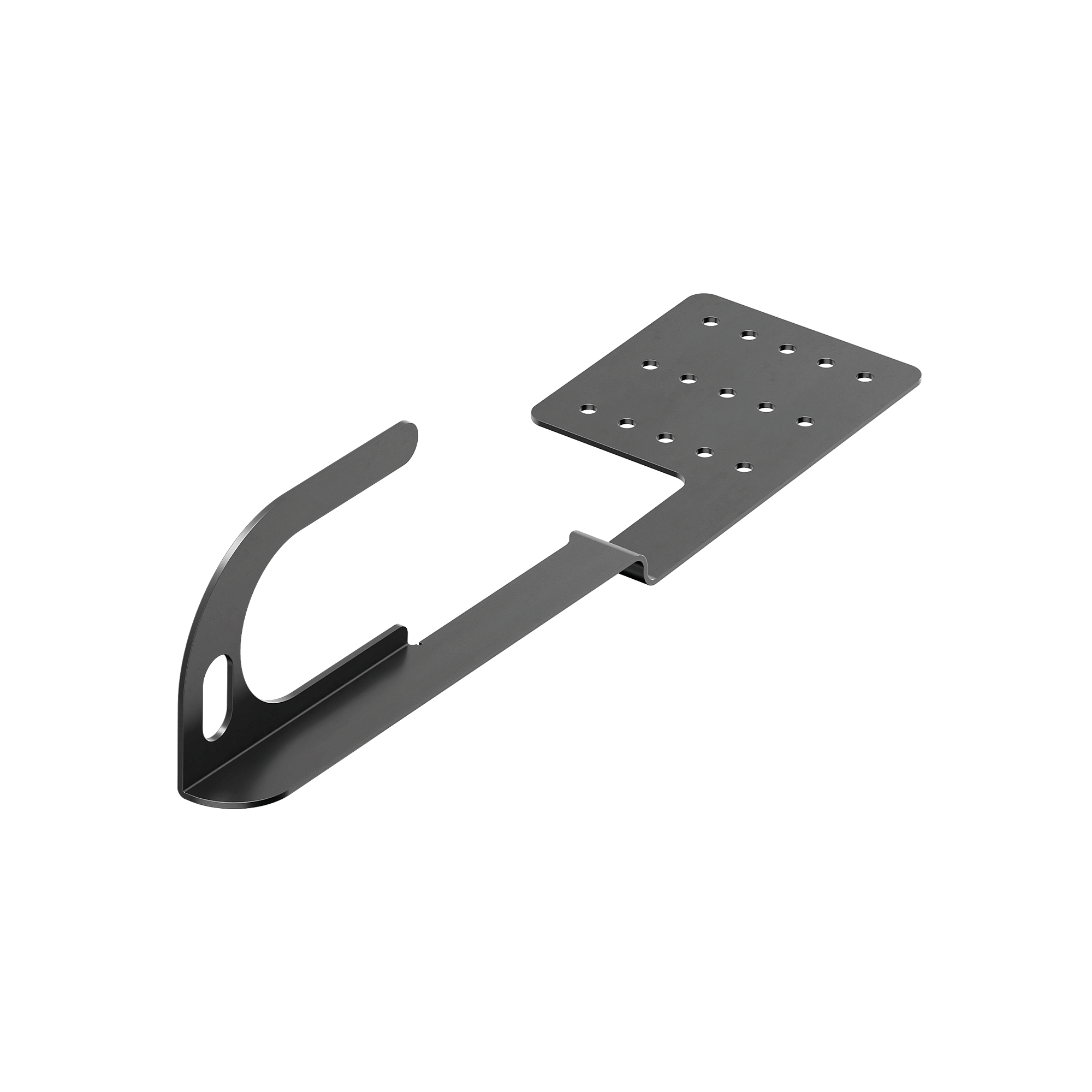

HOOK SPIKE, the anchor point with integrated ladder hook.
The HOOK SPIKE anchor point is versatile: thanks to the three different heights of the plate, it is possible to assemble the hook according to the type of tile installed on the roof. The system withstands plane stress (360°) and is designed for application on sloping timber roofs.
Documents
-
Technical data sheets
-
Declaration of performance (DOP)
- Declaration of performance (DOP) Bulgarian
- Declaration of performance (DOP) Czech
- Declaration of performance (DOP) Danish
- Declaration of performance (DOP) Dutch
- Declaration of performance (DOP) English
- Declaration of performance (DOP) Estonian
- Declaration of performance (DOP) Finnish
- Declaration of performance (DOP) French
- Declaration of performance (DOP) German
- Declaration of performance (DOP) Greek
- Declaration of performance (DOP) Hungarian
- Declaration of performance (DOP) Italian
- Declaration of performance (DOP) Latvia
- Declaration of performance (DOP) Lithuanian
- Declaration of performance (DOP) Polish
- Declaration of performance (DOP) Portuguese
- Declaration of performance (DOP) Romanian
- Declaration of performance (DOP) Slovak
- Declaration of performance (DOP) Slovenian
- Declaration of performance (DOP) Spanish
- Declaration of performance (DOP) Swedish
-
Declaration of conformity
- Declaration of conformity Croatian
- Declaration of conformity Czech
- Declaration of conformity Danish
- Declaration of conformity Dutch
- Declaration of conformity English
- Declaration of conformity Estonian
- Declaration of conformity Finnish
- Declaration of conformity French
- Declaration of conformity German
- Declaration of conformity Greek
- Declaration of conformity Hungarian
- Declaration of conformity Italian
- Declaration of conformity Latvia
- Declaration of conformity Lithuanian
- Declaration of conformity Polish
- Declaration of conformity Portuguese
- Declaration of conformity Romanian
- Declaration of conformity Slovak
- Declaration of conformity Slovenian
- Declaration of conformity Spanish
-
Safety regulations, instructions for installation and use
-
Declaration of Installation and inspection
- Declaration of Installation and inspection Arabian
- Declaration of Installation and inspection Chinese
- Declaration of Installation and inspection Croatian
- Declaration of Installation and inspection Czech
- Declaration of Installation and inspection Danish
- Declaration of Installation and inspection Dutch
- Declaration of Installation and inspection English
- Declaration of Installation and inspection Estonian
- Declaration of Installation and inspection Finnish
- Declaration of Installation and inspection French
- Declaration of Installation and inspection German
- Declaration of Installation and inspection Greek
- Declaration of Installation and inspection Hungarian
- Declaration of Installation and inspection Icelandic
- Declaration of Installation and inspection Italian
- Declaration of Installation and inspection Japanese
- Declaration of Installation and inspection Latvia
- Declaration of Installation and inspection Lithuanian
- Declaration of Installation and inspection Norwegian
- Declaration of Installation and inspection Polish
- Declaration of Installation and inspection Portuguese
- Declaration of Installation and inspection Romanian
- Declaration of Installation and inspection Russian
- Declaration of Installation and inspection Slovak
- Declaration of Installation and inspection Slovenian
- Declaration of Installation and inspection Spanish
- Declaration of Installation and inspection Swedish
- Declaration of Installation and inspection Turkish
-
Installation manual
HOOK SPIKE
| CODE | material | B
[mm]
|
H
[mm]
|
pcs. |
|---|---|---|---|---|
| HOOKS | AISI 304 stainless steel grade 1.4301 | 132 | - | 1 |
| HOOKS20 | AISI 304 stainless steel grade 1.4301 | 132 | 20 | 1 |
| HOOKS50 | AISI 304 stainless steel grade 1.4301 | 132 | 50 | 1 |
| HOOKSB | AISI 304 stainless steel grade 1.4301 | 132 | - | 1 |
| HOOKSB20 | AISI 304 stainless steel grade 1.4301 | 132 | 20 | 1 |
| HOOKSB50 | AISI 304 stainless steel grade 1.4301 | 132 | 50 | 1 |
| HOOKSA | AISI 304 stainless steel grade 1.4301 | 132 | - | 1 |
| HOOKSA20 | AISI 304 stainless steel grade 1.4301 | 132 | 20 | 1 |
| HOOKSA50 | AISI 304 stainless steel grade 1.4301 | 132 | 50 | 1 |
