ANCHOR POINT FOR STANDING SEAM METAL ROOFS
SIANK

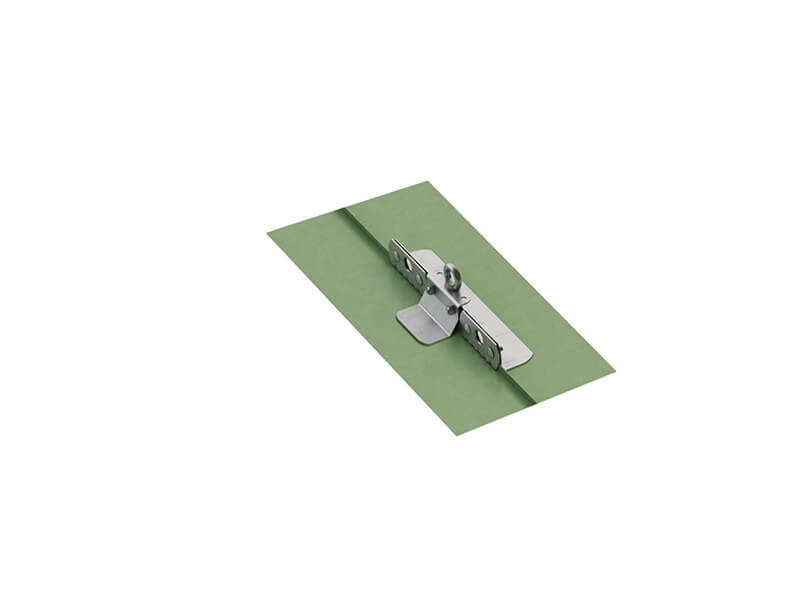

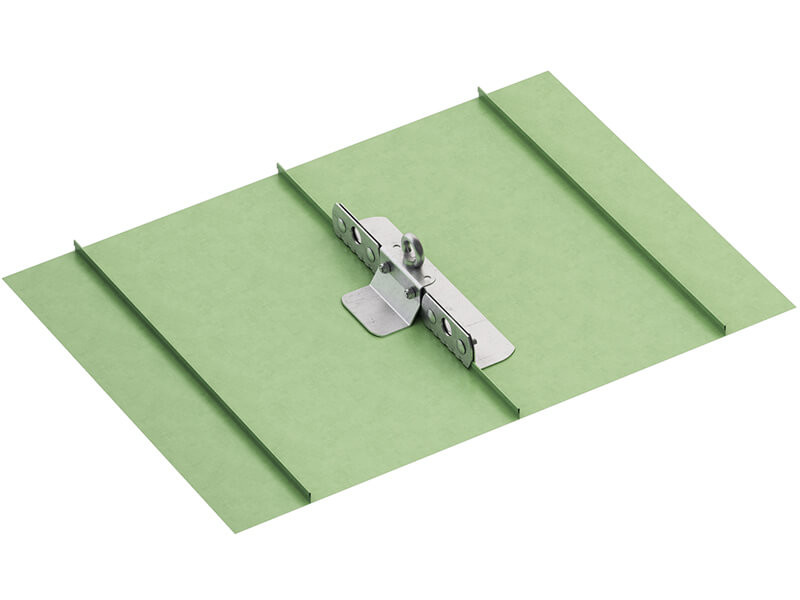

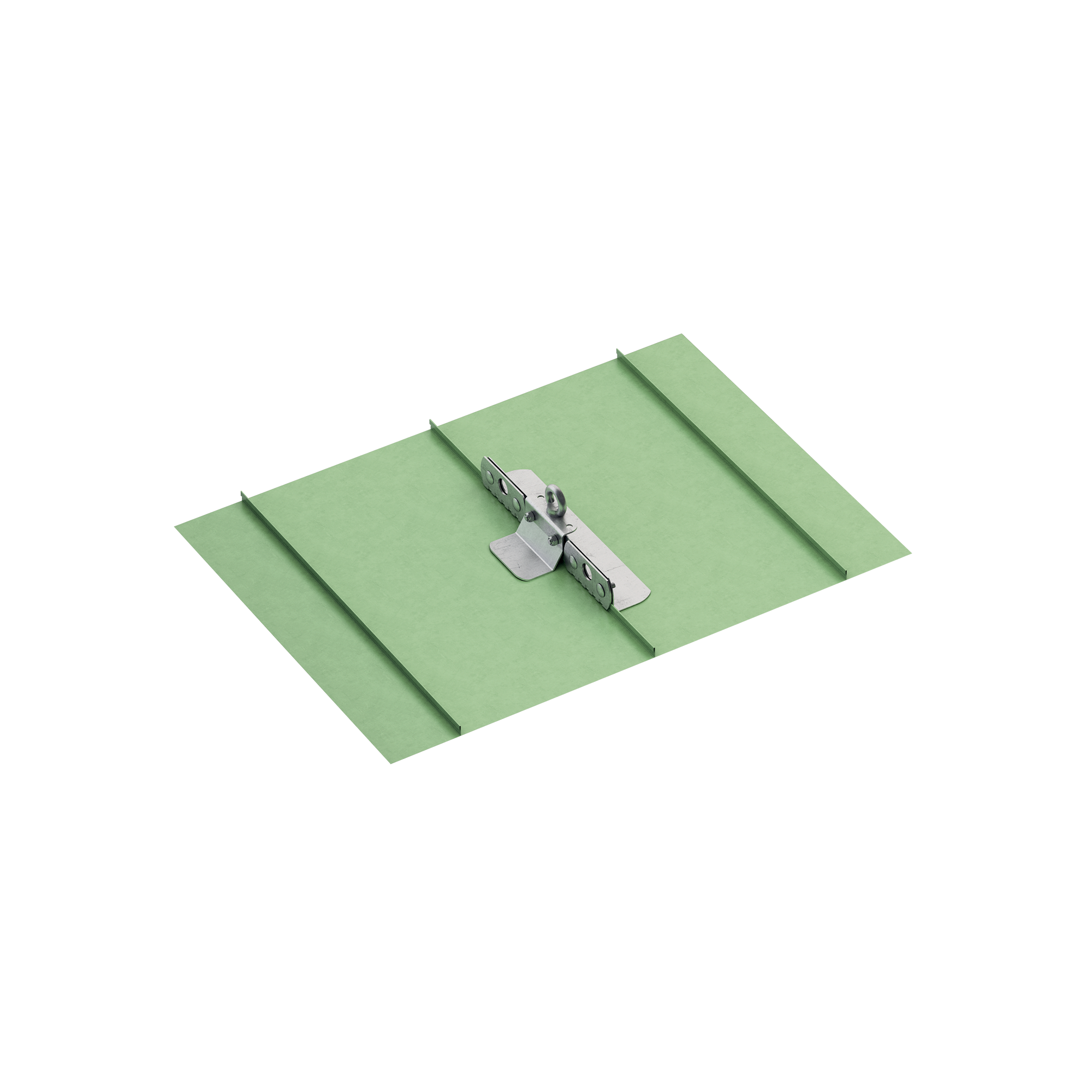

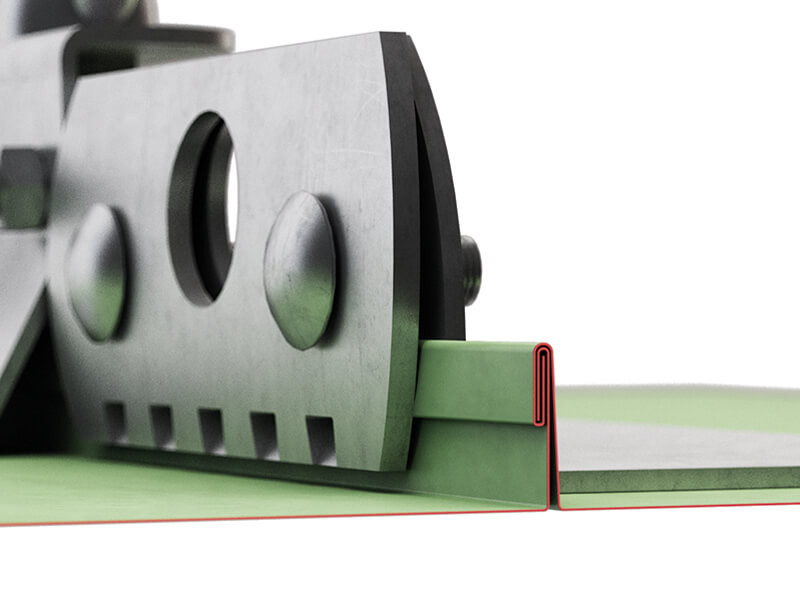

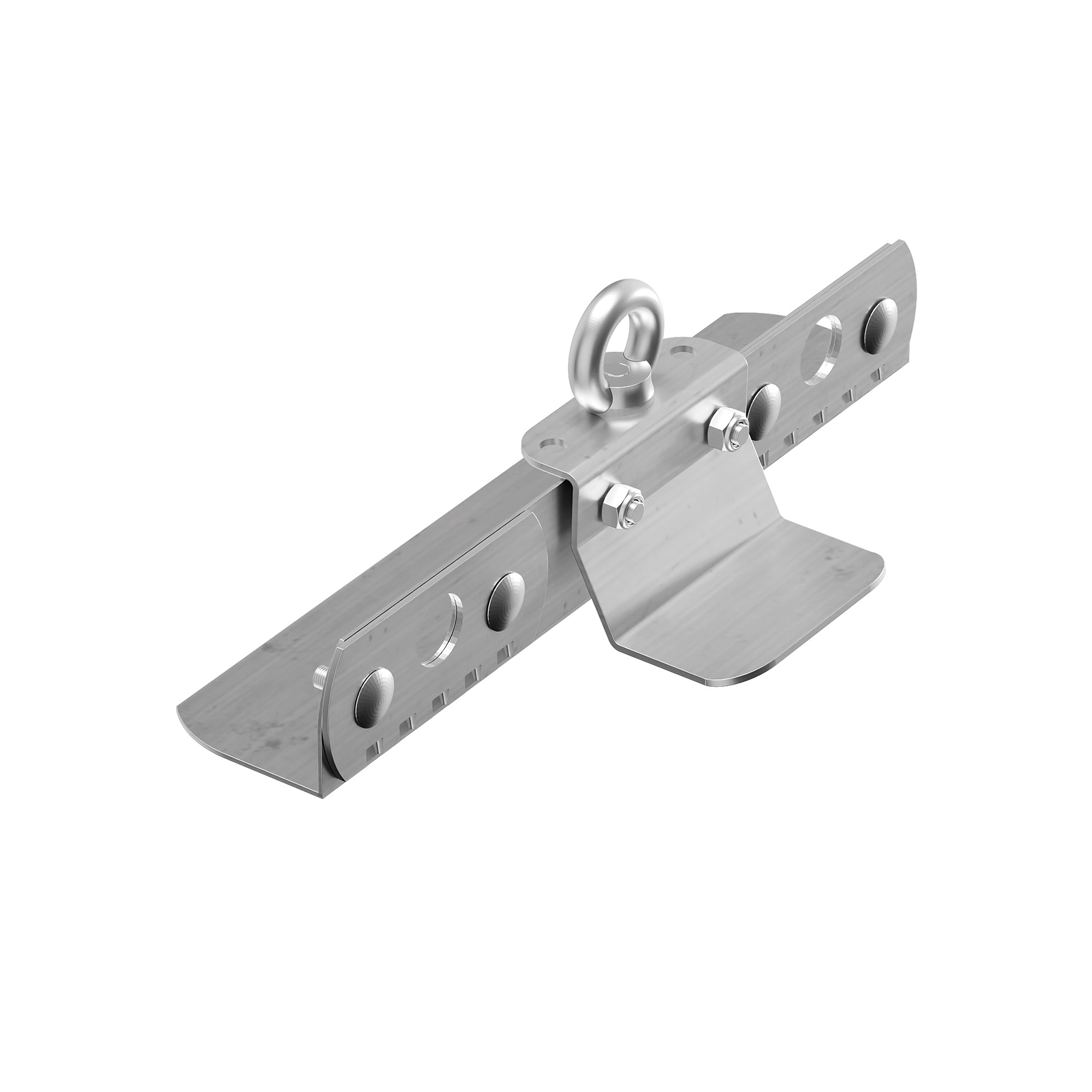

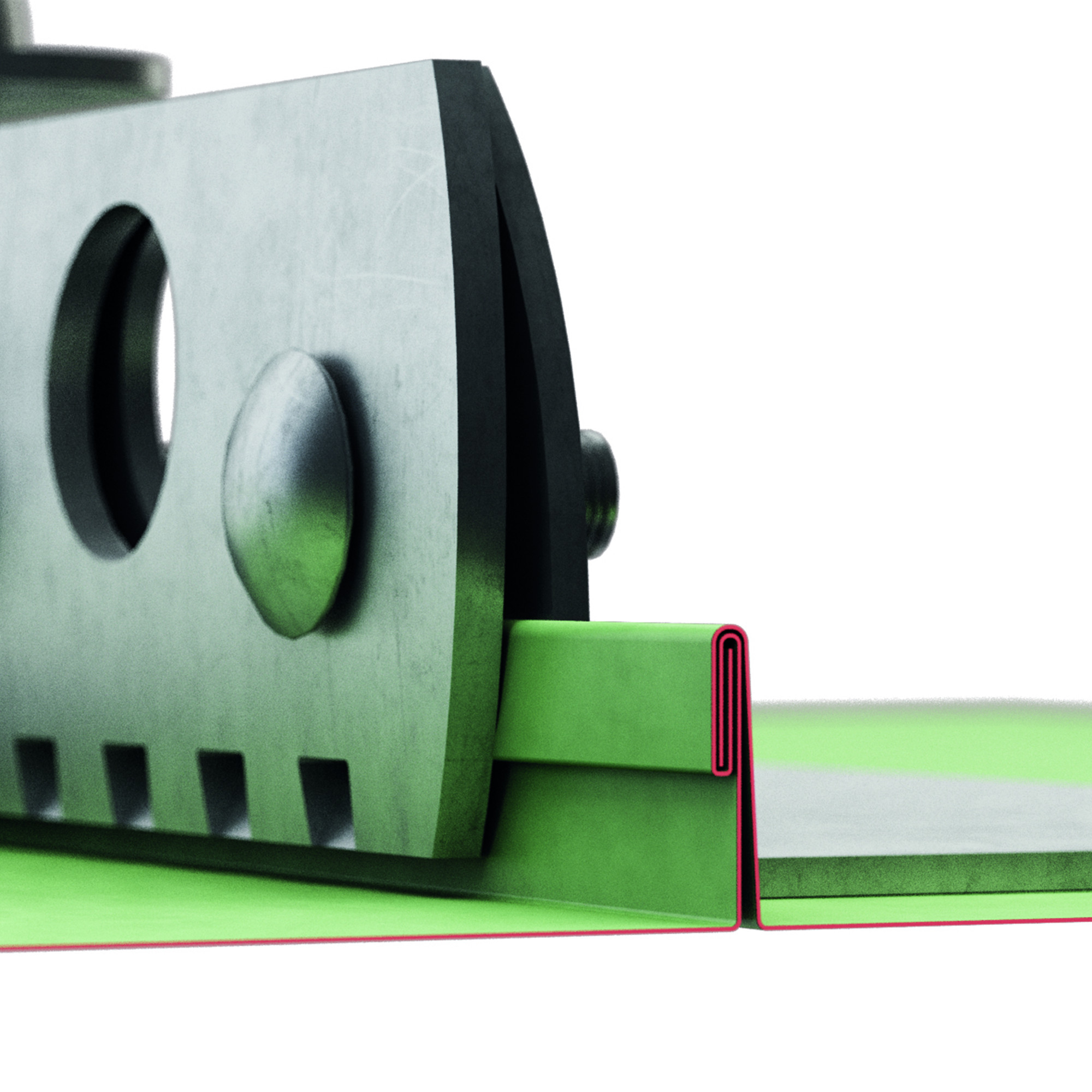

SIANK is the single anchor point for sheet metal roofs with double crimps. It is fastened with a clamp on a single seam of the sheet, without the need for drilling.
Videos
Safety at work is not a game. Trust SIANK.
The SIANK anchor point is the ideal device for working in safety on flat and sloping roofs.
It can support two workers falling thanks to the strength of just the fastening clamps which secure it on one edge of the sheet metal only.

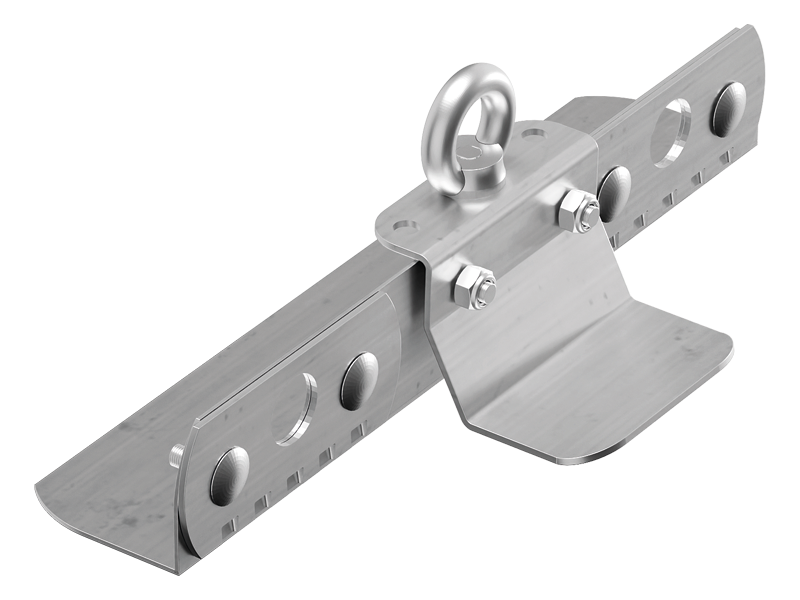

The supply includes the swivelling eyelet.
Maximum load: 2 users
Features
| Application | SINGLE POINT |
|---|---|
| Substructure | SHEET METAL WITH DOUBLE CRIMP |
| Field of use | MIN. STEEL 0,4MM - MIN. ALUMINIUM 0,5MM - MIN. COPPER 0,5MM - MIN. ZINC/TITANIUM 0,7MM |
| Number of workers | 2 |
| Material | STAINLESS STEEL 1.4301 / AISI304 |
Documents
| Technical data sheets | |
|---|---|
| Declaration of conformity | |
| Safety regulations, instructions for installation and use | |
| Declaration of Installation and inspection | |
| Safety regulations, instructions for installation and use SIANK65 | |
| EAC certificate (anchor points) |
Installation manual
| Manual for installation and use | |
|---|---|
| Installation manual | |
| Manual for installation and use SIANK65 |
SIANK
| CODE | description | material | B
[mm]
|
H
[mm]
|
L
[mm]
|
pcs. |
|---|---|---|---|---|---|---|

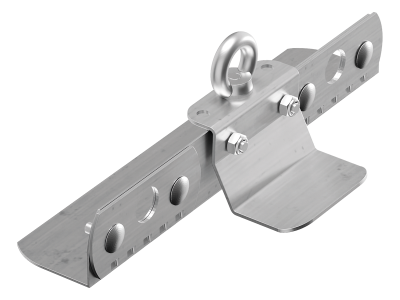

| SIANK | anchor point for seaming 25 mm | AISI 304 stainless steel grade 1.4301 | 163 | 130 | 400 | 1 |

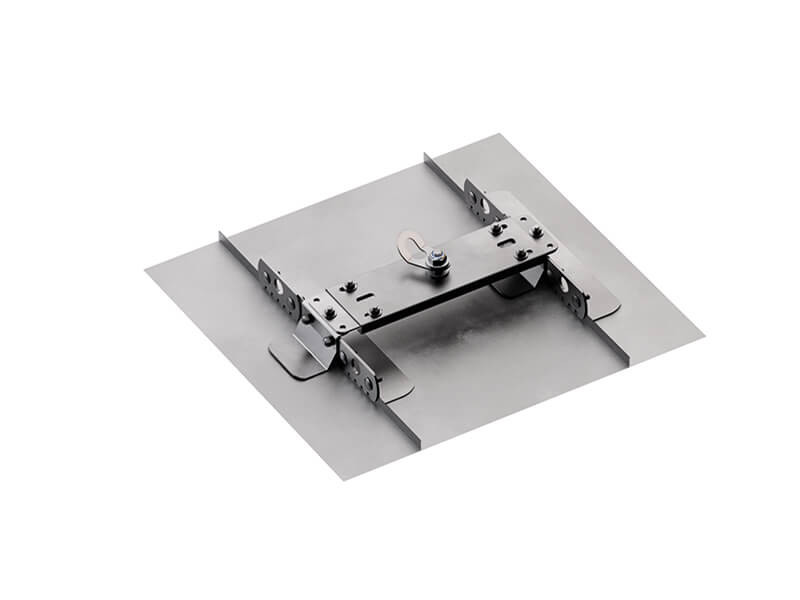

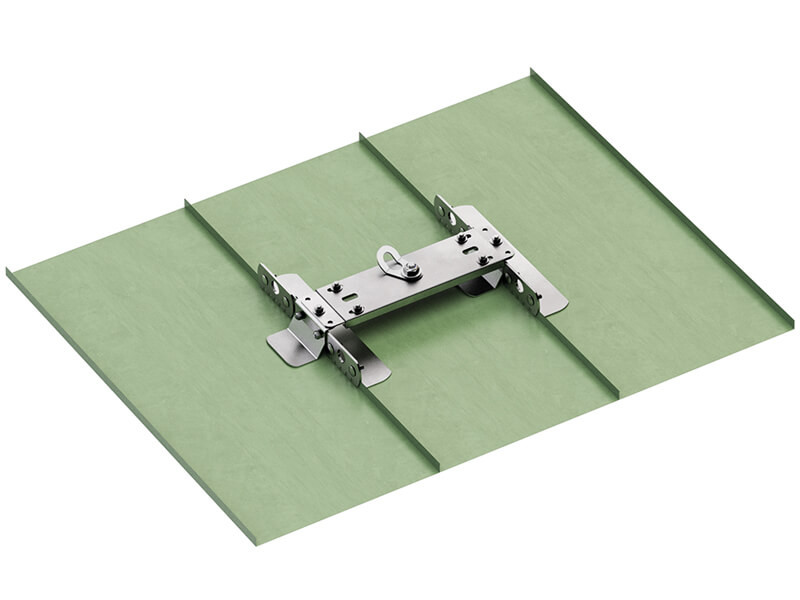

| SIANK65 | anchor point for seaming 65 mm | AISI 304 stainless steel grade 1.4301 | 104 | 163 | 400 | 1 |

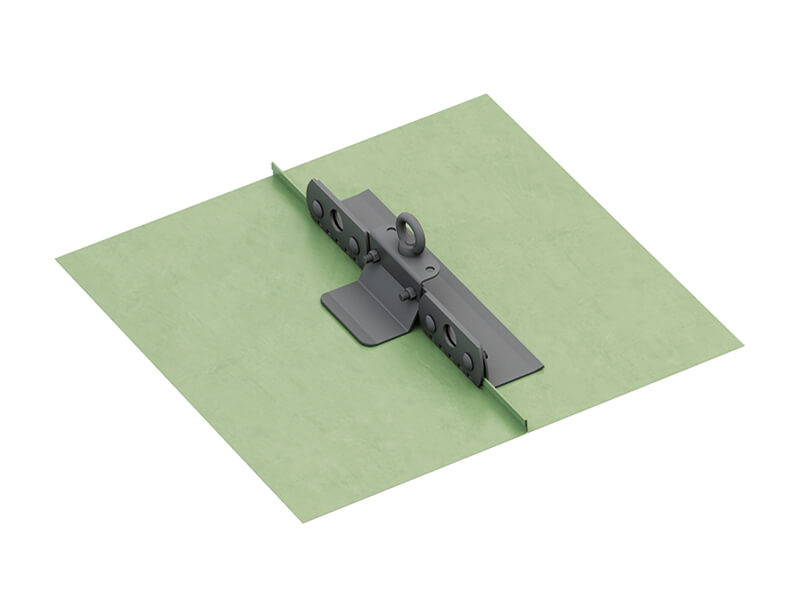

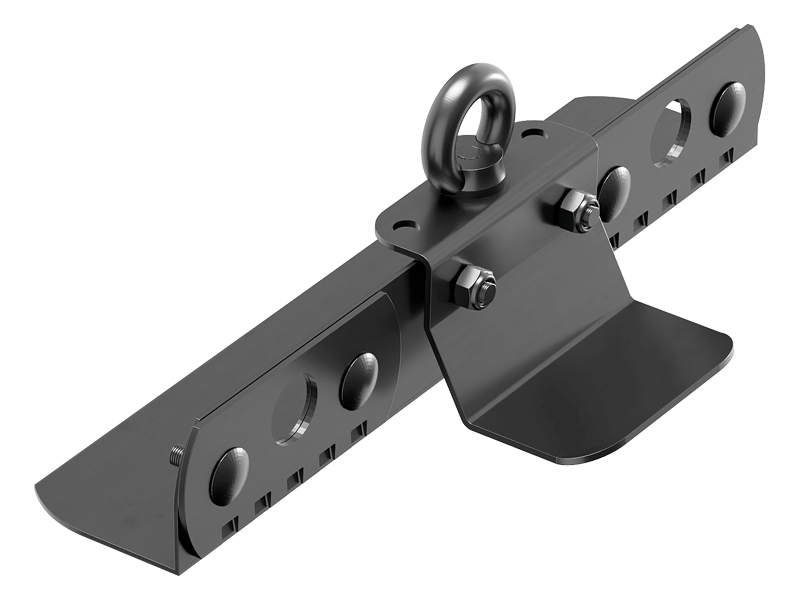

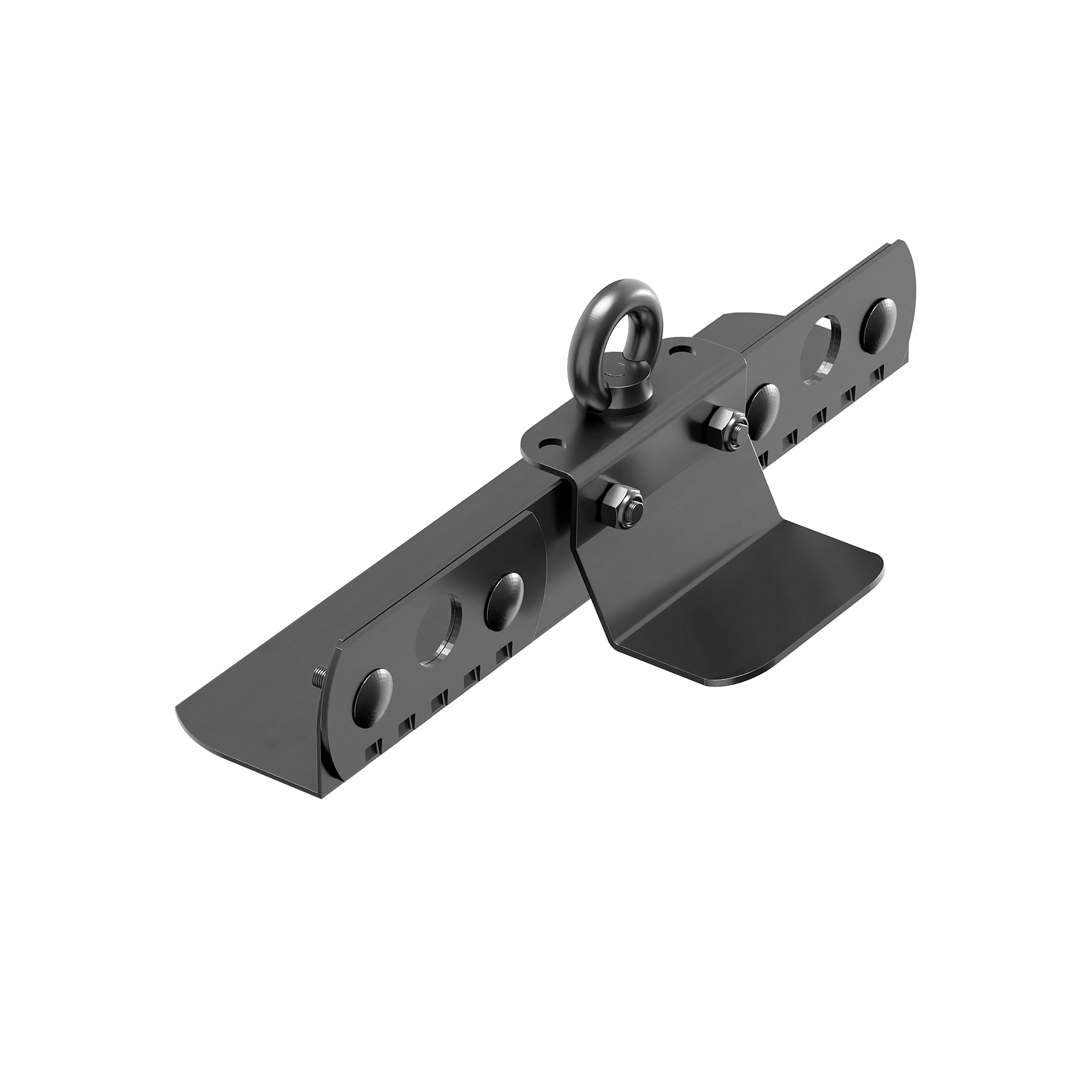

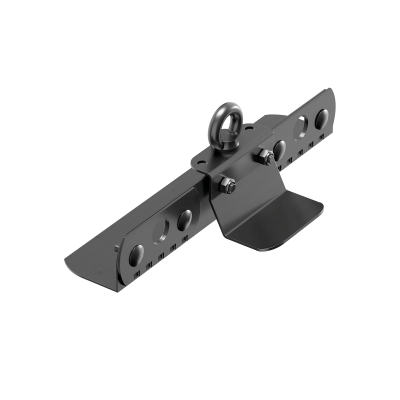

| SIANKA | anthracite-colour anchorage point for seaming 25 mm | AISI 304 stainless steel grade 1.4301 | 163 | 130 | 400 | 1 |

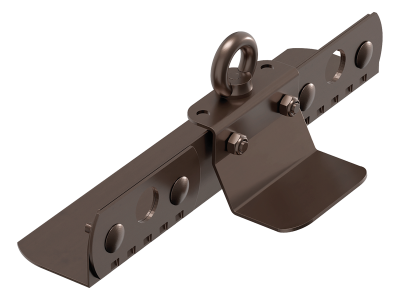

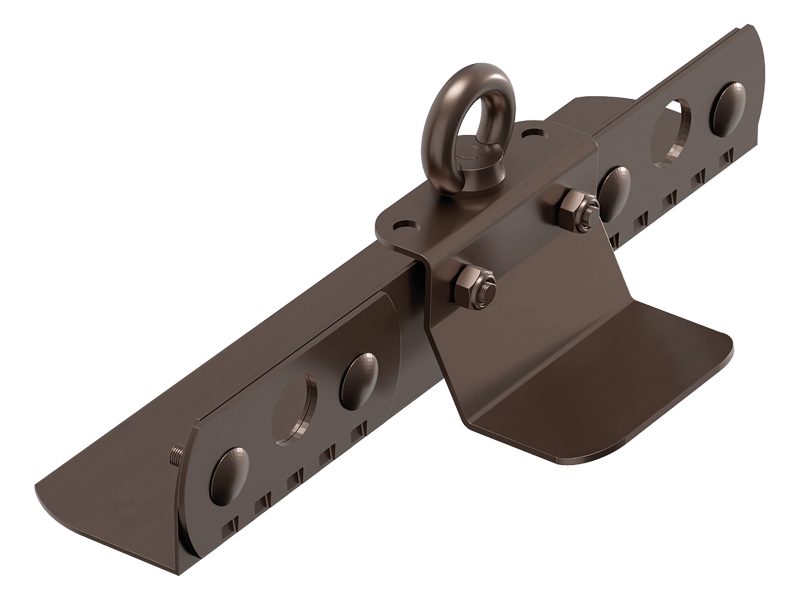

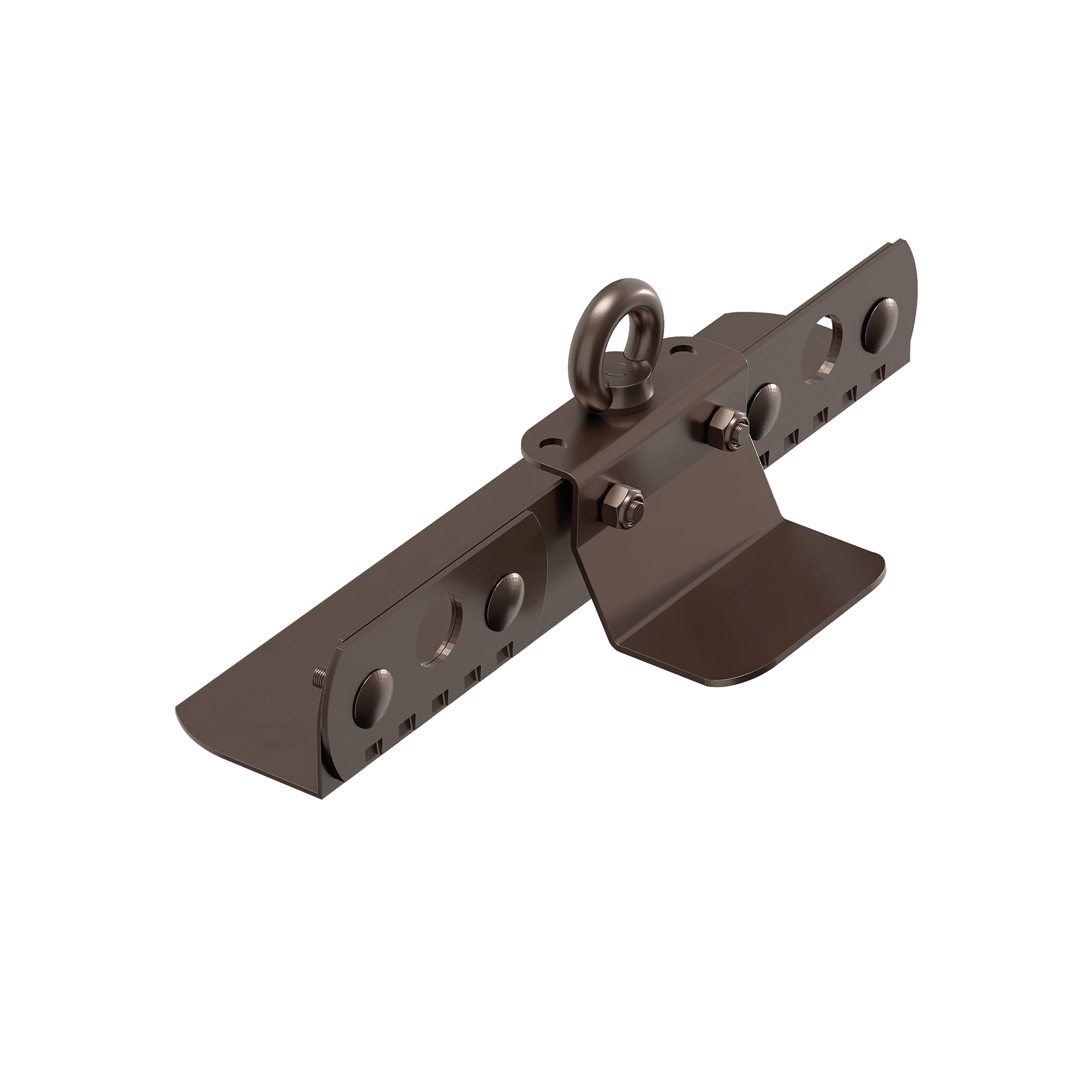

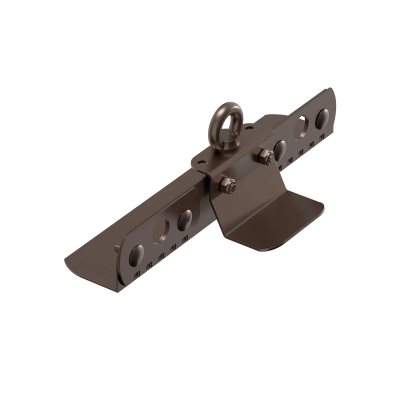

| SIANKB | brown anchorage point for seaming 25 mm | AISI 304 stainless steel grade 1.4301 | 163 | 130 | 400 | 1 |
