PERMANENT FALL PROTECTION SYSTEM FOR INDUSTRIAL ROOFING
OVERNET

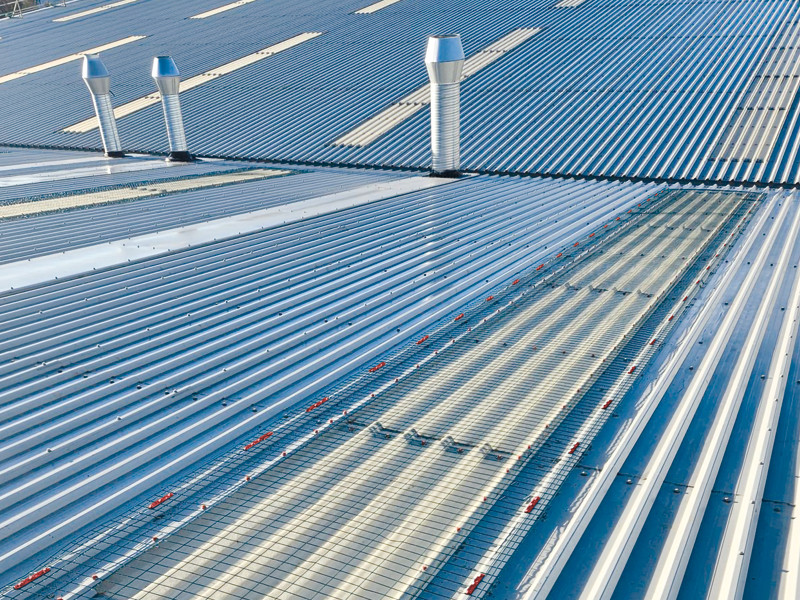

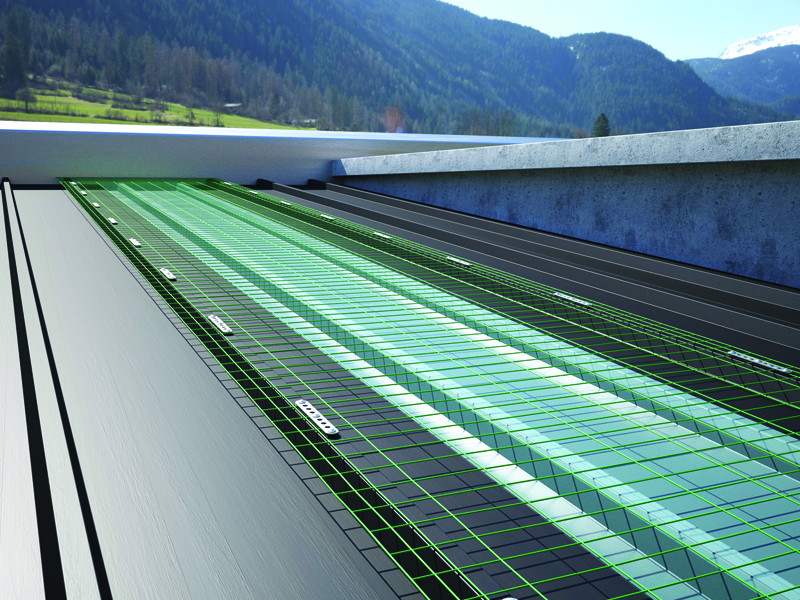

The OVERNET fall protection system is designed to secure industrial roofing permanently so as to ensure safe roofing work while protecting skylights that cannot be walked on.
Videos
OVERNET, the durable and complete fall protection net for industrial roofing.

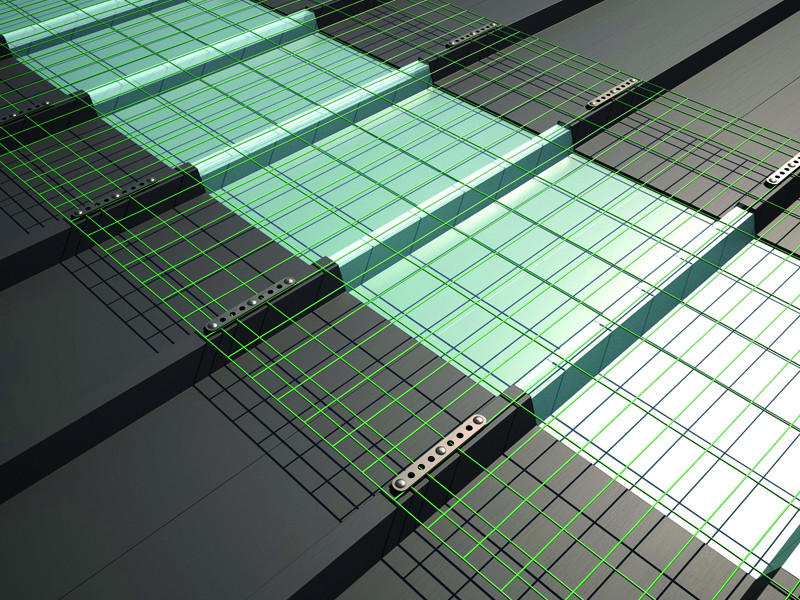

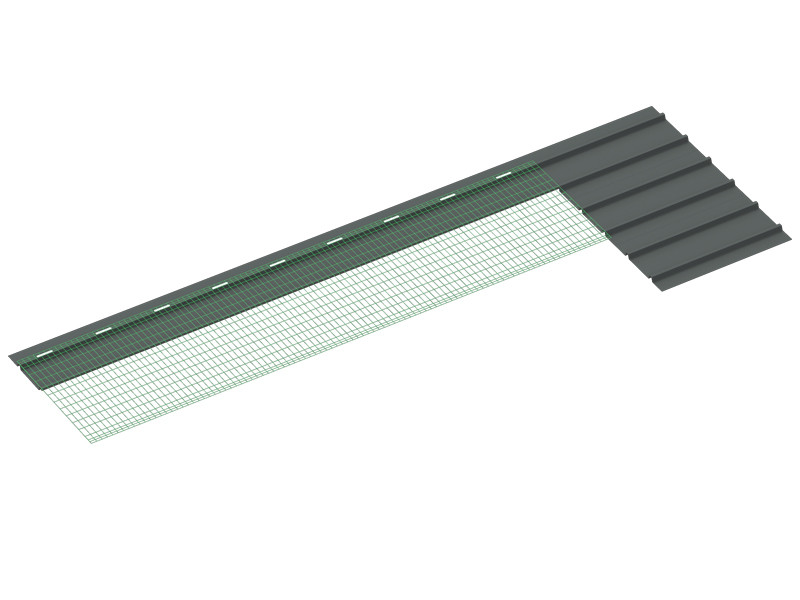

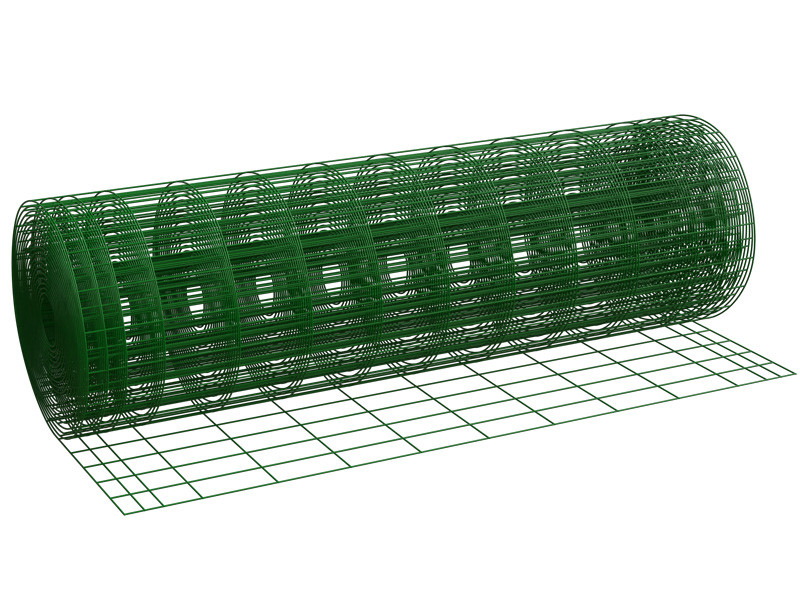

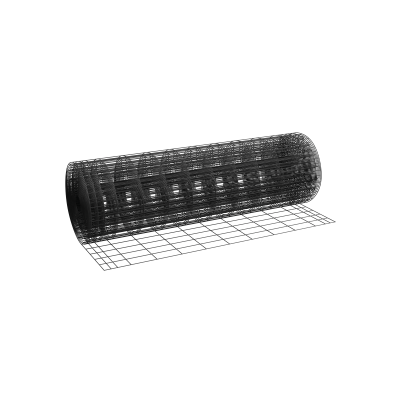

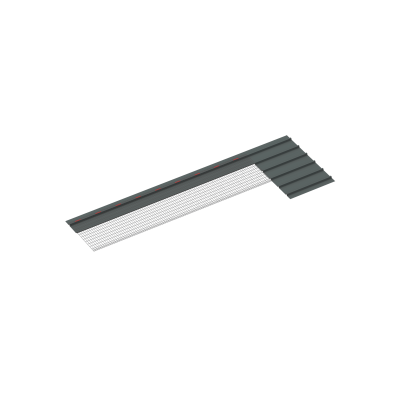

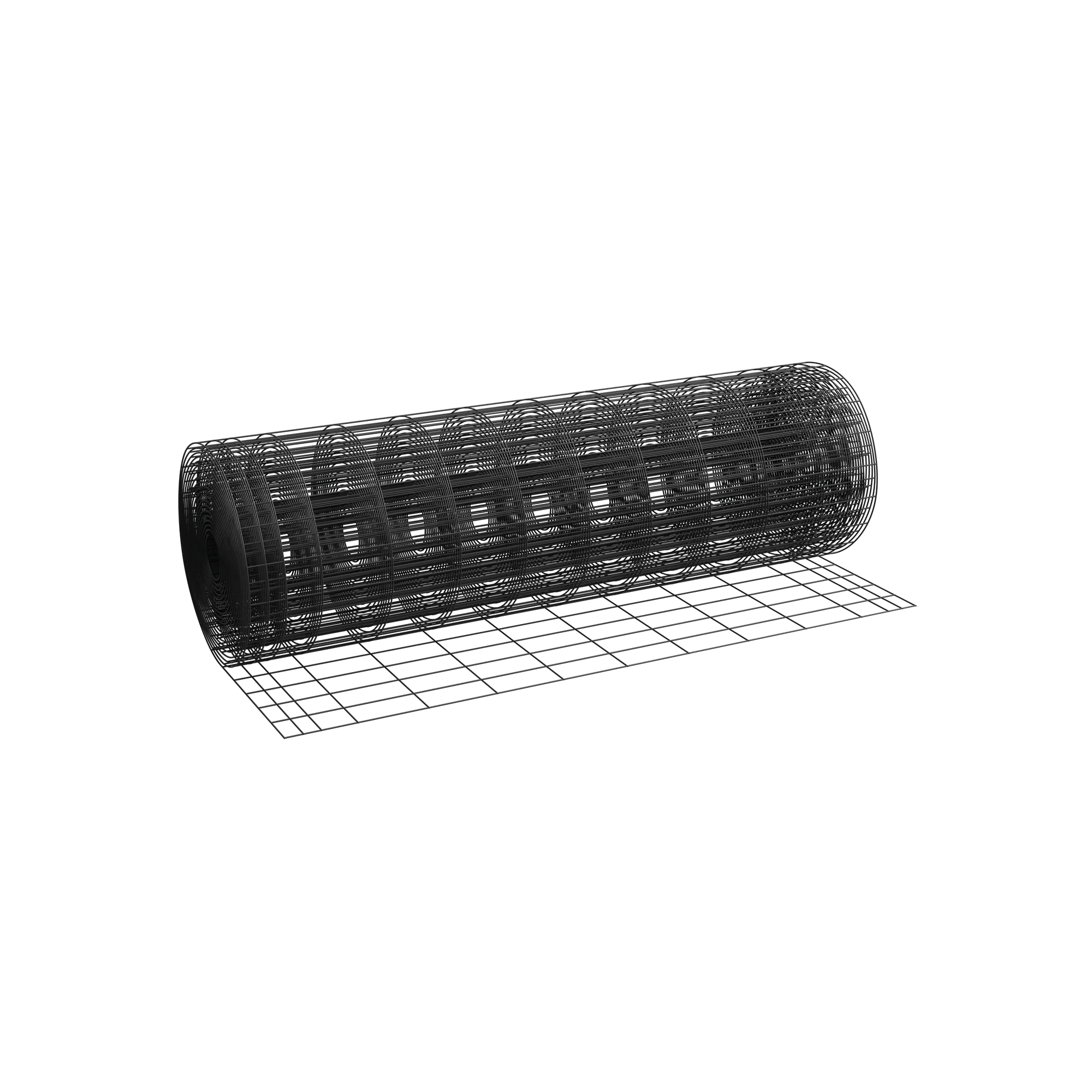

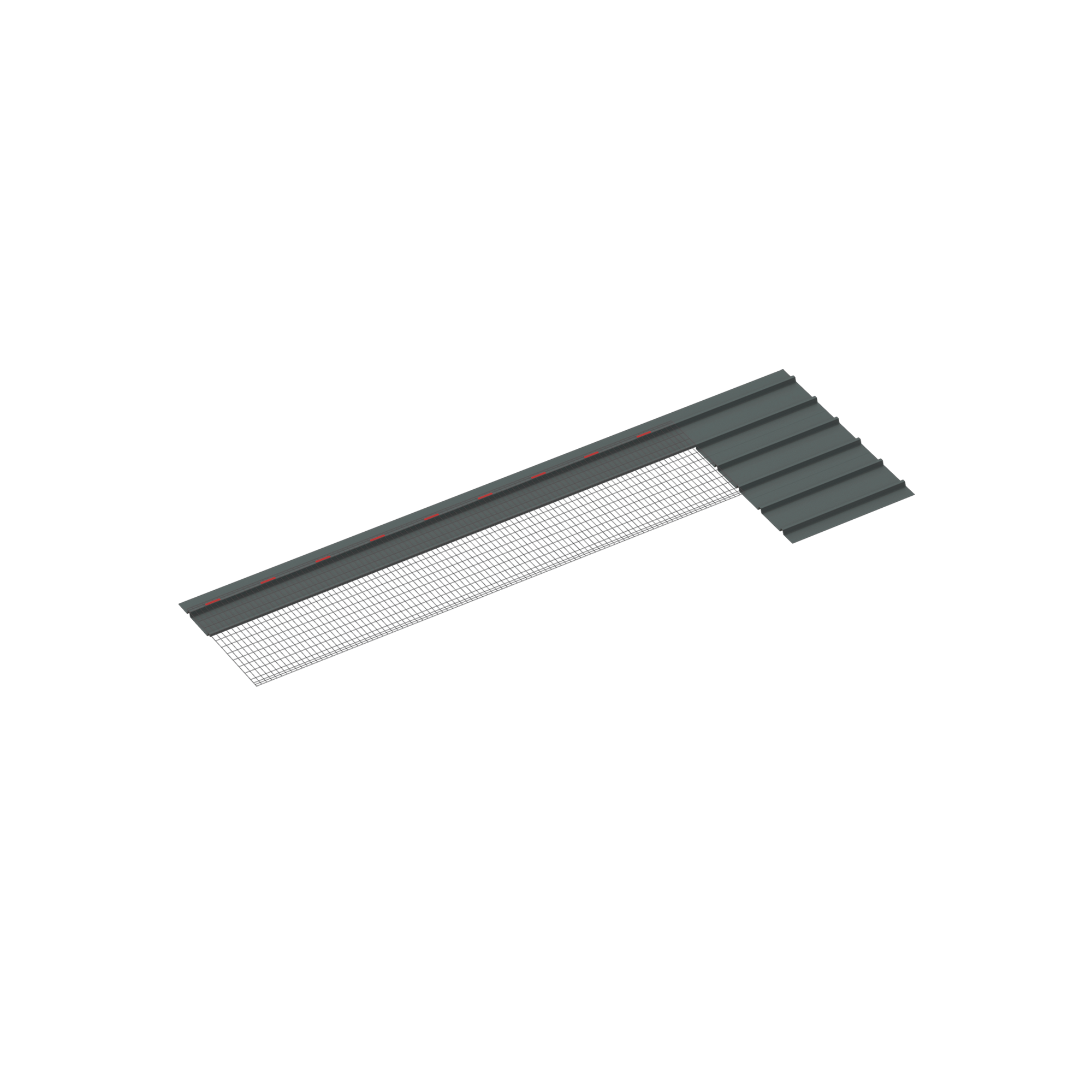

Installing OVERNET is convenient: it is easily installed outdoors on trapezoidal metal sheets or trapezoidal sandwich panels and is supplied in 25 m rolls.

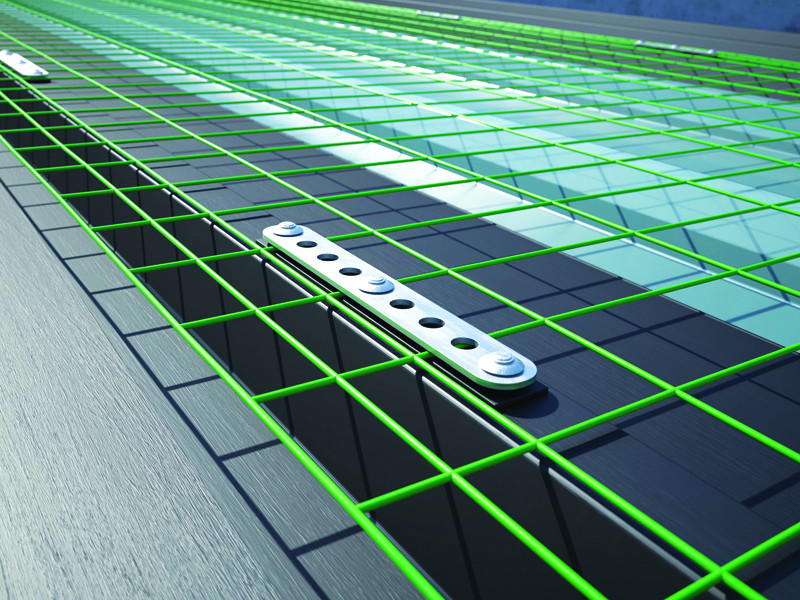

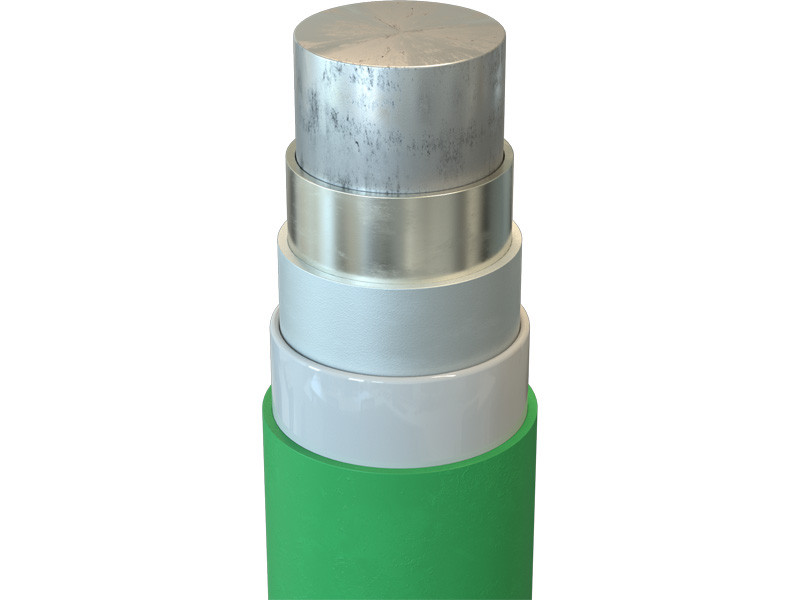

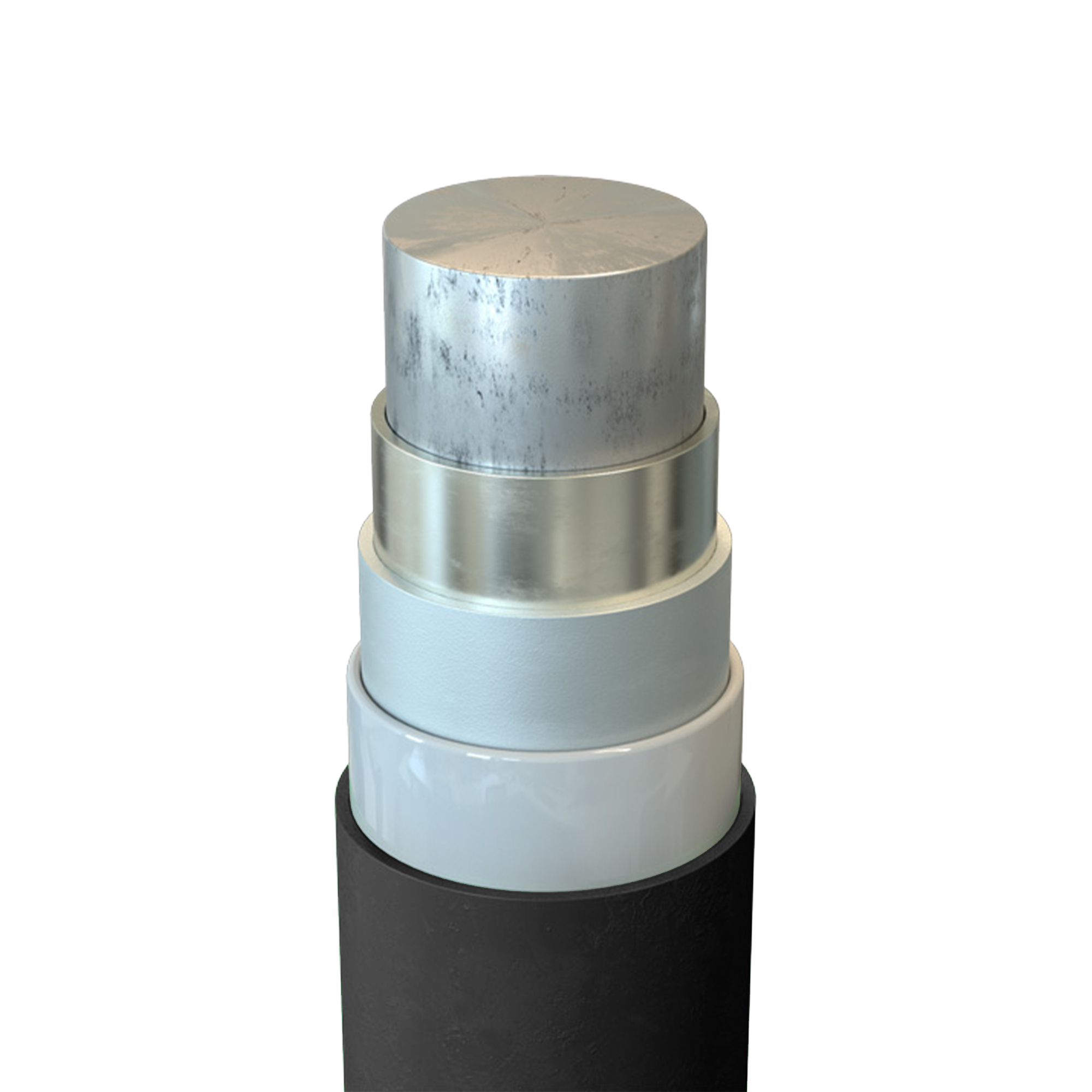

OVERNET is a complete system composed of: fall protection net, fastening plates, EPDM gaskets and rivets. Its strength and durability are made excellent by the combination of zinc plating, primer and PVC.
Documents
| Technical data sheets |
|---|
OVERNET
| CODE | description | B
[mm]
|
L
[m]
|
pcs. |
|---|---|---|---|---|
| OVERNET1020 | PVC-coated fall protection safety net | 1020 | 25 | 1 |
| OVERNET1220 | PVC-coated fall protection safety net | 1220 | 25 | 1 |
| OVERNET1520 | PVC-coated fall protection safety net | 1520 | 25 | 1 |
| OVERNET1830 | PVC-coated fall protection safety net | 1830 | 25 | 1 |
| OVERNET2030 | PVC-coated fall protection safety net | 2030 | 25 | 1 |
| CODE | description | B
[mm]
|
L
[mm]
|
H
[mm]
|
s
[mm]
|
Ø
[mm]
|
pcs. |
|---|---|---|---|---|---|---|---|
| OVERNETBRA | fastening plate for OVERNET | 19 | - | 142 | 2.5 | - | 100 |
| OVERNETEPDM | EPDM gasket for OVERNET | 19 | - | 142 | 4 | - | 100 |
| RIV7728 | rivet with EPDM washer | - | 28 | - | - | 7.7 | 300 |
