HORIZONTAL POLYPROPYLENE FALL PROTECTION SAFETY NET
HORIZONTAL NET is a fall protection safety net that requires a limited number of fastening systems: it is sufficient to respect the maximum distance between anchor systems of 2.5 m.
Description

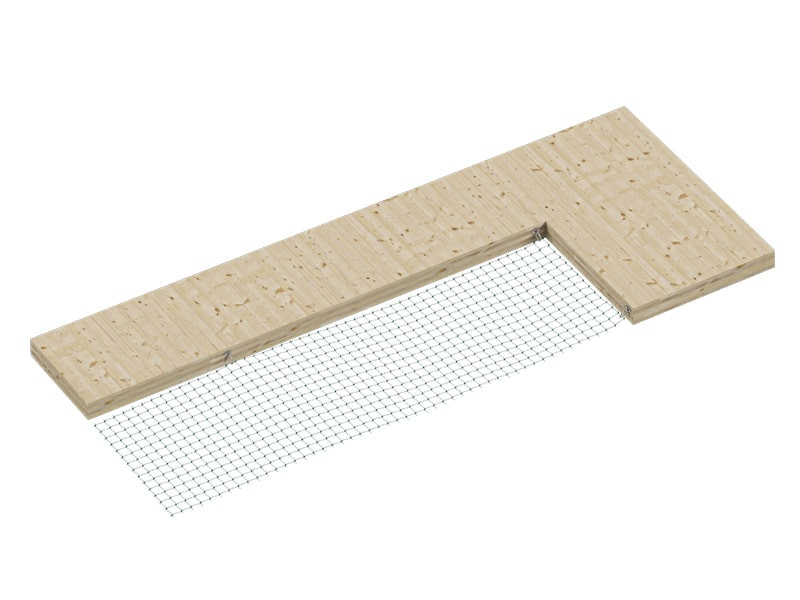

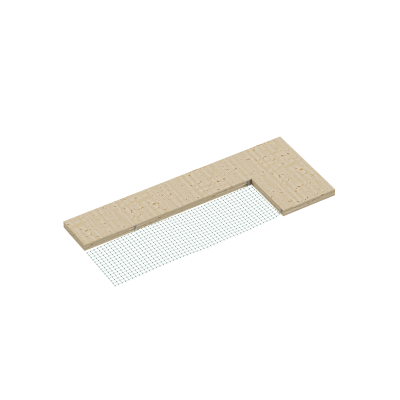

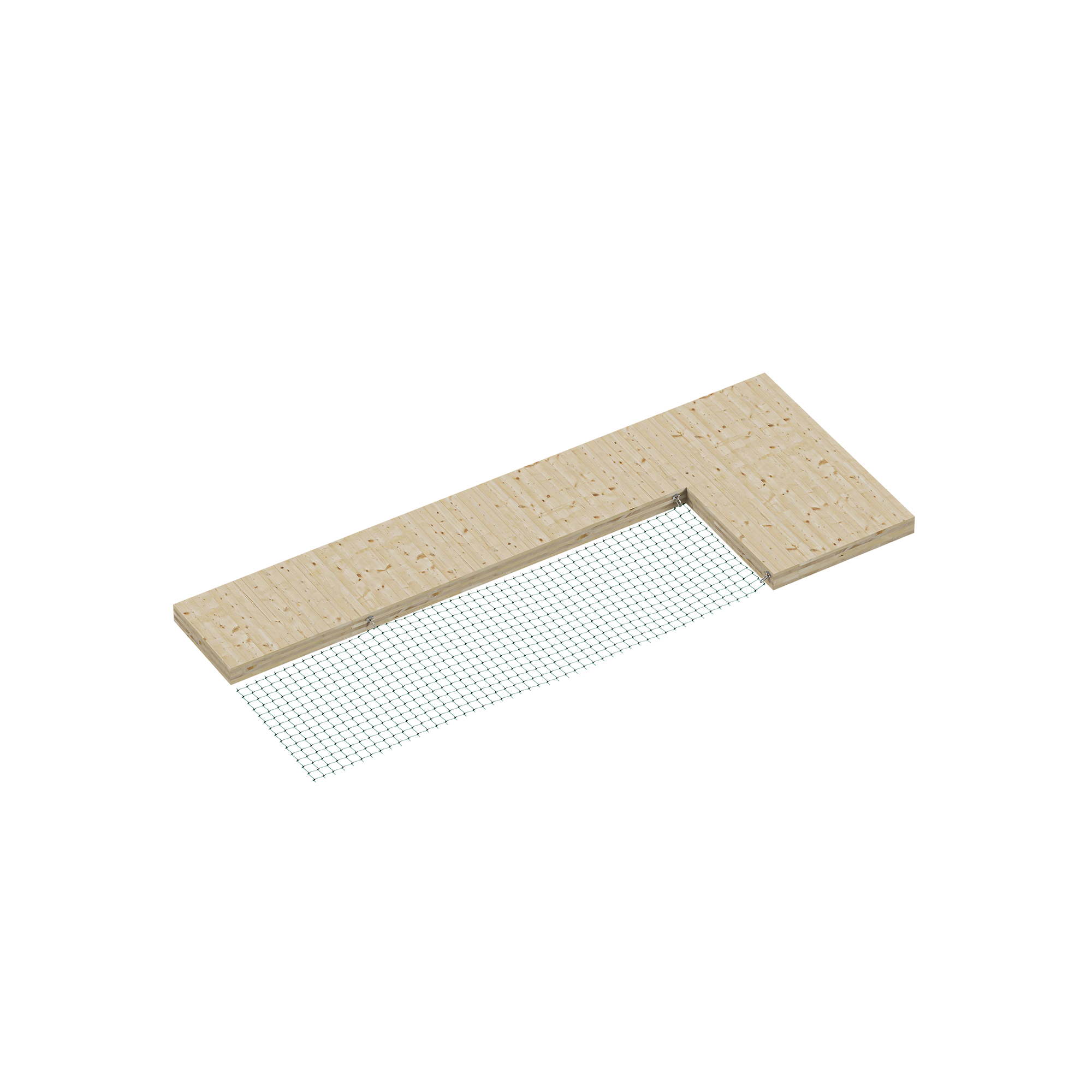

HORIZONTAL NET, the simple and safe horizontal fall protection safety net.

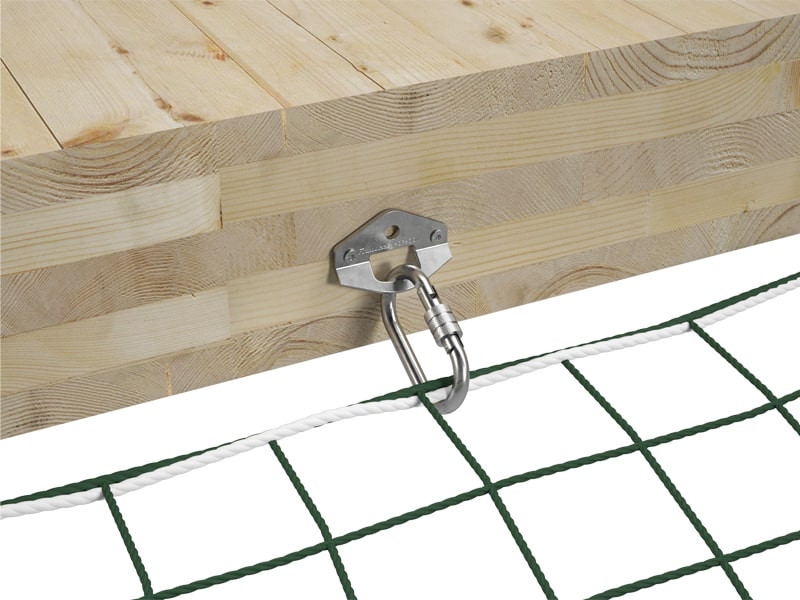

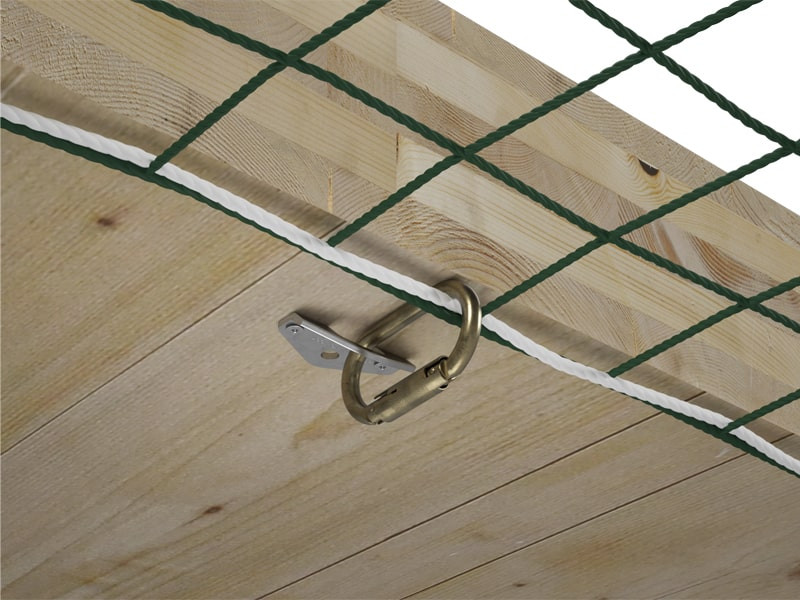

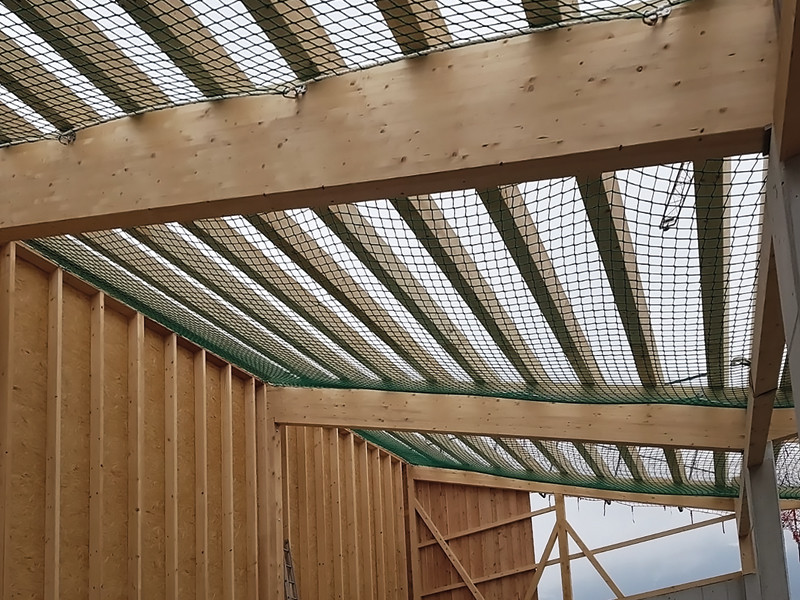

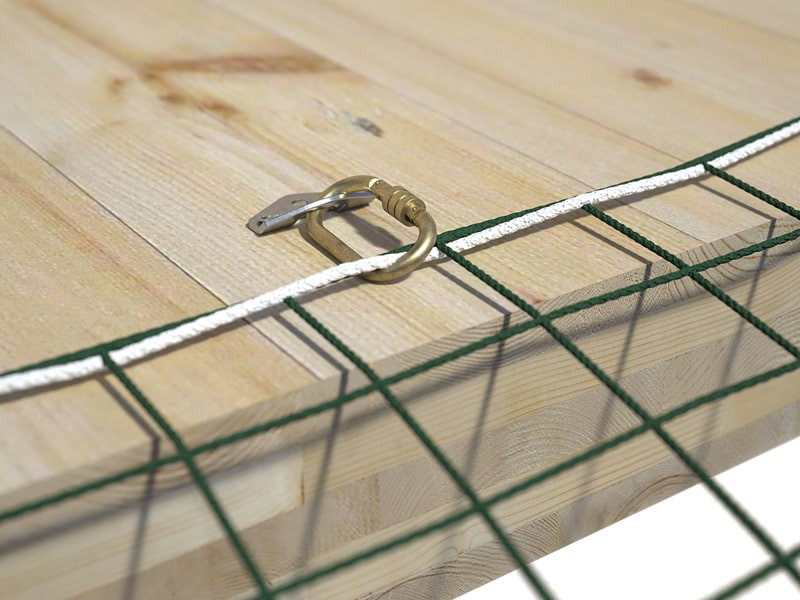

The fall protection safety net can be installed on timber, concrete and metal. Possibility of combining different nets to cover larger areas. It is also available in other colours by request (red, blue, white) and in personalised format for larger nets.
Documents
-
Technical data sheets
-
Installation manual HORHOOK
HORIZONTAL NET
| CODE | B
[m]
|
L
[m]
|
pcs. |
|---|---|---|---|
| HOR510 | 5 | 10 | 1 |
| HOR610 | 6 | 10 | 1 |
| HOR7515 | 7.5 | 15 | 1 |
| HOR1010 | 10 | 10 | 1 |
| CODE | description | B
[mm]
|
H
[mm]
|
L
[mm]
|
d₁
[mm]
|
pcs. |
|---|---|---|---|---|---|---|
| HORHOOK | base for net hooking | - | - | - | - | 1 |
| CARSCREW | ↔ 25 kN ↕ 7 kN | - | - | - | - | 1 |
| CARTWIST | ↔ 20 kN ↕ 7 kN | - | - | - | - | 1 |
| HORHOOKC | net hook for concrete | - | - | 110 | 10 | 1 |
| HORHOOKS | net hook for steel | - | - | 130 | 12 | 1 |
| HORFIX | fastening cord per linear metre | - | - | - | 14 | 1 |
| HORCONNECT | sewing cord per linear metre | - | - | - | 6 | 1 |
