MANICA
MANICA ensures the impermeability of the substructure, typically after the installation of lifeline supports such as TOWER.

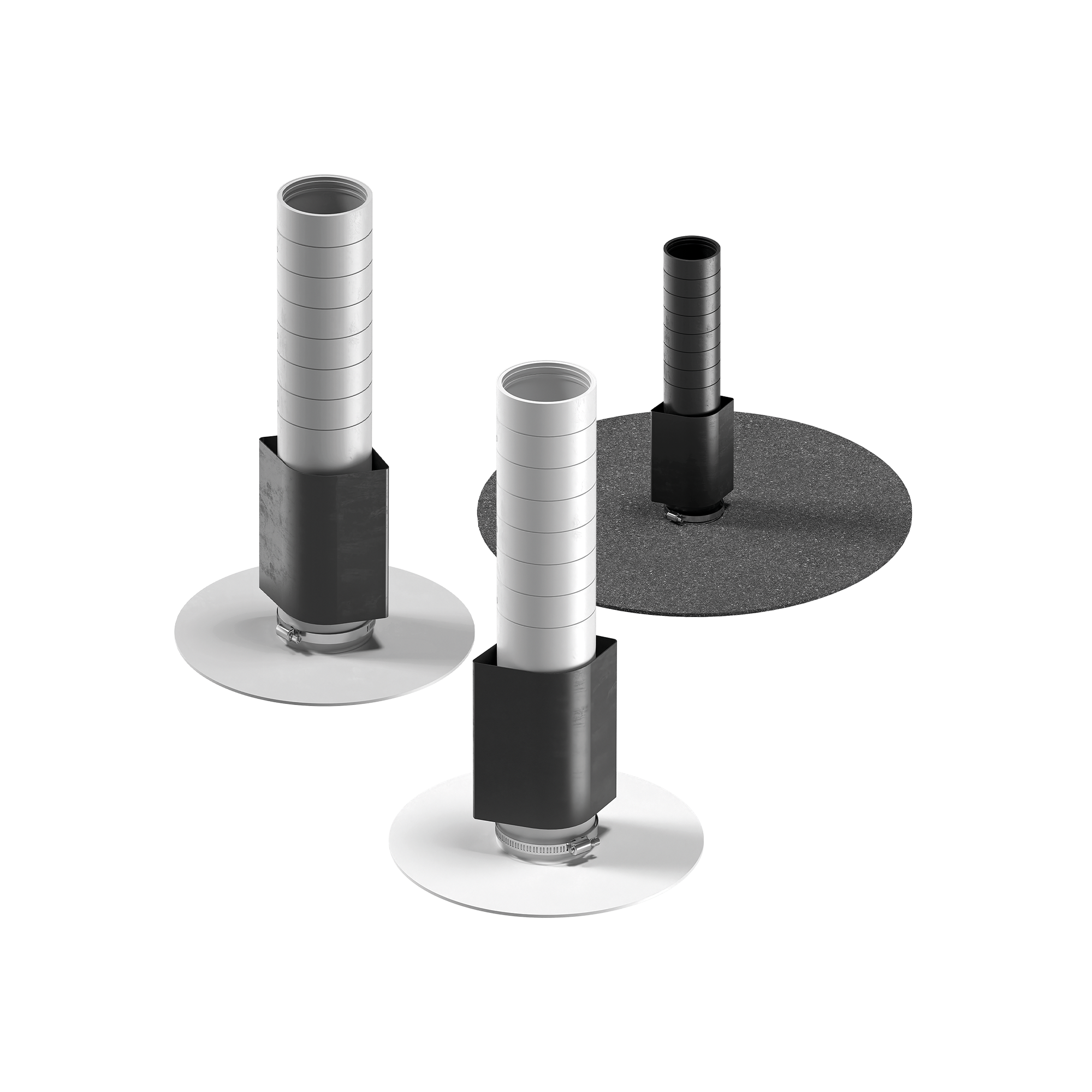

The three sleeve models, in slated bituminous concrete, PVC and FPO/PP make it possible to choose the most suitable material based on the pre-existing waterproofing sheath.
The materials that make up MANICA are weather-resistant, stabilised against UV radiation, resistant to high and low temperatures, oxidation and ageing.
Description
CHARACTERISTICS

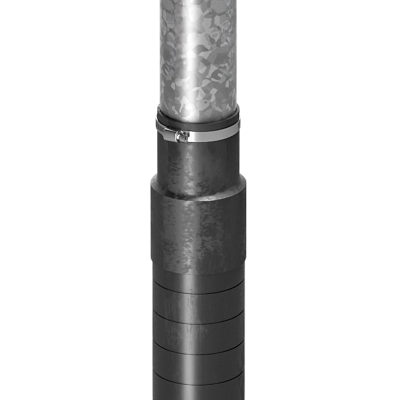

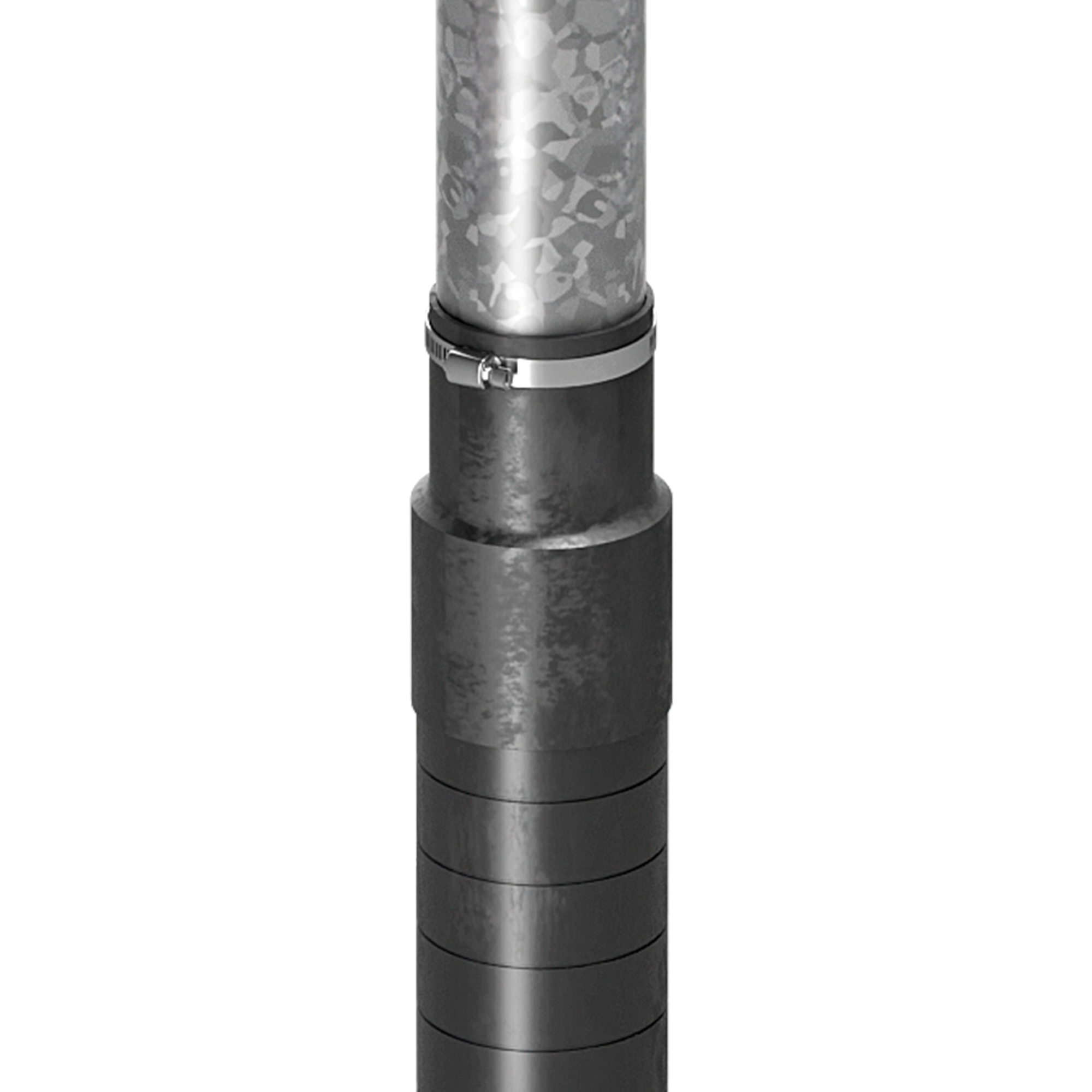

MANICA is the ultimate solution for sealing and protecting the substructure, typically after the installation of lifeline supports. Using heat-shrink technology, MANICA ensures a perfect fit and lasting protection against seepage and damage. Installation through heat application is simple and effective, and the integrated clamp provides an additional level of security against seepage.
MANICA has been tested in the laboratory and in the field and has consistently exceeded expectations in terms of durability and strength, proving its reliability even under extreme environmental conditions.
Documents
-
Technical data sheets
- Technical data sheets Croatian
- Technical data sheets Czech
- Technical data sheets English
- Technical data sheets French
- Technical data sheets German
- Technical data sheets Greek
- Technical data sheets Hungarian
- Technical data sheets Italian
- Technical data sheets Polish
- Technical data sheets Portuguese
- Technical data sheets Romanian
- Technical data sheets Russian
- Technical data sheets Slovene
- Technical data sheets Spanish
MANICA
| CODE | description | material | H
[mm]
|
d₁
[mm]
|
s
[mm]
|
minimo vendibile |
|---|---|---|---|---|---|---|

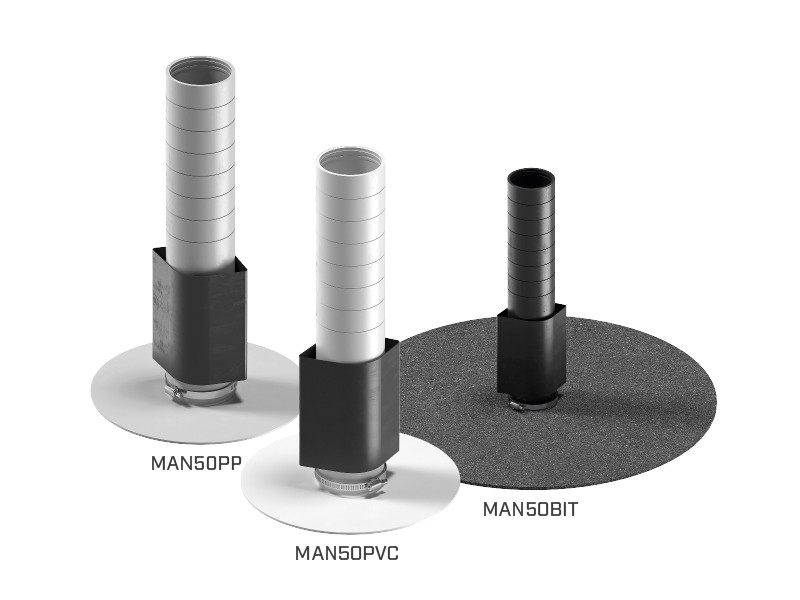

| MAN50BIT | sealing sleeve with shrink tubing and clamp | PVC; slated bituminous | 210 | 50 | 3 | 1 |
| MAN50PVC | sealing sleeve with shrink tubing and clamp | PVC | 300 | 50 | 2 | 1 |
| MAN50PP | sealing sleeve with shrink tubing and clamp | FPO/PP | 300 | 50 | 2 | 1 |
