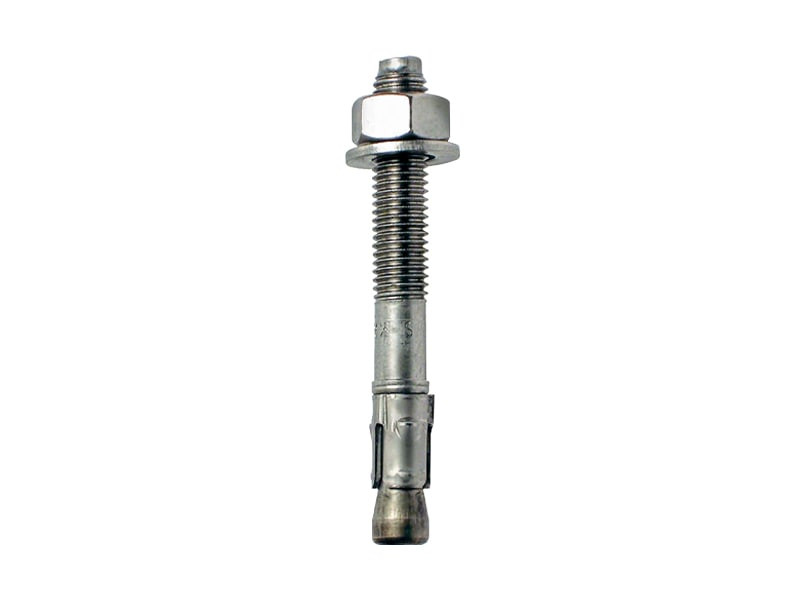

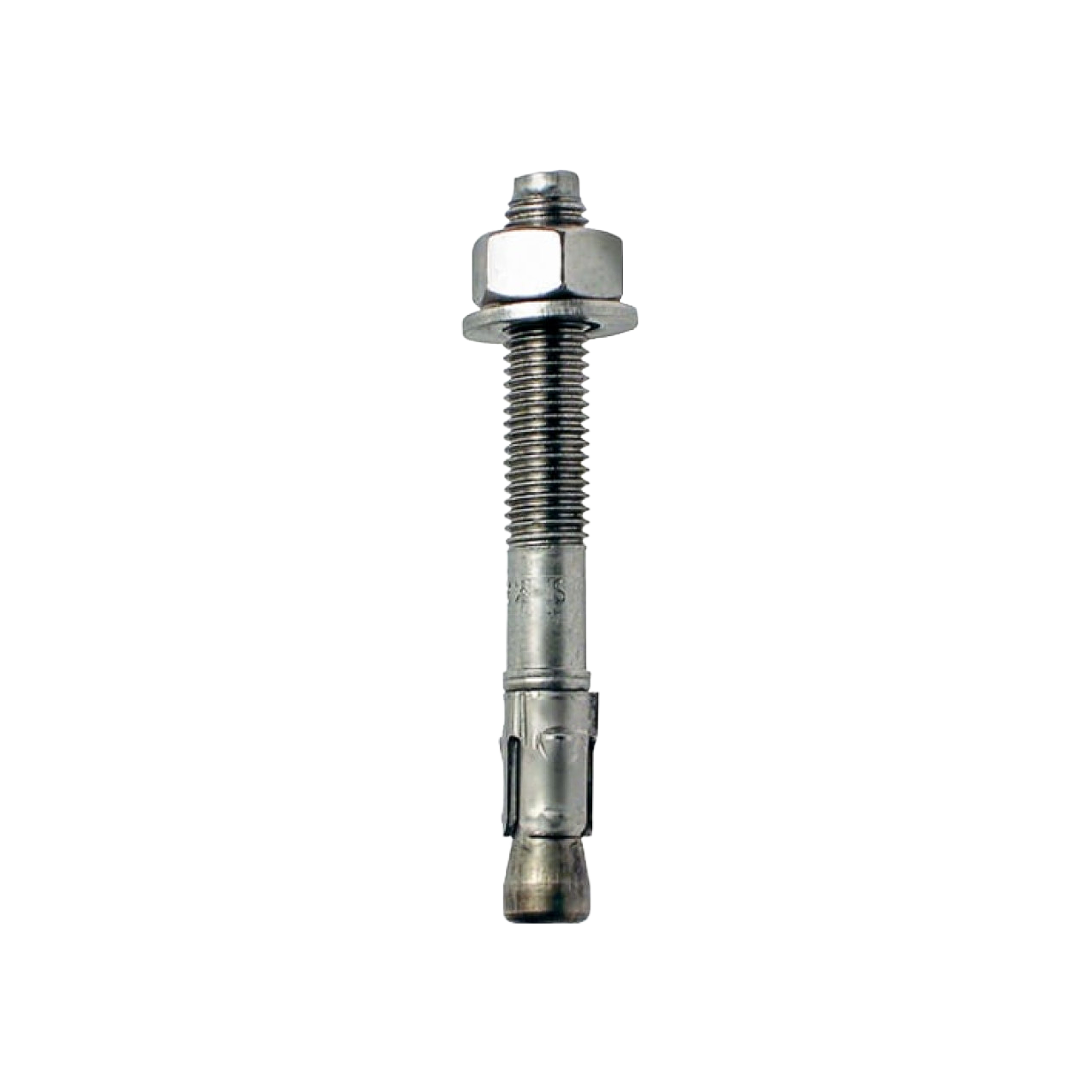

CE1 STAINLESS STEEL HEAVY-DUTY EXPANSION ANCHOR

AB1 A4

CE option 1 for cracked and uncracked concrete. Seismic performance category C1. Made of A4 stainless steel. Fire resistance R120. Complete with nut and washer, suitable for dense materials. Through fastening. Torque-controlled expansion.

Documents

Technical data sheets
Declaration of performance (DOP) Download

AB1 A4

CODE d
[mm]
L
[mm]
SW pcs.
AB1892A4 M8 92 SW13 50
AB18112A4 M8 112 SW13 50
AB11092A4 M10 92 SW17 50
AB110132A4 M10 132 SW17 25
AB112118A4 M12 118 SW19 20
AB116138A4 M16 138 SW24 10
