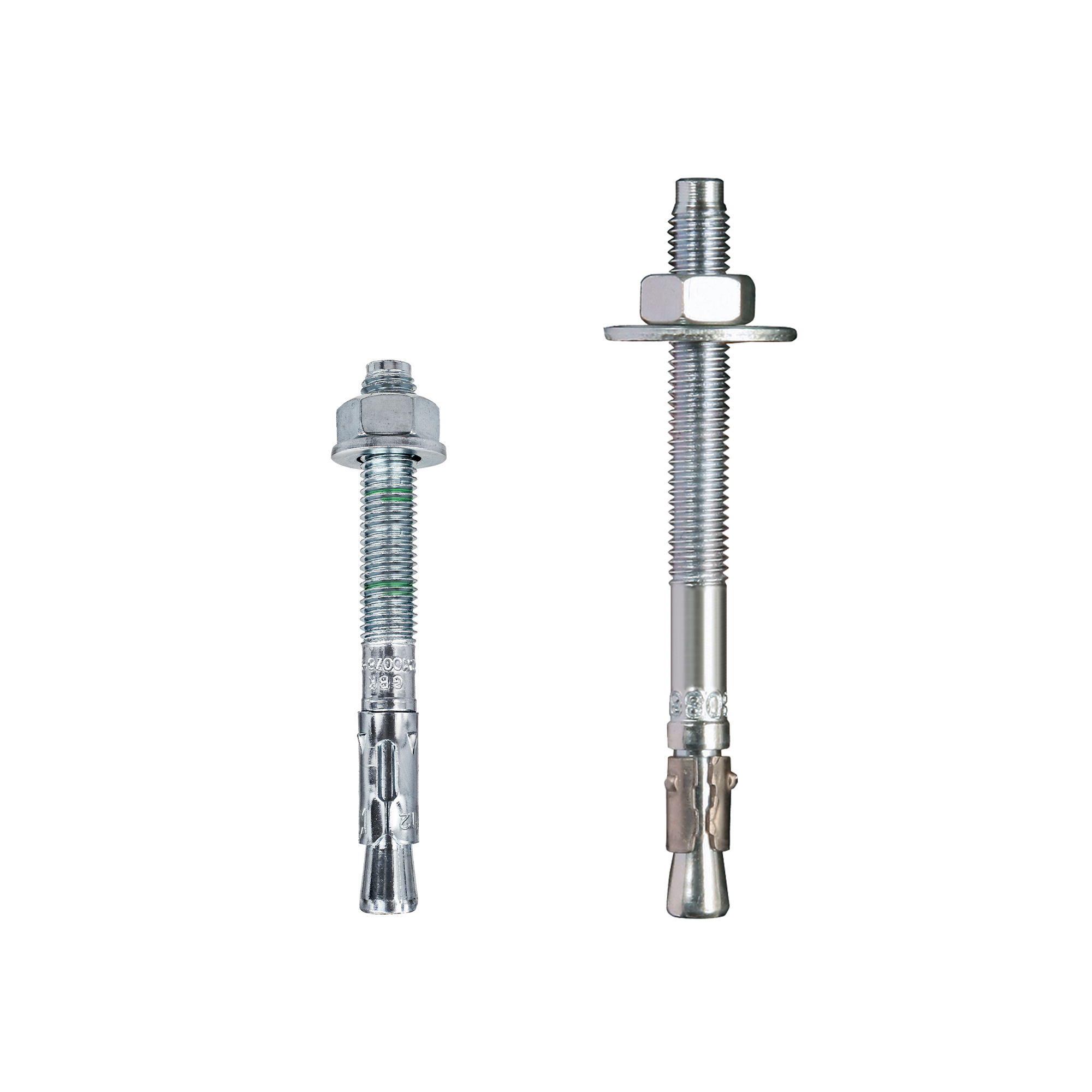

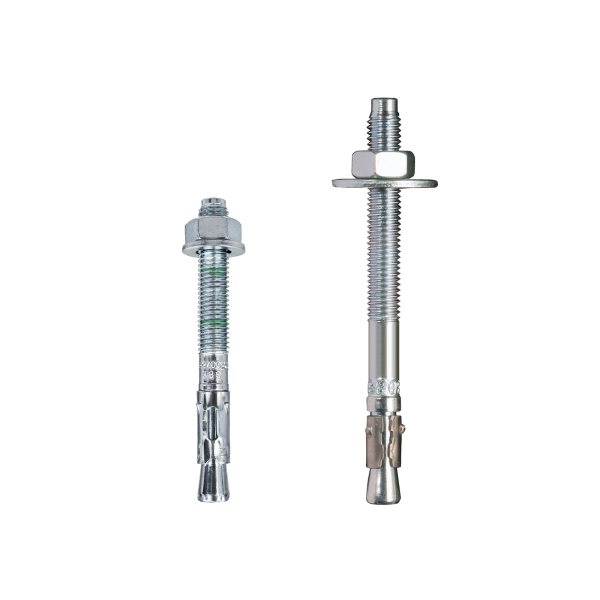

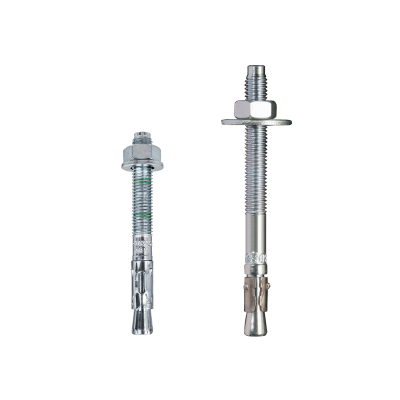

HEAVY-DUTY EXPANSION ANCHOR CE7
AB7
CE option 7 for uncracked concrete. Made of electrogalvanized carbon steel.
Complete with nut and washer.
Long thread. Extra-long multiway expansion clamp.
Suitable for dense materials. Through fastening.
Torque-controlled expansion.
Documents
| Technical data sheets | |
|---|---|
| Declaration of performance (DOP) | Download |
AB7 STANDARD
| CODE | d
[mm]
|
L
[mm]
|
SW | pcs. |
|---|---|---|---|---|
| AB71075 | M10 | 75 | SW17 | 50 |
| AB712100 | M12 | 100 | SW19 | 25 |
| AB712120 | M12 | 120 | SW19 | 20 |
| AB716145 | M16 | 145 | SW24 | 15 |
| AB716220 | M16 | 220 | SW24 | 10 |
| AB720170 | M20 | 170 | SW30 | 5 |
AB7 EXTRALONG
| CODE | d
[mm]
|
L
[mm]
|
SW | pcs. |
|---|---|---|---|---|
| AB716300 | M16 | 300 | SW24 | 5 |
| AB716400 | M16 | 400 | SW24 | 5 |
