ABU

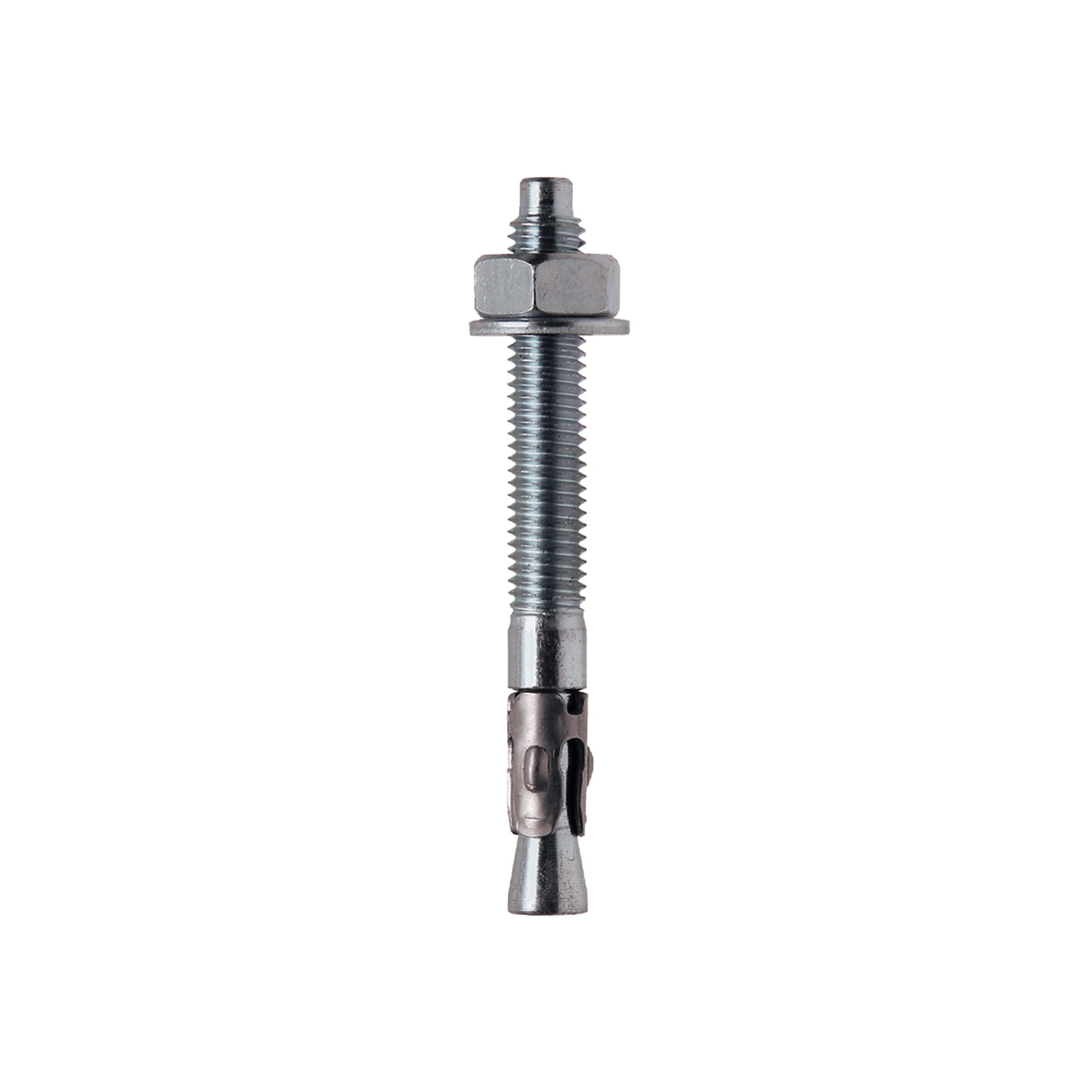

HEAVY DUTY EXPANSION ANCHOR
- Complete with nut and washer.
- Long thread. Made of electrogalvanized carbon steel.
- Through fastening.
- Torque-controlled expansion.
- Suitable for dense materials.
Documents
-
Technical data sheets
ABU
| CODE | d
[mm]
|
L
[mm]
|
SW | pcs. |
|---|---|---|---|---|
| ABU1080 | M10 | 80 | SW17 | 50 |
| ABU10100 | M10 | 100 | SW17 | 50 |
| ABU10120 | M10 | 120 | SW17 | 25 |
| ABU12100 | M12 | 100 | SW19 | 25 |
| ABU12160 | M12 | 160 | SW19 | 25 |
| ABU14130 | M14 | 130 | SW22 | 15 |
| ABU16125 | M16 | 125 | SW24 | 15 |
| ABU16145 | M16 | 145 | SW24 | 15 |
