THE THREADED ROD FOR CHEMICAL ANCHORS
INA

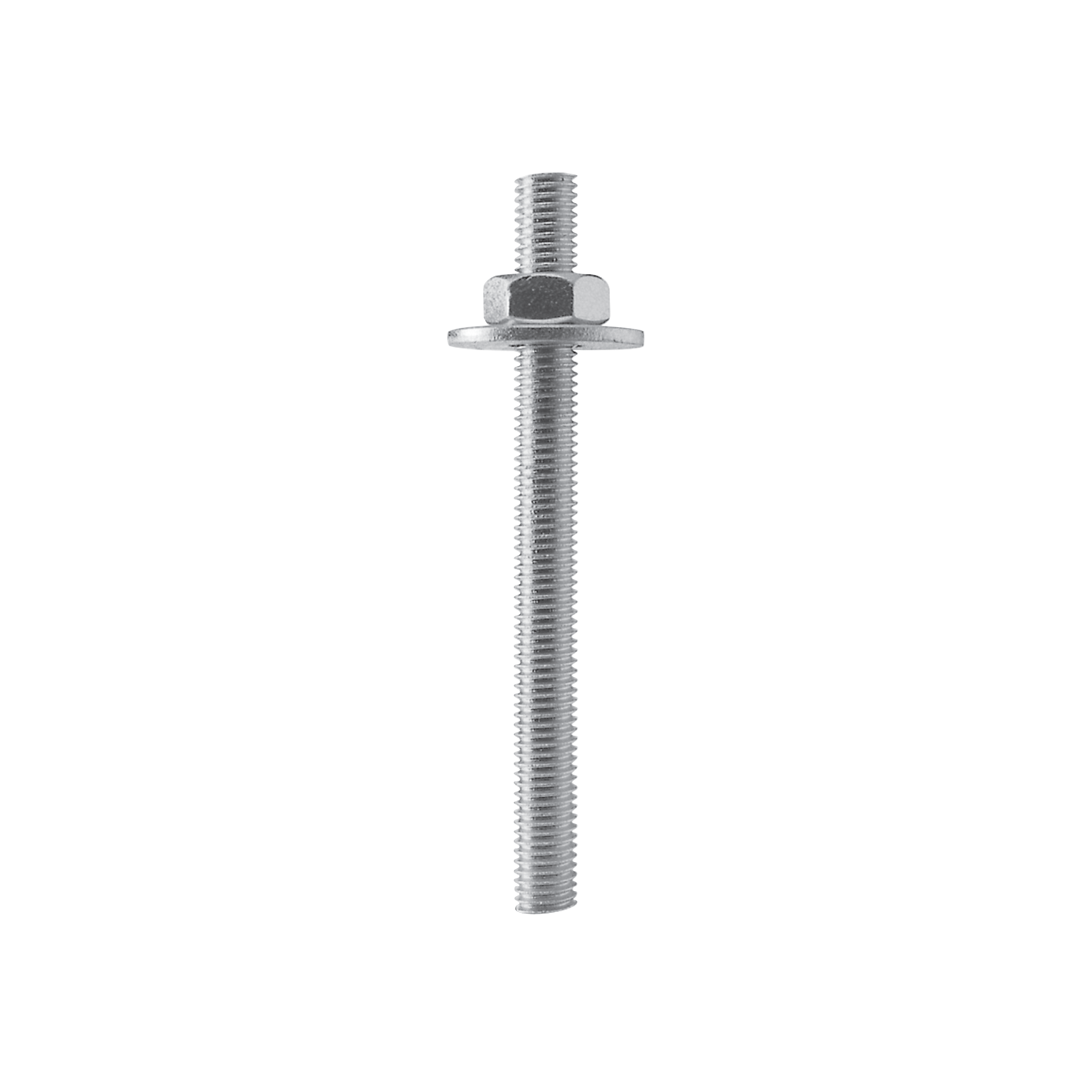

INA is the threaded rod for chemical anchors in zinc plated 5.8 and 8.8 steel. It is supplied complete with nut (ISO4032) and washer (ISO7089). INA, the threaded rod for chemical anchors, is produced in different sizes. The 5.8 steel version offers threaded rods with a diameter between 8 and 27 mm and a length between 11 and 33 cm.
The 8.8 steel version, on the other hand, has a diameter of between 12 and 27 mm and a length of between 14 and 49.5 cm.The dimensions of the rods have been carefully designed to meet the specific requirements and needs of the designers, taking into account the waste required for proper installation. All available sizes are shown in the tables below.
Remember that if the installation environments are very aggressive, you will need stainless steel threaded rods.
How to use
Threaded rods and chemical anchors are used in combination to provide a strong and secure connection between a load-bearing structure (e.g. a wall or pillar) and an element that is to be fixed to it. This combination is often used for fastenings in the construction industry, especially in situations where the holding force is critical.
It is important to note that the installation method may vary depending on the type of chemical anchor used, so it is essential to carefully follow the manufacturer's instructions and ensure that appropriate safety measures are taken during installation.
Documents
| Technical data sheets |
|---|
INA 5.8
| CODE | d
[mm]
|
L
[mm]
|
pcs. |
|---|---|---|---|
| INA588110 | 8 | 110 | 25 |
| INA5810105 | 10 | 105 | 25 |
| INA5810140 | 10 | 140 | 25 |
| INA5812140 | 12 | 140 | 25 |
| INA5812195 | 12 | 195 | 25 |
| INA5816160 | 16 | 160 | 15 |
| INA5816195 | 16 | 195 | 15 |
| INA5816245 | 16 | 245 | 15 |
| INA5820245 | 20 | 245 | 10 |
| INA5820330 | 20 | 330 | 10 |
| INA5824330 | 24 | 330 | 5 |
| INA5827330 | 27 | 330 | 5 |
INA 8.8
| CODE | d
[mm]
|
L
[mm]
|
pcs. |
|---|---|---|---|
| INA8812140 | 12 | 140 | 25 |
| INA8812195 | 12 | 195 | 25 |
| INA8812245 | 12 | 245 | 25 |
| INA8816160 | 16 | 160 | 15 |
| INA8816195 | 16 | 195 | 15 |
| INA8816245 | 16 | 245 | 15 |
| INA8816330 | 16 | 330 | 15 |
| INA8820245 | 20 | 245 | 10 |
| INA8820330 | 20 | 330 | 10 |
| INA8820495 | 20 | 495 | 10 |
| INA8824330 | 24 | 330 | 5 |
| INA8824495 | 24 | 495 | 5 |
| INA8827330 | 27 | 330 | 5 |
| INA8827495 | 27 | 495 | 5 |
