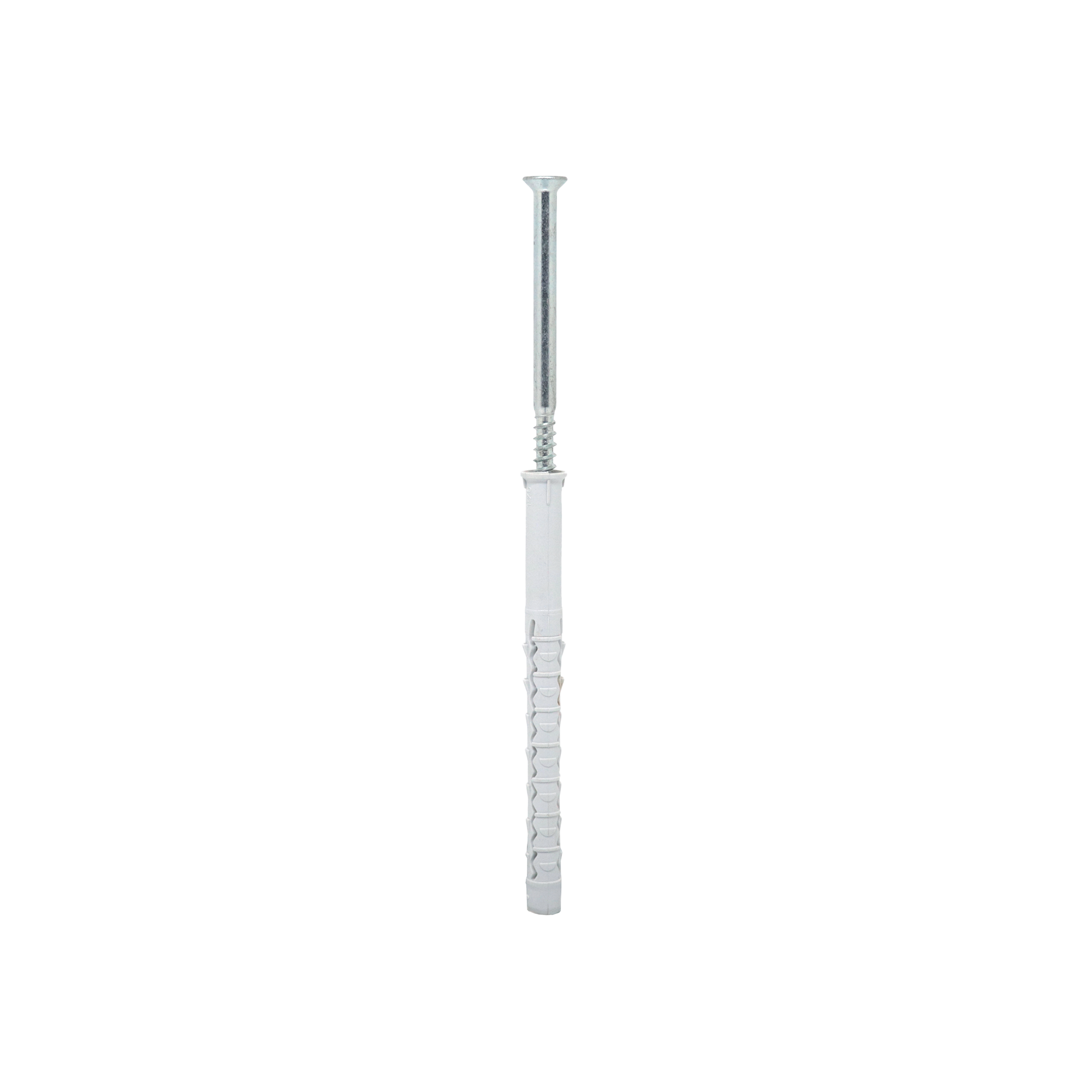

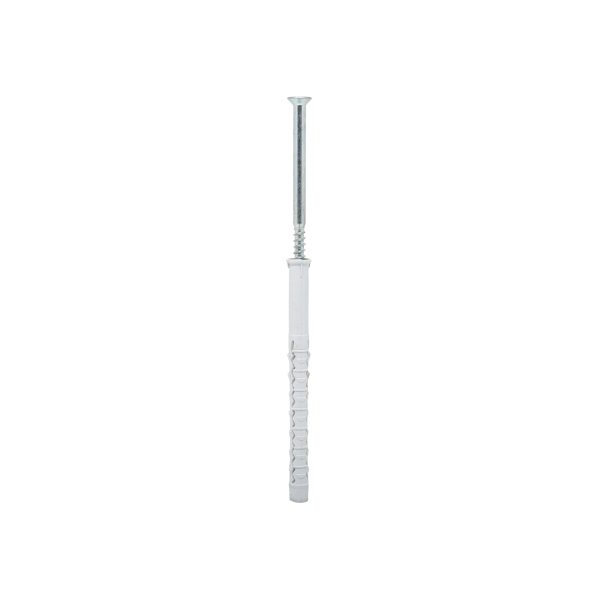

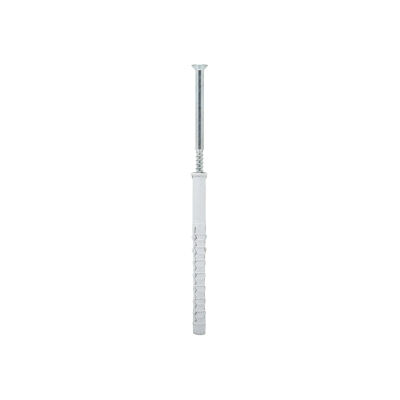

EXTRA-LONG NYLON ANCHOR WITH SCREW CE
NDC
NDC is the extended nylon anchor with integrated screw certified for use in cracked and uncracked concrete, solid and hollow brick masonry (category of use a, b, c).
It is a plastic anchor for use in concrete and masonry, in non-structural applications.
R90 fire resistance for Ø10 mm.
Complete with zinc plated steel screw with countersunk head. Through fastening.
NDC, extra-long nylon anchor CE with integrated screw
Documents
| Technical data sheets | |
|---|---|
| Declaration of performance (DOP) | Download |
NDC
| CODE | d
[mm]
|
L
[mm]
|
TX | pcs. |
|---|---|---|---|---|
| NDC880 | 8 | 80 | TX30 | 50 |
| NDC8100 | 8 | 100 | TX30 | 50 |
| NDC8120 | 8 | 120 | TX30 | 50 |
| NDC8140 | 8 | 140 | TX30 | 50 |
| NDC10100 | 10 | 100 | TX40 | 50 |
| NDC10120 | 10 | 120 | TX40 | 50 |
| NDC10140 | 10 | 140 | TX40 | 25 |
| NDC10160 | 10 | 160 | TX40 | 25 |
| NDC10200 | 10 | 200 | TX40 | 25 |
| NDC10240 | 10 | 240 | TX40 | 20 |
