ANGLE BRACKET FOR SHEAR LOADS

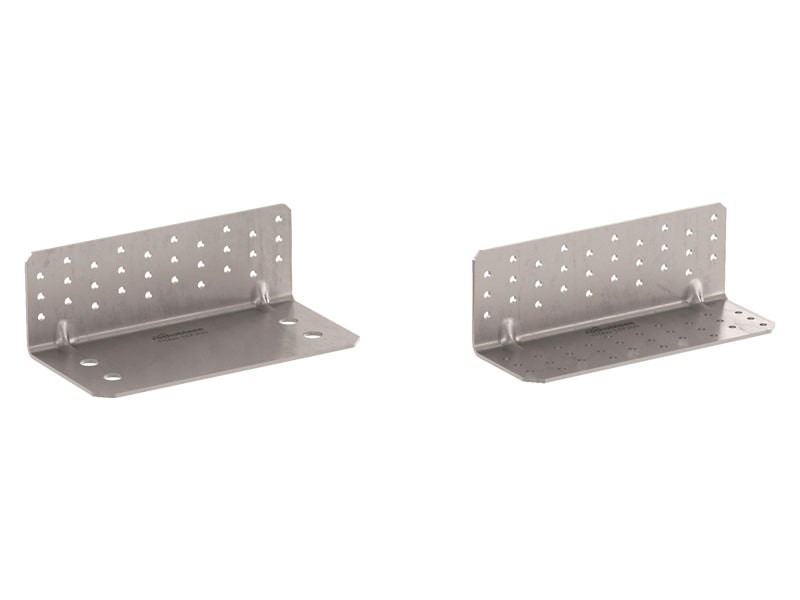

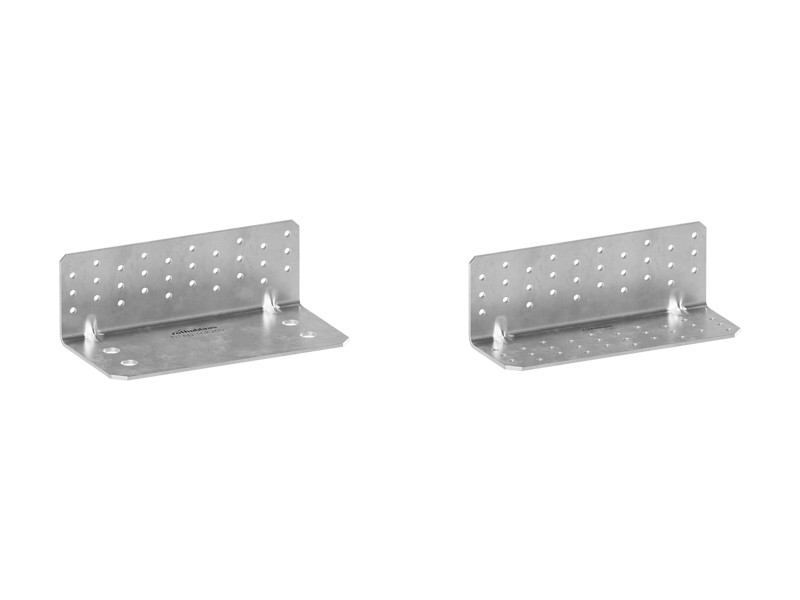

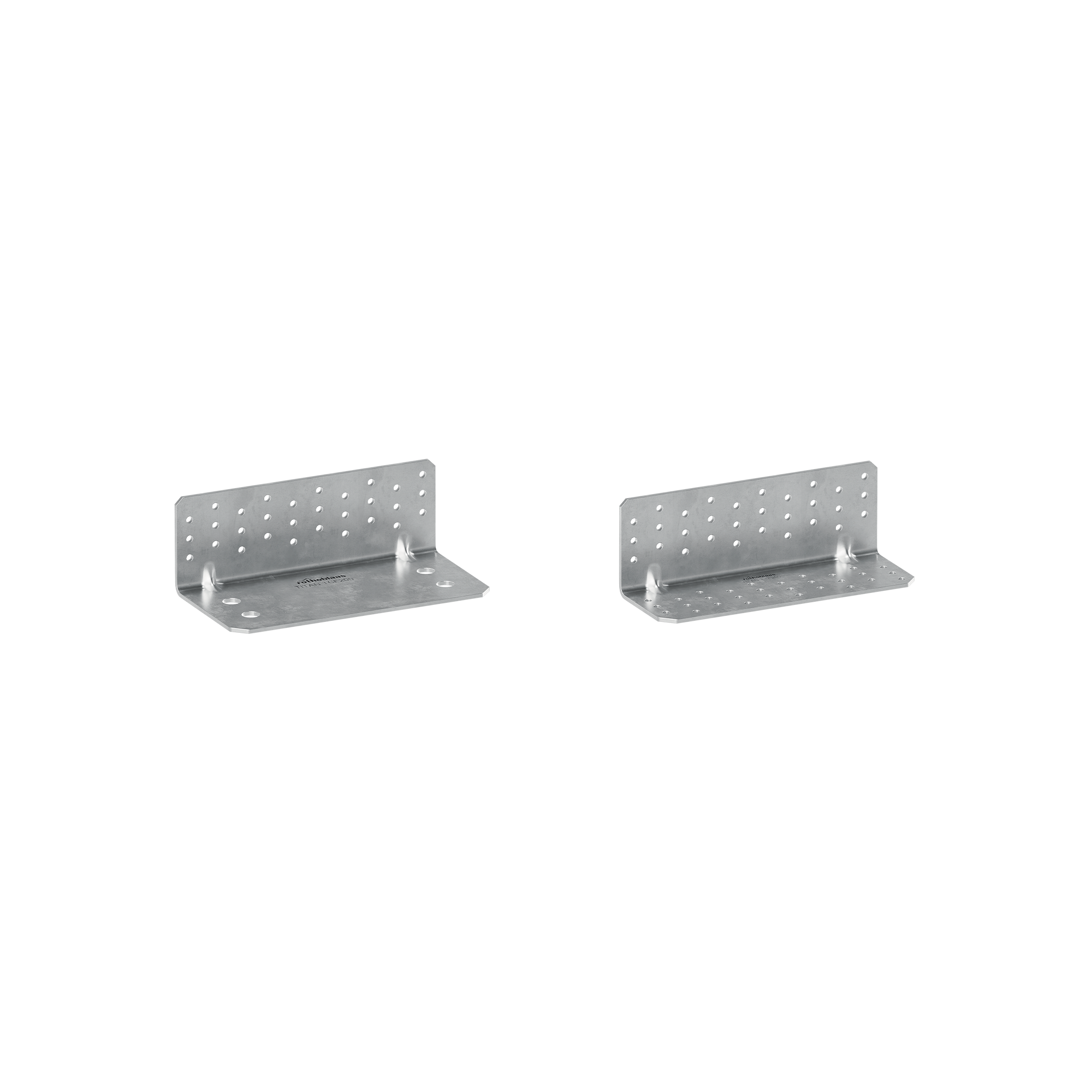

TITAN F

TITAN F is the angle plate for shear loads in Timber frame constructions.

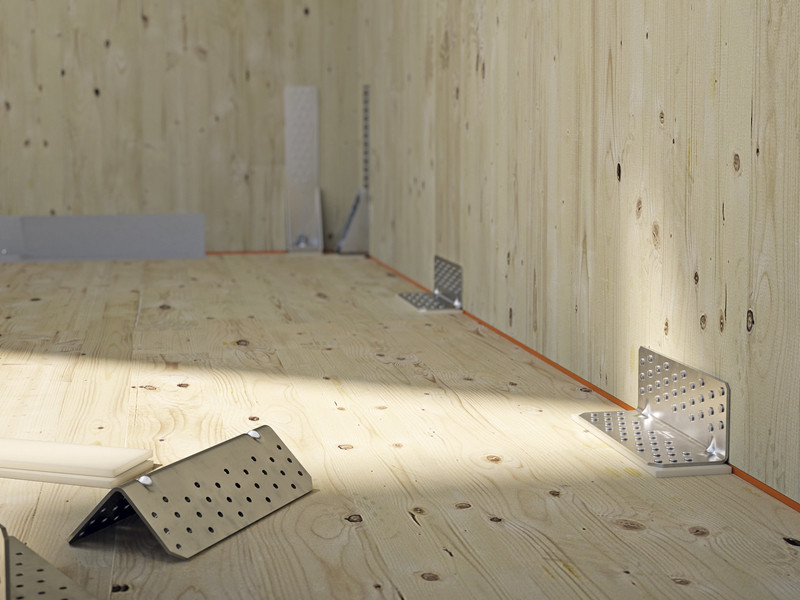

Made of bright zinc plated carbon steel, it is ideal for shear joints between floor and wall and between wall and wall.

TITAN F PLATE FOR TIMBER, HIGH SHEAR STRENGTH IN ALL SITUATIONS

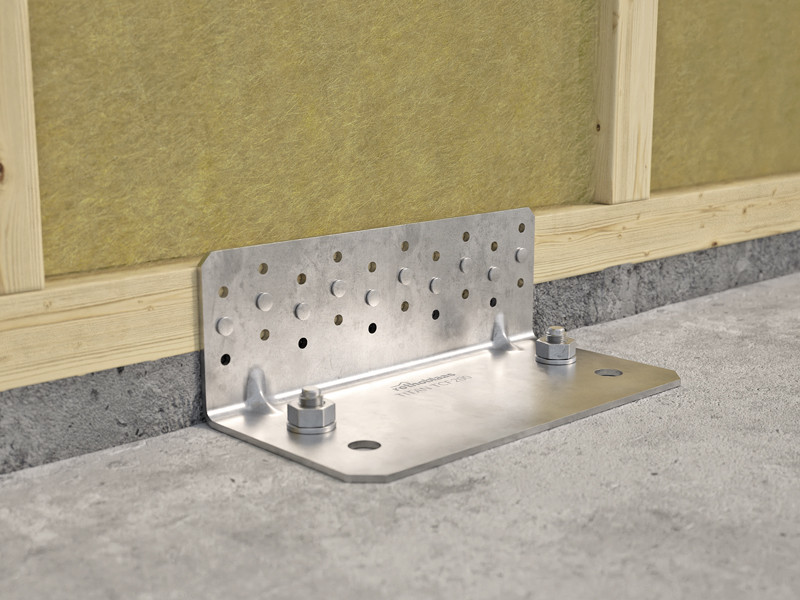

The TITAN F angle bracket for timber is designed for fastening on platform beams or on the stringers of the frame structures. It is designed to offer two fixing possibilities, in order to avoid interference with the rebars in the concrete support.

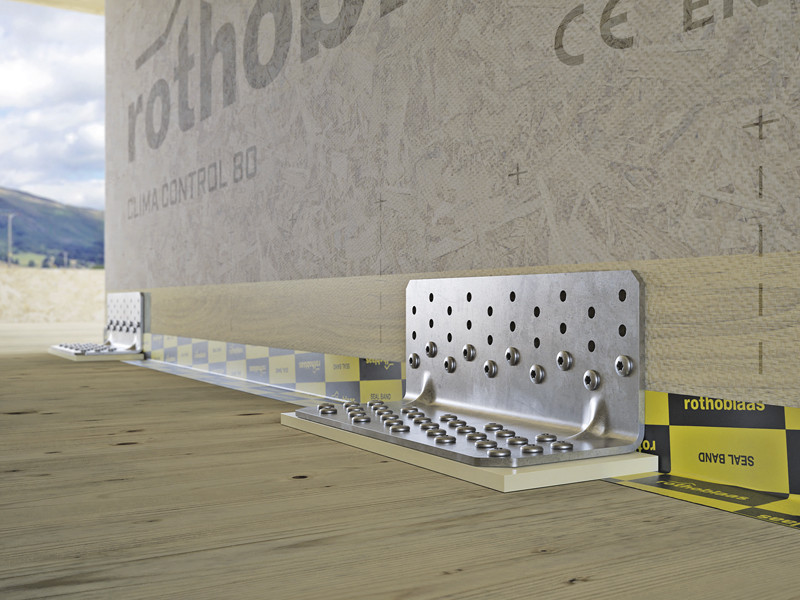

Thanks to the lowered position of the holes on the vertical flange, it offers excellent shear strength values even on low height platform beams. R2,k up to 42,5 kN on both timber and concrete. In combination with XYLOFON PLATE it effectively limits acoustic bridges and reduces walking vibrations of timber floors, ensuring an excellent cost-performance ratio.

Thanks to the high shear strength it is possible to optimize the number of fastenings. TITAN F angle brackets for timber are designed for timber-to-concrete and timber-to-timber shear joints for timber panels and beams on CLT, LVL, solid timber, glulam, framed structures and timber-based panels.

Documents

Technical data sheets
ETA Certificate
Declaration of performance (DOP) Download
Item specification
File CAD
File BIM.ifc
File BIM.rfa

TITAN F - TCF

CODE B
[mm]
P
[mm]
H
[mm]
s
[mm]
pcs.
TCF200 200 103 71 3 10

TITAN F - TTF

CODE B
[mm]
P
[mm]
H
[mm]
s
[mm]
pcs.
TTF200 200 71 71 3 10
