ANGLE BRACKET FOR TIMBER, FOR SHEAR AND TENSILE FORCES
TITAN N
The TITAN N angle bracket for timber guarantees superior shear and tensile strength.

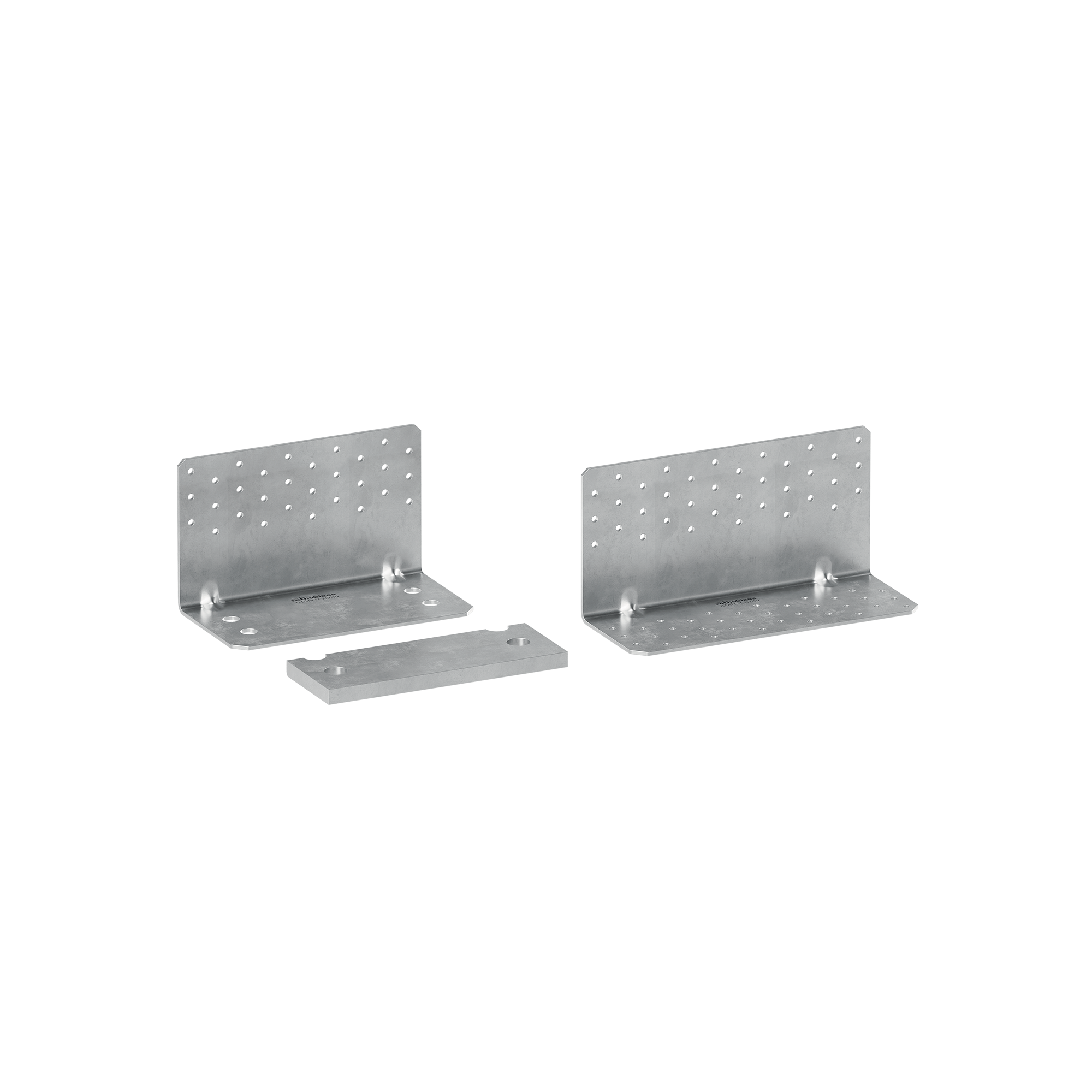

As an angle plate for timber, TITAN N is suitable for use on CLT and can be conveniently installed thanks to the raised holes. Like other angle plates for timber, it is available in a double version for both timber-to-timber and timber-to-concrete joints.
The angle bracket for timber with superior strength in all directions
The TITAN N plate for timber provides outstanding R2/3,k shear strengths: more than 80 kN on concrete with TCW washer and more than 45 kN on timber.

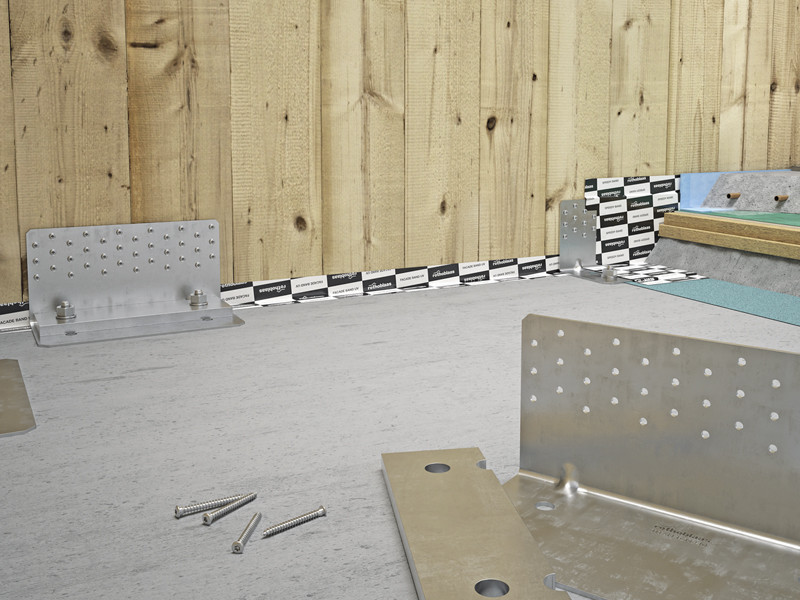

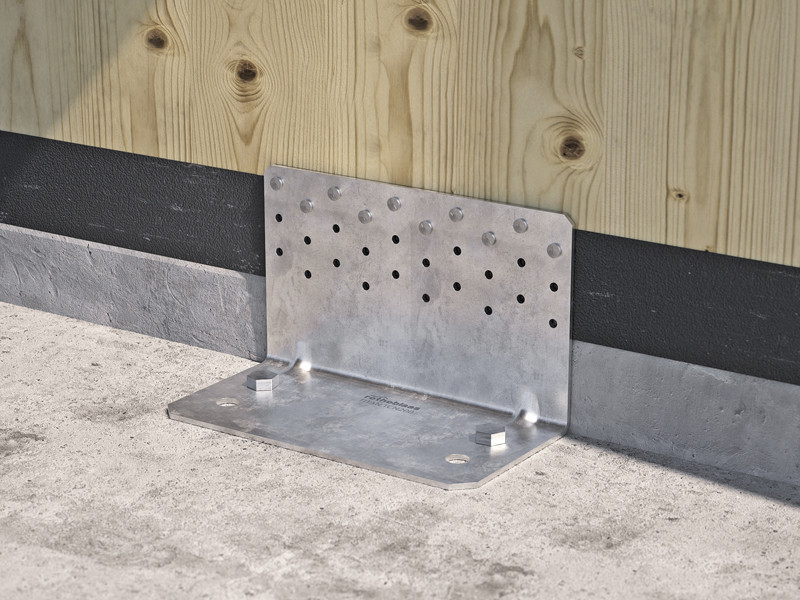

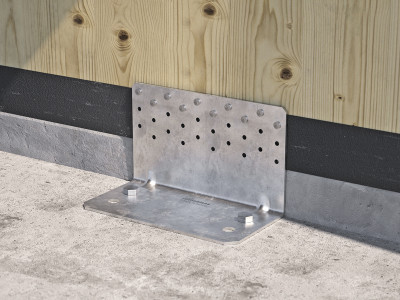

On concrete, the TCN angle brackets for timber (TITAN N for concrete) with TCW washers (TITAN Washer) provide excellent tensile strengths. R1,k 70 kN. The values are calculated, tested and certified also in conjunction with XYLOFON and ALADIN acoustic profile and with partial fastening for the presence of bedding mortar or root beam. In combination with TITAN Washer, it is ideal both as a hold down at the ends of the walls and as a shear solution along the walls.

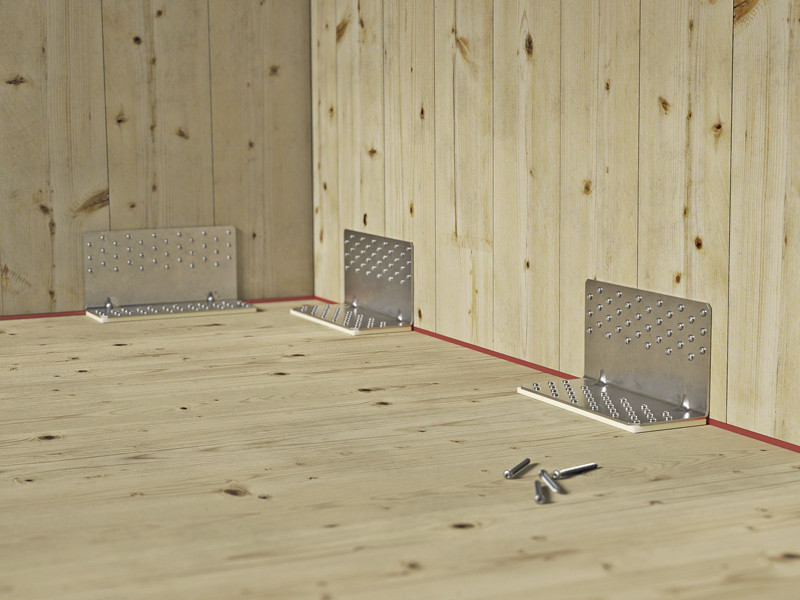

TITAN N can be integrated into the floor panels for a concealed effect in the case of aesthetic requirements with visible panels. The three-dimensional perforated plate made of bright zinc plated carbon steel is ideal for shear and tensile joints for timber-to-concrete and timber-to-timber applications on CLT, LVL, solid timber, glulam and timber-based panels.
Documents
| Technical data sheets | |
|---|---|
| ETA Certificate | |
| Declaration of performance (DOP) | Download |
| Item specification | |
| File CAD | |
| File BIM.ifc | |
| File BIM.rfa |
TITAN N - TCN
| CODE | B
[mm]
|
P
[mm]
|
H
[mm]
|
s
[mm]
|
pcs. |
|---|---|---|---|---|---|
| TCN200 | 200 | 103 | 120 | 3 | 10 |
| TCN240 | 240 | 123 | 120 | 3 | 10 |
TITAN WASHER - TCW
| CODE | B
[mm]
|
P
[mm]
|
s
[mm]
|
pcs. |
|---|---|---|---|---|
| TCW200 | 190 | 72 | 12 | 1 |
| TCW240 | 230 | 73 | 12 | 1 |
TITAN N - TTN
| CODE | B
[mm]
|
P
[mm]
|
H
[mm]
|
s
[mm]
|
pcs. |
|---|---|---|---|---|---|
| TTN240 | 240 | 93 | 120 | 3 | 10 |

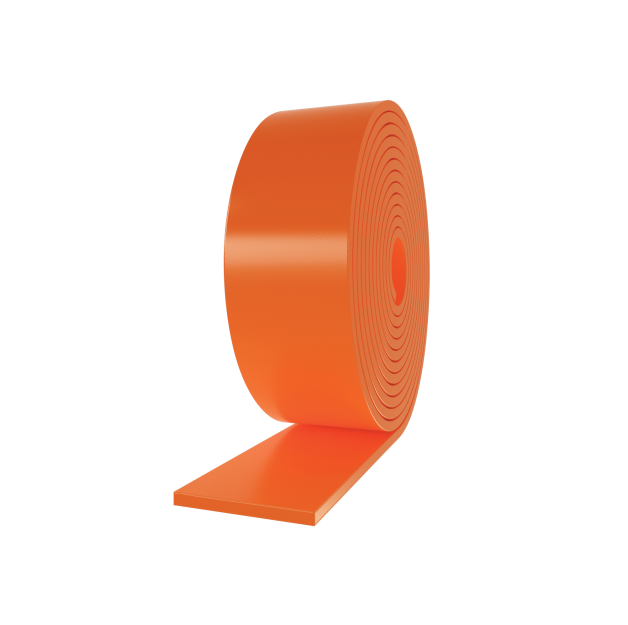

XYLOFON PLATE - TITAN N
| CODE | B
[mm]
|
P
[mm]
|
s
[mm]
|
pcs. | |
|---|---|---|---|---|---|
| XYL3590240 | New | 240 | 90 | 6 | 10 |
Specifications
Supply and installation of angle bracket for shear forces for timber structures, Type TITAN N.
CE marking in accordance with ETA 11/0496
Field of use:
- Joints for timber-to-timber, timber-to-concrete and timber-to-steel
Material:
- Z275 Bright zinc plated carbon steel, three dimensional perforated plate
Geometry:
- B (mm) = :
- P (mm) = :
- H (mm) = :
- Thickness s (mm) = :
Indications for installation and mechanical performance as reported in the product data sheets and provided by the technical drawings of the project.
