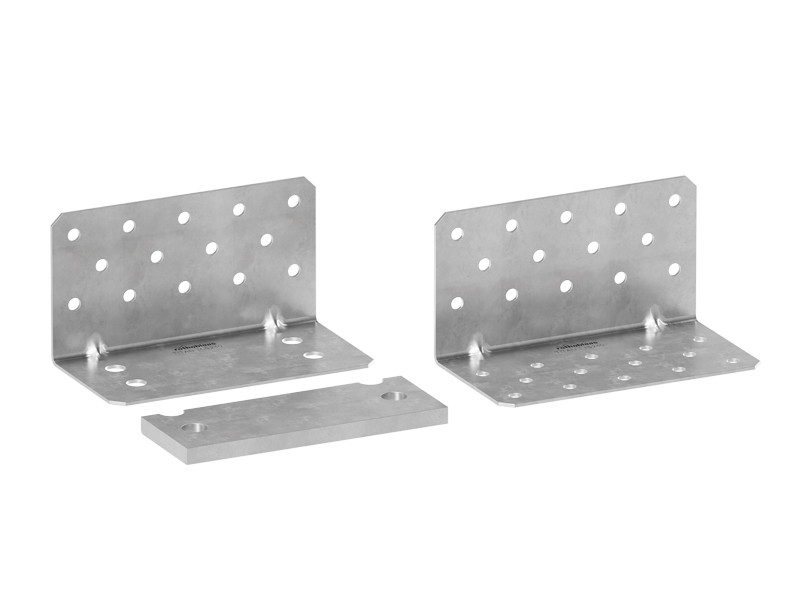

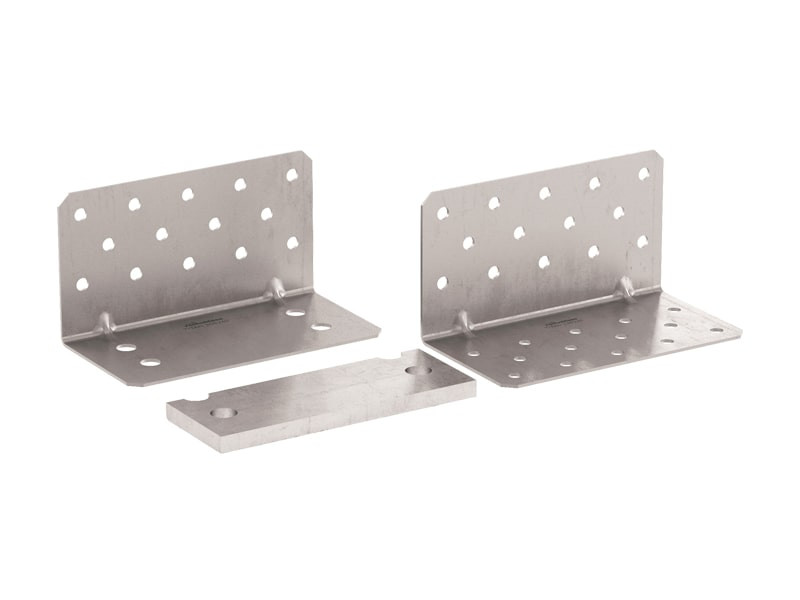

ANGLE BRACKET FOR SHEAR AND TENSILE LOADS
TITAN S
TITAN S is the angle bracket for timber that guarantees exceptional shear and tensile strength values.

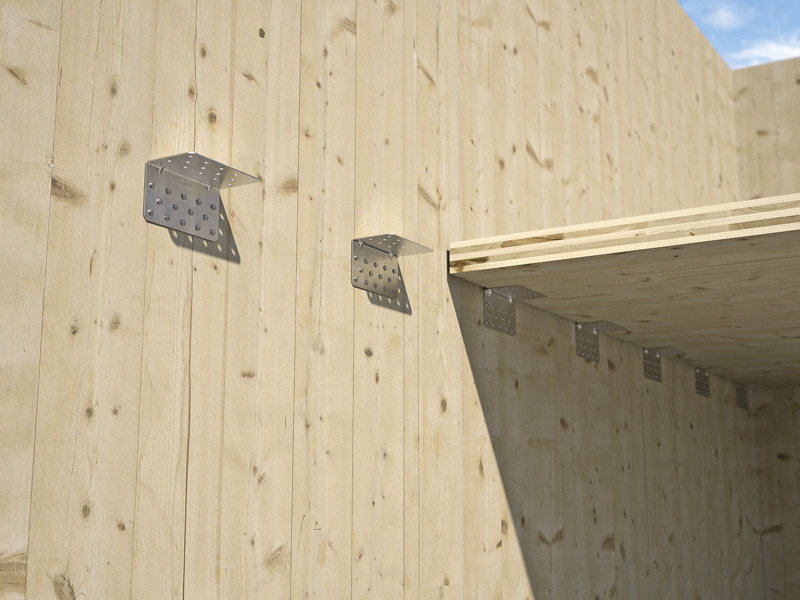

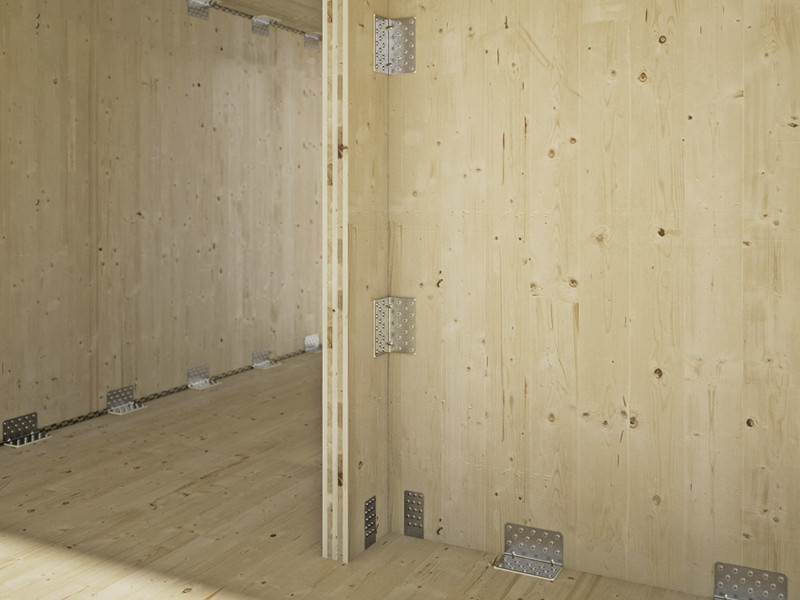

It is ideal for making timber-to-timber and timber-to-concrete joints for timber panels.
TITAN S IS THE ANGLE BRACKET FOR TIMBER AND CONCRETE THAT GUARANTEES EXCEPTIONAL SHEAR AND TENSILE STRENGTH

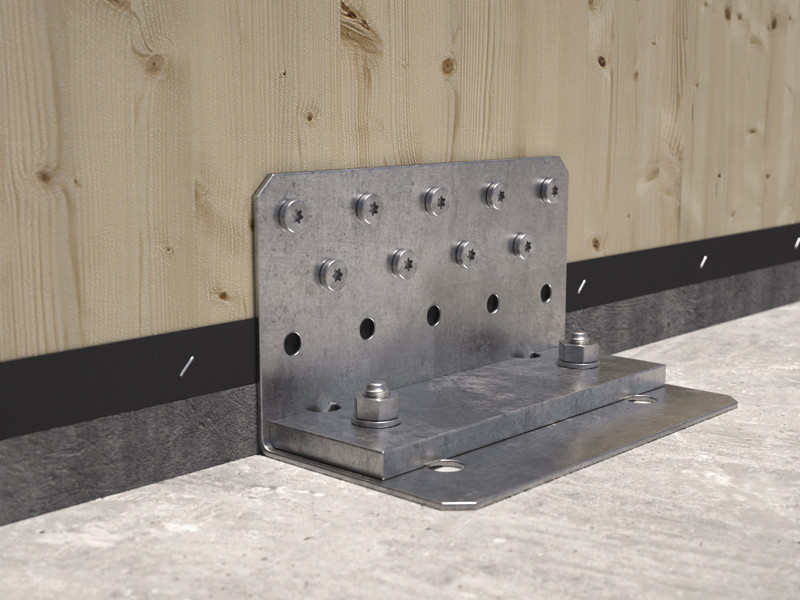

The TITAN S angle bracket for timber for shear and tensile loads has exceptional R2/3.k shear strengths: up to 85.9 kN on concrete (with TCW washer) and up to 60.0 kN on timber. On concrete, the TCS angle bracket with TCW washer provides equally excellent tensile strength: R1,k up to 75,9 kN.
These extraordinary values make it possible to optimize the number of angle brackets required, with consequent reduction of assembly time. The shear (F2,3), tensile (F1) and tilting (F4,5) strengths are certified.

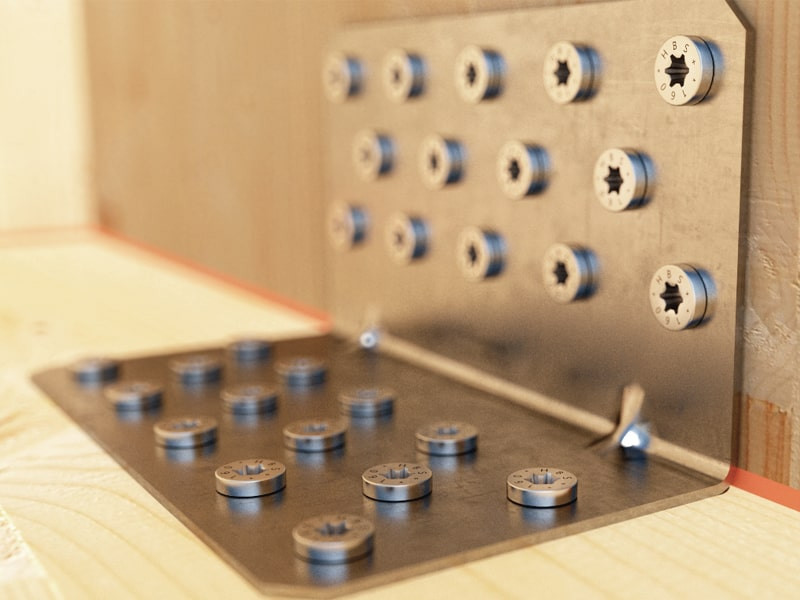

The values are certified also with interposed acoustic profiles. Fastening with HBS PLATE Ø8 screws using a screwdriver makes installation easy and fast and allows you to work safely and comfortably. Made of bright zinc plated carbon steel, the TITAN S plate for timber is ideal for application on CLT, LVL, solid timber, glulam, framed structures (Platform frame) and timber-based panels.
Documents
| Technical data sheets | |
|---|---|
| ETA Certificate | |
| Declaration of performance (DOP) | Download |
| File CAD | |
| File BIM.ifc | |
| File BIM.rfa |

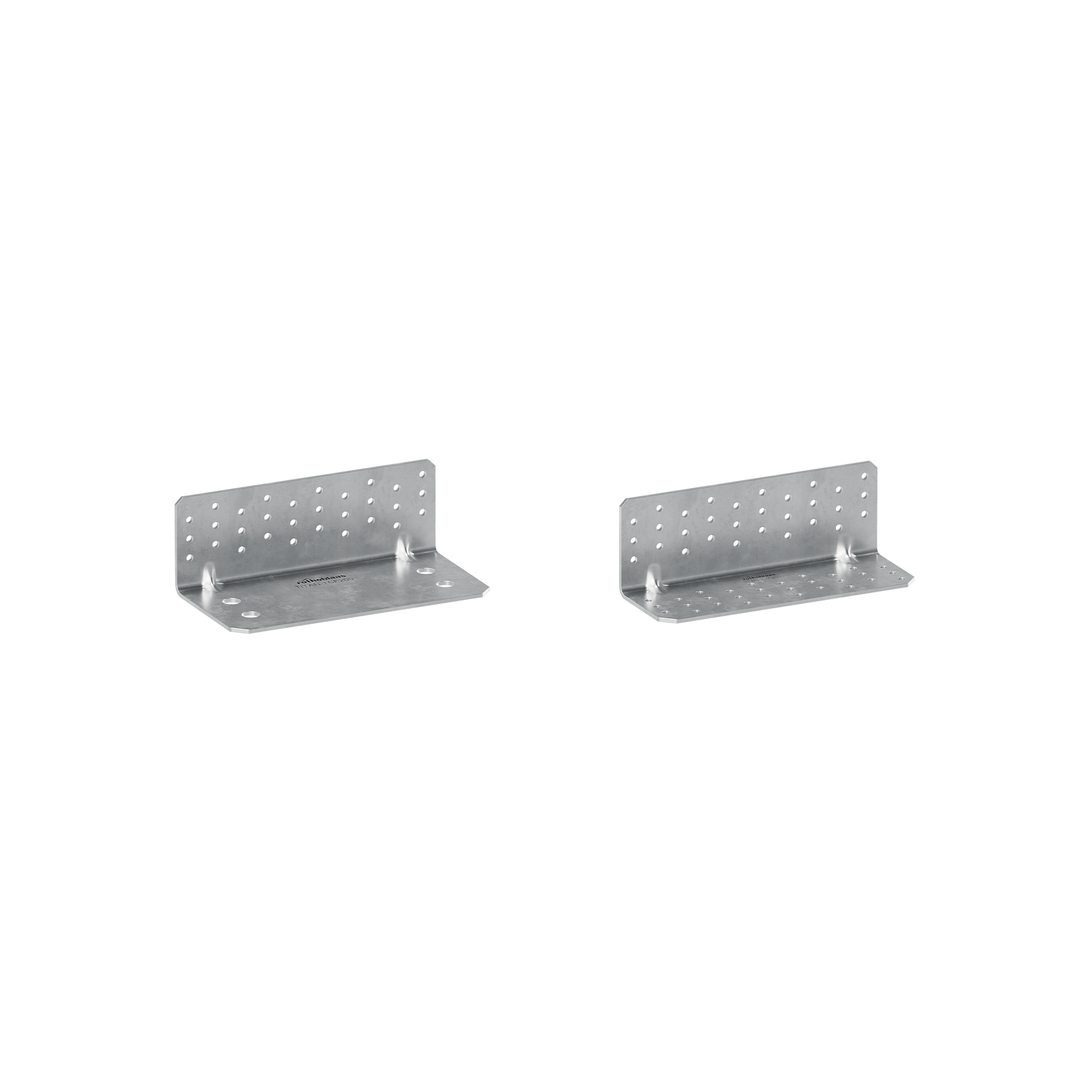

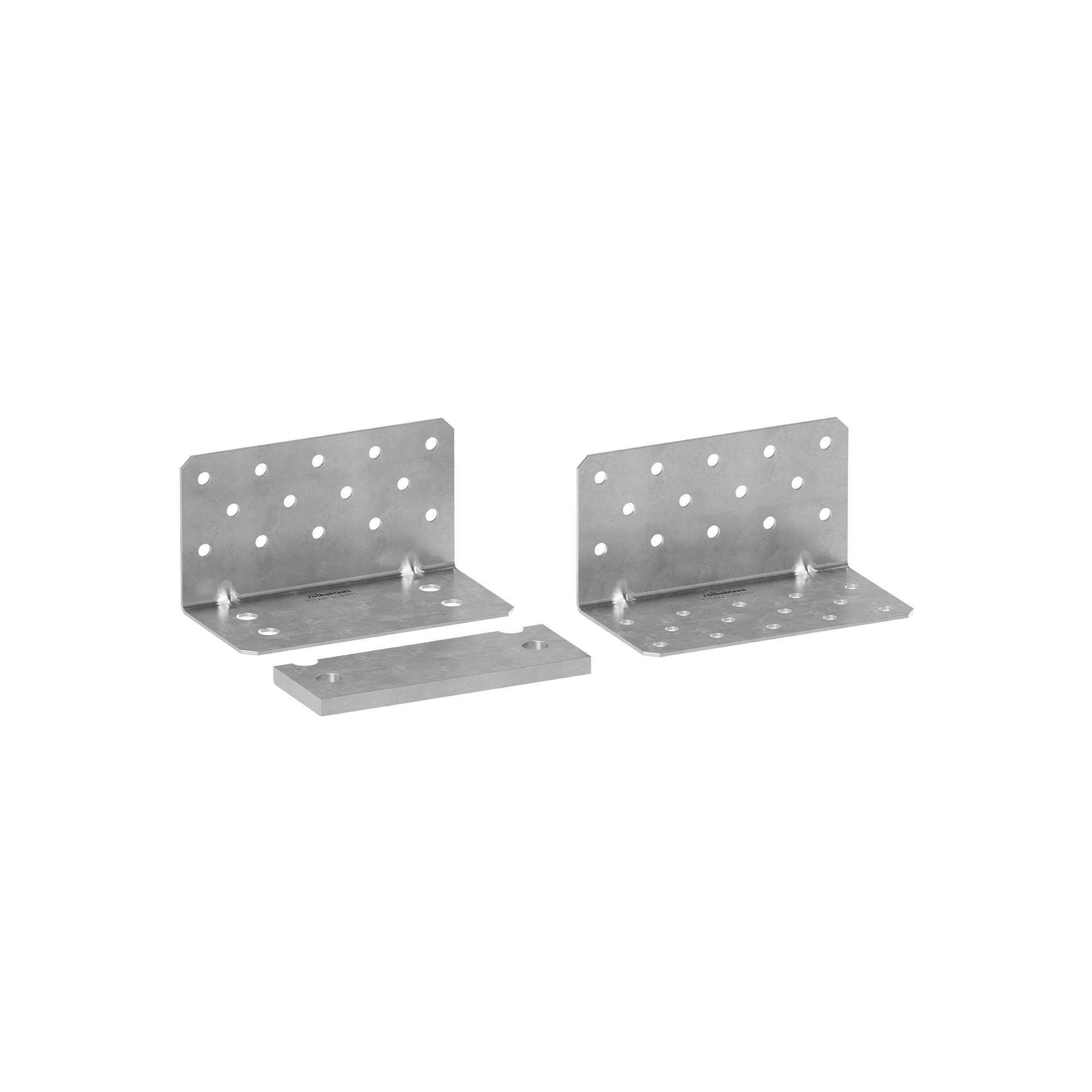

TITAN S - TCS
| CODE | B
[mm]
|
P
[mm]
|
H
[mm]
|
s
[mm]
|
pcs. |
|---|---|---|---|---|---|
| TCS240 | 240 | 123 | 130 | 3 | 10 |
TITAN WASHER - TCW240
| CODE | B
[mm]
|
P
[mm]
|
s
[mm]
|
pcs. |
|---|---|---|---|---|
| TCW240 | 230 | 73 | 12 | 1 |
TITAN S - TTS
| CODE | B
[mm]
|
P
[mm]
|
H
[mm]
|
s
[mm]
|
pcs. |
|---|---|---|---|---|---|
| TTS240 | 240 | 130 | 130 | 3 | 10 |
