ANGLE BRACKET FOR SHEAR AND TENSILE LOADS

TITAN V

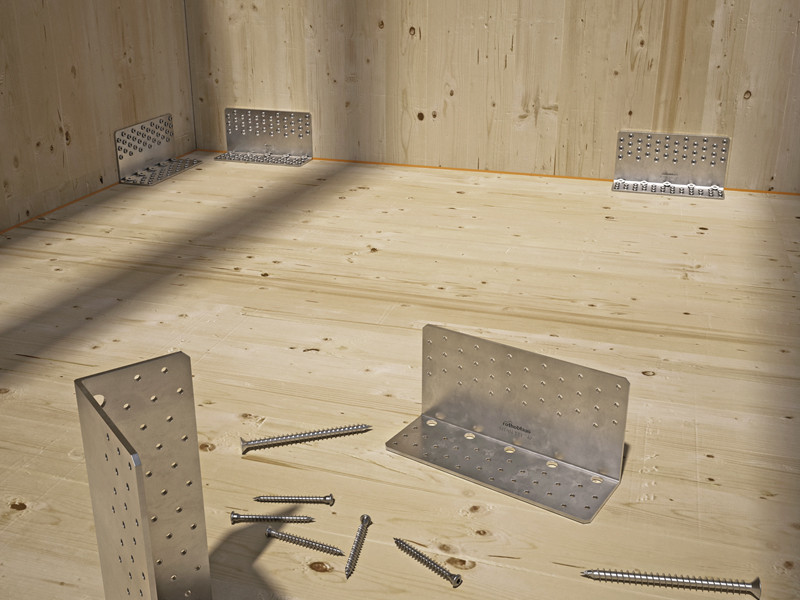

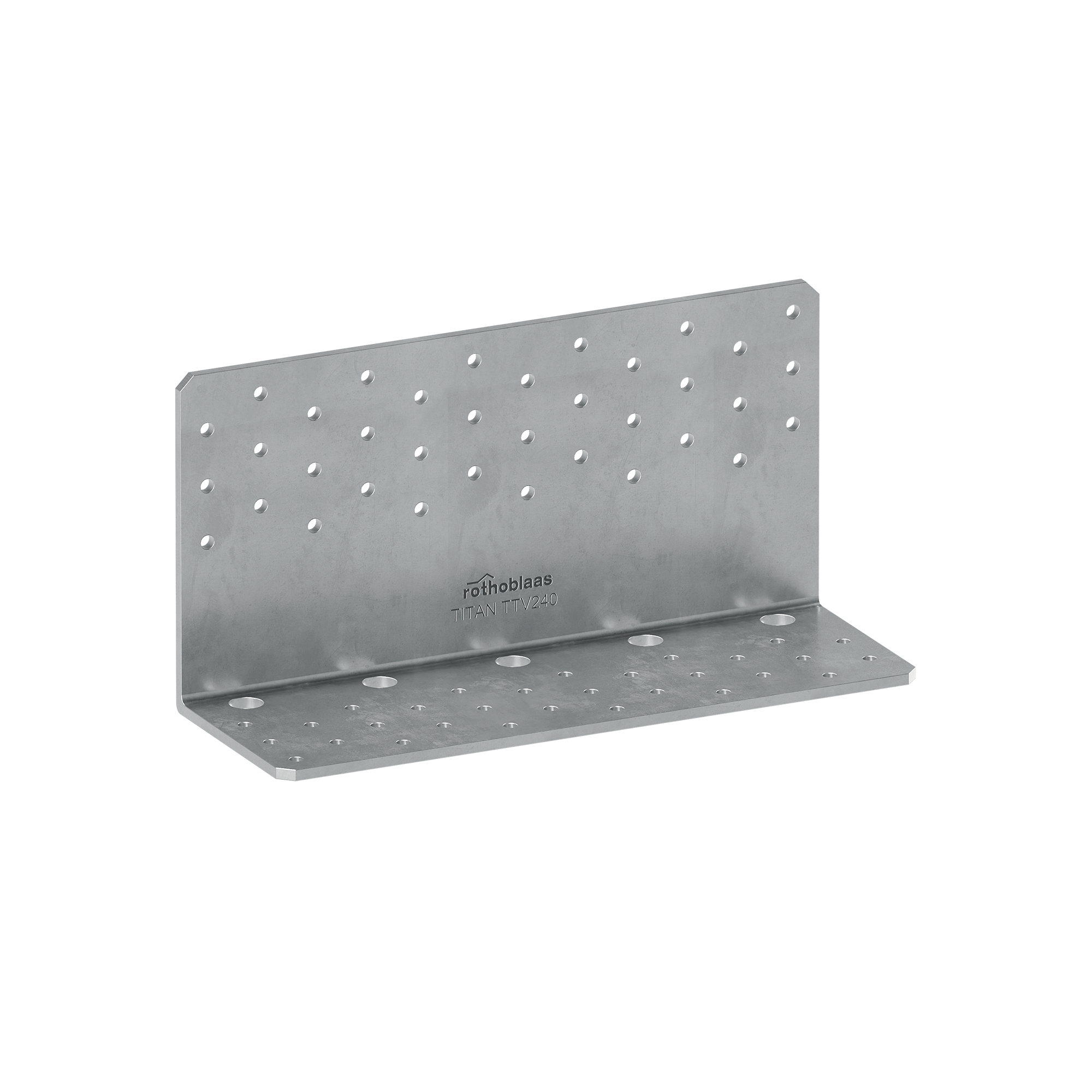

TITAN V is the angle bracket for timber ideal for timber-to-timber connections on CLT.

The full thread VGS Ø11 inclined screws offer exceptional strength and allow to fasten inter-storey walls even of different thickness.

Videos

TITAN V ANGLE BRACKET FOR TIMBER, EXTRAORDINARY SHEAR AND TENSILE STRENGTH IN ONE SOLUTION

The TITAN V angle plate is the perfect answer to the need for high shear and tensile strength in one solution. Ideal on timber-to-timber connections both as a hold down at the ends of the walls and as shear angle bracket along the walls.

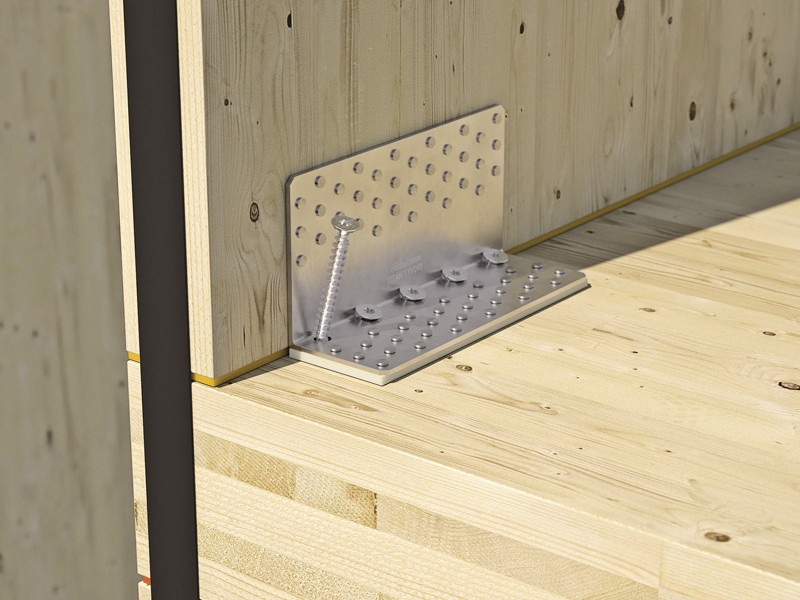

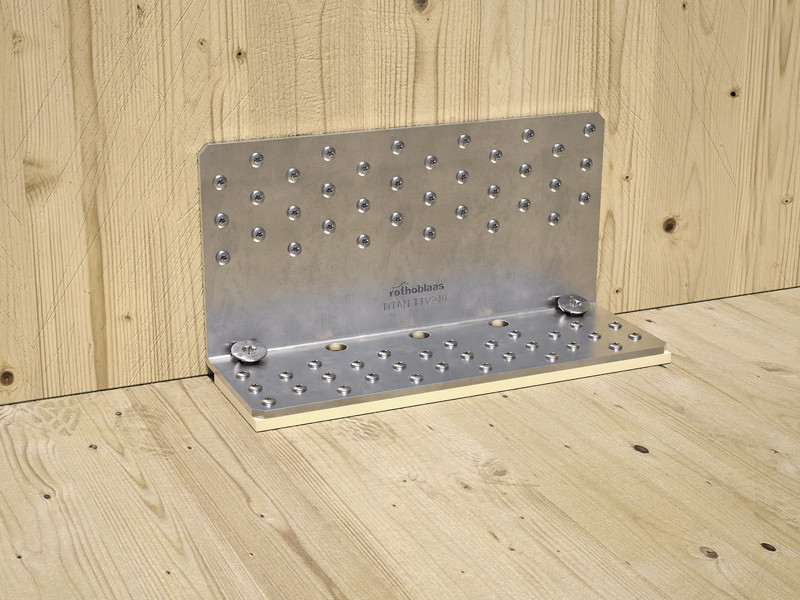

The reduced height of the vertical flange allows hidden installation of the bracket within the floor panels, for a concealed effect in the case of aesthetic requirements with visible panels. On timber, the TTV angle bracket guarantees exceptional tensile strength (R1,k up to 101,0 kN) and shear strength (R2,k up to 59,7 kN).

The values are calculated, tested and certified even with partial fastening and with interposed acoustic profiles. Made of bright zinc plated carbon steel, it is excellent for creating shear or tensile timber-to-timber joints on CLT, LVL, solid timber and glulam.

Documents

Technical data sheets
ETA Certificate
Declaration of performance (DOP) Download
File CAD
File BIM.ifc
File BIM.rfa

TITAN V - TTV

CODE B
[mm]
P
[mm]
H
[mm]
s
[mm]
pcs.
TTV240 240 83 120 4 10
