ANGLE BRACKET FOR TENSILE LOADS

WHT

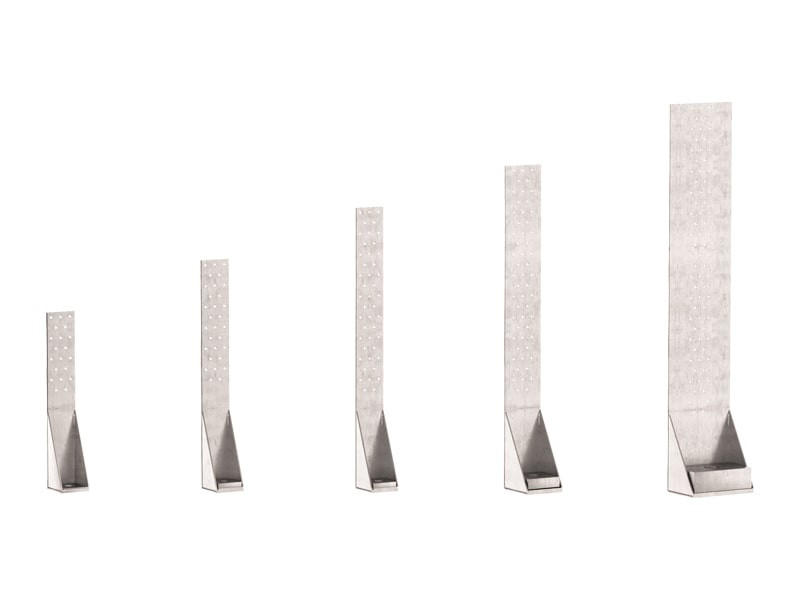

WHT is the angle bracket for timber made in 5 sizes which, in combination with the 5 washers available, determines 10 possible configurations to meet any static performance requirement.

WHT ANGLE PLATES FOR TIMBER, A HOLD DOWN FOR EVERY STATIC PERFORMANCE REQUIREMENT

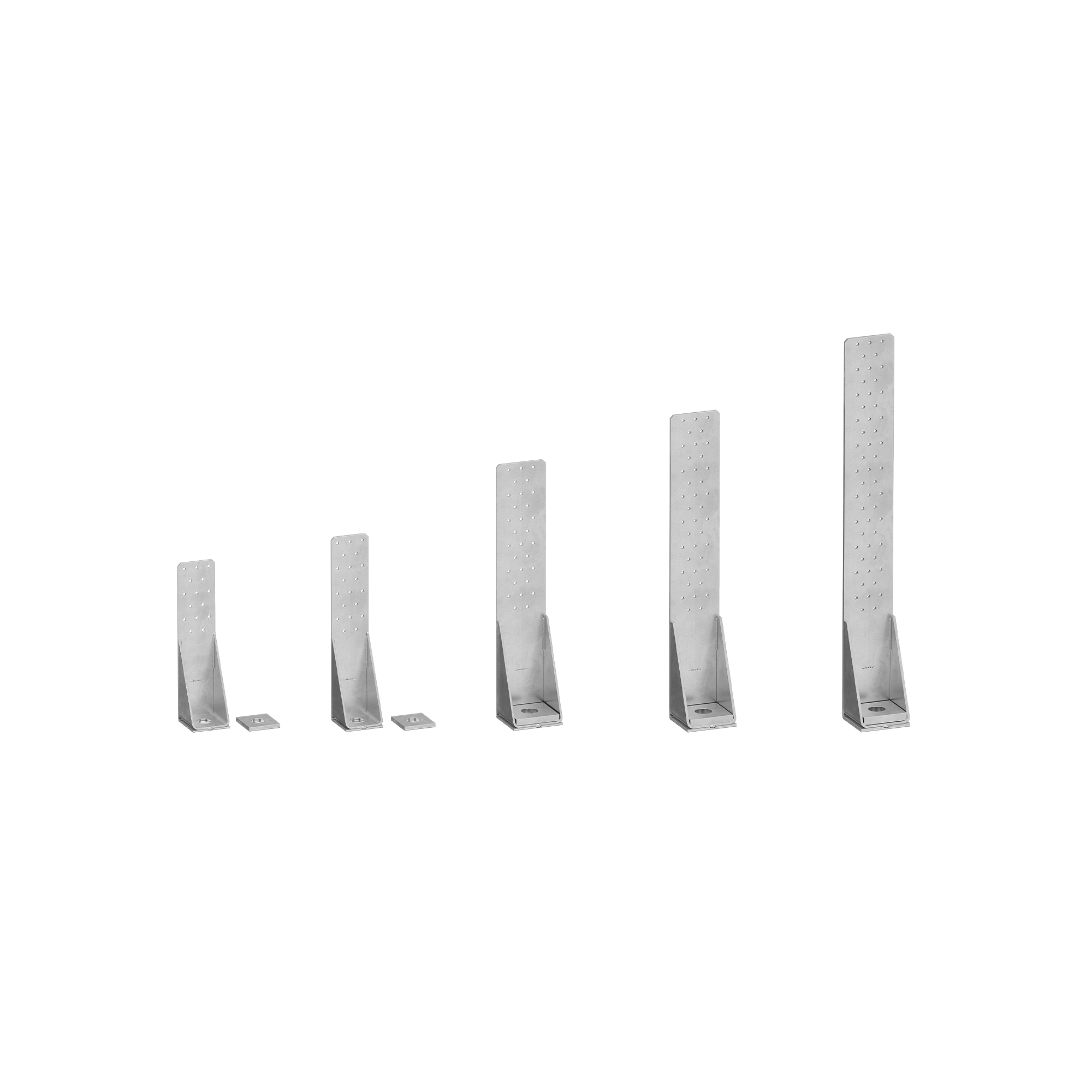

The 5 angle plate versions can be combined with one or more washers to allow designers and carpenters to find the suitable application, on both solid timber (CLT - Cross Laminated Timber) and framed (Platform frame) panels.

S355 steel, lateral reinforcing flanges and the larger diameter hole ensure high strength values also in case of partial nailing. The quality of the WHT plates is proven by multiple testing on the product and the related fasteners (nails, screws, threaded rods and chemical anchor).

Within the Seismic-rev research project framework, the joint and the related fastening elements were tested under static and cyclic loading, providing stiffness parameters (Kser) and ductility classes.

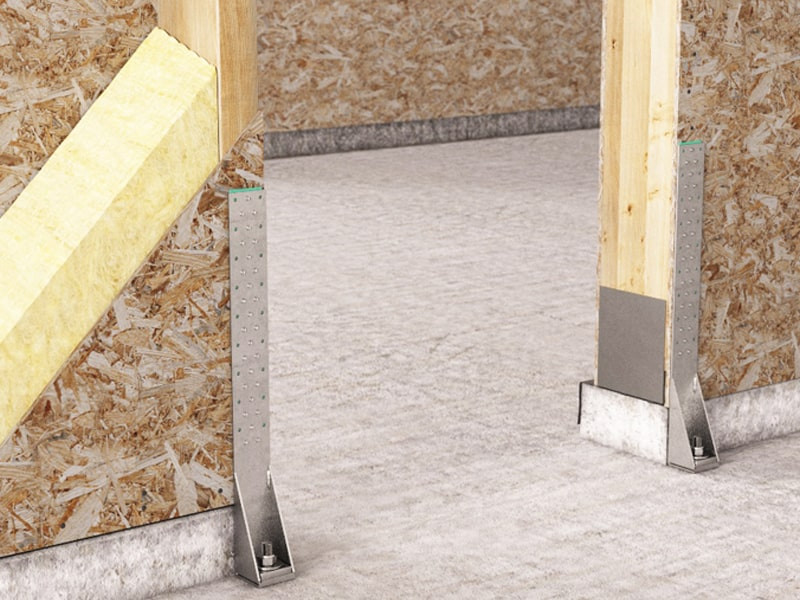

The WHT angle bracket is ideal for the construction of timber-to-concrete and timber-to-timber tensile joints for CLT panels and beams, framed structure, timber-based panels, LVL, solid timber and glulam.

Documents

Technical data sheets
Declaration of performance (DOP) Download
ETA Certificate
Item specification
File Cad
Technical data sheets USA
File Bim .IFC
File Bim .RFA

WHT ANGLE BRACKET

CODE B
[mm]
P
[mm]
H
[mm]
pcs.
WHT340 60 63 340 10
WHT440 60 63 440 10
WHT540 60 63 540 10
WHT620 80 83 620 10
WHT740 140 83 740 1

WHTW WASHER

CODE d₁
[mm]
B
[mm]
P
[mm]
s
[mm]
pcs.
WHTW50 18 50 56 10 1
WHTW50L 22 50 56 10 1
WHTW70 22 70 77 20 10
WHTW70L 26 70 77 20 1
WHTW130 29 130 77 40 1
