PLATES FOR TIMBER-TO-CONCRETE TENSILE LOADS

WHT PLATE C

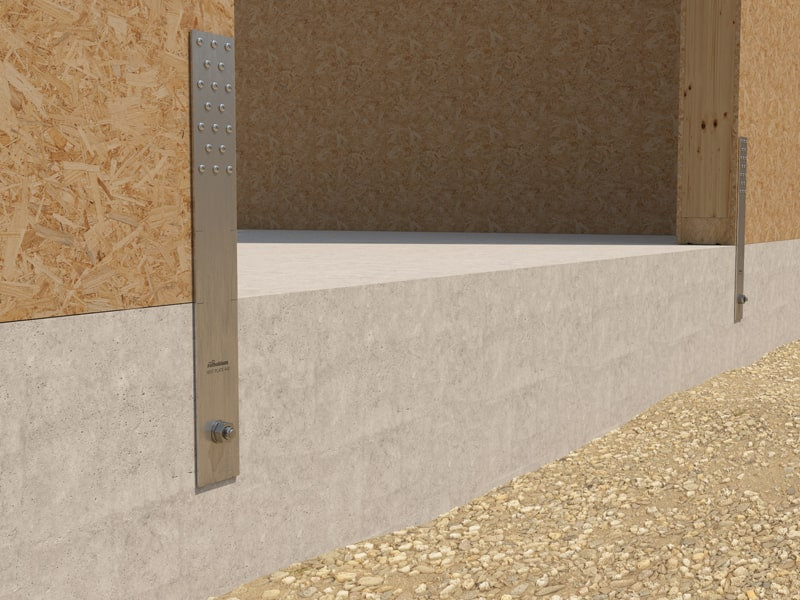

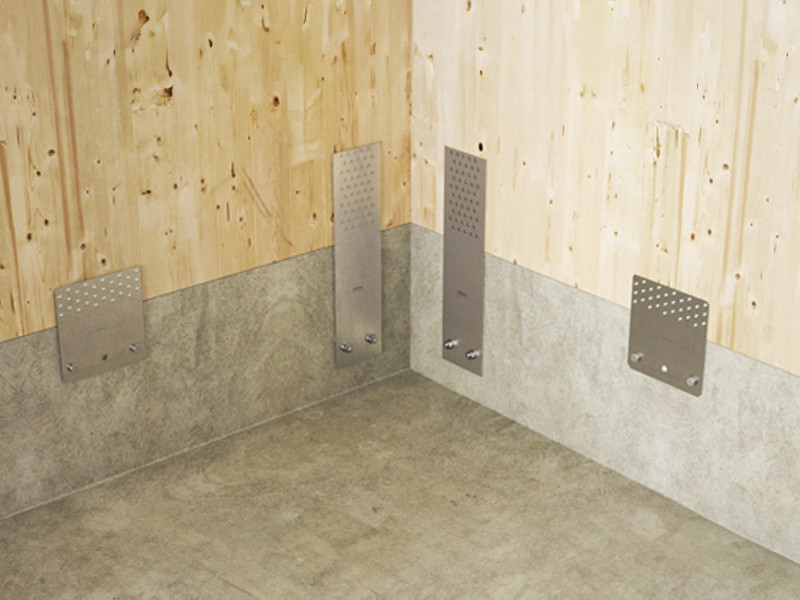

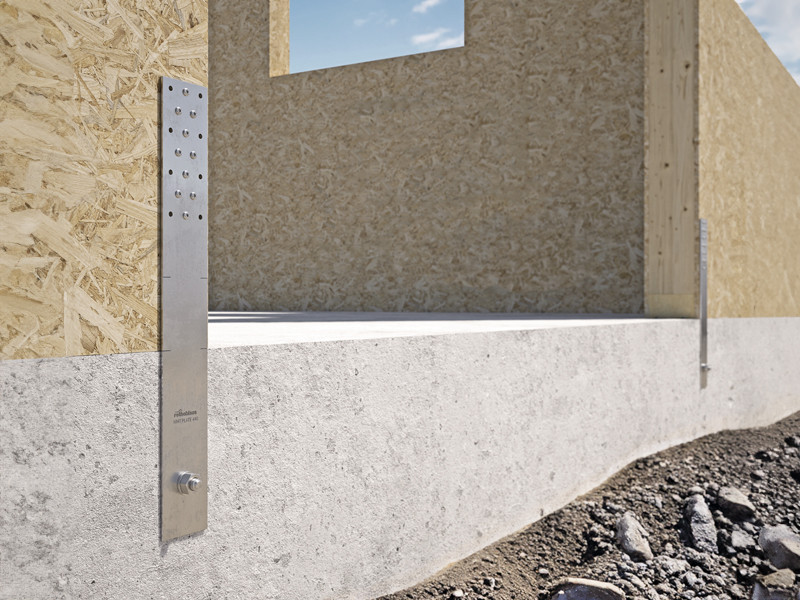

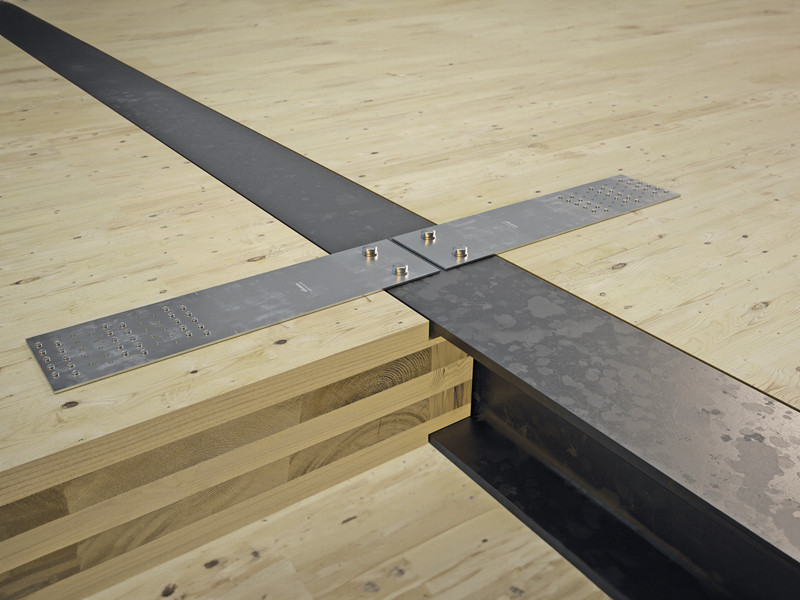

The WHT PLATE C plate for timber is ideal for making continuous tensile connections of CLT panels and framed structures to the reinforced concrete substructure.

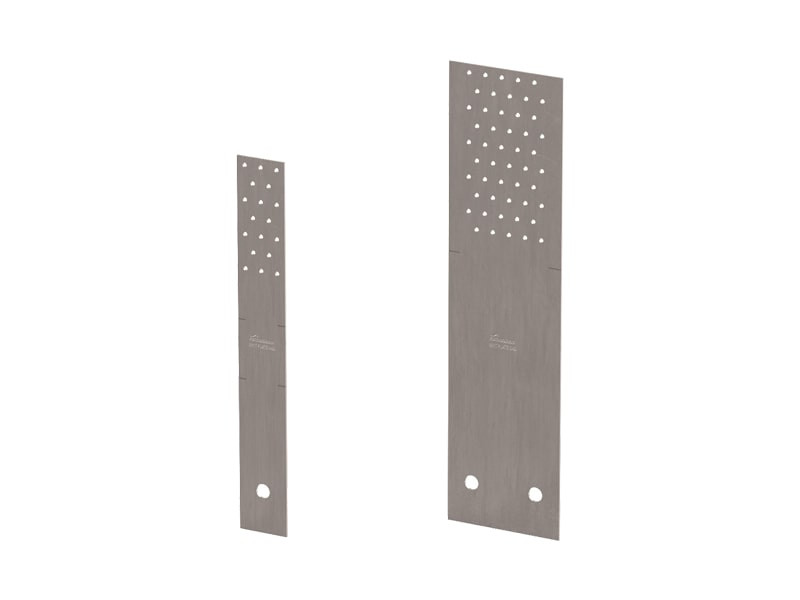

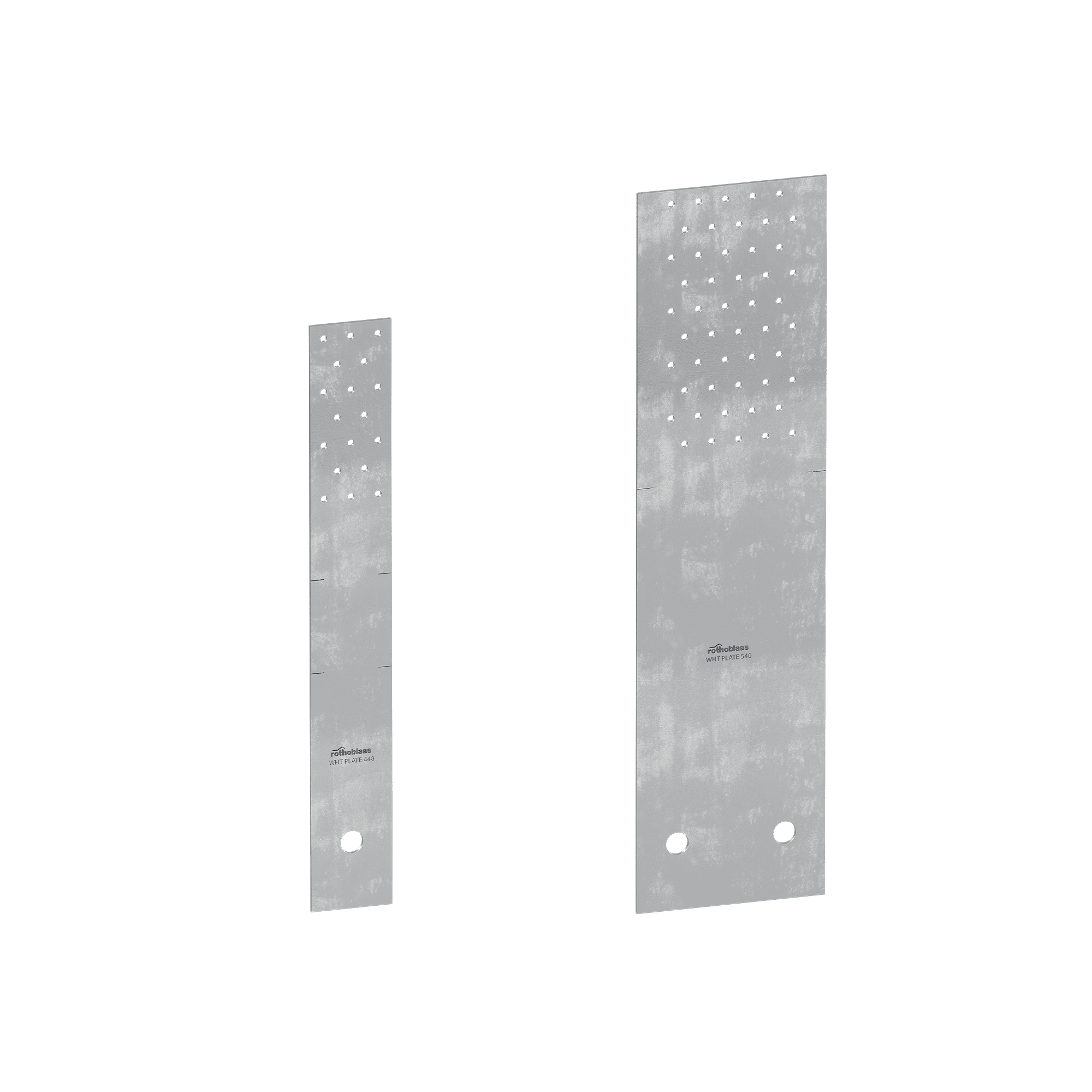

Available in 2 versions: WHT PLATE 440 for framed structures and WHT PLATE 540 for CLT panel structures.

WHT PLATE C, THE METAL PLATE FOR TIMBER-TO-CONCRETE TENSILE JOINTS

The high tensile strength allows to optimize the number of plates installed, ensuring remarkable time saving. CE marked products and pre-calculated/ready to use strength values, also for different kerb thickness values. Beside its natural function, it is ideal for solving situations where the transfer of tensile loads from timber to concrete is required.

Pre-calculated partial nailing can be used if there is a varying amount of stress or a levelling layer. Made of bright zinc plated carbon steel, it is ideal for application on CLT, LVL, solid timber, glulam, framed structures and timber-based panels.

Documents

Technical data sheets
Declaration of performance (DOP) Download
File CAD
File BIM.ifc
File BIM.rfa

WHT PLATE C

CODE B
[mm]
H
[mm]
s
[mm]
pcs.
WHTPLATE440 60 440 3 10
WHTPLATE540 140 540 3 10
