PLATES FOR TIMBER-TO-TIMBER TENSILE LOADS

WHT PLATE T

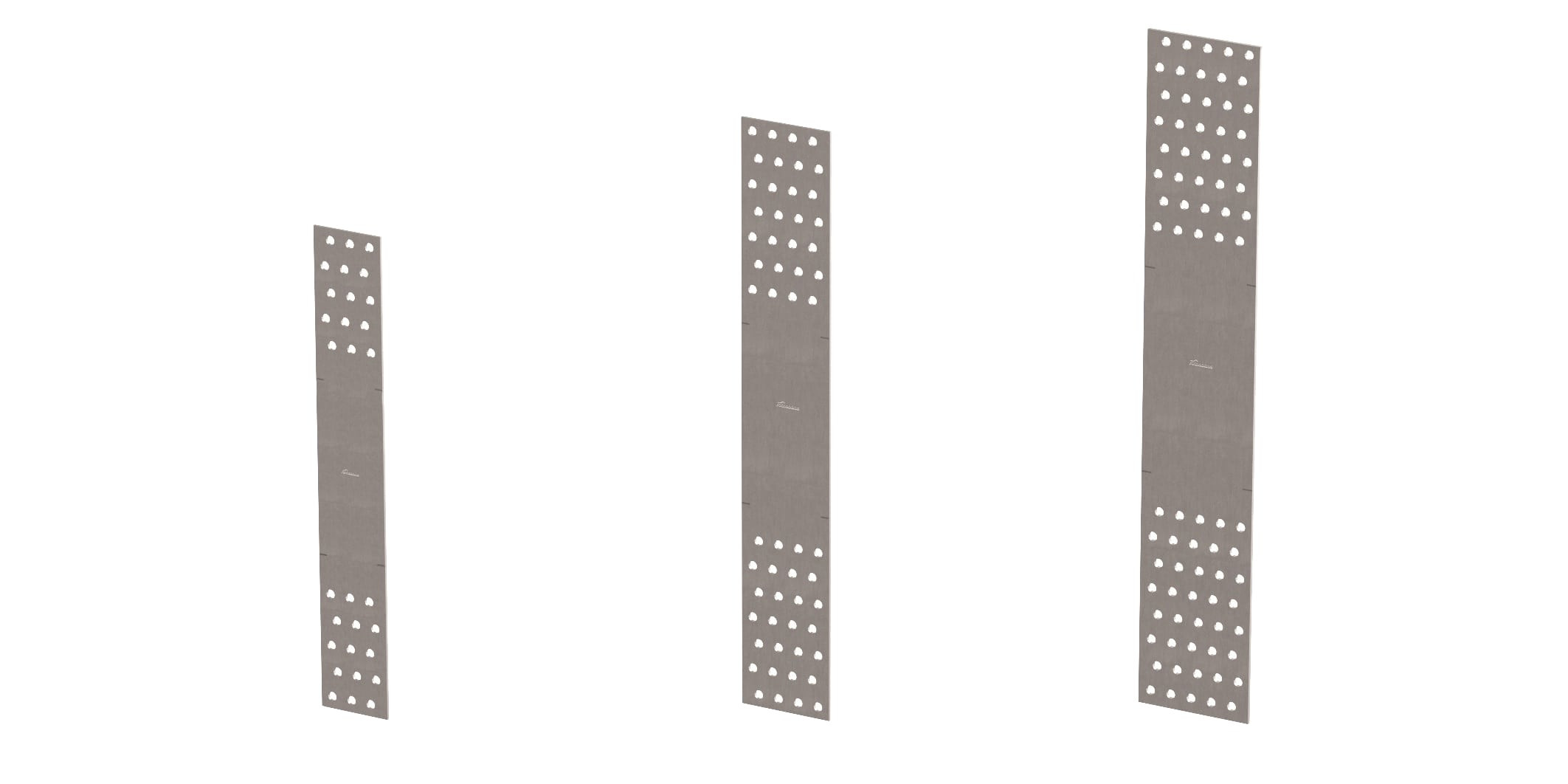

The WHT PLATE T range of plates for tensile loads includes 3 versions of different thickness, material and height, to provide different levels of tensile strength.

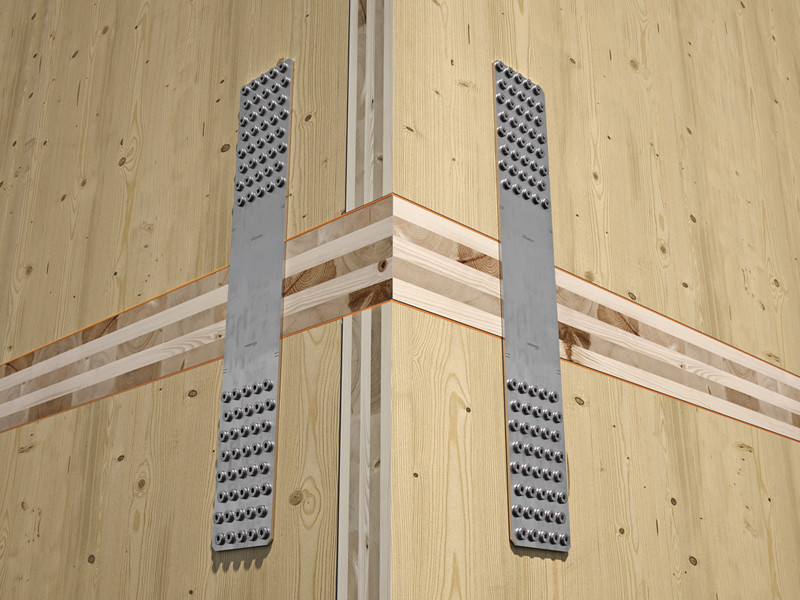

Ideal for use on CLT for multi-storey buildings, they are all calculated and certified for tensile loads on timber-to-timber joints.

WHT PLATE T, THE HIGH TENSILE STRENGTH PLATE FOR THE TIMBER MULTI-STOREY

WHT PLATE T plates for timber are the perfect solution for designing multi-storey buildings for different floor thickness values, thanks to the characteristic tensile strengths greater than 150 kN.

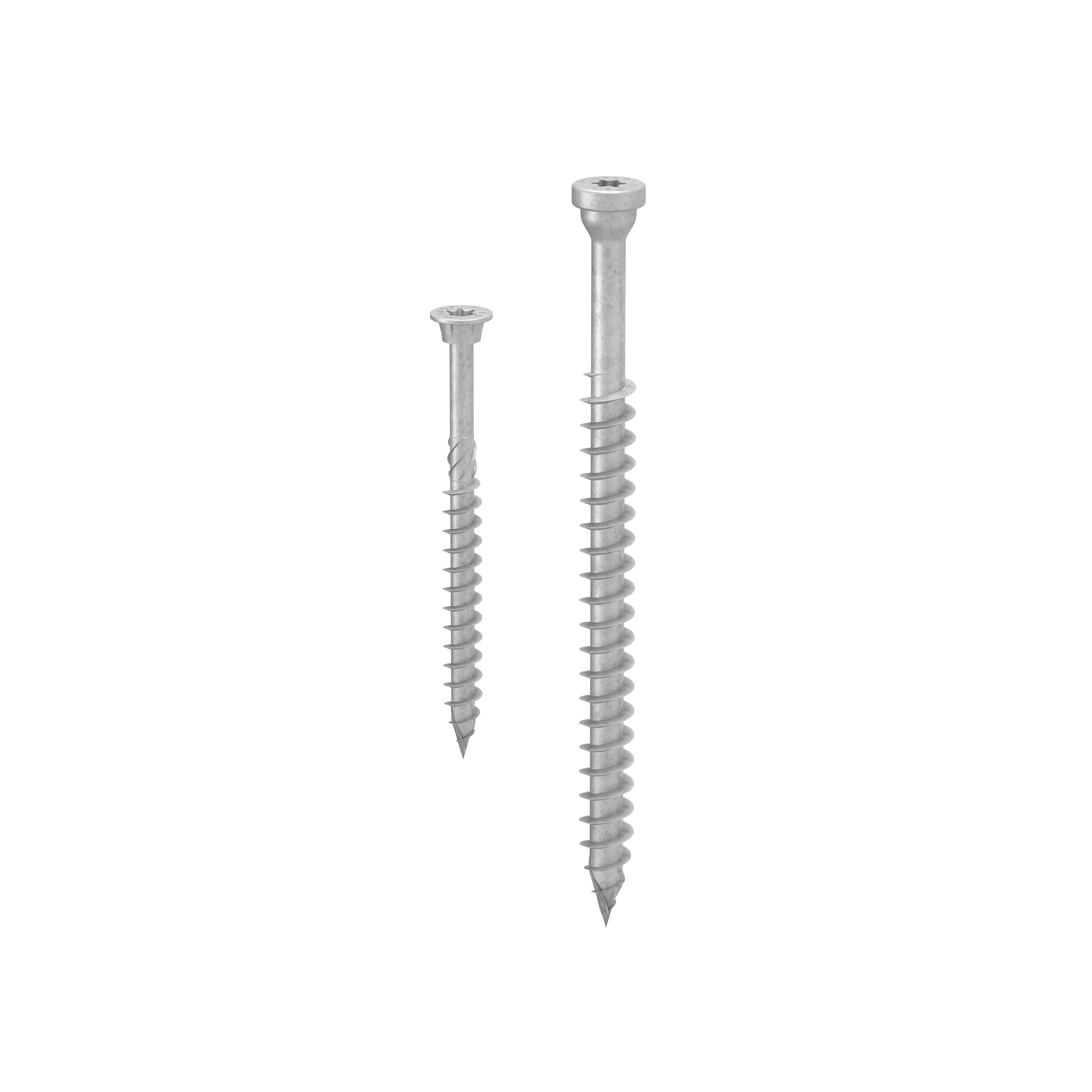

The metal plate provides optimal performance in combination with HBS PLATE or HBS PLATE EVO screws: the head of the screws has a shoulder and the thickness is increased for the plates completely safe, reliable fastening to the timber.

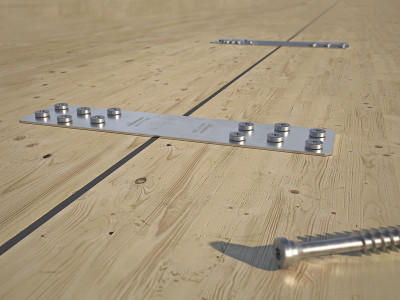

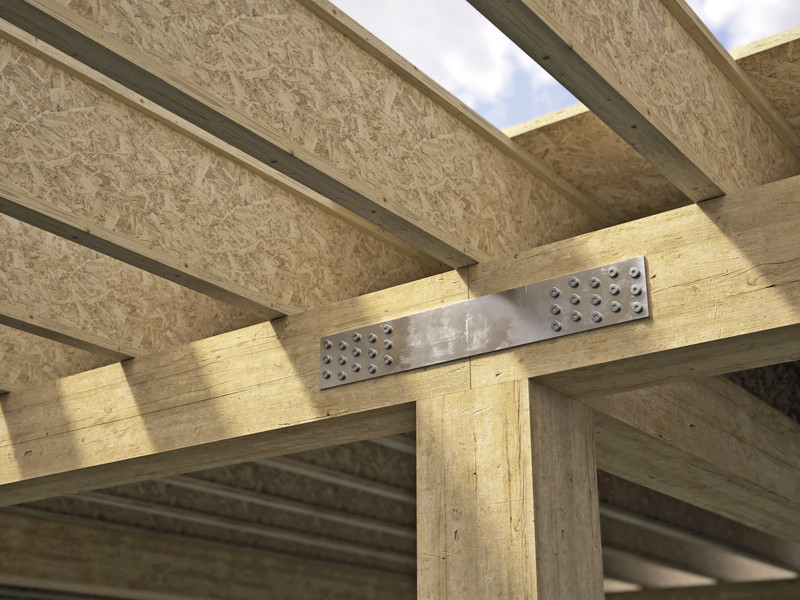

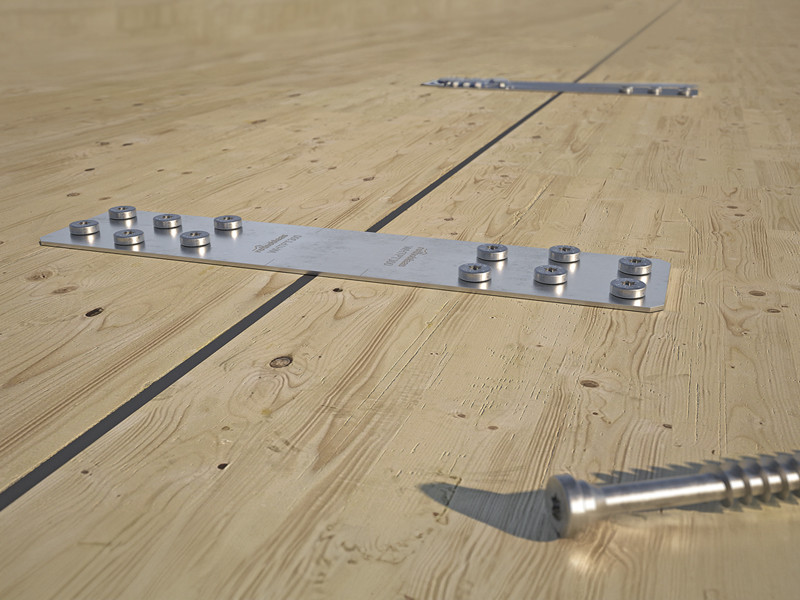

Made of bright zinc plated carbon steel, they are designed for creating timber-to-timber joints of CLT, LVL, solid timber and glulam panels and beams, framed structures (platform frame) and timber-based panels in general.

Documents

Technical data sheets
Declaration of performance (DOP) Download
File CAD
File BIM.ifc
File BIM.rfa

WHT PLATE T

CODE B
[mm]
H
[mm]
s
[mm]
pcs.
WHTPT600 91 594 3 10
WHTPT720 118 722 4 5
WHTPT820 145 826 5 1
