ANGLE BRACKET FOR TENSILE LOADS
WHT STANDARD

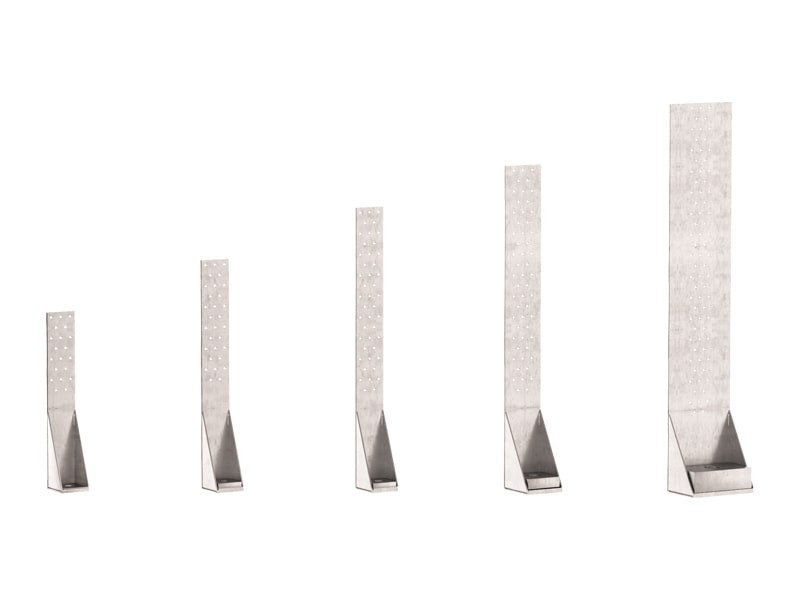

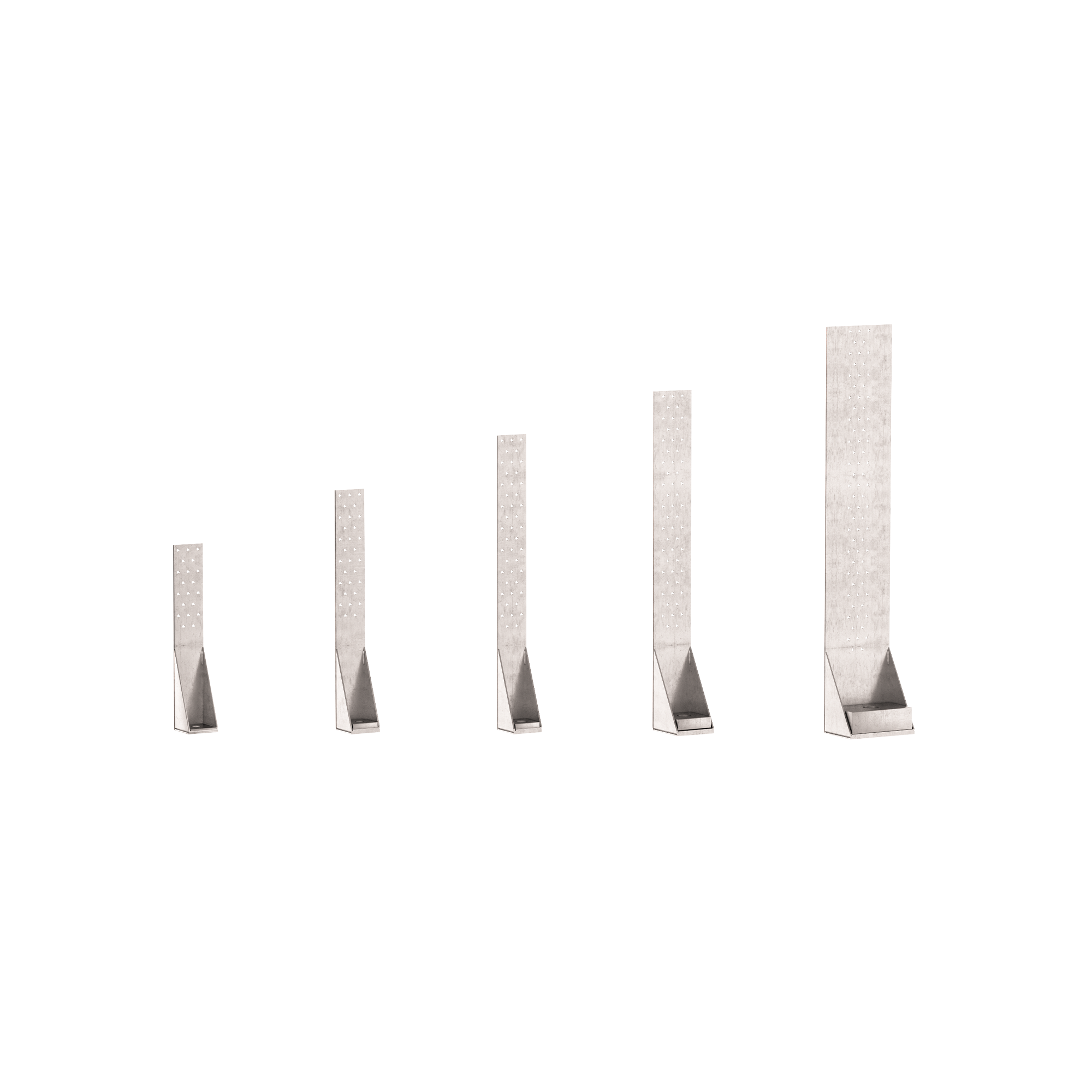

WHT is the angle bracket for timber made in 5 sizes which, in combination with the 5 washers available, determines 10 possible configurations to meet any static performance requirement.
WHT ANGLE PLATES FOR TIMBER, A HOLD DOWN FOR EVERY STATIC PERFORMANCE REQUIREMENT

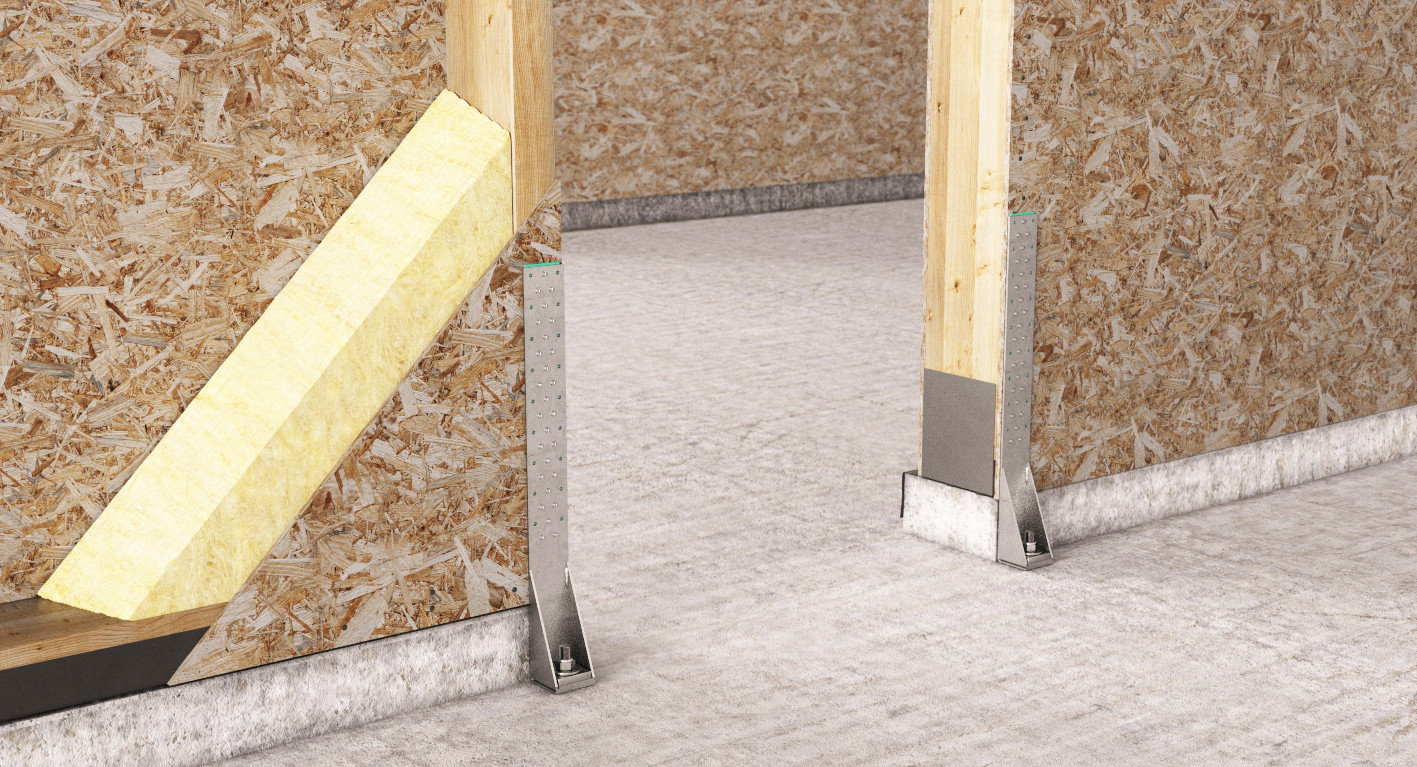

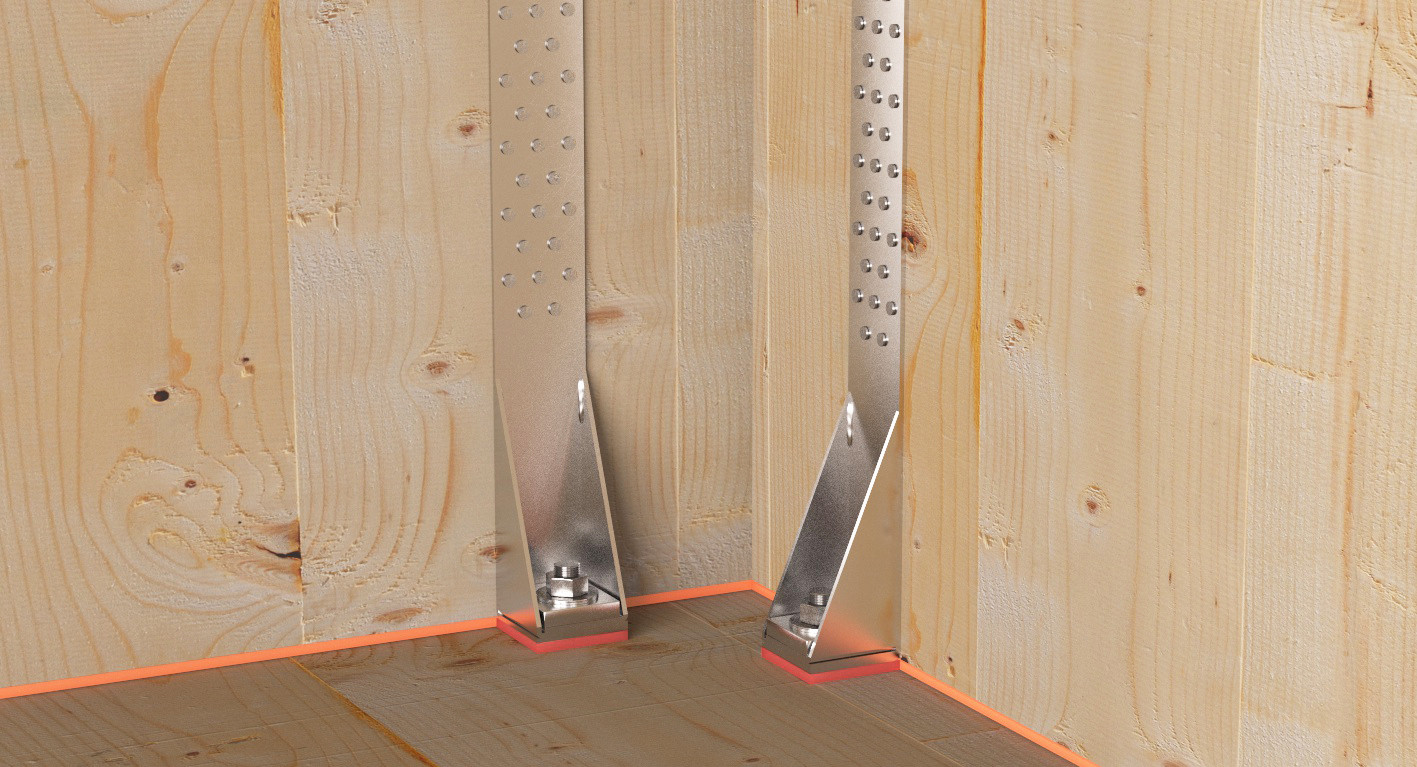

The 5 angle plate versions can be combined with one or more washers to allow designers and carpenters to find the suitable application, on both solid timber (CLT - Cross Laminated Timber) and framed (Platform frame) panels.
S355 steel, lateral reinforcing flanges and the larger diameter hole ensure high strength values also in case of partial nailing. The quality of the WHT plates is proven by multiple testing on the product and the related fasteners (nails, screws, threaded rods and chemical anchor).
Within the Seismic-rev research project framework, the joint and the related fastening elements were tested under static and cyclic loading, providing stiffness parameters (Kser) and ductility classes.

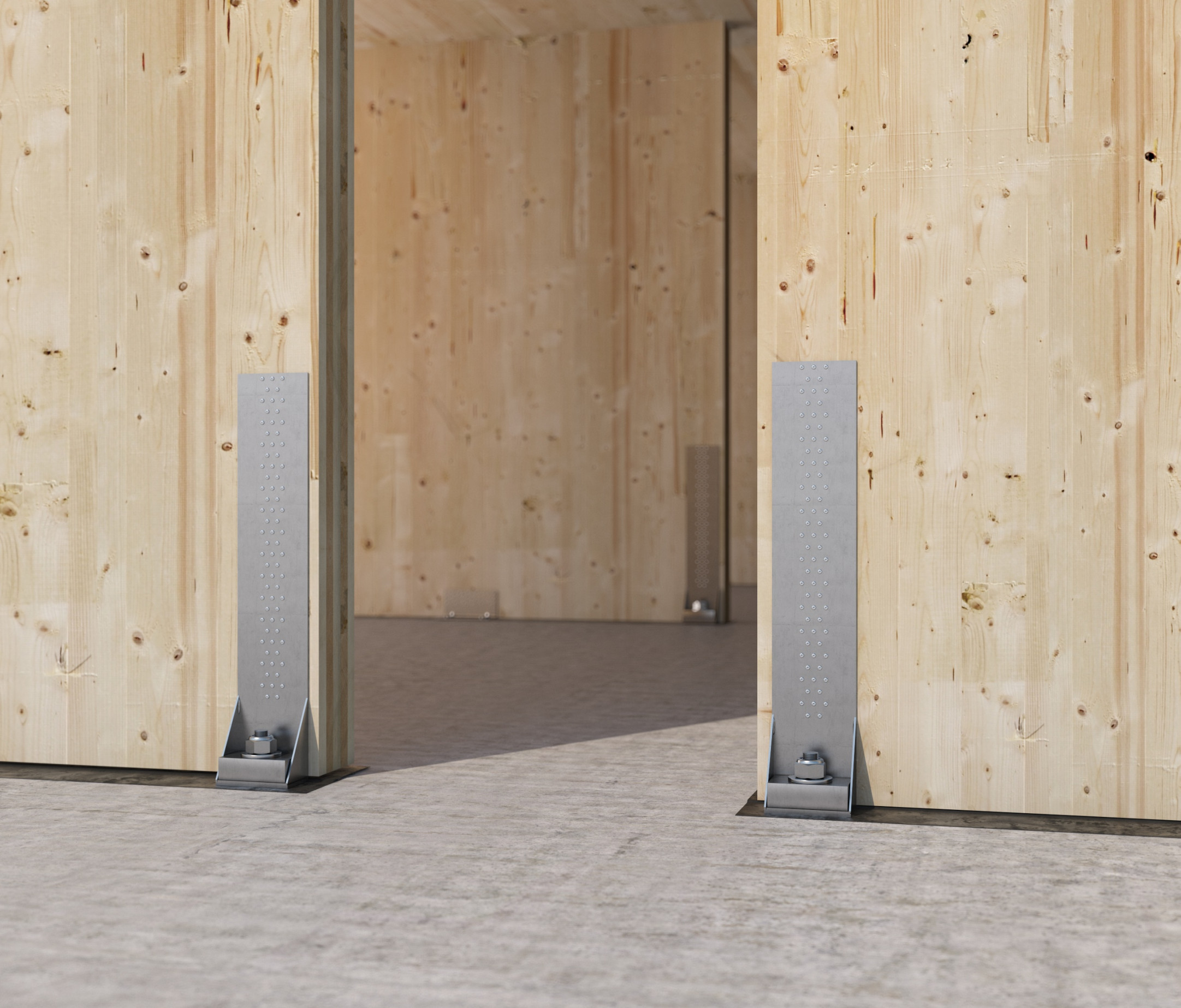

The WHT angle bracket is ideal for the construction of timber-to-concrete and timber-to-timber tensile joints for CLT panels and beams, framed structure, timber-based panels, LVL, solid timber and glulam.
Documents
Technical data sheets | |
---|---|
Technical data sheets USA 🇺🇸 | |
ETA Certificate | |
Declaration of performance (DOP) | Download |
Item specification | |
File CAD | |
File BIM.ifc | |
File BIM.rfa |
WHT ANGLE BRACKET
CODE | info | B
[mm]
|
P
[mm]
|
H
[mm]
|
pcs. |
---|---|---|---|---|---|
WHT340 | running out article | 60 | 63 | 340 | 10 |
WHT440 | running out article | 60 | 63 | 440 | 10 |
WHT540 | running out article | 60 | 63 | 540 | 10 |
WHT620 | running out article | 80 | 83 | 620 | 10 |
WHT740 | running out article | 140 | 83 | 740 | 1 |
WHTW WASHER
CODE | info | d₁
[mm]
|
B
[mm]
|
P
[mm]
|
s
[mm]
|
pcs. |
---|---|---|---|---|---|---|
WHTW50 | running out article | 18 | 50 | 56 | 10 | 80 |
WHTW50L | running out article | 22 | 50 | 56 | 10 | 80 |
WHTW70 | running out article | 22 | 70 | 77 | 20 | 20 |
WHTW70L | running out article | 26 | 70 | 77 | 20 | 20 |
WHTW130 | running out article | 29 | 130 | 77 | 40 | 1 |
Specifications
WHT
Supply and installation of angle bracket for tensile forces for timber structures, Type WHT.
CE marking in accordance with ETA 11/0086
Field of use:
- Joints for timber-to-concrete, OSB-to-concrete, timber-to-timber, timber-to-OSB and timber-to-steel
Material:
- Bright zinc plated carbon steel, three dimensional perforated plate
Geometry:
- H (mm) = :
- Hole at the base (mm) = : Ø
- Thickness s (mm) = :
Indications for installation and mechanical performance as reported in the product data sheets and provided by the technical drawings of the project.
WHT + WASHER
Supply and installation of angle bracket for tensile forces for timber structures, Type WHT + washer.
CE marking in accordance with ETA 11/0086
Field of use:
- Joints for timber-to-concrete, OSB-to-concrete, timber-to-timber, timber-to-OSB and timber-to-steel
Material:
- Bright zinc plated carbon steel, three dimensional perforated plate
Geometry:
- Angle bracket: :
- H (mm) = :
- Hole at the base (mm) = : Ø
Washer:
- Thickness s (mm) = :
- Hole (mm) = :
Indications for installation and mechanical performance as reported in the product data sheets and provided by the technical drawings of the project.
WHT XXL + WASHER
Supply and installation of angle bracket for high tensile forces for timber structures, Type WHT XXL + washer.
CE marking in accordance with ETA 11/0086
Field of use:
- Joints for timber-to-concrete, OSB-to-concrete, timber-to-timber, timber-to-OSB and timber-to-steel
Material:
- Bright zinc plated carbon steel, three dimensional perforated plate
Geometry:
- Angle bracket: :
- H (mm) = :
- Hole at the base (mm) = : Ø
Washer:
- Thickness s (mm) = :
- Hole (mm) = :
Indications for installation and mechanical performance as reported in the product data sheets and provided by the technical drawings of the project.
