CONCEALED BRACKET WITH AND WITHOUT HOLES
ALUMAXI
ALUMAXI is the fastening bracket designed to allow the easy construction of structures having unusual sizes.
It is the ideal connector for large beam joints requiring very high strength.
Videos
LARGE FASTENING BRACKETS FOR LARGE STRUCTURES. DISCOVER THE ALUMAXI PLATE HIGH STRENGTHS

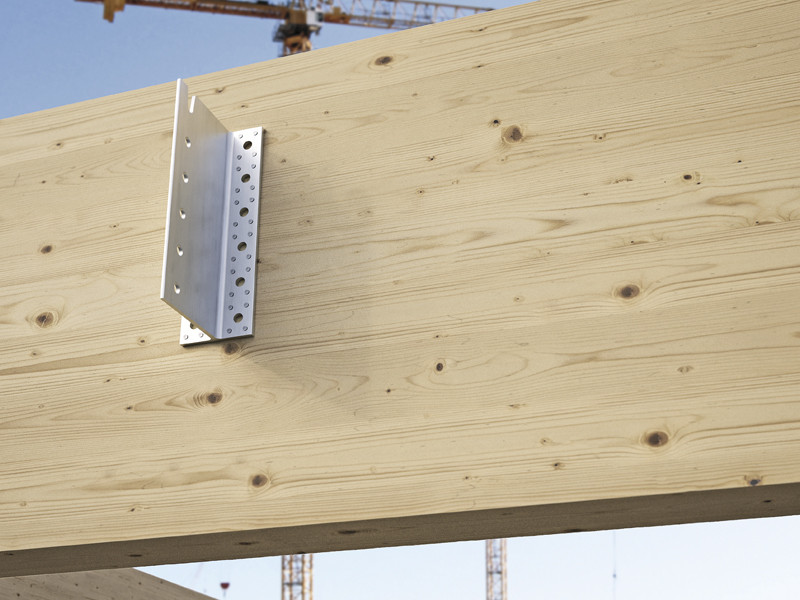

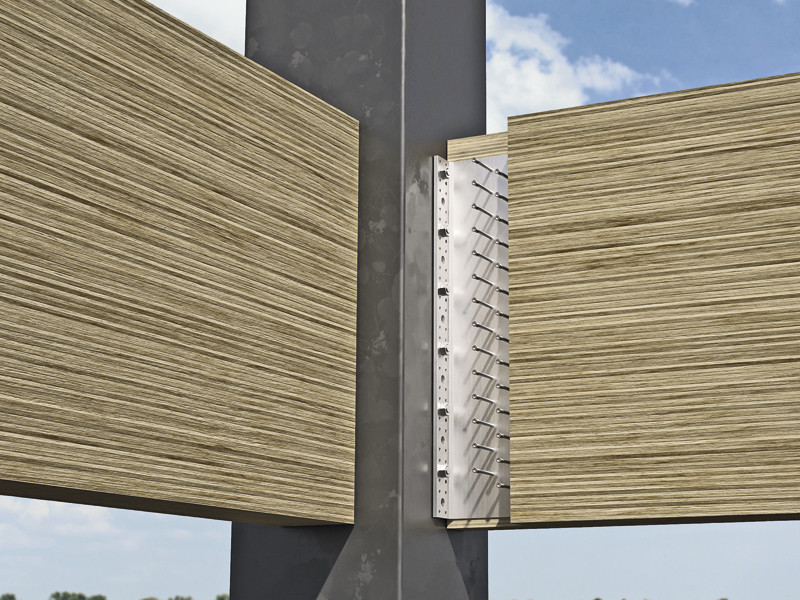

The ALUMAXI angle bracket for timber is made of high-strength aluminium alloy. It is produced by extrusion, therefore it is without welds. The strengths are certified and calculated in all directions: vertical, horizontal and axial.
The fastening is certified also with LBS screws and SBD self-drilling dowels. The version without holes provides free choice when positioning the dowels. The low weight of the aluminium alloy facilitates easy transportation and on-site movements, while guaranteeing a very high strength. Completely concealed, this bracket for beams fulfils the fire safety requirements.

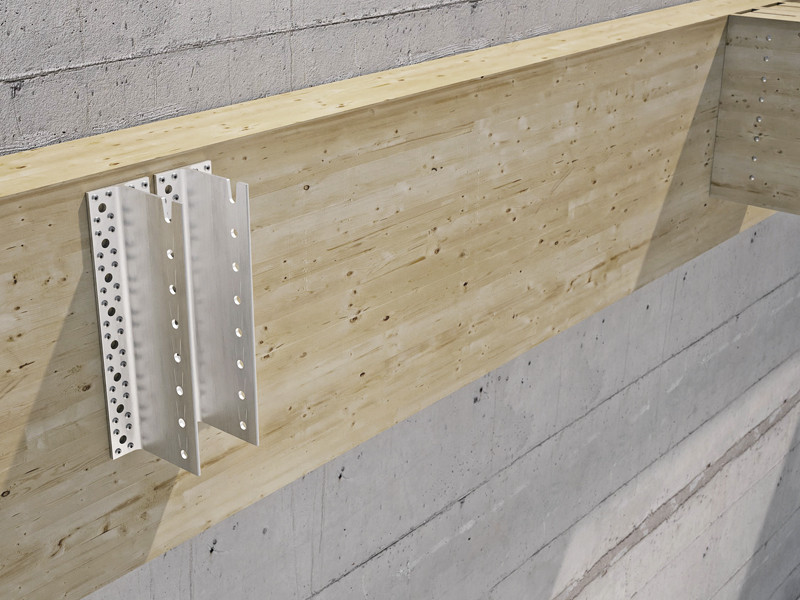

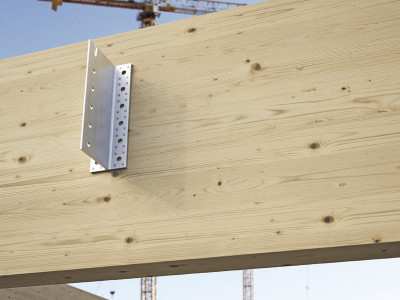

Designed to construct timber-to-timber and timber-to-concrete shear joints, both perpendicular and inclined. Ideal for use with solid timber, glulam, CLT, LVL and timber-based panels.
Documents
Technical data sheets
|
|
|---|---|
ETA Certificate
|
|
| Declaration of performance (DOP) | Download |
Item specification
|
|
File CAD
|
|
File BIM.ifc
|
|
File BIM.rfa
|

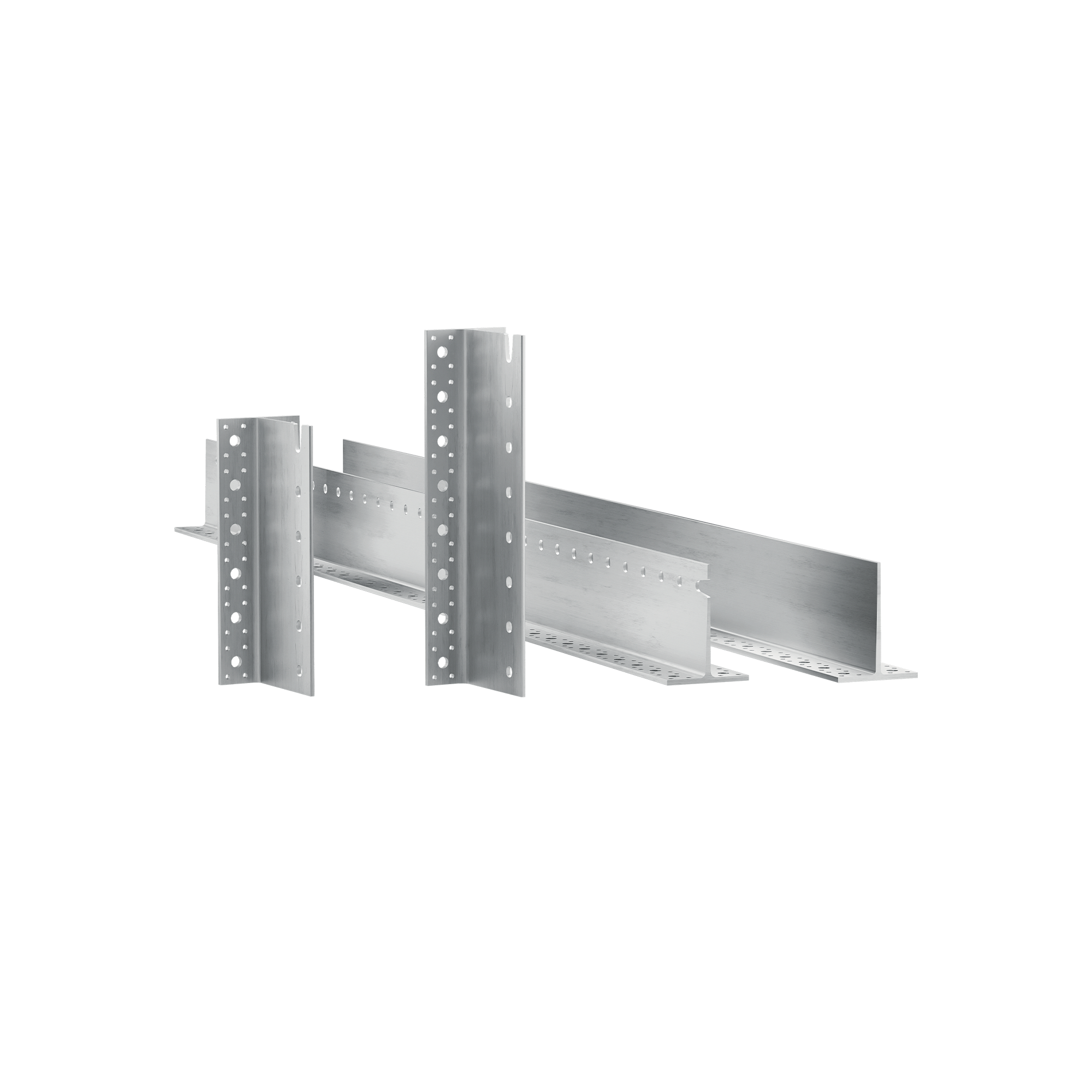

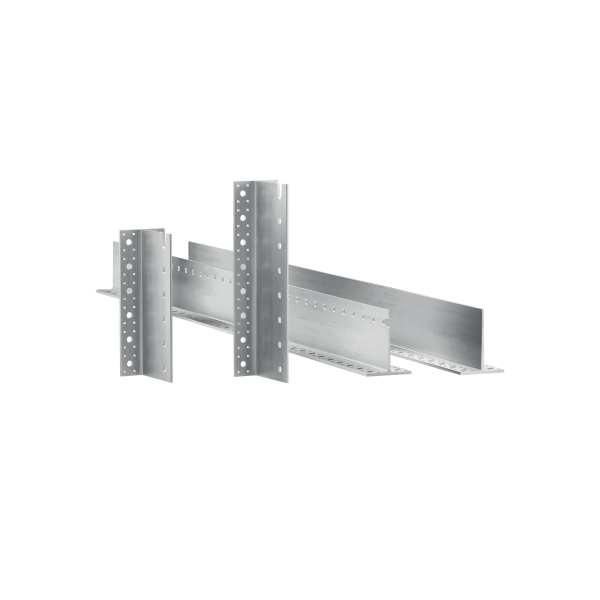

ALUMAXI WITH HOLES
| CODE | H
[mm]
|
pcs. |
|---|---|---|
| ALUMAXI384L | 384 | 1 |
| ALUMAXI512L | 512 | 1 |
| ALUMAXI640L | 640 | 1 |
| ALUMAXI768L | 768 | 1 |
| ALUMAXI2176L | 2176 | 1 |
ALUMAXI WITHOUT HOLES
| CODE | H
[mm]
|
pcs. |
|---|---|---|
| ALUMAXI2176 | 2176 | 1 |
Specifications
ALUMAXI
Supply and installation of concealed bracket without holes for timber structures, Type ALUMAXI.
CE marking in accordance with ETA 09/0361
Field of use:
- Timber-to-timber and timber-to-concrete joints
Material:
- Aluminium alloy three dimensional perforated plate
Geometry:
- H (mm) = : ………………
- Thickness s (mm) = : ………………
Indications for installation and mechanical performance as reported in the product data sheets and provided by the technical drawings of the project.
ALUMAXI L
Supply and installation of concealed bracket with holes for timber structures, Type ALUMAXI L.
CE marking in accordance with ETA 09/0361
Field of use:
- Timber-to-timber and timber-to-concrete joints
Material:
- Aluminium alloy three dimensional perforated plate
Geometry:
- H (mm) = :
- Thickness s (mm) = :
Indications for installation and mechanical performance as reported in the product data sheets and provided by the technical drawings of the project.
Related products
-
JIG ALU STA

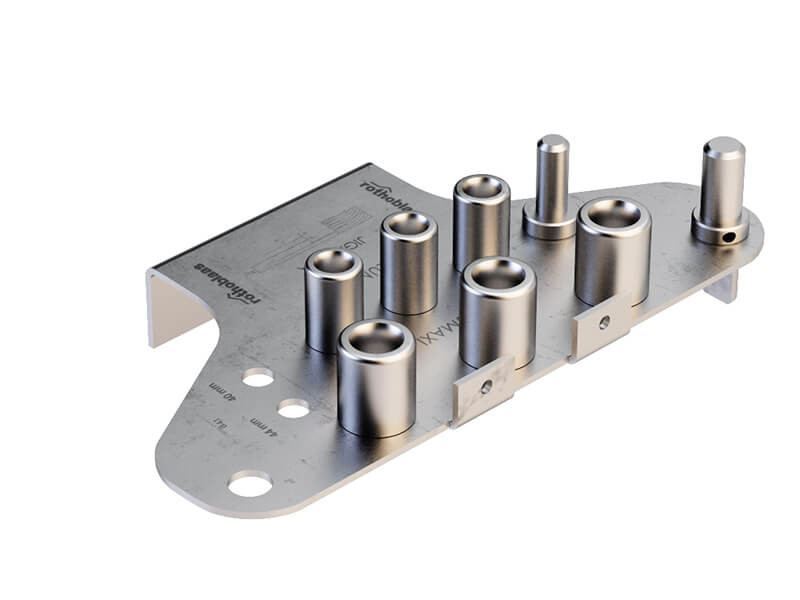

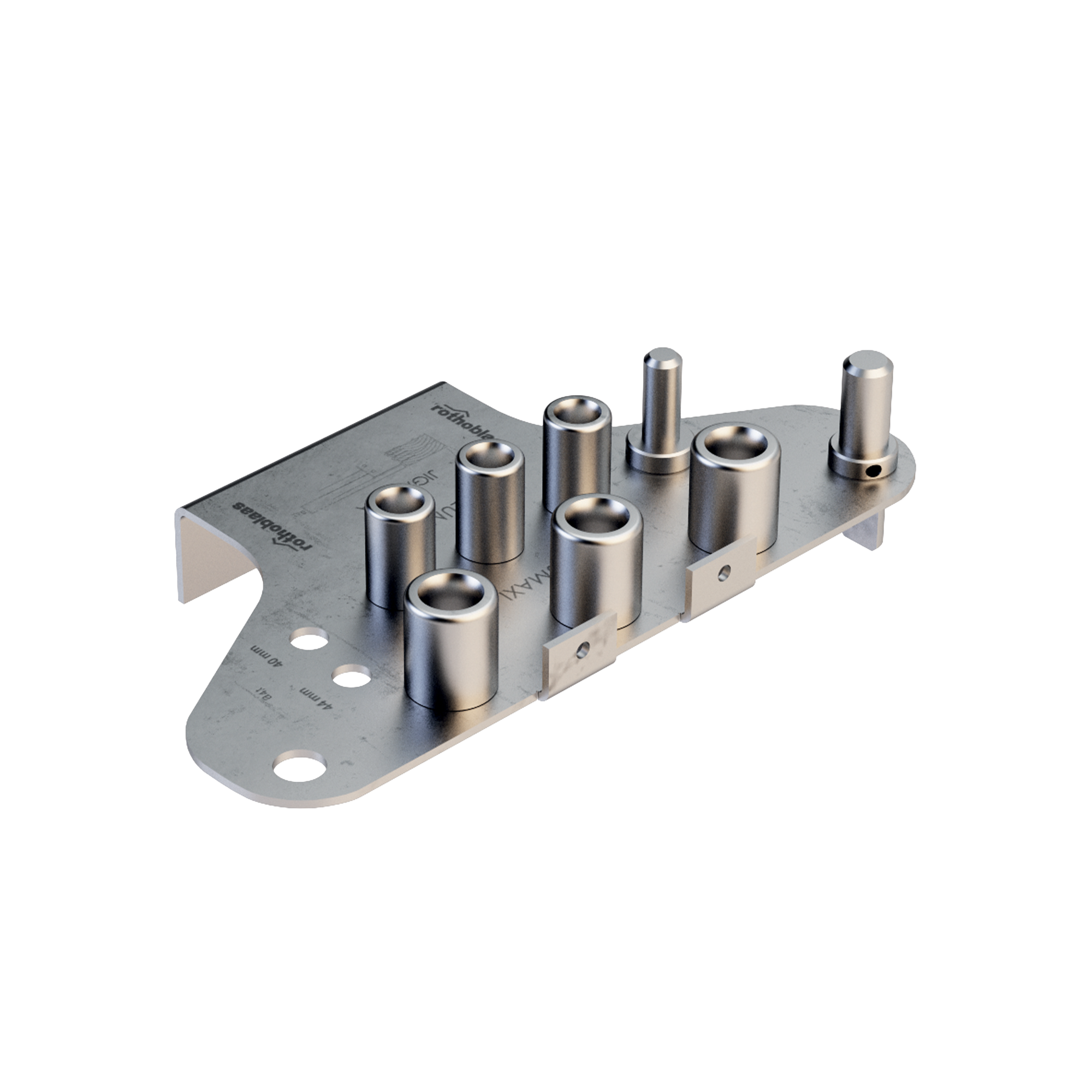

DRILLING TEMPLATE FOR ALUMIDI AND ALUMAXI
-
STA

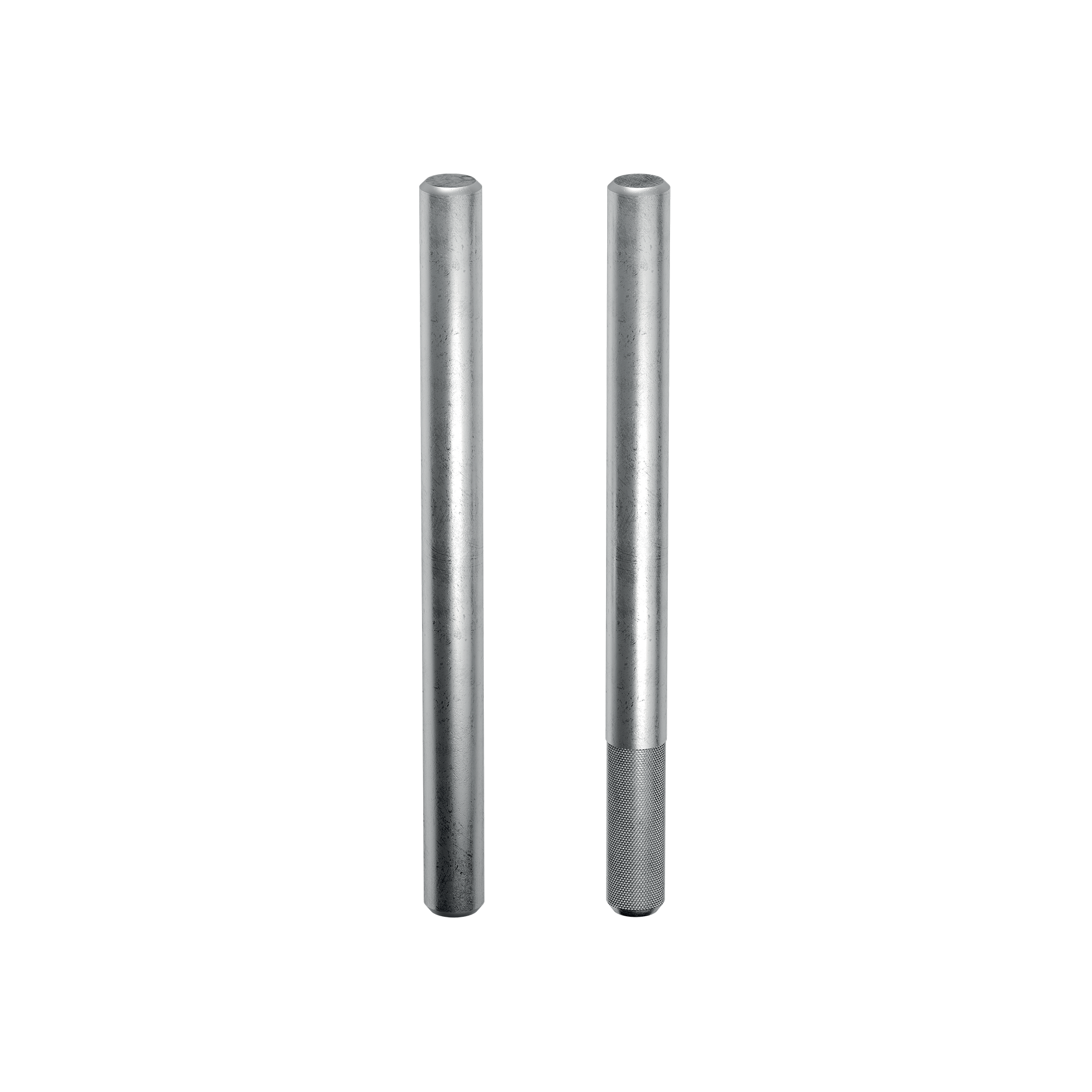

SMOOTH DOWEL
-
TAPS

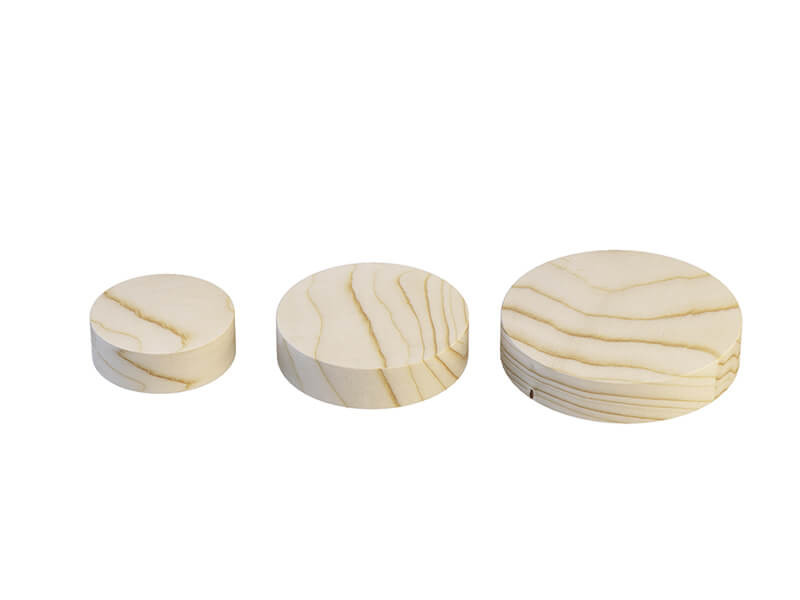

TIMBER CAPS
-
SNAIL ALU-WOOD

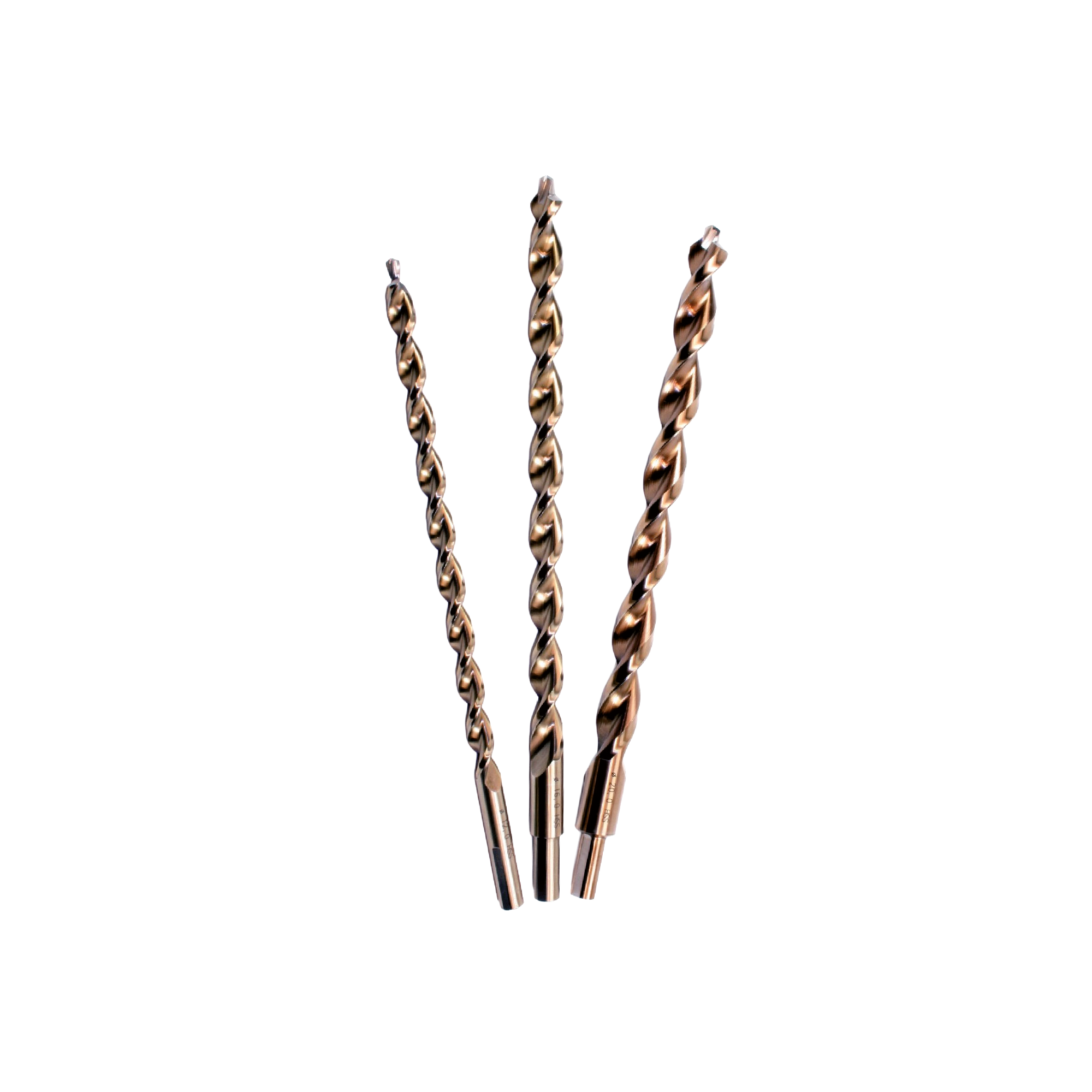

DRILL BIT FOR PRECISE HOLES IN TIMBER-TO-METAL CONNECTIONS
-
SKR | SKS | SKP
SCREW ANCHOR FOR CONCRETE
-
SNAIL PULSE
CARBIDE DRILL BIT IN HM WITH SDS-PLUS DRILL CHUCK SHANK
-
LS 103 EC + SG 230

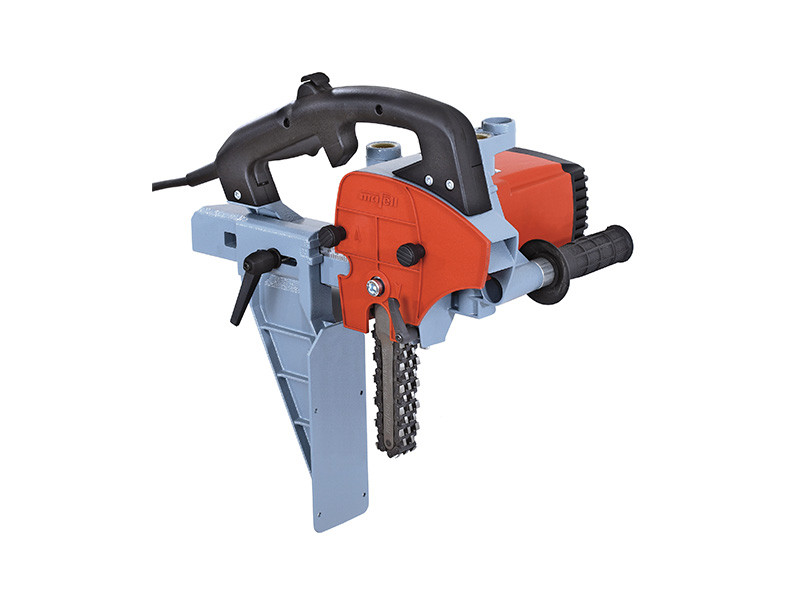

MAFELL - CHAIN MORTISER + SLOT MORTISING ATTACHMENT
