NEOPRENE SUPPORTING PLATES
NEO

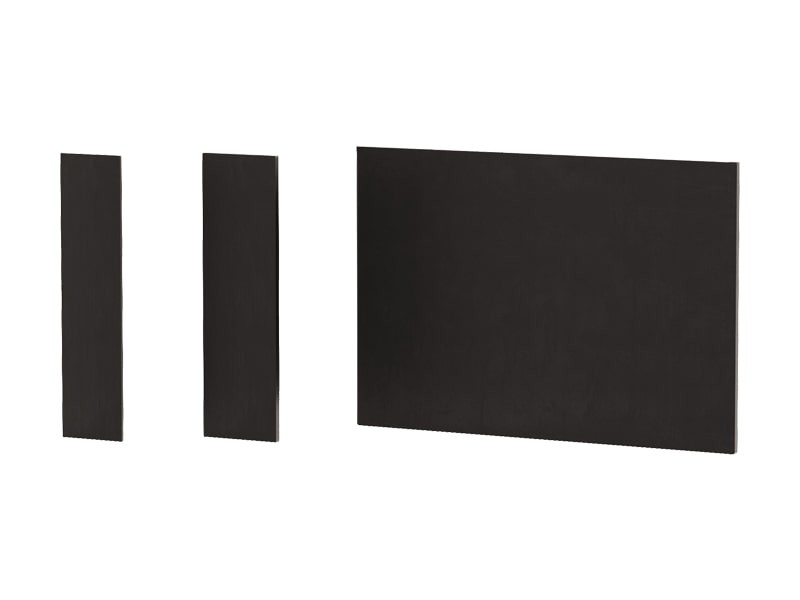

The stripe width has been optimised for the most common joist cross sections.

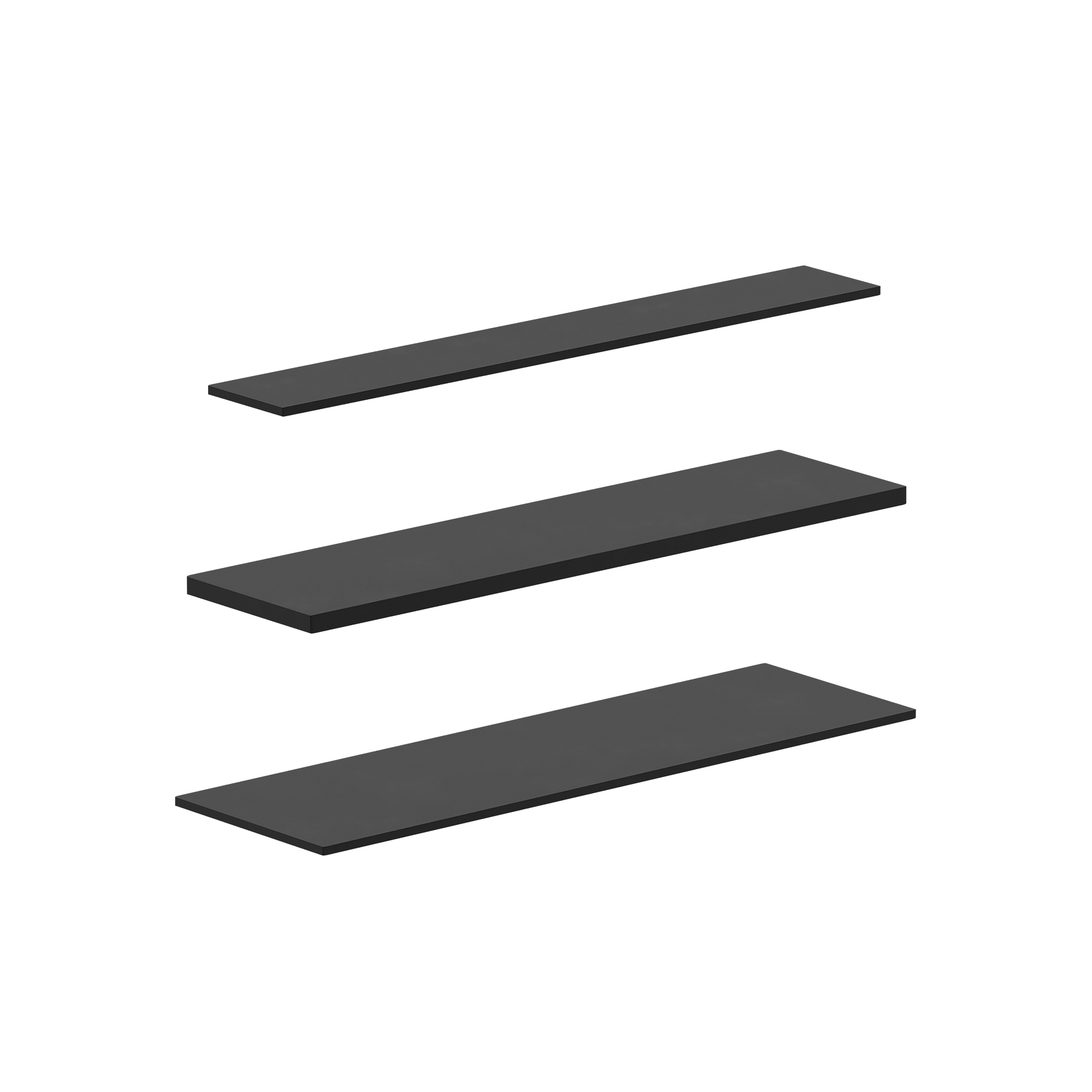

Available also in sheets to be conveniently cut depending on the worksite needs. Ideal to realise structural supports and static constraints with two degrees of freedom.
Model with CE mark to guarantee the suitability for use.
It complies with the EN 1337-3 standard and is ideal for structural applications.
Documents
| Technical data sheets |
|---|
NEO 10 - NEO 20
| CODE | description | B
[mm]
|
L
[mm]
|
s
[mm]
|
pcs. |
|---|---|---|---|---|---|
| NEO101280 | - | 120 | 800 | 10 | 1 |
| NEO101680 | - | 160 | 800 | 10 | 1 |
| NEO202080 | - | 200 | 800 | 20 | 1 |
| NEO202480 | - | 240 | 800 | 20 | 1 |
| NEO10PAL | - | 1200 | 800 | 10 | 1 |
| NEO20PAL | - | 1200 | 800 | 20 | 1 |
NEO 10 CE
| CODE | description | B
[mm]
|
L
[mm]
|
s
[mm]
|
pcs. |
|---|---|---|---|---|---|
| NEO101680CE | stripe | 160 | 800 | 10 | 1 |
| NEO102080CE | stripe | 200 | 800 | 10 | 1 |
NEO 20 CE
| CODE | description | B
[mm]
|
L
[mm]
|
s
[mm]
|
pcs. |
|---|---|---|---|---|---|
| NEO202080CE | stripe | 200 | 800 | 20 | 1 |
| NEO202480CE | stripe | 240 | 800 | 20 | 1 |
Specifications
Supply and installation of neoprene supporting plates, Type NEO.
Field of use:

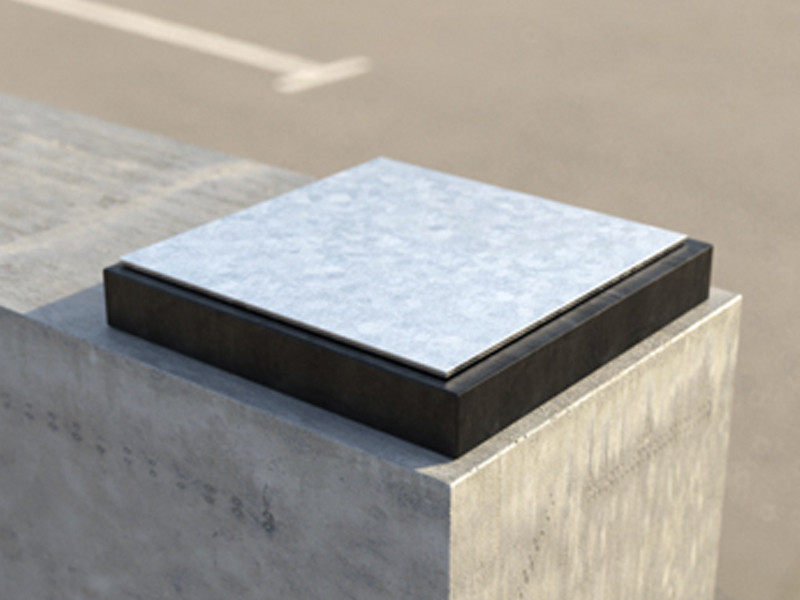

- Structural supports on concrete
Material:
- Natural and styrenated gum sheets
Geometry:
Angle bracket: :
-
H (mm) = :
-
Bottom plate (mm) = :
-
Thickness s (mm) = :
Indications for installation and mechanical performance as reported in the product data sheets and provided by the technical drawings of the project.
