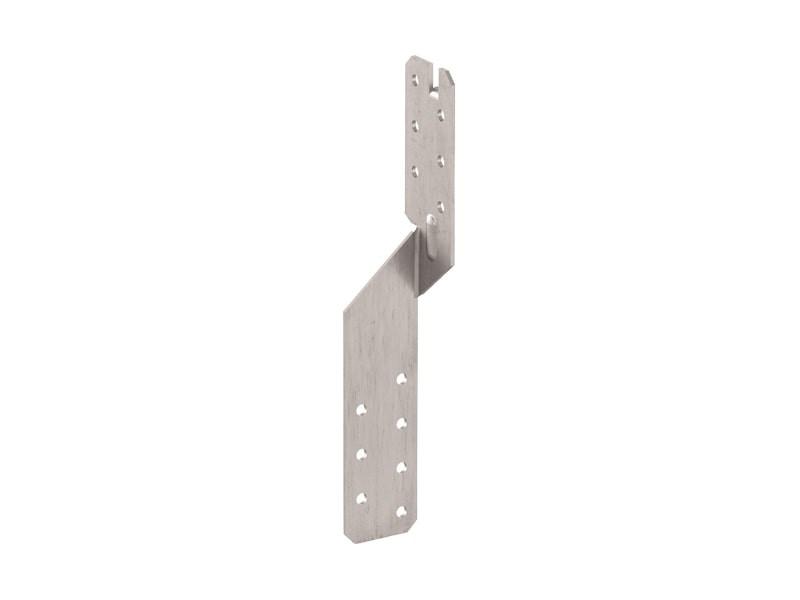

SPU

UNI ANCHOR PLATE FOR JOISTS

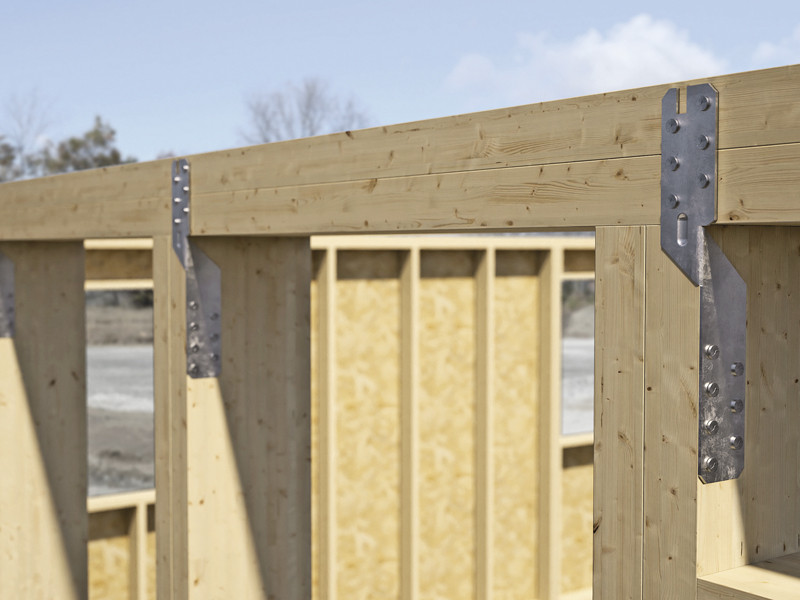

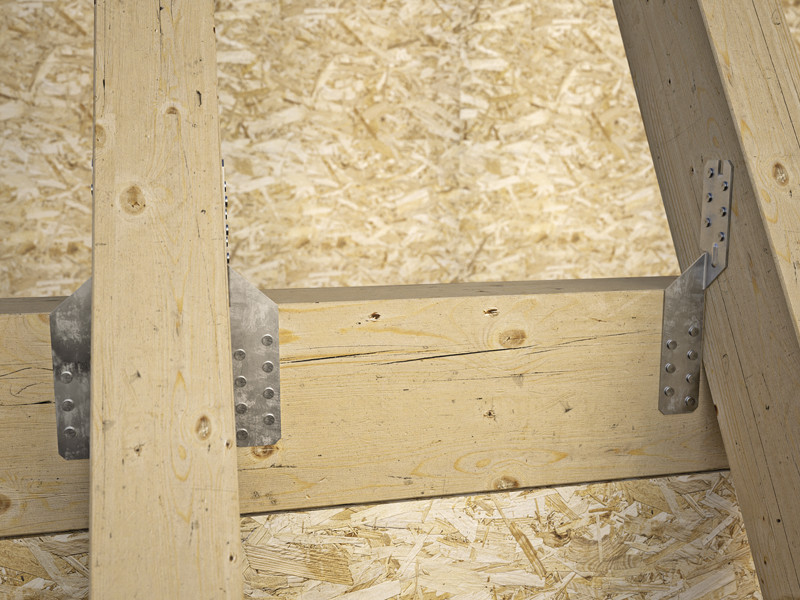

Ideal for fastening joists to platform beams. Two anchors are recommended for each joint.

Suitability of use is guaranteed by the CE marking according to ETA.

Documents

  • Technical data sheets
  • Declaration of performance (DOP)
  • File CAD

SPU

CODE B
[mm]
H
[mm]
s
[mm]
pcs.

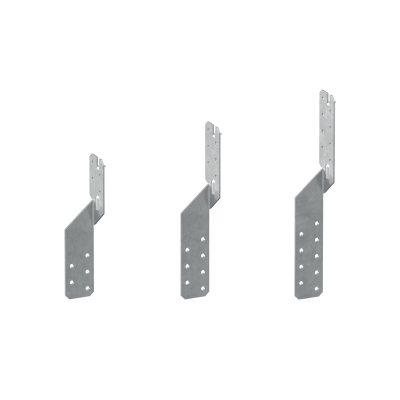

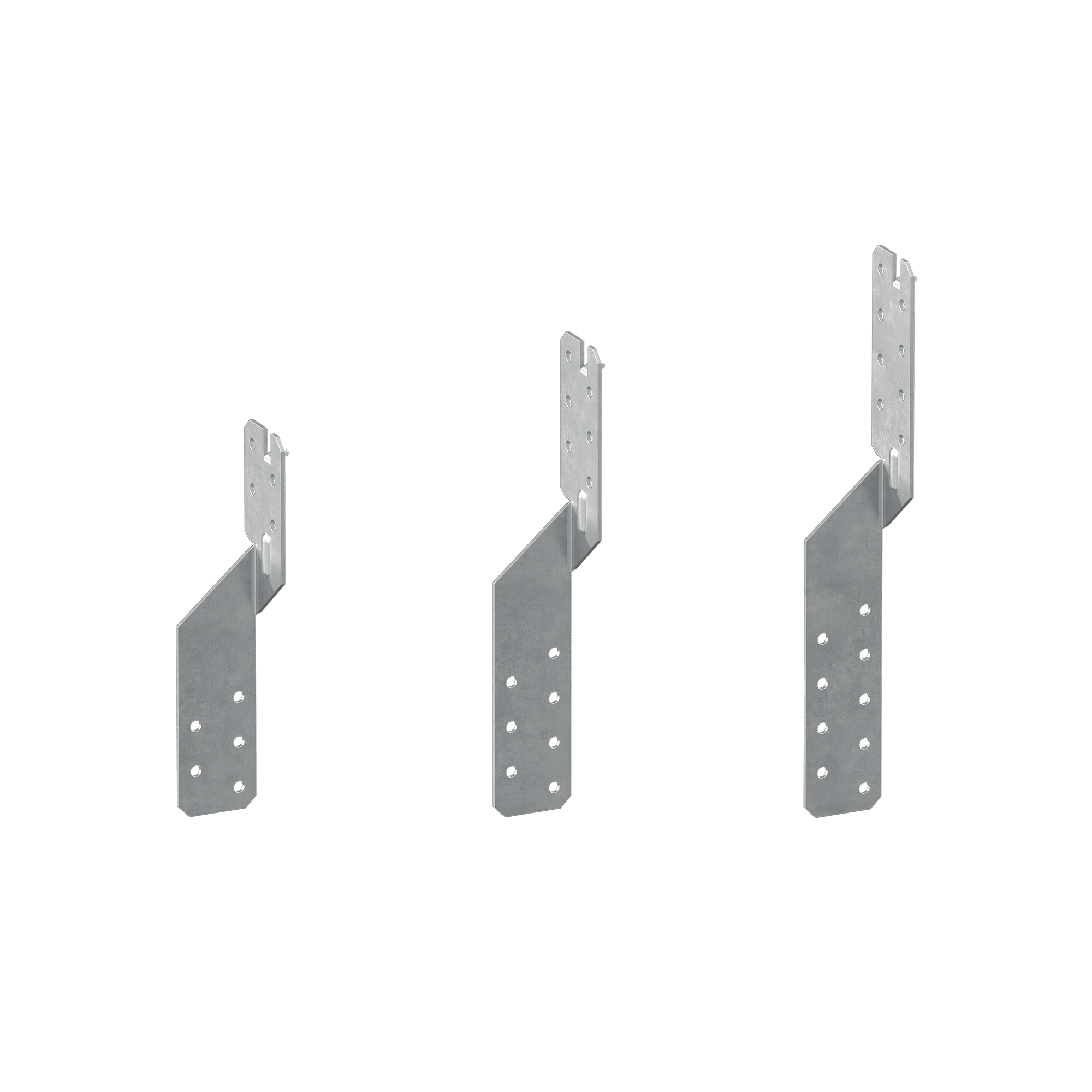

SPU170 36 170 2 100
SPU210 36 210 2 100
SPU250 36 250 2 100

Specifications

CE marking in accordance with

Material:

Geometry:

Angle bracket:

– B (mm) = :
– P (mm) = :
– H (mm) = :

  • Bottom plate (mm) = :
  • Hole at the base (mm) = :

– L (mm) = :

Washer: :

  • Thickness s (mm) = :
  • Hole (mm) = :
