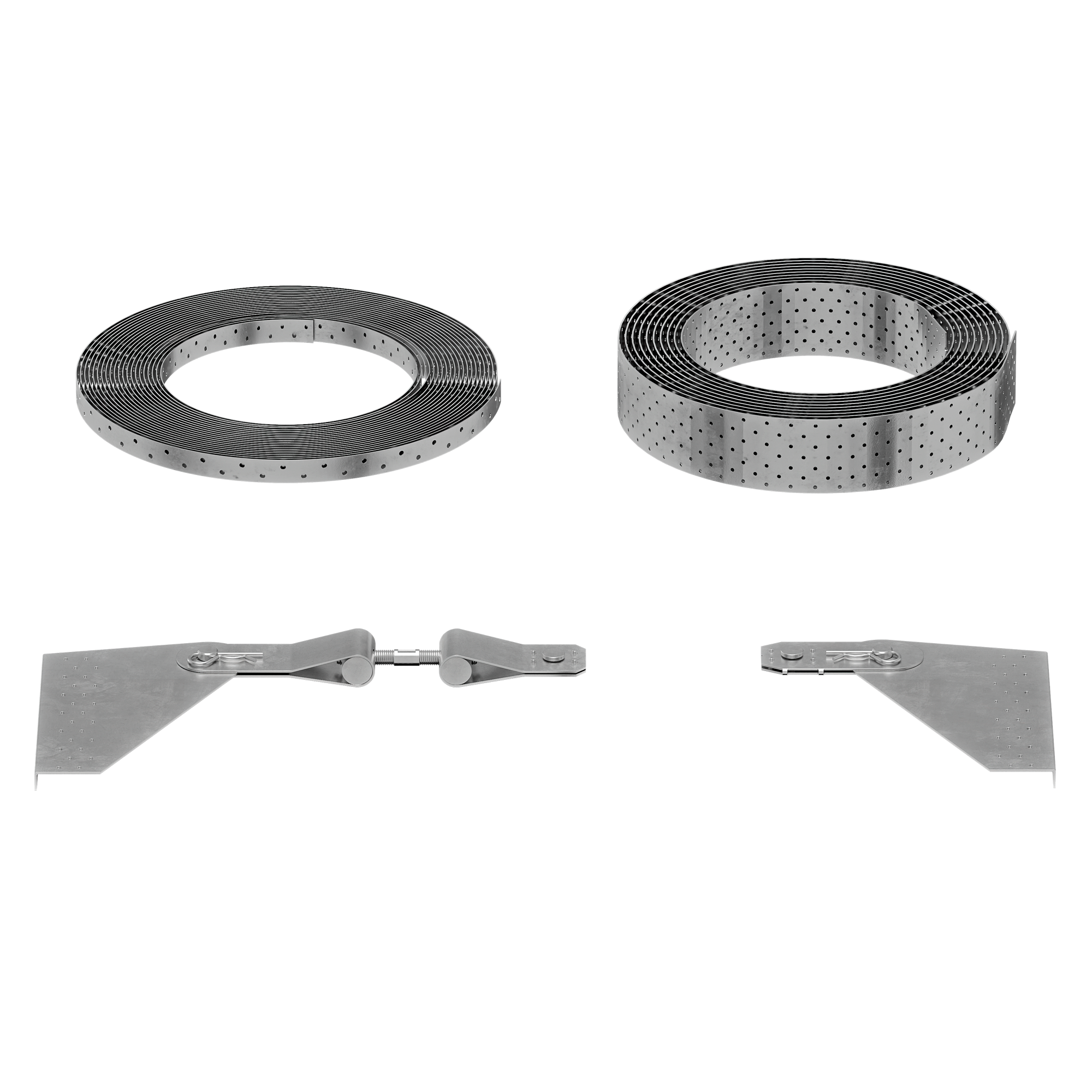

PERFORATED STRAP
LBB

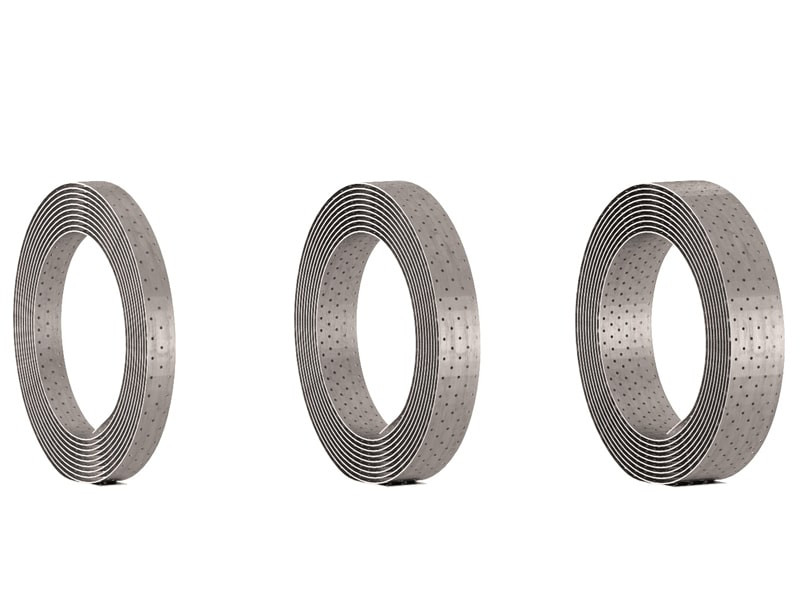

Carbon steel with bright zinc plated perforated strap.

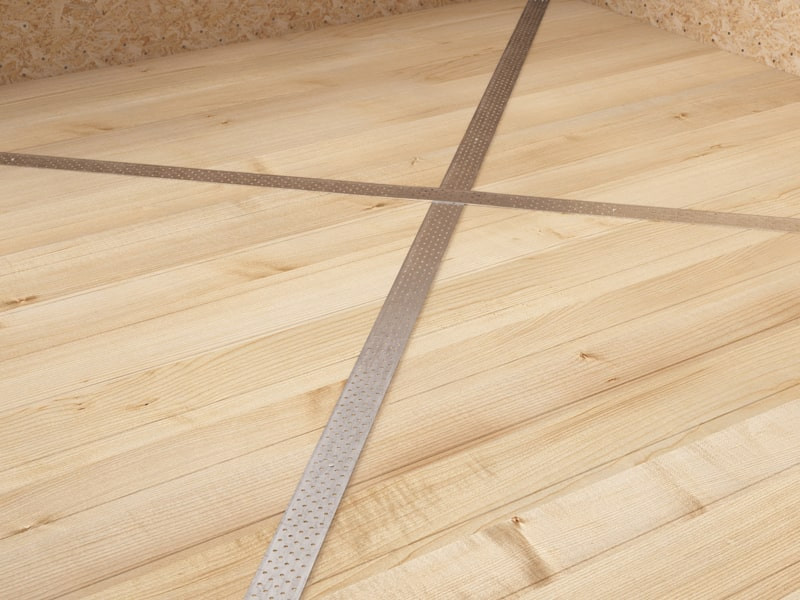

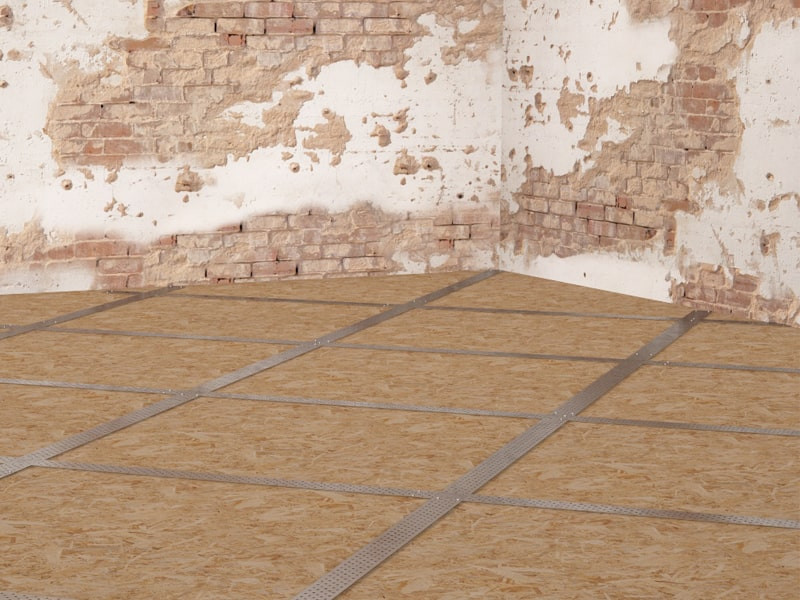

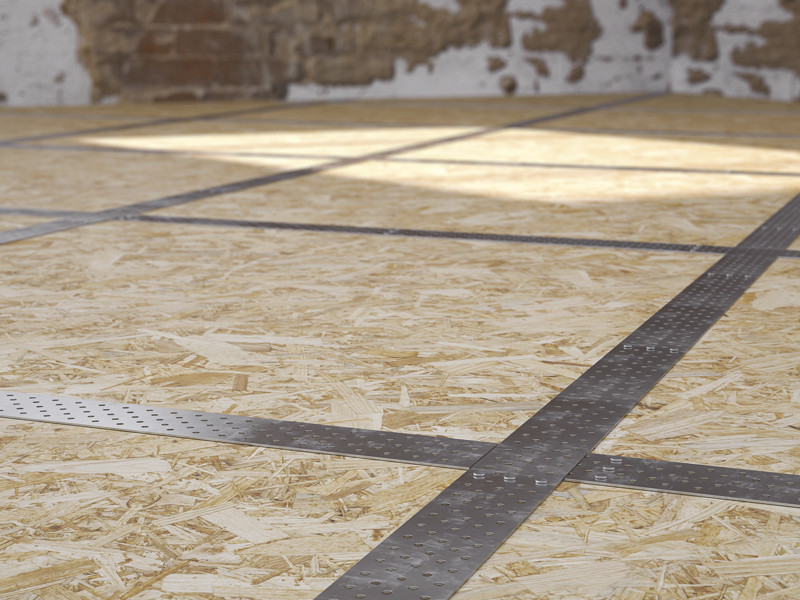

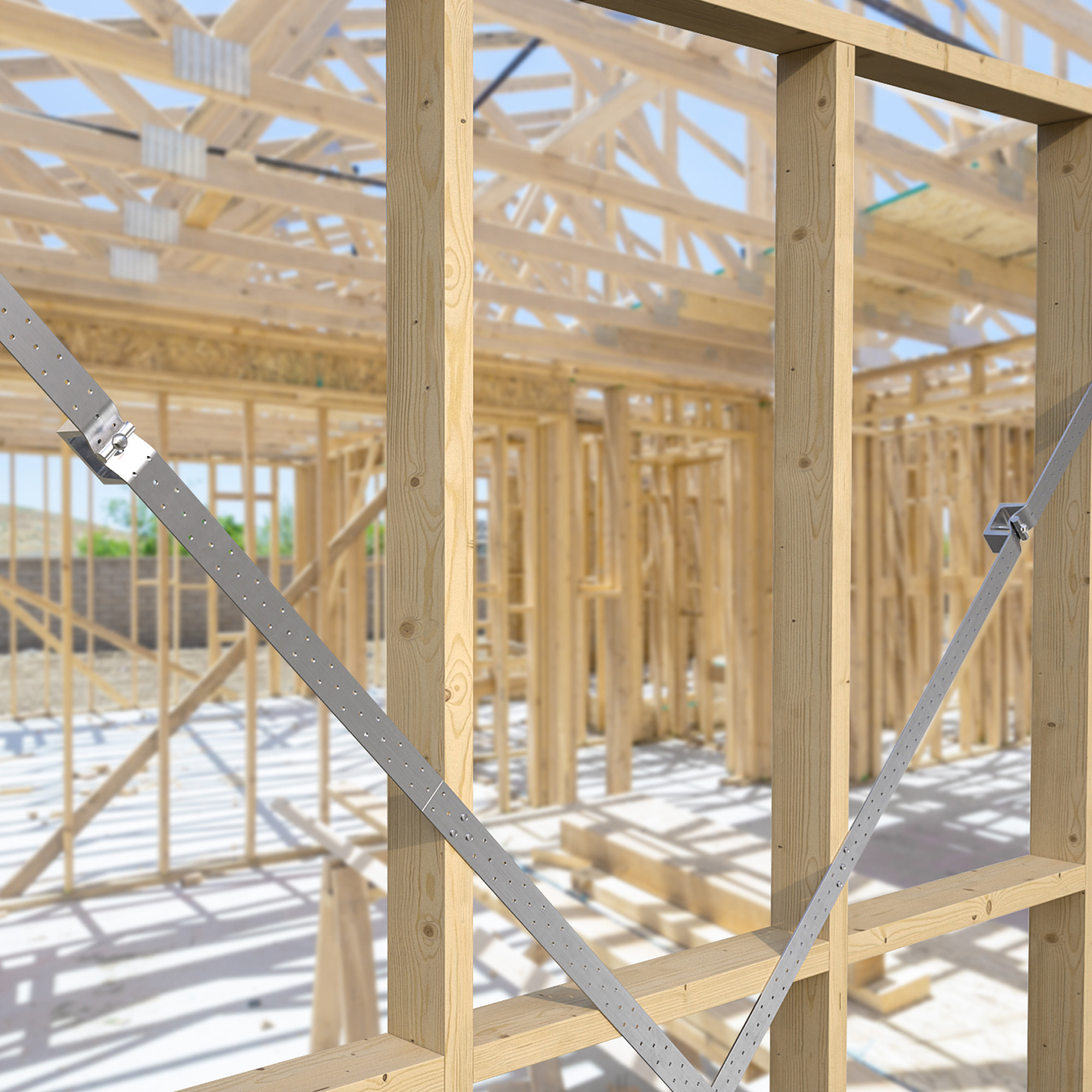

Simple and effective system to achieve floor bracing. It is available in thicknesses of 1,5 and 3,0 mm.
Made with S350 GD high strength steel. The 1,5 mm thick version offers extreme resistance to tensile forces with minimal thickness.
Documents
Technical data sheets
|
|
|---|---|
| Declaration of performance (DOP) | Download |
Item specification
|
|
File CAD
|
|
LBB Calculator – Spreadsheet according to NDS (USA building code)
|
LBB 1,5 mm
| CODE | B
[mm]
|
L
[m]
|
s
[mm]
|
pcs. |
|---|---|---|---|---|
| LBB40 | 40 | 50 | 1.5 | 1 |
| LBB60 | 60 | 50 | 1.5 | 1 |
| LBB80 | 80 | 25 | 1.5 | 1 |
LBB 3,0 mm
| CODE | B
[mm]
|
L
[m]
|
s
[mm]
|
pcs. |
|---|---|---|---|---|
| LBB4030 | 40 | 50 | 3 | 1 |

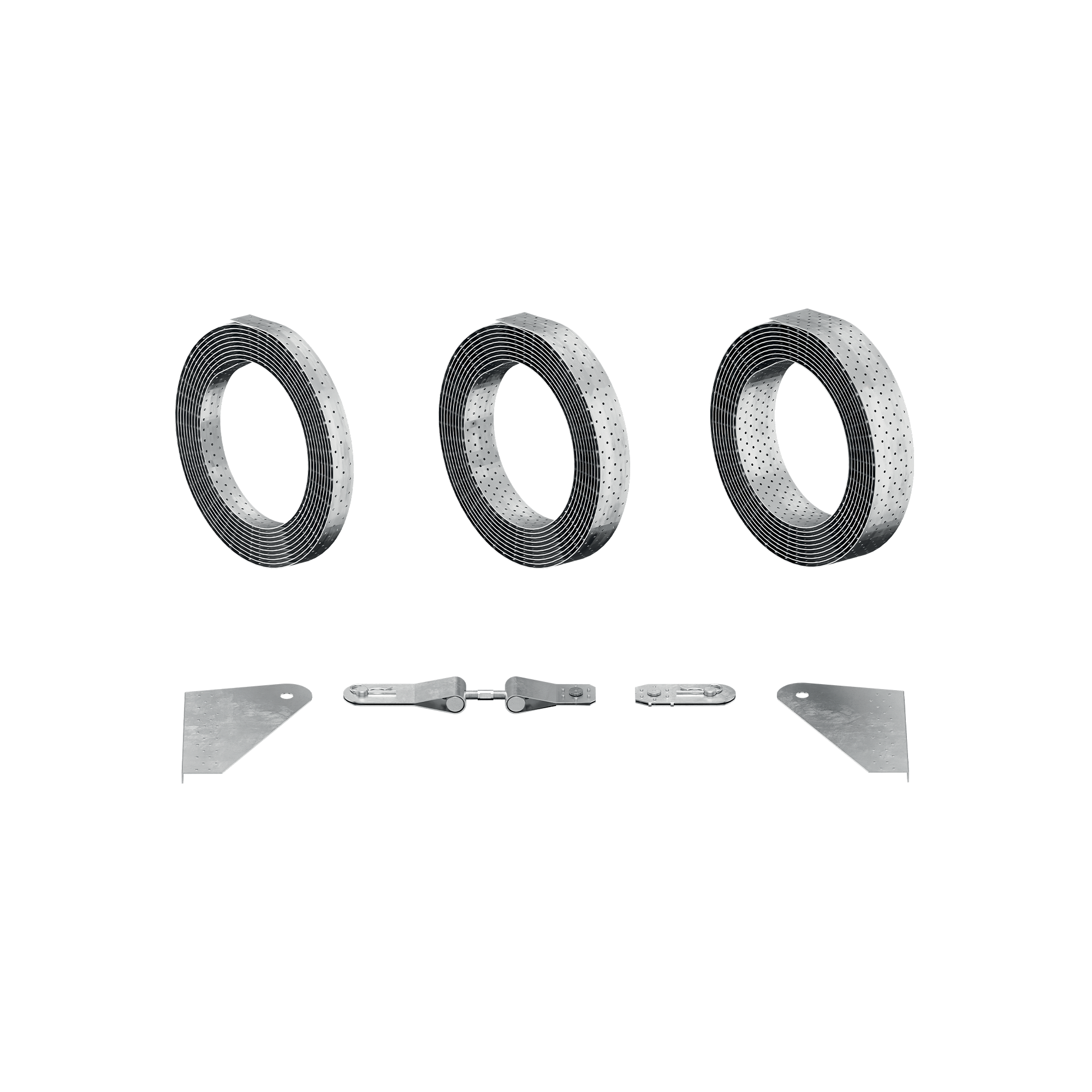

CLIPFIX
| CODE | description | pcs. |
|---|---|---|

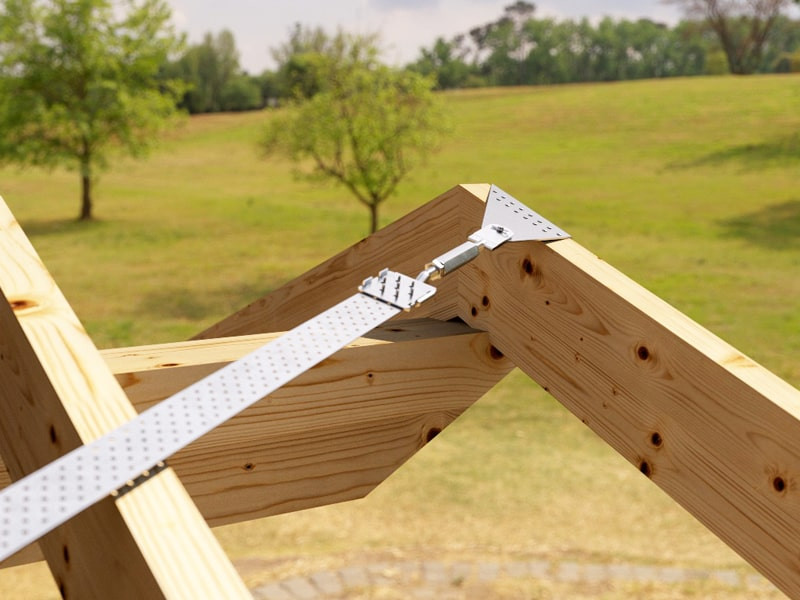

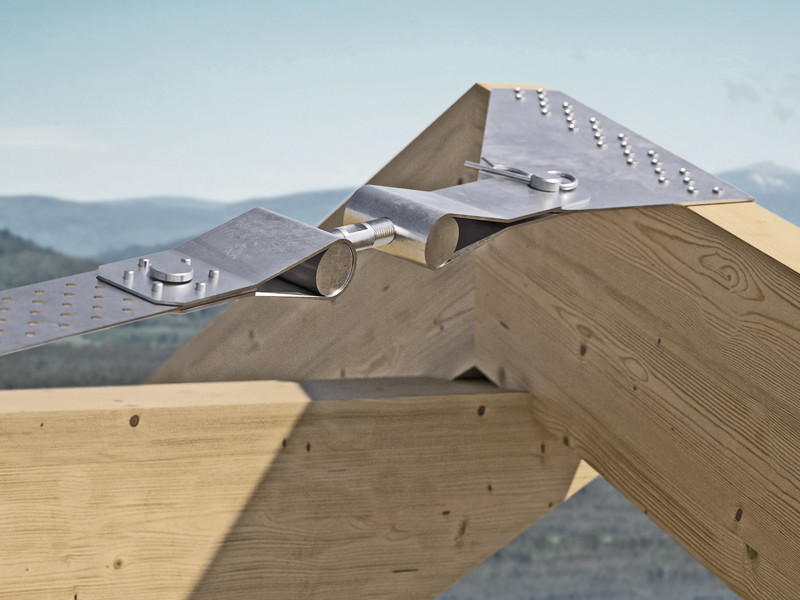

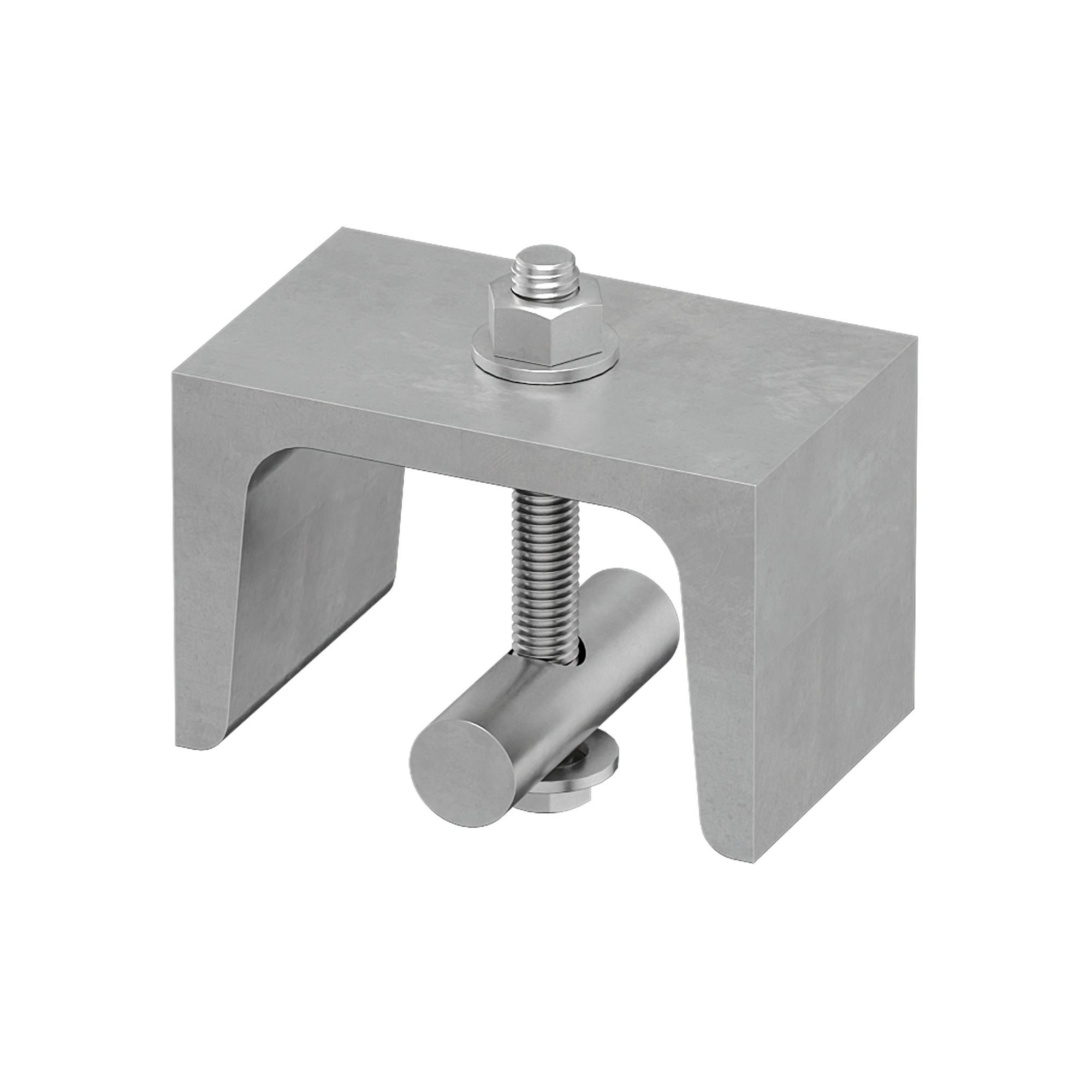

| CLIPFIX60 | Clipfix set for LBB40 and LBB60 perforated straps | 1 |
Specifications
Supply and installation of perforated strap for timber structures, Type LBB.
CE marking in accordance with EN 14545
Field of use:
- Timber-to-timber joint
Material:
- Carbon steel with bright zinc plated perforated strap
Geometry:
– B (mm) = :
– L (mm) = :
- Thickness s (mm) = :
Indications for installation and mechanical performance as reported in the product data sheets and provided by the technical drawings of the project.
